23 x 152mm





TYPE:

Ammunition

DESCRIPTION:

23 x 152mm Ammunition

PRICE:

Upon Request

PACKING:

Ex Works






23 x 152mm ammunition



From New Manufacture





The 23 mm Round with High Explosive Incendiary Tracer Projectile is intended to engage air and ground targets.


The round is fitted with delayed action, self-destruct fuze.


The ammunition is safe in transport, storage and handling and ensures the reliable performance of the gun systems in all weather conditions.



The ammunition is designed for use with guns 2A14, 2A14M, 2A7 and 2A7M of the following 23 mm air-defence gun mounts and their modifications:

· ZU-23-2

· ZSU-23-4 SHILKA






BASIC CHARACTERISTICS

Caliber:

23 x 152 mm

Fuze Arming Distance:

2.5  to 20 m

Self-destruction Time:

5.4 to 12 sec

Operational Temperature Range:

-50 to +50°C

Shelf Life:

15 years

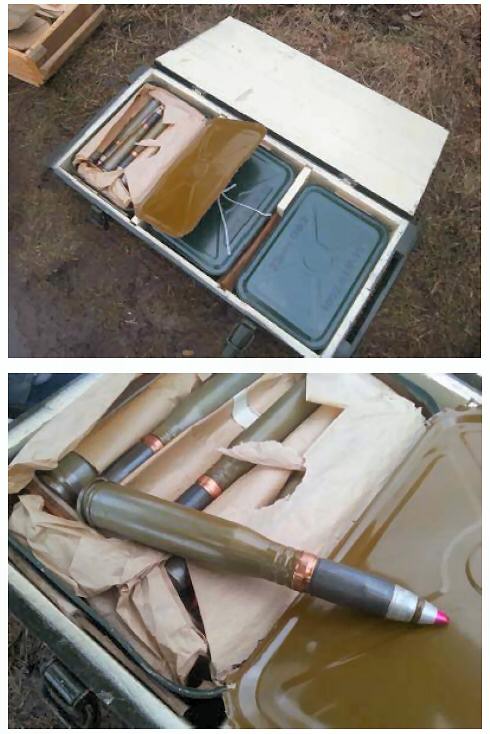

Packing

84 rounds in three air-tight sealed metal

boxes in a wooden cas with dimensions:

875x378x206 mm

Gross weight:

55 kg

Volume:

0.068 cu. m



ELEMENTS OF ROUND

Projectile:

High Explosive Incendiary Tracer

Fuze:

MG-25

Explosive filling:

A-IX-2 (RDX)

Propellant:

5/7 Cfl

Cartridge Case:

steel

Percussion Primer:

KV-3



BALLISTIC DATA

Muzzle Velocity:

960 – 980 m/s

Average Pmax:

2925 kgf/cm2

Maximum range:

2500 m

Maximum altitude:

1500 m



TECHNICAL DATA

Weight of Round:

450 g

Length of Round:

235 mm

Weight of Projectile:

188.5 g

Length of Projectile:

108.2 mm

Weight of cartridge case (steel):

172 g

Length of cartridge case:

151.5 mm

Propellant Charge Mass:

77 g





The 23 mm Round with Armour-Piercing Incendiary Tracer Projectile is intended to engage air and ground targets.

The ammunition is safe in transport, storage and handling and ensures the reliable performance of the gun systems in all weather conditions.



The ammunition is designed for use with guns 2A14, 2A14M, 2A7 and 2A7M of the following 23 mm air-defence gun mounts and their modifications:

· ZU-23-2

· ZSU-23-4 SHILKA.





BASIC CHARACTERISTICS

Caliber:

23 x 152 mm

Armour penetration (at angle

of hit 30° andrange of 1200 m):

10 mm armour plate

Operational Temperature Range:

-50 to +50°C

Shelf Life:

15 years



Packing

84 rounds in three air-tight sealed

metal boxes in a wooden case with

dimensions:

875 x 378 x 206 mm.

Gross weight:

55 kg.

Volume:

0.068 cu. m.



ELEMENTS OF ROUND

Projectile:

Armour-Piercing Incendiary Tracer

Incendiary Composition:

DU-5

Propellant:

5/7 Cfl

Cartridge Case:

steel

Percussion Primer:

KV-3



BALLISTIC DATA

Muzzle Velocity:

955 – 985 m/s

Average Pmax:

2925 kgf/cm2

Maximum range:

2500 m

Maximum altitude:

1500 m



TECHNICAL DATA

Weight of Round:

450 g

Length of Round:

235 mm

Weight of Projectile:

190 g

Length of Projectile:

99.3 mm

Weight of cartridge case:

172 g

Length of cartridge case:

151.5 mm

Propellant Charge Mass:

76 g







The 23 mm Round with High Explosive Incendiary Tracer Inert Projectile is intended for training of crews and comparative tests.

The ammunition is safe in transport, storage and handling and ensures the reliable performance of the gun systems in all weather conditions.



The ammunition is designed for use with guns 2A14, 2A14M, 2A7 and 2A7M of the following 23 mm air-defence gun mounts and their modifications:

· ZU-23-2

· ZSU-23-4 SHILKA



BASIC CHARACTERISTICS

Caliber:

23 x 152 mm

Operational Temperature Range:

-50 to +50°C

Shelf Life:

15 years



Packing

84 rounds in three air-tight sealed        metal boxes in a wooden case with dimensions:

875x378x206 mm

Gross weight:

55 kg

Volume:

0.068 cu. m



ELEMENTS OF ROUND

Projectile:

High Explosive Incendiary Tracer

Fuze:

inert

Inert filling:

sulfur mixture

Propellant:

5/7 Cfl

Cartridge Case:

steel

Percussion Primer:

KV-3



BALLISTIC DATA

Muzzle Velocity:

960 – 980 m/s

Average Pmax:

2925 kgf/cm2

Maximum range:

2500 m

Maximum altitude:

1500 m



TECHNICAL DATA

Weight of Round:

450 g

Length of Round:

235 mm

Weight of Projectile:

188.5 g

Length of Projectile:

108.2 mm

Weight of cartridge case (steel):

172 g

Length of cartridge case:

151.5 mm

Propellant Charge Mass:

77 g





See details at:

23x152 mm API.pdf



Specification and photos are not contractual and are subject to verification upon inspection
