OFFER#

1500 KW CAT XQ1500

TYPE:	Genset
DESCRIPTION:	1500 Kw Caterpillar Generator XQ 1500
PRICE:	Upon Request
PACKING:	Ex-Depot

1500 kw caterpillar generator xq 1500

Subject unsold or market withdrawal

Item Number: 9793

Year: 2000

Manufacturer: Caterpillar

Fuel Type: Diesel

Model: XQ1500

Serial Number: 8RM00566

HP: 1971

KW: 1500

Hz: 60

Voltage: 480

RPM: 1800

Hours: 1075 Since New

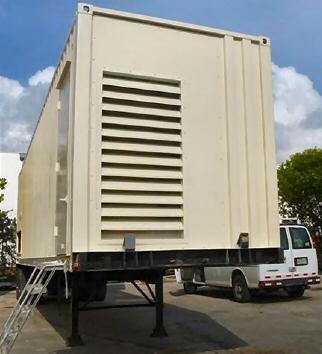

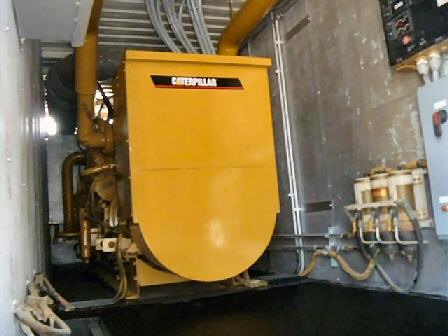

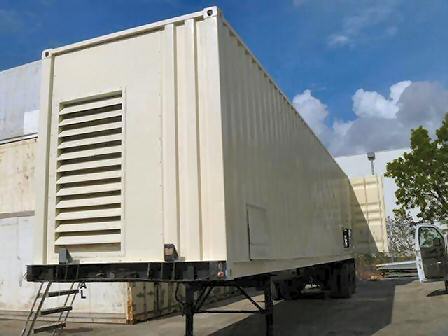

More Information: Caterpillar "XQ1500" Industrial Power Module. Rated at 1500kw, 1971hp, 60hz, 480v, 1800rpm, 3 phase, .8pf. Year 2000, approx. 1075 hours since new. Trailer Mounted, Electric Starter, Electronic Governor, Sound attenuated enclosure, dual jacket water heaters, single bearing generator. Not a Caterpillar factory package. (Recently painted and serviced).

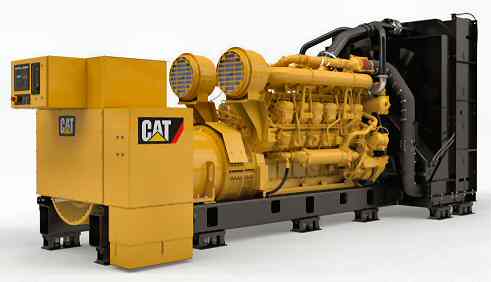

CAT 3512B

We have subject to sales 20 x CAT Diesel generator model 3512B

50 Hz

1,500 KVA Prime

2018 model

QTY KW TYPE OPERATION RPM
20 1500 Open Standard 1500

1. Design
These generating sets have been designed to operate continuously under site conditions of -10 to 55 deg. C.

2. Standards
Our complete range of generating sets comply with the latest British and European standards. When requested
a Lloyds, SGS or Cotecna Certificate of Quality will be issued.

3. 20 x 1500 KW Standard Generating Set
3 . 1 Engine
Manufacturer : Caterpillar
Model : G3512H
Output : 1484 kWm Prime at 1500 RPM
: 1632 kWm Standby at 1500 RPM

Capacity : 59 litres
Cylinders : 12
Cycle : 4 Stroke
Aspiration : Turbo + AC
Comp Ratio : 13.6 :1
Bore : 170 mm
Stroke : 215mm
Governor : Electronic
Start : Electric Start
Cooling : Tropical Radiator
Flywheel : Heavy Duty
Filtration : Air, Fuel and Oil

Instruments : Oil Pressure Gauge, Water Temperature Gauge

Battery Charge Ammeter

3 . 2 Alternator

Manufacturer : Caterpillar
Model : Kato

Output : 1854 KVA Prime at 1500 RPM
2039 KVA standby at 1500 RPM
Voltage : 400V, 3 Phase, 50 Hz, 0.8 PF
Type : Brushless
Self-exciting
Automatic voltage regulation
Tropicalised
Insulation : Class H
Temperature rise : Class H
Degree of Protection : IP23

5. Standard Control Panel
5.1 1500 kW Generating set
EMCP 4.3
MCCB Circuit Breaker, 3 Pole, 400 KVA

7. Accessories
7 . 1 Fuel Tank
Base tank
7 . 2 Silencer
A silencer is included
7 . 3 Electric Start
A 24V electric starting system is supplied
7 . 4 Vibration Dampers
A set of vibration dampers are fitted to the generating sets.
7 . 5 Documentation
The following set of documentation will be supplied with each set :-

Operating manual
Maintenance manual
Wiring diagram
Test Certificate
Guarantee Certificate

See details at:

3512B 1200ekW 50Hz 400V 3300V 6600V 11000V1.pdf

CM20190905-ca44f-14988.pdf

Specification and photos are not contractual and are subject to verification upon inspection
