WHEELLOADERLG969





TYPE:

Loader

DESCRIPTION:

Wheel Loader LG 969

PRICE:

Upon Request

PACKING:

Ex-Works

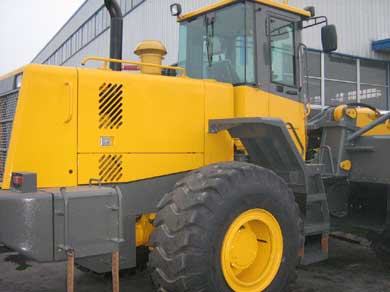

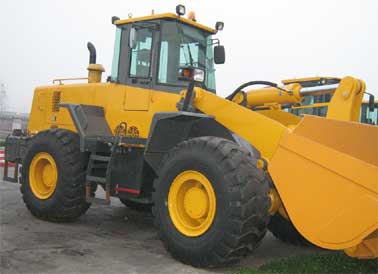

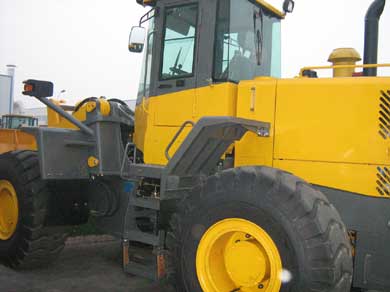

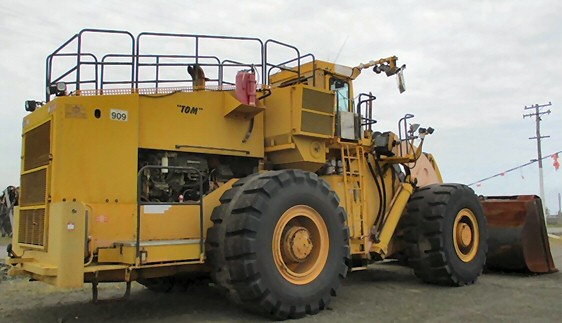

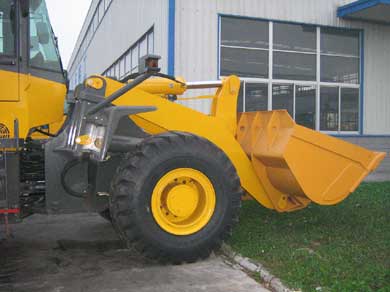

wheel loader lg 969

















LG969 Specifications











1. Technical features

Item

Performance

Item

Performance

Standard bucket capacity (m3)

3.5

Min. turning radius outside rear wheel(mm)

6726

Rated load(kg)

6000

Min. turning radius outside bucket(mm)

7332

Max.traction forceby enginekN

165

Max. break forcekN

198

Static tipping load(kN)

115

Grade ability(°)

30

Travel speed

Speeds

Forward(km/h)

06.5

011.5

023

036

Reverse(km/h)

06.5

011.5

023





2. Dimension and weight

Item

Performance

Item

Performance

LengthWith bucket on ground(mm)

8338

Bucket width(mm)

3210

Height(mm)

3380

Tread(mm)

2144

Width from outside wheel(mm)

2740

Wheelbase (front/back)(mm)

3450

Max Dumping height-450dump angle(mm)

3250

Operating weight(kg)

18400

Min. ground clearance-450dump angel(mm)

1037

Axles

2

Dumping distance(mm)

457

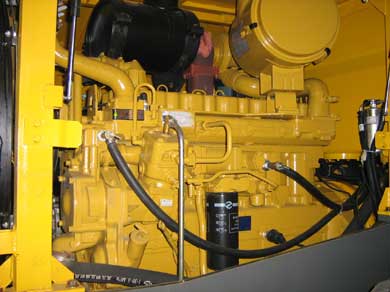

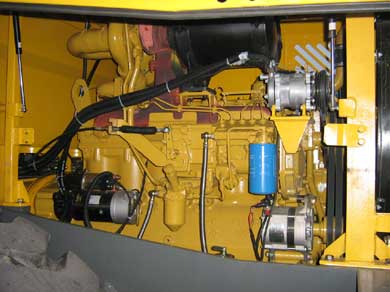

3. Engine

Item

Performance

item

Performance

Model

WD616G.220

Cylinder No.

6

Type

Straight-lined, water cooled,6 stroke

Cylinder bore/strokemm

126/130

Rated power(/kW)

170

Min fuel consumption ration(g/kW.h)

228

Rated rmp(r/min)

2200

Max torque (N.m)

843

Displacementml

9.726

Emission standard





4. Transmission

Item

Specification

Tranmission

Type

Dead axle electrohydraulic shift

Shift

Forward4,Reverse 3

Speed

Forward

4.278

Forward

2.368

Forward

1.126

Forward

0.648

Forward

4.278

Forward

2.368

Forward

1.126

Working pressureMPa

1.41.6

Main drive

type

Single stage, spur gear



Gear ratio

3.7

Final reduce

type

Single stage, planetary shift,



Gear ratio

6.35

Driving axle and tire

type

Driving axle and tire 4X4

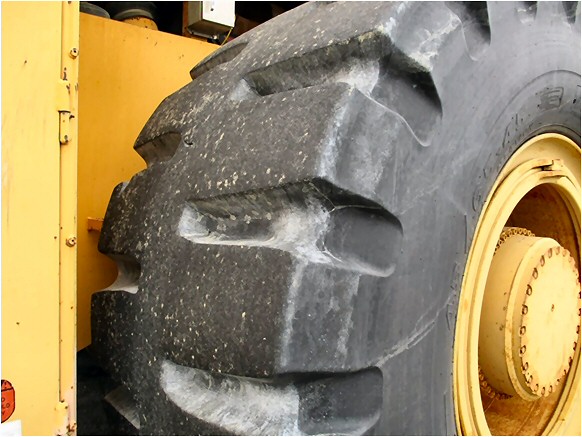

Tire specification

23.5-25

Tire pressureMPa

Front wheel

0.3330.353

Rear wheel

0.2750.294

Break system

Service break

Wet break

Service breakMPa

6

Parking break

Internal expansion type brake





5. Steering system

Itme

Performance

type

Full-hydraulic articulated steering

Pilot –acinated valve

YXL-F250F

Steering Pump

CBGJ2080/1010-XF

Steering cylinder-cylinder bore×piston rod diameter×stroke (mm)

HSGL-100×50×435

Redirector

BZZ-100

Steering angle(°)

35°

Working pressureMpa

14MPa



6. Working system

item

Performance

type

Mechanical and manual control

Boom cylinder- cylinder bore×piston rod diameter×stroke (mm)

HSGL-180×100×798

Bucket cylinder- cylinder bore×piston rod diameter×stroke (mm)

HSGL-210×140×546

Pump

CBGj2080/1010-XF

Multiple directional control valve type

D32

Working pressure

18MPa

Lifting timefull loaded

6.7s

Lowering timeempty

3.5s

Dumping timeempty

1.6s

Total

11.8s



7. Service refill capacities

Item

Performance

item

performance

fuel

300L

Engine

20L

Hydraulic oil

190L

Gear box

45L

Axle(main drive and final reducer

12.5×2L

Break system

4L





LG969 equivalent to 966G & 966H equipped with  CAT engine, ZF transmission and axles.

Made under license in China shipped worldwide and approved for import into USA.

Delivery  30 to 45 days after full payment.

Payment  minimum 40% TT and 60% by L/C













Specification and photos are not contractual and are subject to verification upon inspection
