WHEEL LOADER 520C





TYPE:

Loader

DESCRIPTION:

Wheel Loader 520C

PRICE:

Upon Request

PACKING:

Ex-works





WHEEL LOADER 520C & H

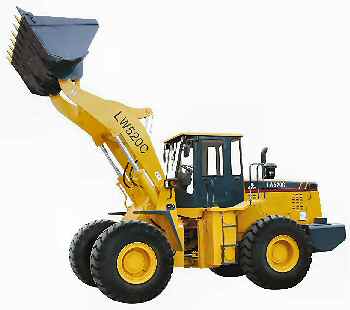

LW520C Wheel Loader Main Specifications




Items

Type of standard load

Type of Height load

Rating loading capacity

5000kg

Bucket capacity

2.7m³ (standard bucket)

optional bucket

2.5m³(rock bucket)3.0 m³3.6m³(lightweight bucket)

Dumping height

3205mm

Dumping reach

1050mm

Max. lifting height

4315mm

System pressure

16Mpa

Arm lifting time

≤6.5s

Arm declining time

≤4.5s

Bucket forward tilting time

≤2.5s

Breakout force

154kN

Min. turning radius (center of outside wheels )

5745mm



Working pressure of steering system

16Mpa

Max. turing angle

38°

Wheelbase

3200mm

Tread

2200mm

Tyre

specification

23.5-25

Air pressure

Front 0.32Mpa  Rear 0.28Mpa

Operation weight

16.5t

Figure dimension

Overall length

7785 mm

Overall width

3000 mm

Overall height

3350 mm

Brake system

Air pressure of brake system

0.6 - 0.8 Mpa

Service brake

Air-hydraulic combination

Item

Type of Height load



Travel speed



Forward 1st gear

10km/h

Forward 2nd gear

34km/h

Reverse 1st gear

13km/h

Diesel engine

Model

6CTA8.3-C215

Rating power

162kw

Rating rev.

2200r/min

Min. specific fuel consumption

215g/kw.h



Transmission system





type of torque converter

Dual-turbine type

Stall torque ratio

4

Oil pressure of torque converter inlet

0.3 - 0.45 Mpa

Type of Gearbox

Planetary, hydraulic power shift

Oil capacity

Fuel tank

278L

Hydraulic system

278L

Engine oil

20L

Gearbox

45L

Axles and final drive

83L

Brake system

3.52L



Axles



Type of main transmission

Spiral bevel gear

Reduction ratio

5.286

Type of final drive

Spur planetary gear

Reduction ratio

4.26

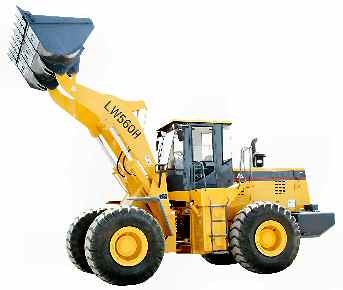

LW560H Wheel Loader Main Specifications









Items

Type of Height load

Rating loading capacity

5000kg

Bucket capacity

3.0m³ (standard bucket)

Dumping height

3160mm

Dumping reach

1105mm

Max. lifting height

4335mm

System pressure

16Mpa

Arm lifting time

6.5s

Arm declining time

4 s

Bucket forward tilting time

1.5s

Breakout force

154kN

Min. turning radius (center of outside wheels )

5745mm

Working pressure of steering system

16Mpa

Max. turing angle

38°

Wheelbase

3200mm

Tread

2200mm

Tyre

specification

23.5-25

Air pressure

Front 0.32Mpa  Rear 0.28Mpa

Operation weight

16.5t

Figure dimension

Overall length

8065 mm

Overall width

3050 mm

Overall height

3500 mm

Brake system

Air pressure of brake system

0.6 - 0.8 Mpa

Service brake

Air-hydraulic combination

Hand service brake

Two shoes internal expanding drum brake

Item

Type of Height load



Travel speed



Forward / Reverse 1st gear

6.5km/h

Forward/ Reverse 2nd gear

11.5km/h

Forward / Reverse 3rd gear

23km/h

Forward 4th gear

37km/h

Diesel engine

Model

6CTA8.3-C215 (or C6121)

Rating power

160kw

Rating rev.

2200r/min

Min. specific fuel consumption

215g/kw.h



Transmission system





type of torque converter

Single-pump wheel YJH340

Stall torque ratio

4

Oil pressure of torque converter inlet

0.3 - 0.45 Mpa

Type of Gearbox

Electric cabinet WG180

Oil capacity

Fuel tank

300L

Hydraulic system

300L

Engine oil

20L

Gearbox

45L

Axles and final drive

34L

Brake system

3.52L



Axles



Type of main transmission

Spiral bevel gear

Reduction ratio

5.286

Type of final drive

Spur planetary gear

Reduction ratio

4.26












WHEEL LOADER TCM E 806-2





2004 TCM E 806-2 Wheel Loader

S/n HFK4E300J00004593

2,914 hours

OROPS

Quick Attach

.8 cu. Yd. G.P. Bucket

Forks

15.5 /60-18 Tires @35%

Kubota turbo Diesel engine

1 owner clean





Specification and photos are not contractual and are subject to verification upon inspection
