WATER BUNGALOW





TYPE:

Bungalow

DESCRIPTION:

Water Bungalow

PRICE:

Upon Request

PACKING:

Ex-Works





water bungalow



From new manufacture

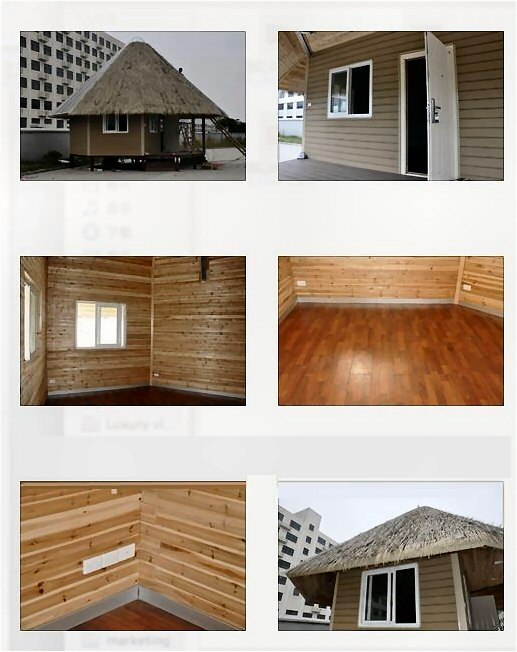

This is our water bungalow, the house is light steel structure,then decorated with the finishing material.


Looks nice and would be high quality. The light steel structure can suffer from 8 degree earthquake and 60m/s wind, the strength of a typhoon . The light steel structure are all galvanized, which is
resistant to sea corrosion,the structure have a long lifetime of 50 years.



Includes the bathroom / shower and toilet but do not include the kitchen


Material:

Wooden,Log

Use:

Hotel,House,Office,Shop,Villa

Main structure:

Light Gauge Steel

Wall material:

Wooden/ALC panel/fibre cement cladding+MGO board/gypsum boa

Insulation material:

Glass wool EPS/XPS/UP sandwich panel

Ceiling material:

MGO board/gypsum board

Floor/foundation material:

Laminate flooring/wooden/PVC carpet

Door:

Steel security door/WPC or wooden door

Window:

Aluminum alloy/PVC

Roofing:

EPS sandwich panel/steel roofing/asphalt shingle

Other fittings:

Toilet,washbasin,shower,kitchen etc.

Life time:

50 years for structure

Packaging & Delivery

Packaging Detail:

Light gauge steel in bulk,decorate panel material in pallet,other fittings all in boxes,loaded into 40'HQ and 20`GP sea container.

Delivery Detail:

Depends on the building area,normal 35 days

Specifications

 Wooden home

1.earthquake, hurricane,fire proof;
2.steel frame for structure;
3.energy saveing;
4.green.

ISO standard light gauge steel for main structure. fireproof, heat insulation,wind and earthquake resistance green energy save.

Why Choose Light Gauge Steel Structure?

1) Lifetime for structure: 100 years.

2) Earthquake resistance: mix more than 8 grades.

3) Wind resistance:max 60m/s.

4) Fire resistance:all the materials used can be fire resistance.

5) Snow resistance:max 2.9KN/mas required

6) Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.

7) High acoustic insulation:60db of exterior wall 40db of interior wall

8) Insect prevention: Free from the damages by insects, such as white ants

9) Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean

10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.

11) Installation:the average is one worker one day install one SQM.

12) Installation guide:dispatch engineer to guide on site.



 Design code:

(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.

(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.





Specification and photos are not contractual and are subject to verification upon inspection
