VIGO

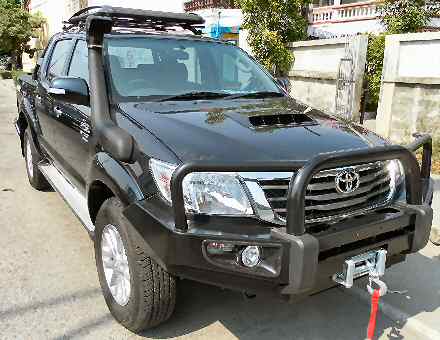

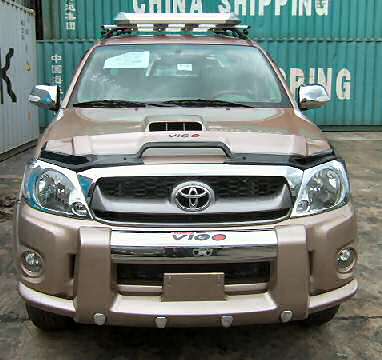

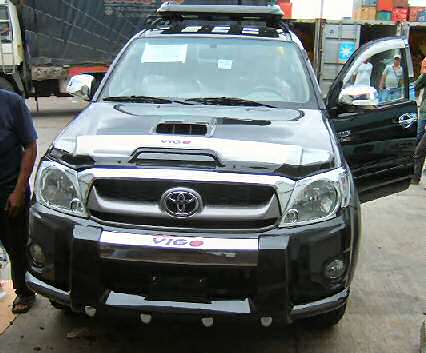

toyota hilux vigo double cab

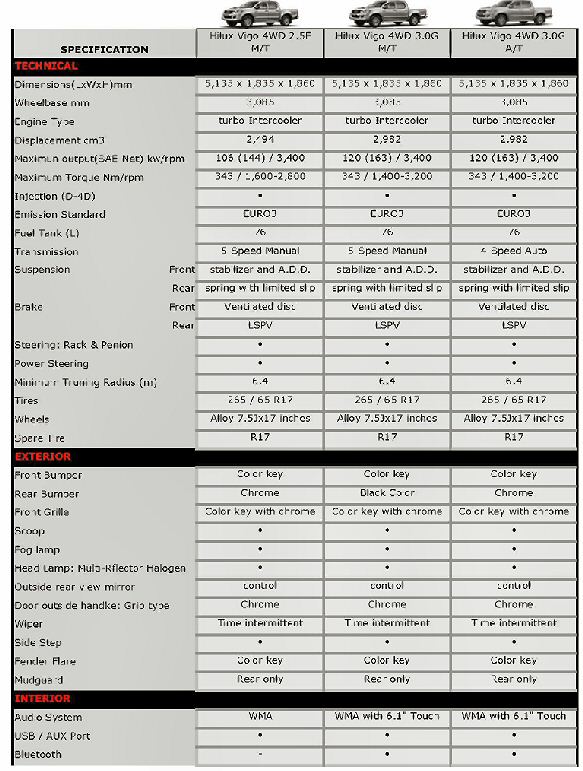

HILUX VIGO Double Cab 4x4   Drivetrain : 4WD Engine : 2494cc,　2982cc Transmission :AUTOMATIC 4 SPEED,　MANUAL 5 SPEED       Grade   3.0 G 3.0 E 2.5 E Model Code KUN26R-CRMSYT ( AN ) KUN26R-CRMSYT ( AM ) KUN25R-CRMSHT ( AJ )         Size and Weight Outside dimension mm. 5130 x 1795 x 1810 ( L x W x H ) Wheel length mm. 3085 Wheel width mm. 1540 x 1540 ( Front / Back wheel ) Ground clearance mm. 212 Tray interior mm. 1515 x 1805 x 450 ( W x L x H ) Interior mm. 1475 x 1840 x 1190 ( W x L x H ) Weight (approximately) kg. 1550 1540   Engine Engine model 1KD FTV 2KD-FTV ( I/C ) Engine type 4 Cylinder DOHC 16 valve variable nozzle turbo & intercooler 4 Cylinder DOHC 16 valve turbo & intercooler Displacement cc. 2982 2494 Bore x Stroke mm. 96.0 x 103.0 92.0 x 93.8 Compression ratio 17.9 : 1 18.5 : 1 Max output (SAE net) kw(EEC net)/rpm 120 ( 163 ) / 3400 88 ( 120 ) / 3600 Max torque (SAE net ) (N-m)/rpm 343 / 1400 - 3200 320 / 2000 Fuel providing system Direct Injection Commonrail type Fuel tank capacity litre 76 Emission Standard Euro 3   Chasis Driving system 5 speed manual Gear ratio : 1 4.313 : 2 2.330 : 3 1.436 : 4 1.000 : 5 0.838 Reverse 4.220 Final gear ratio Per 1 3.583 3.909 Suspension Front   Independent-wishbone, torsion bar with stabilizer and automatic cutout ( A.D.D. ) Back Regid-elliptic leaf springs with limited slip Brake Front Ventilated Discs Back Drum with brake oil valve SUPER LSPV with LTS Power Steering Power assisted Rack and Penion Min. turning radius m. 6.2 Tyre 255 / 70R15C Wheel Alloy wheel size 7JJ x 15       General equipment Exterior Bumper bar Body Coloured Front grill Body Coloured with Chrome Front light Halogen multi reflector Door mirrors Chrome Electronically Adjustable Mud flaps Only 2 wheels at back side Door handles ( Grip Type ) Chrome Wiper Time Setting   Interior Instrument panel :   Tachometer   Kilometer Digital Warning signal :   Fuel level   Oil filter light   Headlight- turn off warning sound   Key warning sound   Door-closed warning light   Seat-belt warning light On driver side Interior lights :   Ashtray With Light Rear mirror Reduction of light -reflecting Audio :   Radio-cassette   Speakers 4 Antenna Front position Steering wheel Adjustable Urithene 4 spokes Type Urithene 4 spokes Urithene 3 spokes Hand brake at center console Sun visor :   Driver side With name card keeper Passenger side With small mirror Power windows   Central lock   Key remote   x Alarm system and key immobilzer   x Power socket 1 Socket 12 Voltages Interior handles 3 positions at front Door console :   Type Standard Material Velvel Arm rest Front Seats : Separated type Type Separated type Material Velvel creamy colour Front seats : Adjustable With walk-in system Backward adjusting   Height level adjusting   Pillow   Back seats : Type x Pillow x Fuel cap release   Glove box :   Center console With cover Top console   Bottom console With key Sun glass box Same position of light map Door console 2 doors with bottle holder Cup holder : 2 positions at front console 1 postion at center console   With key   With bottle holder Cup holder : 2 positions at front console Foot rest     Active Safety ABS   x Third brake light   Fog lights   x Heated rear windscreen   Interior door locking x       Passive Safety GOA Body   Side racks   Windscreen Safety glass Air bag Only driver side x Seat belts   Front seats ELR 3 points 2 positions Rear seats X Adjustable Front passenger seat and drive seat Collision protection body   Collapsable steering wheel   Side impact protection   Automatic oil valve cutting     Extra Equipments Air-con   With control switch rotate-type Audio 1 CD with MP3   X Rear bumper Chrome Wheel arch Body coloured Side step   Fog lights   X

Toyota RHD Hilux Vigo

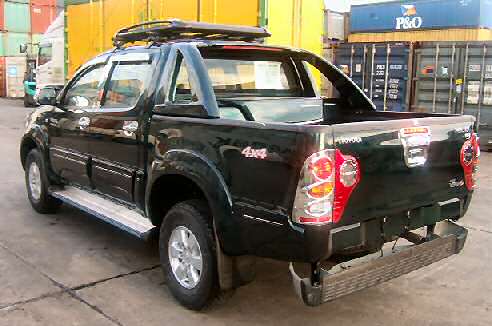

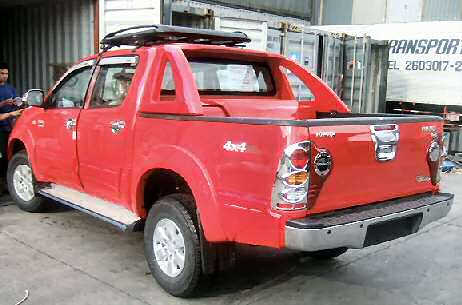

Double Cabin 4x4

Single cabin - available only in MT 4x2 - have diesel 3.0PS, 2.5PS, 2.5 no power steering, gasoline 2.7, CNG/NGV 2.7
