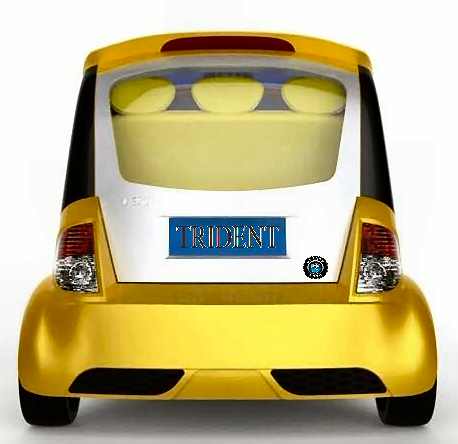

TRIDENT TRICAR





TYPE:

Tricar

DESCRIPTION:

Trident Tricar Nifty

PRICE:

Upon Request

PACKING:

Ex-Works

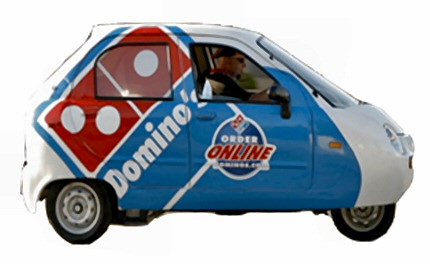

trident tricar nifty



From new manufacture





Trident Nifty 600cc engine 6 units per 40HQ air condition available on this model as extra

Trident Nifty 250cc engine, 6 units per 40HQ

 Maximum speed: ≤95km/h
 Economic speed: 60km/h
 Fuel consumption: ≤3.7L/100km
 Climbing ability: ≤20
 Turning circle diameter: ≤7.5
 Brake distance (30km/h): ≤7.5m
 Track: 1,232mm
 Wheelbase: 2174mm
 Ground clearance: 160mm
 Net weight: 610kg
 Rated passenger number: 4 persons (including driver)/300kg

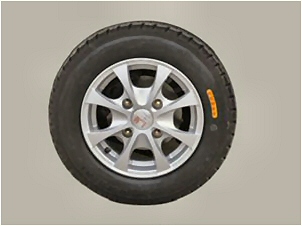

 Front wheel specification/tire pressure: 145/70R12/250kPa
 Rear wheel specification/tire pressure: 145/70R12/250kPa
 Front wheel turning angle (L/R) maximum: 28/28
 Dimensions: 3,140 x 1,500 x 1,525mm
 Engine type: two cylinders, 4-stroke, and water forced cooling
 Bore x stroke: 72 x 72mm
 Maximum power: 26kW/5,500rpm
 Rated power: 25kW/5,500rpm
 Maximum torque: 52N.m/3,000 to 3,500rpm
 Minimum stable speed without load: 1,000 60rpm
 Displacement: 600mL
 Compression ratio: 9.5:1
 Fuel brand: ≥RQ-93
 Starter: electric start
 Lubrication: forced splash lubricating
 Ignition: CDI
 Spark plug: RK06G
 Oil/brand: 5W30/10W30SG above

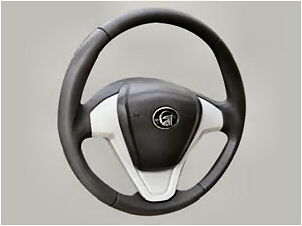

 Steering: Left handle drive or right handle drive
 Clutch: dry
 Transmission: 4 gear, constant mesh gear
 Fuel tank volume: 20L
 Battery volume: free maintenance, 47Ah
 Engine warranty: one year or 50,000km
 6pcs/40HQ container or 2pcs/20GP container
 Payment Term :L/C or T/T
 Optional colors: red, yellow, green, white, and blue
 Materials of body: metal
2pcs/20GP; 6pcs/40HQ





Trident 3 Wheel EEC Electric Car







TS100104



Motor: Separately excited DC 5KW  Battery: 12V/150AH*6  Max. Rotating speed: 2800r/min  Max.torque:71.4NM/2800r/min  Climbing ability:≤18  Rated current: 86.8A  Battery life: 2 years or 500 times recharge  Dimension (L*W*H):3140*1500*1525mm

Wheelbase (mm):2140  Max.Speed (km/h):75  Economic speed (km/h):60  Cruising range (km):150  Rated passenger number: 4 persons  5 units in one 40HQ container

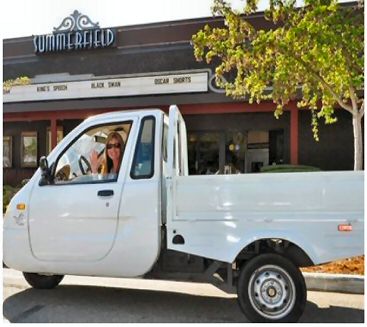

Trident EEC - Electric Tricycle Truck

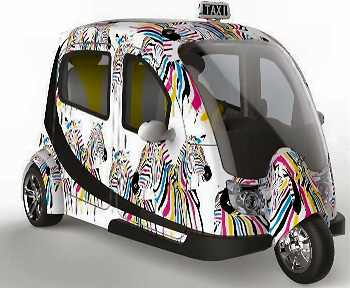

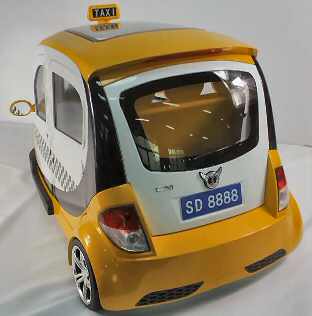

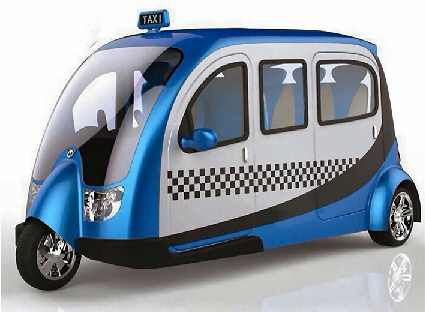

TAXI









Specification and photos are not contractual and are subject to verification upon inspection
