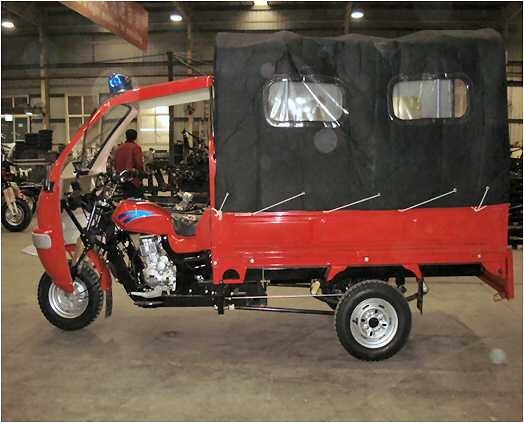

TRICYCLE AMBULANCE





TYPE:

Ambulance

DESCRIPTION:

Tricycle Ambulance

PRICE:

Upon Request

PACKING:

Upon Request





tricycle ambulance



From New Manufacture




SPECIFICATION



Dimension (mm) 325012801350


Axle Base (mm) 2350
Wheel Base (mm) 2060
Min ground clearance(mm) 160
Net weight (kg) 365
Rotated load (kg) 350
Max speed (km/h) ≥55.0
Front Brake  Drum /hand
Rear Brake      Drum/hand
Parking Brake system(Tricycle) Drum
Driving wheel circle (mm) 1689
Engine specification Type  162FMJ
Model  Single cylinder, air cooling, 4-stroke
Bore* stroke (mm) 67.065.0
Displacement (ml) 149
Compressed ratio  9.2:1
Rotated power and speed kW/(  r/min) 11.0/6500325
Max power and speed kW/(  r/min) 11.5/6500325
Max Torque and speed Nm/(r/min) 17.5/5500275
Idle speed  (r/min) 1400100
Min fuel consumption g/(kWh) 354
Lubricate mode Pressure Splash
Lubricant type 15W/40SE
Ignition  CDI



LOADING QUANTITY: 25 units/40HQ(SKD)

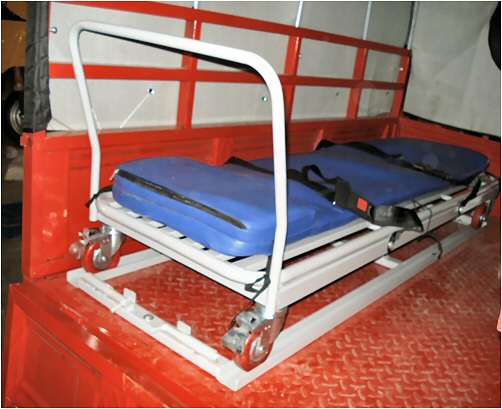

Condition: three wheel, exchange,one long seat for nurse or family member of patient, siren, IV hanger, empty medical case, stretcher. Using stronger chassis(size 40*80), and better floor for cargo box, higher guardrail to avoid fall out







Specification and photos are not contractual and are subject to verification upon inspection
