Trax Cash In

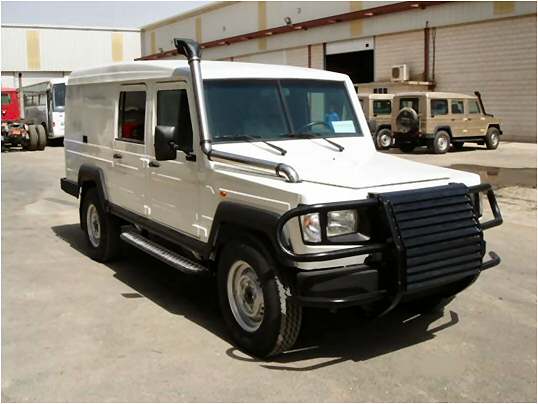

FORCE TRAX CASh in transit vehicule
Force Cruiser DT
(Cash In Transit)
European Level B6 –
NIJ Level III
Turbo Diesel- 3250 FTI
5 Cylinder, 4 Stroke, Vertical Inline DI (Diesel
fuel tank capacity 63ltrs)
Max Output 100bhp (ISO) @ 3200 RPM
Max Torque 265 Nm. @ 1800-2000 RPM
Sump capacity 7.5 Ltrs
G1 18/5 5 speed
Gear lock synchromesh on forward gears
forward, 1 reverse
Single plate, dry friction, hydraulically actuated
Suspension & Brake System
Independent torsion bar with hydraulic telescopic
shock absorbers & anti roll-bar
Rear semi elliptical leaf springs with hydraulic
telescopic shock absorbers
Hydraulic dual circuit with front solid disc brakes
& rear drum brake
Dimensions & Gross
Overall width 1660
Overall length 4832
Overall height 2055
Min. Ground Clearance 225
Gross Vehicle weight 3500kg approx(This includes
Power assisted steering
16” Steel wheel rims
6mm Tubular ladder chassis frame
Turning Radius 7.0 mtrs
Specifications of Armor &
sided armoring of passenger cabin to give maximum
protection against 7.62 x 51mm Nato ball in
accordance with EN 1522 & EN 1063 European level B6
– NIJ Level III
C & D pillars are protected with armor, as are front
fenders, (wings) rear wheel arches & firewall.
structural rigidity to the overall vehicle.
All passenger doors are fitted with overlap system
and antispall guard which provides maximum strength
retention to prevent penetration through door posts
Vehicles armor plates are stitch-welded using
high-intensity MIG welders. This process ensures the
structural integrity is uncompromised by thermal and
chemical variations of the material.
The glass is installed using ballistic grade steel
frame for added protection which gives extra support
to help prevent cracks & fractures. This also
provides added protection for these potentially weak
areas, which are commonly missed by other
The hinges are bolted directly onto the armor
through the pillars & the doors to prevent stress on
the hinges and the internal panels which otherwise
will lead to cracking under the extra weight.
Flat glass, PVB/polycarbonate laminate
6.2kgs./sq.ft(13.7lbs/sq.ft) – Thickness is 39mm
(Replaces all OEM glass).
Glass is manufactured under strictly controlled
conditions, using only the highest grade materials.
Anti-Spall shield protects against glass splinters,
chemical attacks. Autoclave temperature allows the
polycarbonate to lose its memory to prevent
delaminating & internal stress.
The glass also
provides multi hit protection.
The ballistic performance of bullet resistance glass
can be diminished when the glass is exposed to high
temperatures; Solar Plus ensures total ballistic
resistance performance for a longer period of time.
Glass is tested in accordance with European Level B6
– NIJ Level III
All electrical equipment standard to this vehicle is
tested and shielded as necessary to protect against
the armoring process.
Standard Security Features
Runflat devices fitted in all wheels including the
Fuel tank & water separator encased with ballistic
steel to protect against explosive projectiles
All four passenger doors fitted with heavy duty
webbed door straps
Battery is protected within an armored box in the
Exhaust protection to prevent foreign objects being
Suspension is reinforced or modified as necessary to
compensate for the additional weight.
Vehicle tire jack (upgraded if necessary to lift
additional weight of armor) & tire iron.
Internal security door is fitted with view port
Passenger rear seats are split into single seats
Gun port with view ports are fitted on the rear barn
Extra secure locks fitted on rear barn door &
Spare wheel mounted inside secure compartment
Rear barn door windows are tinted
Company warranties any armor related items installed
against manufacturer's defects for a period of 12 months
or 20,000KM which ever comes first. Any suspected
warranty related work must first be confirmed as being
necessary by means of technical consultation with a
representative of the manufacturer. Technical
consultation regarding any repairs or malfunctions is
available by telephone, fax or email
during normal operating
Ballistic Protection Level Details
Specification and photos are not contractual and
are subject to verification upon inspection
