Standard Vehicle Specifications
Engine
Petrol V6 240hp VVTI
6 Cylinder, 24 valve DOHC
4000cc (duel fuel tank capacity 138ltrs)
Max Output 240 hp @ 5200 RPM
Max Torque 38.3 kg.m @ 3800 RPM
Electronic fuel
injection
Transmission & Steering
5-Speed Automatic transmission
Rear differential lock
Tilt & telescopic steering
column
Suspension & Brake System
Torsion bar double wishbone & stabilizer bar
independent suspension
4 link-type rigid axle with
coil spring & stabilizer bar
Ventilated disc brakes
ABS-EBD brake assist
Dimensions & Gross Vehicle Weight
Wheel base 2850mm
Overall width 1970mm
Overall length 4950mm
Overall height 1890mm
Turning Radius 5.9mtr
Features
Air Conditioning
Smart key system with start
stop button
17" Steel wheel rims
Fabric seats
Cool box
Towing hook
CD Player 1CD with 6SP
Hatch style rear door
Specifications of
Armor & Vehicle Alterations
Five
sided armoring of passenger cabin to give maximum
protection against 7.62 x 51mm Nato ball in
accordance with DIN EN 1522 & DIN EN 1063 European
level B6 NIJ Level III & BRV1999
A, B, C & D pillars are
protected with armor this includes rear wheel humps
& firewall. This adds structural rigidity to the
overall vehicle.
All passenger doors are fitted
with overlap system which provides maximum strength
retention to prevent penetration through door posts
& pillars, roof will protect against 45 degree angle
shots.
Vehicles armor plates are
stitch-welded using high-intensity MIG welders. The
above process ensures the structural integrity is
uncompromised by thermal and chemical variations of
the material.
The glass is installed using
ballistic grade steel frame for added protection
which gives extra support to help prevent cracks &
fractures this also provides back up protection
around these potentially weak areas which are
commonly missed by other manufactures.
The door hinges are replaced
with custom-engineered heavy duty hinges bolted
directly onto the armor through the pillars & the
doors this prevents stress on the hinges and the
internal panels which usually crack under the
strain.
Floor is fitted with
blast protection to protect occupants against
fragmentation from simultaneous detonation of 2
DM-51 German ordnance hand grenades or equivalent
Transparent Armor
Curved glass, PVB/polycarbonate laminate
6.2kgs./sq.ft(13.7lbs/sq.ft) Thickness is 39mm
(Replaces all OEM glass.
Glass is manufactured using
quality & strict selection of materials which
provides the following features, Anti-Spall shield
protects against glass splinters, chemical attacks.
Autoclave temperature allows the polycarbonate to
lose its memory to prevent delaminating & internal
stress. The glass also provides multi hit
protection.
The ballistic performance of
bullet resistance glass is diminished when the glass
is exposed to high temperatures; Solar Plus ensures
total ballistic resistance performance for a longer
period of time.
Glass is tested in accordance with EN 1522 & EN
1063 European Level B6 NIJ Level III & BRV1999
Electrical
All
electrical equipment standard to this vehicle shall
be tested and modified as necessary to protect
against the armoring process.
Standard Security Features
Runflat devices fitted in all five wheels (
Hutchinson)
Fuel tank & sub tank encased
with ballistic steel to protect against explosive
device projectiles

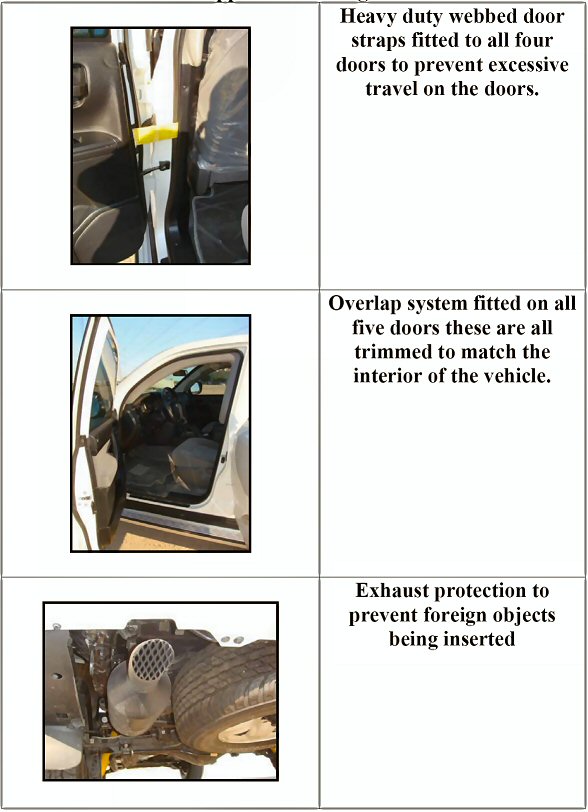

All four passenger doors fitted
with heavy duty webbed door straps
Battery is protected within an
armored box in the engine compartment
Exhaust protection to
prevent foreign objects being inserted

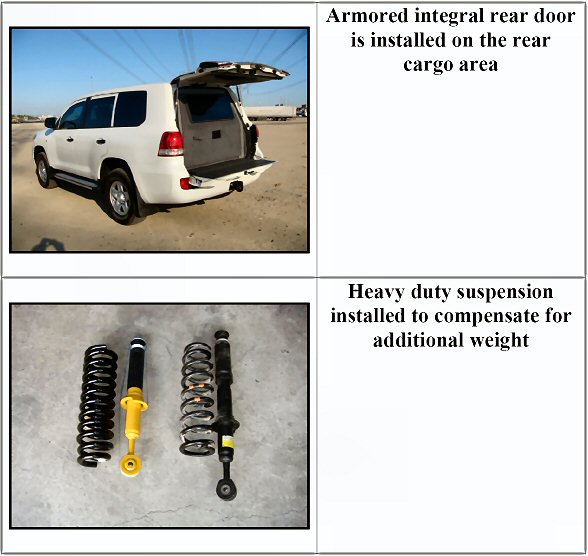

Suspension is upgraded
with heavy duty front & rear shocks, springs & front
tie bar to compensate for the additional weight
Vehicle tire jack (upgraded if
necessary to lift additional weight of armor) & tire
iron.

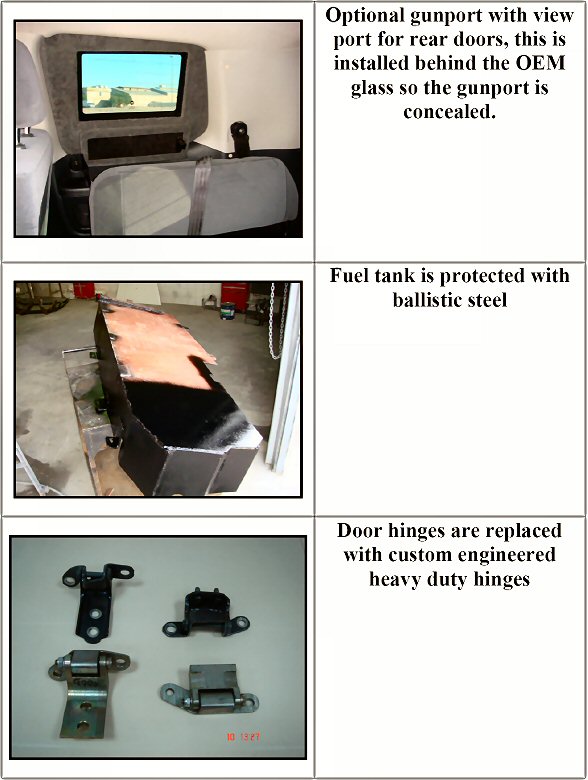

Gun-ports installed below both
L/H & R/H quarter windows
Note: All gunports are concealed and are
not visible from the outside. The appearance of the vehicle
is not altered so we can maintain as close to an original
look as possible.
Warranty
Manufacturer
warranties any armor related items installed, and conversion
related workmanship, for a period of one year or 20,000KM
which ever comes first. Any suspected warranty related work
must first be confirmed as being necessary by means of
technical consultation with a representative of the
manufacturer Technical consultation regarding any repairs or
malfunctions is available by telephone, fax or e-mail during
normal operating hours.

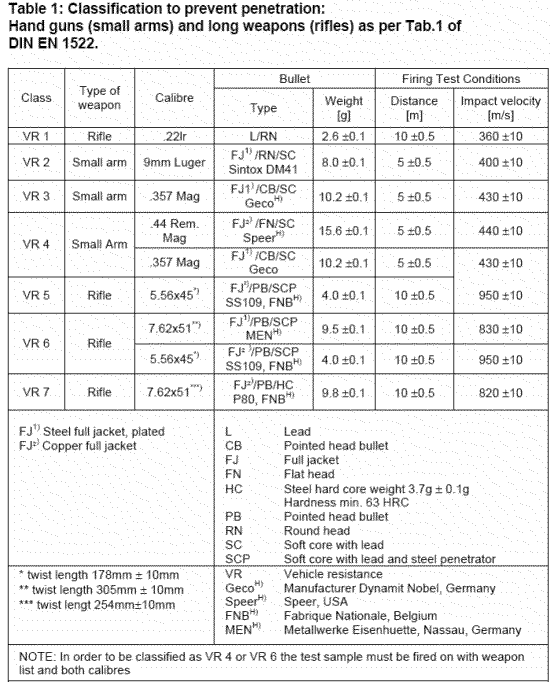

Ballistic Protection Level Details
(Please refer to VR6 for this vehicle) |
