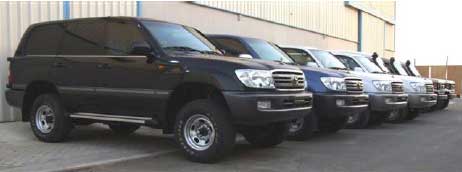

Toyota Land Cruisers Armored B6 Fitted with Jammer
armored toyota land cruisers fitted with IED jammer protection

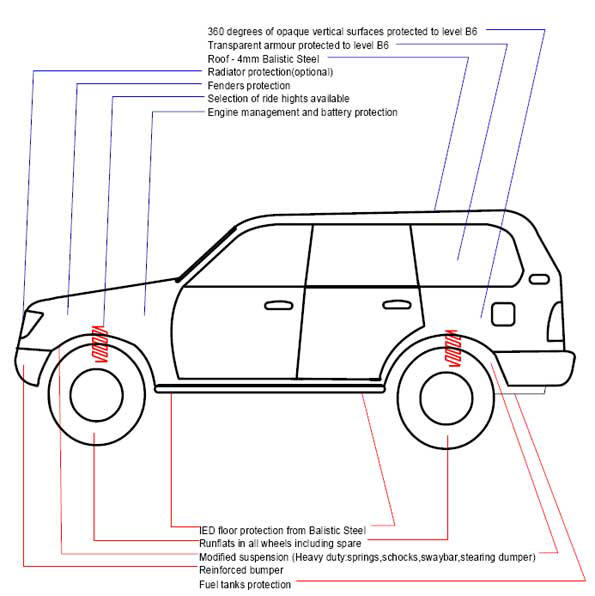

Armoring Configuration for level B6
Armoring features include:
footwells, fenders, doors, A, B and C pillars, cargo sides, rear
bulkhead and wheel arches protected to level B6 for direct strikes
protected to level B6 angle of incidence fire (direct hit AK47) or
optionally B6 direct hit
angle of incidence protection for main and auxiliary fuel tanks
battery, engine management and brake booster protection
reinforcement and modified heavy duty door hinge replacement allowing
the weight of doors to be transmitted onto the reinforced ballistic
armour around all glass and door apertures with splash guards to prevent
penetrations into the cabin from direct and angled strikes or ricochet
glass anchoring for enhanced blast survivability
interior ballistic steel structure provides overlap and reinforcement
for impact areas such as doors and glass and reinforces the structural
integrity of the vehicle structure

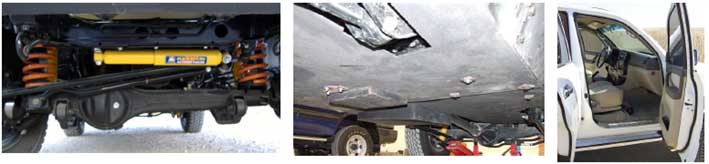

upgrade including replaced springs, shock absorbers and steering
damper and a reinforced sway
bar for optimum handling
inserts in all wheels including spare
protection from AR400 ballistic steel offering increased ductility and
exceptional blast and fragmentation protection. Armoured as a skid plate
significantly enhances IED protection and survivability
Armouring is from large steel sections where possible to ensure high structural integrity and stitch welded to avoid thermal variations in the ballistic steel
Armouring materials for level B6
Due to the proven multi-hit capability and cost efficiency in defeating a wide range of ballistic threats, welded ballistic steel is the primary material used in construction of the armor. 6 – 6.5mm armour steel is used for all surfaces for direct hit protection.
Each batch of ballistic steel is supplied with a ballistic test certificate from an independent laboratory verifying its compliance to the required standard.
In addition we submit random samples for ballistic testing from time to time as a quality control measure.
Glass is supplied by American Glass Products or North American Specialty Glass.
Original glass is replaced with OEM style multi-layer laminated glass-polycarbonate.
The rear bulkhead uses flat bullet resistant glass/polycarbonate. This provides for protection with excellent optical clarity, low distortion, no spalling and exceptional multi-hit protection under attack. All glass supplied is uniquely identified and supplied with a ballistic protection certificate.
B6 glass polycarbonate is approximately 40mm thick.

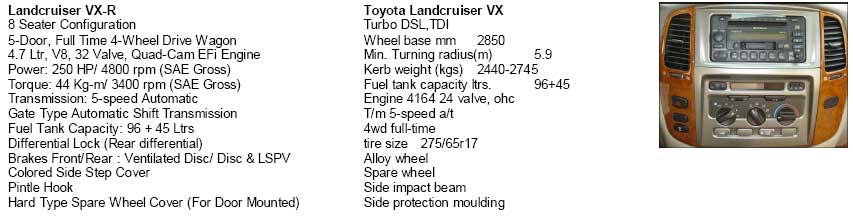

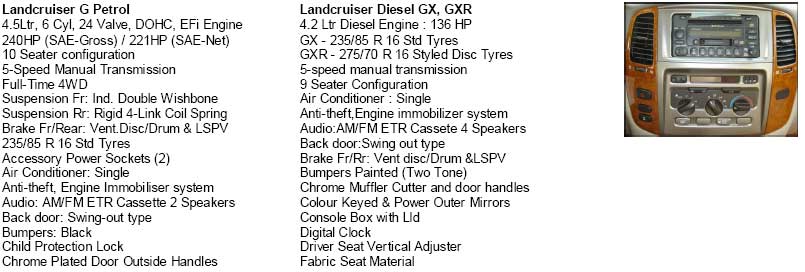

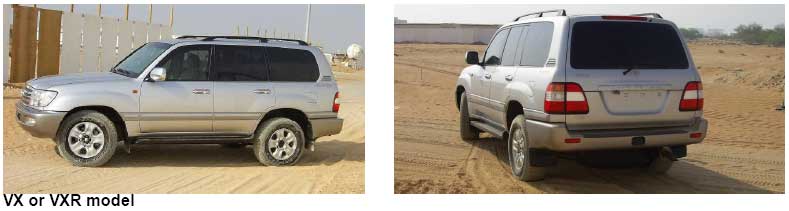

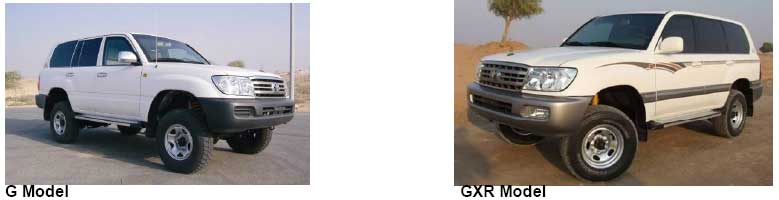

Armouring Specifications for Toyota
Landcruiser - Protection Level - B6
Communications Equipment Specifications

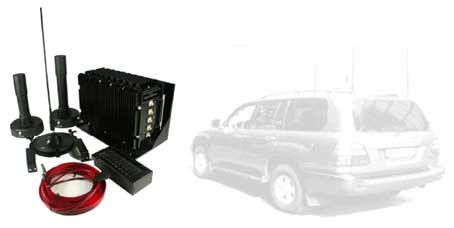

CODAN NGT SR
NGT SR 2010 RF Unit with NGT SR 2020 Handset, NGT SR 2030 Junction Box and loudspeaker, 9350 Automatic Tuning Whip Antenna, supplied with stainless steel and fibreglass whip tops, interface cables (6 m) and spring, vehicle installation hardware, including vehicle mounting cradle, DC power cable, vehicle installation kit, and fuse holder with fuse.
Motorola GM360 radio installed
Mobile VHF Radio, Select 5, VHF
136-174MHz, 1-25W, 255 Channel, STDACC
Battery Power Cable HKN4137, Enhanced Compact Microphone MDRMN4025, Low Profile Trunnion Kit GLN7324, User Guide.
¼ Wave Mobile Antenna Roof Mount Unity Gain, RG58A/U 12FT with Connector
Option CALM-Codan Automated Lin Management (CALM) compatible with FED-SRD-1045 ALE system.

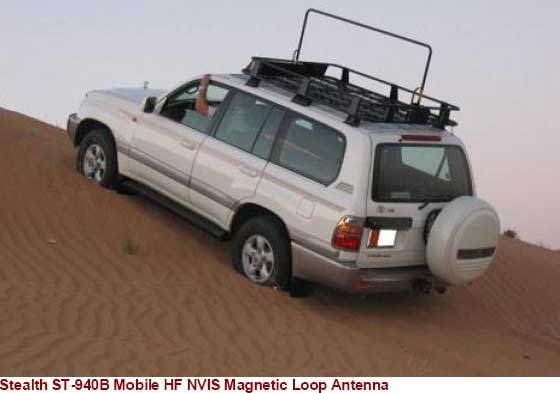

OPTIONAL Invisible Antenna CODAN system USD 21 000 NGT SR 2010 / NGT SR 2020 / NGT SR 2030 equipped with ST-940B NVIS mobile autotune covert antenna system (used instead of 9350) complete with Toyota L/C vehicle installation hardware.
A complete life saving extremely high performance HF mobile station for use in war torn regions. Provides dead zone free communications and concealed operations.
***Depending on units in production at time of order, please confirm on order. Average around 45 days after confirmation
Deposit of 60% required on order. Settlement on delivery before shipment.
Due to extensive customisation of vehicles, the general OEM warranty no longer applies. We offer a 6 months or 10,000 km Warranty - whichever occurs first.
Warranty covers repair only to non friction parts and under circumstance of normal usage.
Warranty void if vehicle is not serviced at 1000, 2500, 5000 km and 10,000 km at a recognised service centre. Other conditions apply.
We additionally warrant materials and processes conducted during armouring to be free from defect for a period of 12 months or 50,000 km, whichever occurs first.
It must be noted that bolts, fasteners and hinges should be checked, tightened or oiled as appropriate with each service.
Suspension components such as springs and shocks need to be changed more frequently than with the original version vehicles due to the additional load. Suspension warranty is for the first 2000km.
Once the vehicle has passed inspection and been signed off all replacement glass is for the customer account.
In some cases, handling characteristics of the vehicle may require special attention with regard to driver training.
It is a condition of the warranty that all necessary repairs are carried out by an authorised workshop.
Recommended Optional Extra (fitted IED Jammers)
IED Jammers Model GAV8
IED Jammers Model GPAV
IT MUST BE NOTED , THAT ANY BALLISTIC ARMOURING TO THREAT LEVEL B6 OR EVEN B7 , DOES NOT PROTECT VEHICLES AGAINSTIED’S .
ONLY THIS TYPE OF JAMMING EQUIPMENT , WILL ENSURE THAT VEHICLES ARE PROPERLY PROTECTED AGAINST BOTH BALLISTIC AND IED THREATS .
This is a recent result of a B6 SUV , with no IED Jammmer !
Specification and photos are not contractual and are subject to verification upon inspection
