THERMAL IMAGING CAMERA





TYPE:

Camera

DESCRIPTION:

Thermal Imaging Camera

PRICE:

Upon Request

PACKING:

Upon Request

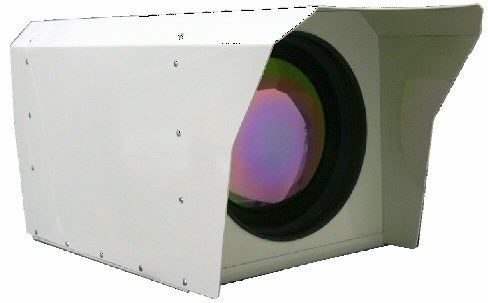

THERMAL IMAGING CAMERA









THERMAL IMAGING CAMERA

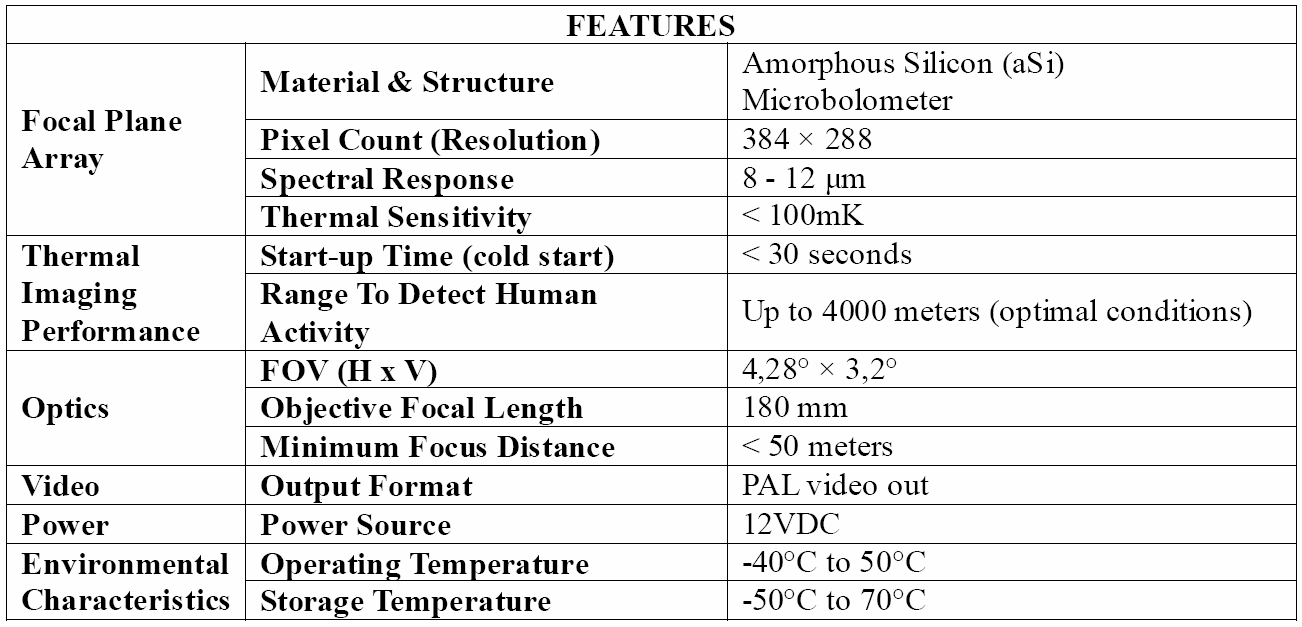

Long wave uncooled thermal imaging camera offer effective surveillance solutions

Single field of view camera provides long wave thermal images through a lens focal length of 180 mm having a field of view of 5×3,75 degrees

Use of an uncooled aSi microbolometer in 384×288 pixel focal plane array, Operating in the 8-12 μm spectral region

Provides superior thermal images through smoke, aerosols and other atmospheric obscurants

Proprietary germanium optical systems ensure that the uncooled sensor operates at its maximum capability

Medium range stationary and mobile mounted thermal camera

Environmentally Sealed

Remote Control Capability

Motorized Focus Adjust















Specification and photos are not contractual and are subject to verification upon inspection
