TATA LPO916 BUS





TYPE:

Bus

DESCRIPTION:

Tata LPO 916 Bus

PRICE:

Upon Request

PACKING:

Ex-Depot

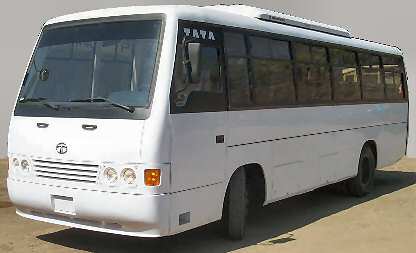

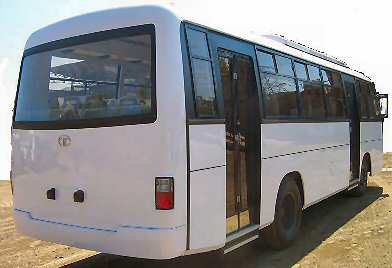

TATA LPO 916 BUSES

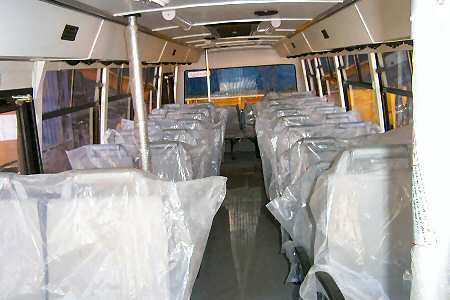

254 units (Thermo king Aircon / 9 Mtr. overall length / 40 seater / 160 HP Cummins engine / 5 speed Gear box / Made in India)



School/Public/staff/Troop Transport type.



Average KM is between 30,000 to 40,000 KM, Buses are in excellent condition

















Technical Specification







1             ENGINE
Model: CUMMINS 6BTAA 5.9
Water cooled direct injection
Diesel Engine with turbocharger and intercooler
No. Of Cylinders: 6 inline
Bore / Stroke: 102 mm x 120 mm
Capacity: 5883 cc
Max. Engine Output: 117 Kw (157 HP ) at  2500 rpm
Max. Torque: 540 Nm (55 mKg) at 1400 - 1700 rpm
Compression Ratio: 17.6:1
Firing Order: 1-5-3-6-2-4
Air Filter: Dry type, remote mounted
Oil Filter: Full flow Spin-on paper type
Fuel Filter: Two stage Pre & fine filtration with water separator
Fuel Injection: MICO "A" type inline
Governor: Built in Centrifugal type
Turbo Charger: HOLSET
Capacity Of Cooling System: 9 litres (engine) ~ 27 litres ( total)
Coolant: Water & Ethylene glycol,ratio 1:1 premixed
Crankcase Oil: Max. 14.3 litres
Capacity: Min. 12.3 litres
Weight Of Engine: 413 kg (Dry):With flywheel and alternator without starter & air compressor
Radiator Frontal Area: 4294 sq.cm

2             CLUTCH
Type: Single plate dry friction type
Outside diameterof clutch lining: 352 mm Spicer pull type

 3             GEAR BOX
Model: TATA GBS-40 SYNCHROMESH
No. of gears: 5 Forward - 1 Reverse
 Gear Ratios:

1st- 6.34

2nd- 3.37

3nd- 1.95

4th- 1.28

5th- 1.00

Rev- 5.86


4             REAR AXLE
Type: Single reduction hypoid gears, fully floating axle shafts
Ratio: 3.727 :1 (41/11)

5             FRONT AXLE
Type: Heavy duty Forged I beam, Reverse Elliot type

6             STEERING
Type: Integral hydraulic power assisted steering
Ratio: 18.8:1

7             BRAKES
Service Brakes: Dual circuit full air S-cam brake
Brake Drum: 360 mm
Lining Area: Front - 1760 sq.cm
Rear  - 1760 sq cm
Total - 3520 sq cm
Parking Brake: Hand operated
Type: Spring actuated parking brake acting on rear wheels
Engine Exhaust:

Pneumatically operated coupled with service brake


8             FRAME
Type: Ladder type frame with rivetted/bolted cross members
Side members are of channel section
Depth: 219 mm (max)
Width: 58 mm

9           SUSPENSION
Type: Semi elliptical leaf spring at front and rear
Spring Span: Front - 1450 mm - Rear  - 1600 mm
Leaf Width: Front - 70 mm - Rear  - 80 mm
Shock Absorber: Hydraulic double acting telescopic type at front and rear
Antiroll Bar: At front & rear

10          WHEELS AND TYRES
Tyres: 7.50  R 20 -12 PR Radial ply
Wheel Rims: 6.00 S X 20
No. Of Wheels; Front 2, Rear  - 4, Spare - 1

11          FUEL TANK
Capacity: 200 litres

12          ELECTRICAL SYSTEMS
System Voltage: 24 Volts
Alternator: 70 Amps, Optional 140 Amps with AC
Battery: 2x12 Volts, 120 Ah capacity
Wind Screen Wiper: 17 W-2 speed and intermittent wipe
Wind Screen Washer: Electrically operated

13          PERFORMANCE
Max. Geared Speed in Top Gear: 114 Km/h
Max. Climbing Ability in 1st Gear: 24 %
Minimum Turning Circle Dia in m: 16.550
Minimum Turning Clearance Circle Dia. in m: 18.900

14            MAIN CHASSIS DIMENSIONS AS PER IS 9435 (mm)
Wheel Base: 4200
Track Front: 1800
Track Rear: 1690
Overall Length: 8570
Max. Width: 2159
Overall Height (Unladen): 2600
Front Overhang: 1850

15          WEIGHTS (kg)
Bare chassis kerb:  3680
Max.Permissible FAW: 3195
Max. Permissible RAW: 5600
Max. Permissible GVW: 8795

16          SPECIAL FEATURES
  1.0 Driver: Seat belt with beeper
2.0 Loads apportioning valve in
brake system (Rear axle)
3.0 VIN ( Vehicle information number ) plate
4.0 Non asbestos material for clutch lining
5.0 Non asbestos material for brake lining
6.0 Head rest for driver
7.0 Parking brake indicator lamp on dashboard
8.0 Oil pressure warning light
9.0 Battery charging light
10.0 Main beam indicator light
11.0 Direction indicator light
12.0 Low air pressure warning light
13.0 Buzzer for engine coolant
overheating
14.0 Buzzer for low air pressure
15.0 Heating and demisting arrangement
16.0 Speedometer with total and trip distance

17            E CERTIFIED ITEMS
  1.0  Head lamps
2.0  Front blinkers
3.0  Tail lamps
4.0  Rear fog lamp
5.0  All lamp bulbs for outside
lamps
6.0  Seat belt for driver
7.0  Tyres
8.0  Wind screen glass
9.0  Side direction indicator
10.0 Horn

18          OPTIONAL FEATURES
  1.0  Tachograph
2.0  Rear fog lamp with indicator lamp on panel

19        AIR-CONDITION FEATURES
  1.0  Thermoking HRT 1 1000
Max. capacity  32.0kW
Rated capacity 20.1kW













Specification and photos are not contractual and are subject to verification upon inspection
