SW204-2





TYPE:

Helicopter

DESCRIPTION:

SW204 HP Helicopter With T53-L-703 Engine

PRICE:

Upon Request

PACKING:

Ex-Works

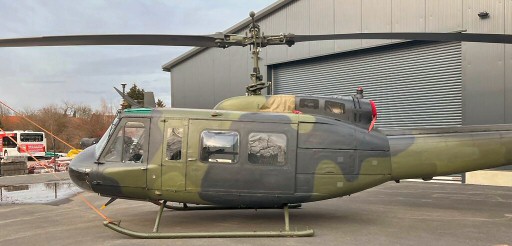

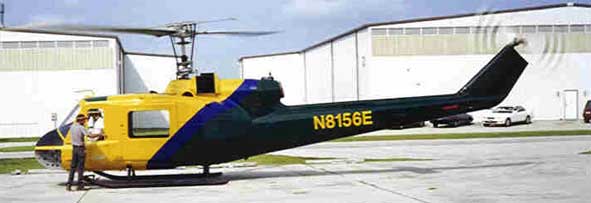

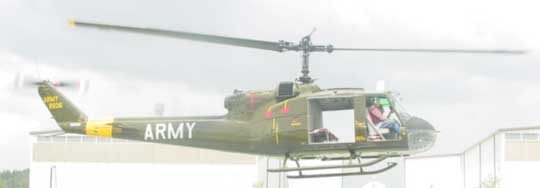

SW204 HP HELICOPTER WITH T53-L-703 ENGINE





























Aircraft Model: SW204HP

Certification: DR Standard Transport Category Airworthiness Certificate

Production Certificate: HI-101

T.C.D.S: Dominican Republic H6SO

Engine Model:   T53-L-13B

Engine Hours:  TBO: 2400 TSO: 0.0



NEW: Soundproofing, Battery (Lead Acid), Seat Covers, Seat Belts, Fire Extinguisher, Windows

MID-TIME: 212 Main Rotor Blades & 212 Tail Rotor Blades

OVERHAULED: Power-train components



ALL current applicable A.D.’s, complied with

  • Current Annual Inspection
  • Transponder
  • Vertical Fin Spar Kit

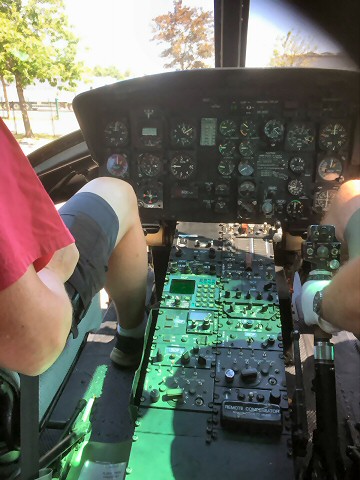

  • VHF/NAV Radio
  • New Paint
  • Dual Flight Controls

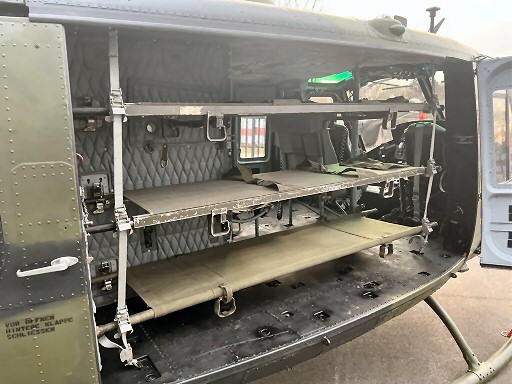

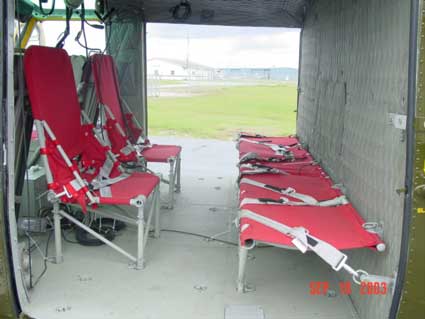

  • Utility Seating Configuration
  • Wire Strike Kit
  • Door Struts
  • KAFLEX Main Driveshaft

Standard Aircraft Exterior Dimensions:


Length, fuselage, ft (m) 40.38     (12.31) Width, fuselage, ft (m) 8.00    (2.44)
Length, T/R turning, ft (m)  44.65     (13.61) Width, widest point, ft (m)  9.33    (2.84)
Length, both turning, ft (m) 57.10     (17.40) Width, landing gear, ft (m) 8.37    (2.55)
Height, top, rotor hub, ft (m) 12.40     (3.78)  Gr clearance, fuselage, ft (m) N/A     (N/A)
Height, top, T/R arc, ft (m) 14.60     (4.45) Gr clearance, T/R, ft (m) 6.10    (1.86)



Standard Aircraft Interior Dimensions:



Cabin Cabin



Length, max, ft (m) 5.00   (1.52)   Width 7.67   (2.34)
Height, max, ft (m)    4.67   (1.42)    Volume, ft3 (m3)  140.00   (3.96)





 Standard Aircraft Weights: (Typical)



Max gross, lbs (kg)   8,501     (3856) Empty, std acft, lbs (kg)  4,799     (2177)
Useful load, lbs (kg) 3,702 (1679) Useful, with full fuel, lbs (kg)  2,081 (944)
External load, lbs (kg) 4,000 (1814) Gross with ext load, lbs (kg) 9,500 (4309)

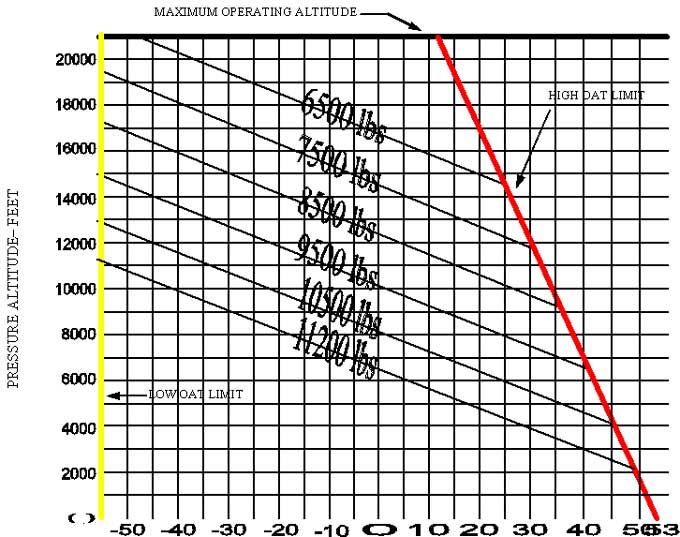

SW204HP WITH T53-L-703 ENGINE

TAKEOFF AND LANDING GROSS WEIGHT

VERSUS

AMBIENT AIR TEMPERATURE AND PRESSURE ALTITUDE





AMBIENT AIR TEMPERATURE- °C



WEIGHT– ALTITUDE– TEMPERATURE

LIMITATIONS FOR TAKEOFF AND LANDING
