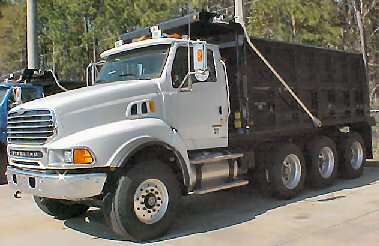

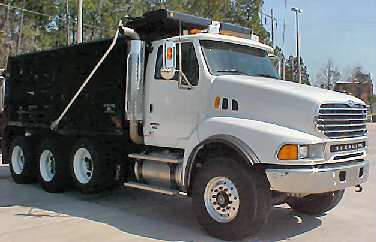

STERLING DUMP TRUCK





TYPE:

Truck

DESCRIPTION:

Sterling Dumper Truck PRL-22J

PRICE:

Upon Request

PACKING:

Ex-Depot





STERLING DUMPER TRUCK PRL-22J











PRL-22J



002



STERLING PRL-22J







002



GENERAL APPLICATION INFORMATION



AA1-002

D





TRUCK CONFIGURATION



AA6-001

D





DOMICILED, USA 50 STATES (INCLUDING CALI





D





FORNIA AND CARB OPT-IN STATES)



A85-011

D





CONSTRUCTION SERVICE



A84-1CO

D





CONSTRUCTION BUSINESS SEGMENT



AA3-004

D





END DUMP BODY



AA2-998

S

002



NO TRAILER SPECIFIED



AH6-998

S

002



NO TRAILERS



AA5-007

D





TERRAIN/DUTY: 30% (LESS THAN A THIRD) OF





D





THE TIME, IN TRANSIT, IS SPENT ON NON-PAVED ROADS



AB5-003

D





MAINTAINED GRAVEL OR CRUSHED ROCK - MOST





D





SEVERE IN-TRANSIT (BETWEEN SITES) ROAD SURFACE



AB1-008

D





MAXIMUM 8% EXPECTED GRADE



AA4-010

D





DIRT/SAND/ROCK COMMODITY



A66-99D

D





EXPECTED FRONT AXLE(S) LOAD

18000

LBS

A68-99D

D





EXPECTED REAR DRIVE AXLE(S) LOAD

46000

LBS

A67-99D

D





EXPECTED PUSHER AXLE(S) LOAD

20000

LBS

A63-99D

D





EXPECTED GROSS VEHICLE WGT CAPACITY

84000

LBS

A70-99D

S

002



EXPECTED GROSS COMBINATION WEIGHT

0

LBS

AC8-99D

S

002



CALC'D BACK OF CAB TO REAR SUSP C/L (CA)

138.346

IN

A89-99D

D





REQUESTED CAB TO TRUCK BODY CLEARANCE

10

IN

AL8-99D

S

002



CALC'D CAB TO BODY (INCL 2" CLEARANCE)

9.756

IN

A88-99D

D





EXPECTED TRUCK BODY LENGTH

192

IN

AL4-99D

S

002



CALC'D FRAME LENGTH BACK OF CAB

213.15

IN

AL6-99D

S

002



CALC'D BODY AFT OF EOF (+=BODY OVERHANG)

-11.394

IN

AM1-99D

S

002



CALC'D OVERALL LENGTH AT BODY OR EOF

335.514

IN

AC3-99D

S

002



CALC'D VEHICLE SPEED @ GOVERNED ENG RPM

74.71

MPH

AM3-99D

S

002



CALC'D FRAME HEIGHT @ REAR SUSP-EXP LOAD

41.595

IN

AM2-99D

S

002



CALC'D FRAME HEIGHT @ REAR SUSP-UNLADEN

43.695

IN





002



MAXIMUM GVW & AXLE SYSTEM CAPACITIES



A61-99D

S

002



CALC'D MAX CAPACITY FRONT AXLE(S)TOTAL

18000

LBS

A59-99D

S

002



CALC'D MAX CAPACITY DRIVE AXLE(S) TOTAL

46000

LBS

A60-99D

S

002



CALC'D MAX CAP PUSHER/TAG AXLE(S) TOTAL

20000

LBS

A62-99D

S

002



RATED MAXIMUM VEHICLE CAPACITY - GVWR BASE MODEL

84000

LBS

001-635

D





STERLING LT9500 CHASSIS

101,461

995-1AH

D





STERLING LEVEL II WARRANTY

N/C

002-004

D





SET BACK AXLE - TRUCK

N/C

019-002

D





STRAIGHT TRUCK PROVISION

STD

003-001

D





LH PRIMARY STEERING LOCATION ENGINE

STD

101-13R

D





MBE4000-450 12.8L 450 HP @ 1900 RPM, 200

2,980



D





0 GOV RPM, 1550 LB/FT @ 1100 RPM



99C-007

D





2004 EPA/CARB EMISSION CERTIFICATION

STD

28F-998

S

002



ENGINE AFTERTREATMENT DEVICE, NO AFTER TREATMENT WIRING

N/C

EAG-99D

S

002



IDLE RPM LIMIT

850

RPM

EB8-998

S

002



NONE



EC2-99D

D





MIN CRUISE CONTROL MPH

30

MPH

ED2-99D

D





ROAD SPEED LIMIT MPH

74

MPH

EE3-002

D





DDC/MBE IDLE TIMER SHUTDOWN OVERRIDE - N



EE9-99D

D





ENG SPD LIMIT @ VEH STANDSTILL

3000

RPM

EFG-003

S

002



AUTO FAN ACTIVATION ON PTO - DISABLE



EFJ-99D

D





PTO VEHICLE SPEED LIMIT

6

MPH

EF1-009

D





PTO FUNCTION - ENABLE



EF2-99D

D





PTO RPM W/CRSCTL SET SW OR CAT ON/OFF SW

1000

RPM

EF3-99D

S

002



PTO RPM INCREMENT

200

RPM

EF4-99D

D





MIN RPM FOR PTO

600

RPM

EF6-99D

D





MAX RPM FOR PTO

1200

RPM

EG8-99D

S

002



TRANSMISSION TOP GEAR MINUS ONE RATIO

1

RATI

EJA-002

S

002



SERVICE BRAKE ACTIVATES RETARDER - OFF



EJ1-002

D





ENABLE ENGINE BRAKE ON CRUISE - N



EJE-001

S

002



MBE ENGINE BRAKE CONFIG-EXH/COMP BRAKE



EJ5-99D

D





MIN CRUISE OVRSPD BRAKE LOW

1

MPH

EJ7-99D

D





MIN CRUISE OVRSPD BRAKE HIGH

3

MPH

EJ8-007

D





AUTO FAN ACTIVATION ON ENG BRAKE-DISABLE



EMI-004

S

002



FAN TYPE - MBE - HORTON/KYSOR ENGINE EQUIPMENT



105-001

D





ENGINE MOUNTED OIL CHECK AND FILL

STD

014-072

D





DUAL AIR INTAKE THROUGH LH AND RH SIDES

STD



D





WITH DONALDSON AIR CLEANER, FIREWALL MOUNTED



124-1CN

D





DR 12V 145 AMP 24-SI QUADRAMOUNT PAD ALTERNATOR

STD

292-1A7

D





(3) ALLIANCE MODEL 1131, GROUP 31, 12 VO

112



D





LT MAINTENANCE FREE 2850 CCA THREADED STUD BATTERIES



290-017

D





BATTERY BOX FRAME MOUNTED

138

282-003

D





SINGLE BATTERY BOX FRAME MOUNTED LH SIDE BACK OF CAB

N/C

291-001

D





FRAME GROUND RETURN FOR BATTERY CABLES

STD

289-001

D





NON-POLISHED BATTERY BOX COVER

N/C

293-001

D





BATTERY SHUTOFF SWITCH AT BATTERY BOX

161

295-006

D





POSITIVE AND NEGATIVE POSTS FOR JUMPSTART FRONT RH OF CHASSIS

66

180-033

D





EATON FULLER 15-1/2" DAMPENED CERAMIC CL

STD



D





UTCH, 2 PLATE, 4 BUTTON, 7 SPRING, LOW RATE, EASY PEDAL



183-008

D





TORQUE LIMITING CLUTCH BRAKE

STD

181-002

D





ZERK FITTING WITH EXTENSION HOSE AT CLUTCH RELEASE BEARING

28

107-005

D





WABCO 15.5 CFM AIR COMPRESSOR

N/C

108-002

D





STANDARD AIR COMPRESSOR GOVERNOR

STD

131-002

S

002



TEFLON COMPRESSOR DISCHARGE LINE

N/C

152-040

D





ELECTRONIC ENGINE INTEGRAL WARNING AND DERATE PROTECTION SYSTEM

STD

128-087

D





MERCEDES BENZ OFF/LOW/HIGH COMPRESSION AND EXHAUST BRAKE

N/C

016-1AU

D





STATIONARY CAB MOUNTED SINGLE RH VERTICAL EXHAUST ROTATED FORWARD

259

238-002

D





FLEXIBLE STAINLESS STEEL EXHAUST PIPING

STD

239-044

D





12' 00" (144"+0/-5") EXHAUST SYSTEM HEIGHT

STD

233-998

S

002



NO EXHAUST BRIGHTWORK (PLAIN)

N/C

237-050

S

002



VERTICAL TAILPIPE(S) RH SIDE (SINGLE EXHAUST) OR RH AND LH SIDES (DUAL EXHAUST)

N/C

242-001

D





STAINLESS STEEL AFTERTREATMENT DEVICE/MU

16



D





FFLER/TAILPIPE SHIELD



273-018

D





HORTON DRIVEMASTER ON/OFF FAN DRIVE

STD

276-001

D





AUTOMATIC FAN CONTROL WITHOUT DASH SWITCH, NON ENGINE MOUNTED

STD

110-040

D





MBE FUEL FILTER

N/C

118-001

D





FULL FLOW OIL FILTER

STD

120-998

S

002



NO COOLANT FILTER

N/C

266-069

D





1400 SQUARE INCH RADIATOR

N/C

267-001

D





REMOTE MOUNTED SURGE TANK

STD

103-036

D





ANTIFREEZE TO -34F, ETHYLENE GLYCOL PRE-CHARGED SCA HEAVY DUTY COOLANT

STD

171-007

D





GATES BLUE STRIPE COOLANT HOSES

STD

172-001

D





CONSTANT TENSION HOSE CLAMPS FOR COOLANTHOSES

STD

270-010

S

002



RADIATOR DRAINCOCK

STD

134-001

D





ALUMINUM FLYWHEEL HOUSING

STD

155-052

D





DELCO 12V 39MT HD STARTER

9





002



TRANSMISSION & EQUIPMENT



342-419

D





EATON FULLER FRO-16210C TRANSMISSION

1,686

347-001

D





CAST IRON CLUTCH HOUSING

N/C

370-002

D





AIR TO OIL TRANSMISSION COOLER

269

341-017

D





MAGNETIC PLUGS, ENGINE DRAIN, TRANSMISSI

STD



D





ON FILL AND DRAIN, AXLE(S) FILL AND DRAIN



345-001

D





PAINTED SHIFT LEVER, SOLID LINKAGE

STD

375-998

D





NO AUXILIARY OIL COOLER

N/C





002



FRONT AXLE, SUSPENSION & EQUIPMENT



400-1AB

D





MFS-18-133A 18,000# FL1 SINGLE FRONT AXLE

2,134

402-030

D





MERITOR 16.5X6 Q+ CAST SPIDER CAM FRONT

N/C



D





BRAKES, DOUBLE ANCHOR, FABRICATED SHOES



403-002

D





NON-ASBESTOS FRONT BRAKE LINING

STD

419-023

D





CONMET CAST IRON FRONT BRAKE DRUMS

STD

427-001

D





FRONT BRAKE DUST SHIELDS

73

409-002

D





CHICAGO RAWHIDE SCOTSEAL CLASSIC FRONT OIL SEALS

N/C

408-016

D





STEMCO ALUMINUM VENTED FRONT HUB CAPS WITH WINDOW AND CENTER AND SIDE PLUGS - OIL

STD

416-022

D





STANDARD SPINDLE NUTS FOR ALL AXLES

N/C

405-008

D





GUNITE AUTOMATIC FRONT SLACK ADJUSTERS

8

536-012

D





TRW TAS-85 POWER STEERING

N/C

539-003

D





POWER STEERING PUMP

STD

534-003

D





4 QUART POWER STEERING RESERVOIR

250

620-006

D





20,000# FLAT LEAF FRONT SUSPENSION

186

619-004

D





GRAPHITE BRONZE BUSHINGS WITH SEALS - FRONT SUSPENSION

N/C

410-001

D





FRONT SHOCK ABSORBERS

142





002



REAR AXLE, SUSPENSION & EQUIPMENT



420-103

D





RT-46-160 46,000# R-SERIES TANDEM REAR AXLE

3,947

421-456

D





4.56 REAR AXLE RATIO

N/C

424-001

D





IRON REAR AXLE CARRIER WITH STANDARD AXLE HOUSING

STD

42S-001

S

002



STANDARD REAR AXLE SHAFT HOLES

N/C

386-027

D





18N MERITOR MAIN DRIVELINE WITH FULL ROUND YOKES

881

388-008

D





17N MERITOR INTERAXLE DRIVELINE WITH FULL ROUND YOKES

N/C

452-006

D





DRIVER CONTROLLED TRACTION DIFFERENTIAL - BOTH TANDEM REAR AXLES

1,252

878-001

D





INTERAXLE AND/OR DIFFERENTIAL LOCKOUT WITH INDICATOR LIGHT

STD

595-026

D





MOBIL SYNTHETIC 50W TRANSMISSION OIL AND 75W-90W ALL AXLES

257

423-020

D





MERITOR 16.5X7 Q+ CAST SPIDER CAM REAR B

N/C



D





RAKES, DOUBLE ANCHOR, FABRICATED SHOES



433-002

D





NON-ASBESTOS REAR BRAKE LINING

STD

434-003

D





STANDARD BRAKE CHAMBER LOCATION

N/C

451-023

D





CONMET CAST IRON REAR BRAKE DRUMS

STD

425-002

D





REAR BRAKE DUST SHIELDS

146

440-001

D





CHICAGO RAWHIDE SCOTSEAL CLASSIC REAR OIL SEALS

STD

426-075

D





HALDEX GOLDSEAL LONGSTROKE 2-DRIVE AXLES

N/C



D





SPRING PARKING CHAMBERS



428-008

D





GUNITE AUTOMATIC REAR SLACK ADJUSTERS

16

622-286

D





TUFTRAC 46,000# REAR SPRING SUSPENSION

3,702

621-058

D





TUFTRAC LOW RIDE HEIGHT

N/C

431-003

D





AXLE CLAMPING GROUP

N/C

624-028

D





56" AXLE SPACING

N/C

623-006

D





FORE/AFT AND TRANSVERSE CONTROL RODS

N/C

439-001

D





REAR SHOCK ABSORBERS - ONE AXLE

N/C

035-004

D





HENDRICKSON HLM-2 20,000# NON-STEER PUSH ER SUSPENSION WITH HENDRICKSON R-SERIES

12,031



D





DROP CENTER AXLE



443-057

D





HENDRICKSON R-SERIES 20,000# DROP CENTER

N/C



D





PUSHER AXLE INTEGRAL WITH HLM SUSPENSION WITH BOLTED BRAKE



456-020

D





MERITOR 16.5X7 Q+ CAST SPIDER CAM PUSHER

N/C



D





/TAG BRAKES, DOUBLE ANCHOR, FABRICATED SHOES



457-002

D





NON-ASBESTOS PUSHER/TAG BRAKE LINING

N/C

448-023

D





CONMET CAST IRON PUSHER/TAG BRAKE DRUMS

N/C

442-001

D





CHICAGO RAWHIDE SCOTSEAL CLASSIC PUSHER/TAG OIL SEALS

N/C

444-002

D





STEMCO ALUMINUM VENTED PUSHER/TAG HUB CAPS WITH WINDOW AND CENTER PLUG, OIL

N/C

445-075

D





HALDEX LONGSTROKE PUSHER/TAG AXLE SERVICE CHAMBERS

N/C

458-008

D





GUNITE AUTOMATIC PUSHER/TAG SLACK ADJUSTERS

N/C

626-058

D





HENDRICKSON HLM-2 20,000# NON-STEER LIFT

N/C



D





ABLE PUSHER AXLE SUSPENSION WITH INTEGRAL R-SERIES AXLE



627-001

D





52" AXLE SPACING PUSHER/TAG

N/C

874-009

D





PUSHER/TAG CONTROL: IN CAB UP/DOWN ELECTRIC SWITCH WITH EXTERNAL GAUGE AND AIR REGULATOR

N/C

896-011

D





AIR PIPING FOR LIFTABLE PUSHER/TAG AXLE

N/C



D





WITH CONTROLS MOUNTED LH LOWER BACK OF CAB SKIN







002



BRAKE SYSTEM



490-100

D





WABCO 4S/4M ABS WITHOUT TRACTION CONTROL

STD

871-001

D





REINFORCED NYLON, FABRIC BRAID AND WIRE

STD



D





BRAID CHASSIS AIR LINES



412-001

D





STANDARD BRAKE SYSTEM VALVES

STD

432-014

D





(2) RELAY VALVES; ONE 5-8 PSI FOR TANDEM

N/C



D





AXLE AND ONE 3-4.5 PSI CRACK FOR PUSHER/TAG



480-009

D





BW AD-9 BRAKE LINE AIR DRYER WITH HEATER

460

479-015

S

002



AIR DRYER FRAME MOUNTED

N/C

460-001

D





STEEL AIR BRAKE RESERVOIRS

STD

477-004

D





PULL CABLES ON ALL AIR RESERVOIR(S)

28





002



FRAME & WHEELBASE



545-537

D





5375MM (212") WHEELBASE

N/C

546-102

D





7/16"X3-9/16"X11-1/8" STEEL FRAME (11.11MMX282.6MM/.437"X11.13") 120KSI

1,189

547-001

D





1/4" (6MM) C-CHANNEL INNER FRAME REINFORCEMENT

1,373

549-998

D





NO FRONT FRAME EXTENSION

N/C

552-014

D





1900MM (75") REAR FRAME OVERHANG

N/C

553-001

D





SQUARE END OF FRAME

STD

559-001

D





STANDARD WEIGHT ENGINE CROSSMEMBER

STD

562-001

D





STANDARD MIDSHIP #1 CROSSMEMBER(S)

STD

560-002

S

002



OVERSLUNG CROSSMEMBER

N/C

565-002

D





HEAVY DUTY SUSPENSION CROSSMEMBER

N/C

572-001

D





STANDARD REARMOST CROSSMEMBER

STD

AL5-99D

S

002



CALC'D BUMPER TO REAR TOWING C/M FACE

335.514

IN





002



CHASSIS EQUIPMENT



674-998

S

002



NO LH OR RH BACK OF CAB ACCESS

N/C

592-998

S

002



NO DECK PLATE

STD

556-072

D





12" CHROMED STEEL BUMPER

236

558-001

D





FRONT TOW HOOKS - FRAME MOUNTED

142

585-998

D





NO MUDFLAP BRACKETS

STD

590-998

D





NO REAR MUDFLAPS

STD

586-002

D





FENDER MOUNTED FRONT MUDFLAPS

61

551-002

D





HUCK-SPIN ROUND COLLAR CHASSIS FASTENERS

117





002



FIFTH WHEEL & EQUIPMENT



578-998

D





NO FIFTH WHEEL

N/C

577-998

D





NO 5TH WHEEL LOCATION

N/C

582-998

D





NO FIFTH WHEEL LEG HEIGHT

N/C

890-998

D





NO FIFTH WHEEL PLUMBING

STD

579-998

D





NO FIFTH WHEEL RELEASE/INST.

N/C





002



FUEL TANK(S) & EQUIPMENT



206-152

D





70 GALLON/264 LITER ALUMINUM FUEL TANK - RH

86

204-152

D





70 GALLON/264 LITER ALUMINUM FUEL TANK - LH

476

218-001

D





23" DIAMETER FUEL TANK(S)

STD

20C-002

D





ALUMINUM FUEL TANK BRACKET(S)

STD

215-005

D





PLAIN ALUMINUM/PAINTED STEEL FUEL/HYDRAULIC TANK(S) WITH PAINTED BANDS

STD

212-007

D





FUEL TANK(S) FORWARD

STD

205-001

D





FUEL TANK CAP(S)

N/C

122-078

D





ALLIANCE FUEL FILTER/WATER SEPARATOR WITH INDICATOR LIGHT

N/C

119-998

S

002



FUEL/WATER SEPARATOR LOCATION - NONE

N/C

216-020

D





EQUIFLO INBOARD FUEL SYSTEM

STD

202-003

D





REINFORCED NYLON FUEL HOSE

STD

221-998

D





NO FUEL COOLER

N/C

847-002

D





IN TANK FUEL LEVEL SENDER(S)

STD





002



TIRES



093-0U9

D





GOODYEAR G286A 425/65R22.5 20 PLY RADIAL FRONT TIRES

982

094-0VF

D





GOODYEAR G288 11R24.5 16 PLY RADIAL REAR TIRES

1,152

095-0KN

D





GOODYEAR G395 LHS 285/75R24.5 14 PLY RADIAL PUSHER/TAG TIRES

276





002



HUBS



418-030

D





CONMET IRON FRONT HUBS

STD

450-030

D





CONMET IRON REAR HUBS

STD

449-030

D





CONMET IRON PUSHER/TAG HUBS

N/C





002



WHEELS



502-091

D





ACCURIDE 29374A 22.5X12.25 10-HUB PILOT

886



D





4.75 INSET 10-HAND ALUMINUM DISC FRONT WHEELS



505-367

D

004



ACCURIDE 29362 ALUMINUM OUTSIDE, HAYES L

1,256



D





EMMERZ 90263 STEEL INSIDE; 24.5X8.25 10- HUB PILOT DISC REAR WHEELS



509-367

D

004



ACCURIDE 29362 ALUMINUM OUTSIDE, HAYES L

628



D





EMMERZ 90263 STEEL INSIDE; 24.5X8.25 10- HUB PILOT DISC PUSHER/TAG WHEELS



524-001

D





POLISHED FRONT WHEELS; OUTSIDE ONLY

70

525-001

D

004



POLISHED REAR WHEELS; OUTSIDE OF OUTER WHEELS ONLY

282

526-001

D

004



POLISHED PUSHER/TAG WHEELS; OUTSIDE OF OUTER WHEEL ONLY

141

498-009

D





WHEEL STUDS FOR CUSTOMER INSTALLED

N/C



D





HUB PILOTED ALUMINUM WHEELS







002



CAB EXTERIOR



829-056

D





122" BBC CONVENTIONAL STEEL CAB

712

651-010

D





LH CAB DOOR(S) WITH 55 DEGREE DOOR STOP

STD

653-010

D





RH CAB DOOR(S) WITH 55 DEGREE DOOR STOP

STD

682-998

D





NO SLEEPER BOX/SLEEPERCAB

N/C

784-998

D





NO AIR SHIELD OR BRACKETS

STD

82A-003

D





STERLING VALANCE PANEL

186

650-008

D





AIR CAB MOUNTS

389

648-002

D





NONREMOVABLE BUGSCREEN MOUNTED BEHIND GRILLE

92

667-001

S

002



FRONT FENDER, STANDARD

N/C

754-005

D





5" FENDER EXTENSIONS

188

678-009

D





LH AND RH EXTERIOR GRAB HANDLES AND RH INTERIOR GRAB HANDLE MOUNTED TO 'A' POST

STD

646-023

D





HOOD MOUNTED CHROMED PLASTIC GRILLE

84

65X-998

S

003



NO HOOD MOUNTED AIR INTAKE SCREEN

N/C

644-004

D





FIBERGLASS HOOD

STD

690-998

S

004



NO NOISE SHIELD-ENG COMPARTMENT

STD

727-501

D





DUAL HADLEY RECTANGULAR AIR HORNS, DUAL BASE

184

726-001

D





SINGLE ELECTRIC HORN

STD

728-002

D





DUAL HORN SHIELDS

N/C

657-001

D





DOOR LOCKS AND IGNITION SWITCH KEYED THE SAME

STD

312-031

D





SINGLE RECTANGULAR HALOGEN HEADLIGHTS WITH BRIGHT BEZELS

N/C

302-009

D





AERODYNAMIC MARKER LIGHTS

58

311-001

D





 LARGE DAYTIME RUNNING LIGHTS

49

294-056

D





STERLING LOGO LED FLANGE MOUNTED STOP/TAIL/TURN LIGHTS WITH SEPARATE BACKUP LIGHTS

171

300-015

D





STANDARD FRONT TURN SIGNAL LAMPS

STD

744-009

D





DUAL STAINLESS STEEL HEATED MIRRORS WITH LIGHTS

222

797-001

D





DOOR MOUNTED MIRRORS

STD

796-001

D





102" EQUIPMENT WIDTH

17

743-204

D





LH AND RH 8" BRIGHT FINISH CONVEX MIRRORS MOUNTED UNDER PRIMARY MIRRORS

21

764-001

D





FIBERGLASS EXTERIOR SUN VISOR

153

768-019

D





(2) 15"X26" TINTED REAR WINDOWS

STD

661-004

D





TINTED DOOR GLASS LH AND RH WITH TINTED OPERATING WING WINDOWS

STD

654-003

D





MANUAL DOOR WINDOW REGULATORS

STD

663-013

D





TINTED WINDSHIELD

STD

659-007

D





8 LITER WINDSHIELD WASHER RESERVOIR WITHOUT FLUID LEVEL INDICATOR

STD





002



CAB INTERIOR



707-09F

D





OASIS TAN VINYL INTERIOR

481

706-036

D





LH MOLDED DOOR PANEL WITH UPPER VINYL AND LOWER CARPET INSERTS

N/C

708-036

D





RH MOLDED DOOR PANEL WITH UPPER VINYL AND LOWER CARPET INSERTS

N/C

772-020

D





DARK TAUPE VINYL MATS WITH SINGLE INSULATION

STD

785-009

D





CONSOLE MOUNTED ASHTRAY AND DASH MOUNTED LIGHTER

N/C

691-001

D





FORWARD ROOF MOUNTED CONSOLE

293

694-008

D





CENTER STORAGE CONSOLE BELOW DASH WITH (2) CUP HOLDERS

94

693-025

D





LH AND RH DOOR MAP POCKETS

N/C

741-036

S

002



(1) COAT HOOK ON BACKWALL OF CAB

STD

680-003

D





SAHARA/ASH WING DASH

STD

720-003

D





5 LB. FIRE EXTINGUISHER

66

700-002

D





HEATER, DEFROSTER AND AIR CONDITIONER

1,212

701-003

D





MAIN FRESH AIR INLET AND MAIN RECIRCULATION FILTERS

STD

703-006

D





MAIN HVAC CONTROLS WITHOUT RECIRCULATION SWITCH

STD

170-016

D





STANDARD PLUMBING WITH SHUTOFF VALVES

27

130-003

D





SANDEN COMPACT AIR CONDITIONER COMPRESSOR

N/C

698-001

D





RADIATOR MOUNTED AIR CONDITIONER CONDENSER

N/C

702-002

D





BINARY CONTROL, R-134A

N/C

739-001

D





CAB INSULATION

STD

285-001

D





AUTOMATIC SELF-RESET CIRCUIT BREAKERS

201

324-062

D





CENTER MOUNTED DOME LIGHT AND LH AND RH COURTESY LIGHTS IN KICK PANELS

N/C

655-001

D





CAB DOOR LATCHES WITH MANUAL DOOR LOCKS

STD

756-212

D





EZYRIDER MID BACK AIR SUSPENSION DRIVER SEAT WITH ADJUSTABLE HEADREST AND ADJUSTABLE LUMBAR SUPPORT

386

760-213

D





EZYRIDER MID BACK NON SUSPENSION PASSENGER SEAT WITH ADJUSTABLE HEADREST

486

759-007

D





DUAL DRIVER SEAT ARMRESTS, NO PASSENGER SEAT ARMRESTS

114

758-036

D





VINYL WITH VINYL INSERT DRIVER SEAT

STD

761-036

D





VINYL WITH VINYL INSERT PASSENGER SEAT

N/C

763-011

D





3 POINT ADJUSTABLE D-RING RETRACTOR DRIVER AND PASSENGER SEAT BELTS

N/C

532-011

D





ADJUSTABLE TILT ONLY STEERING COLUMN

289

540-023

D





2-SPOKE 18" (450MM) BLACK LEATHER WRAPPED STEERING WHEEL

50

765-002

D





DRIVER AND PASSENGER INTERIOR SUN VISORS

STD





002



CONTROLS & INSTRUMENTS



017-078

D





STERLING ELECTRONIC GAUGE CLUSTER - ICU3

STD

185-102

D





NON-ADJUSTABLE SUSPENDED CLUTCH AND ACCELERATOR PEDALS WITH NON-ADJUSTABLE FLOOR MOUNTED BRAKE PEDAL

STD

870-001

D





BLACK GAUGE BEZELS

STD

732-008

D





MULTIPLEX DRIVER INSTRUMENT PANEL

STD

734-013

D





DARK TAUPE CENTER INSTRUMENT PANEL WITH FLAT GAUGE INSERT

STD

486-001

D





LOW AIR PRESSURE LIGHT AND BUZZER

STD

840-002

D





2" PRIMARY AND SECONDARY AIR PRESSURE GAUGES

STD

198-003

D





DASH MOUNTED AIR RESTRICTION INDICATOR WITH GRADUATIONS

36

149-015

D





ELECTRONIC CRUISE CONTROL WITH CONTROLSON STEERING WHEEL SPOKES

STD

156-005

D





KEY OPERATED IGNITION SWITCH WITH ELECTRIC START BUTTON WIRED THROUGH IGNITION

10

811-010

D





ODOMETER/VOLTAGE DISPLAY: 1X7 CHARACTER, 26 WARNING LAMPS, DATA LINKED, ICU3

N/C

160-010

D





DIAGNOSTIC INTERFACE CONNECTOR, 9 PIN, SAE J1587/1708, LOCATED BELOW DASH

STD

844-001

D





2" ELECTRIC FUEL GAUGE

STD

866-009

D





DUAL REAR AXLE TEMPERATURE GAUGES WITH SENSOR SHIELD

228

856-001

D





ELECTRICAL ENGINE COOLANT TEMPERATURE GAUGE

STD

854-001

D





ENGINE OIL TEMPERATURE GAUGE

57

864-001

D





2" TRANSMISSION OIL TEMPERATURE GAUGE

77

830-998

S

002



NO ENGINE HOUR METER

N/C

852-002

D





ELECTRIC ENGINE OIL PRESSURE GAUGE

STD

746-1AH

C

002



F/L XTA-2400 AM/FM/WB CD RADIO BY DELPHI

652

750-002

D





(2) RADIO SPEAKERS IN CAB

N/C

748-012

D





POWER AND GROUND STUDS MOUNTED ON OVERHEAD CONSOLE

N/C

752-018

D





MULTI-BAND AM/FM/WB/CB DUAL MIRROR MOUNTED ANTENNA SYSTEM

65

810-027

D





ELECTRONIC MPH SPEEDOMETER WITH SECONDARY KPH SCALE, WITHOUT ODOMETER

STD

817-001

D





STANDARD VEHICLE SPEED SENSOR

STD

812-001

D





ELECTRONIC 3000 RPM TACHOMETER

STD

883-997

D





OMIT STANDARD HAND CONTROL BRAKE VALVE

STD

836-015

D





DIGITAL VOLTAGE DISPLAY INTEGRAL WITH DRIVER DISPLAY

STD

660-008

D





SINGLE ELECTRIC WINDSHIELD WIPER MOTOR WITH DELAY

STD

304-005

D





(3) POSITION ROTARY HEADLAMP SWITCH WITH SEPARATE MARKER LIGHT INTERRUPTER SWITCH, DIMMER WITH INTERIOR DOME

STD

882-009

D





ONE VALVE PARKING BRAKE SYSTEM WITH WARNING INDICATOR

STD

299-016

D





SIGNAL STAT NON SELF CANCELING TURN SIGNAL SWITCH WITH BRAKE OVERRIDE AND STALK MOUNTED WIPER CONTROLS

N/C

298-003

D





HEAVY DUTY MECHANICAL TURN SIGNAL FLASHER

STD





002



PAINT



065-000

D





PAINT: ONE SOLID COLOR

STD

980-3F6

D





CAB COLOR A: N0006EA

N/C



D





WHITE ELITE SS



986-020

D





BLACK, HIGH SOLIDS POLYURETHANE CHASSIS PAINT

STD

966-970

D





VENDOR WHITE REAR WHEELS/RIMS

N/C

96E-970

D





VENDOR WHITE PUSHER/TAG WHEELS/RIMS

N/C

964-998

S

002



NO BUMPER PAINT

N/C





002



ADDITIONAL SPECIFICATIONS



999-023

H

002



CROSSOVER FROM S/N:

N/C





002

010

W74880/81











RETAIL SUBTOTAL

149,401

REN-002



002



ENGINE ESCALATOR

600























































Specification and photos are not contractual and are subject to verification upon inspection









TAKE NOTICE!



PLEASE BE ADVISED THAT INFORMATION INCLUDED IS CONFIDENTIAL IN NATURE AND IS BASED ON PRE-EXISTING BUSINESS RELATIONSHIP WITH THE LEGAL OWNER OF PROPERTY DESCRIBED HEREIN (IF APPLICABLE). AS SUCH, UPON RECEIPT OF SAID INFORMATION THE RECEIVER ACKNOWLEDGES THAT ANY UNAUTHORIZED CONTACT WITH SAID LEGAL SELLER WILL BE CHARACTERIZED AS A BREACH OF CONFIDENTIALITY AND SAID AGREEMENT MAY BE ENFORCED UNDER EXISTING LAW OR IN EQUITY.



This paper was prepared by General Equipment Inc.
The paper represents an offer of a partner of General Equipment Inc.
All rights are reserved by and for General Equipment Inc.
All content and ideas of this paper are the property of General Equipment Inc.
