SPRINGBUCK





TYPE:

Armored Vehicle

DESCRIPTION:

Armor Personnel Carrier Springbuck

PRICE:

Upon Request

PACKING:

Ex-Works

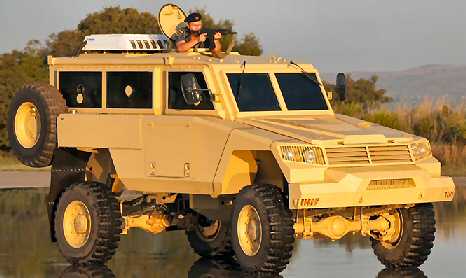

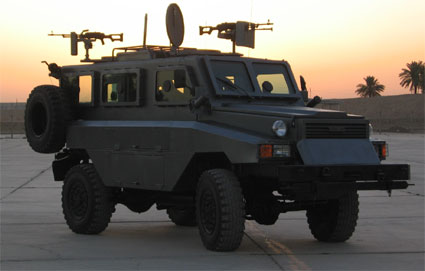

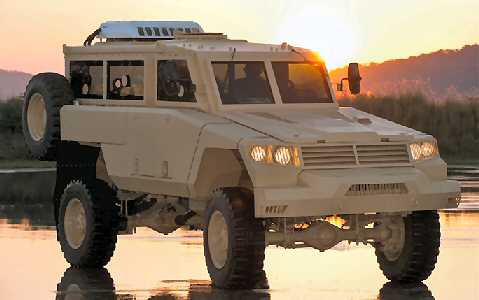

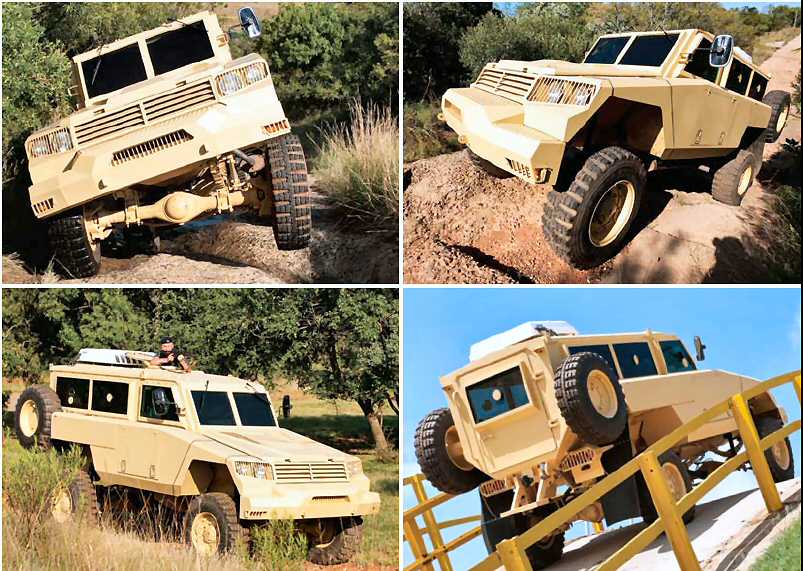

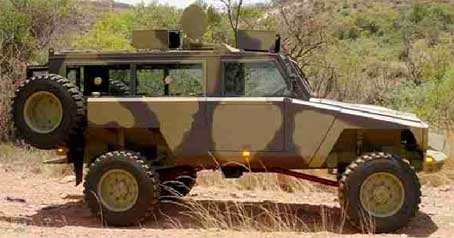

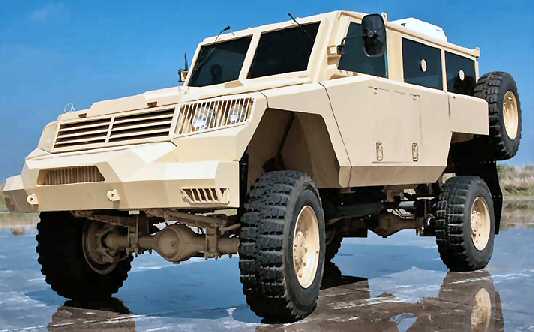

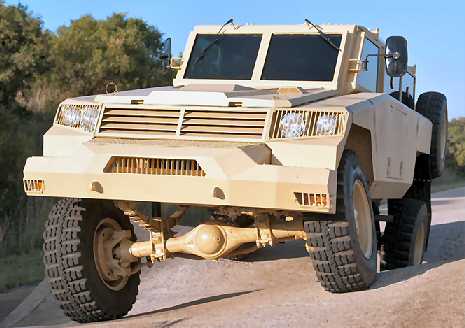

armor personnel carrier springbuck



















  THE SPINGBUCK FULFILLS THE ROLE OF AN AFFORDABLE BALLISTIC AND MINE PROTECTED VEHICLE WITH EXCELLENT CROSS COUNTRY MOBILITY. THE DESIGN CAN READILY BE ADAPTED FOR SPECIFIC CLIENT REQUIREMENTS OR USES.



DESIGN



THE FLEXIBLE DESIGN OF THE SPRINGBUCK CAN BE READILY ADAPTED TO A WIDE RANGE OF CUSTOMER REQUIREMENTS BE IT MILITARY, PARAMILITARY, POLICE, SECURITY OR MINE-CLEARING OPERATIONS.  CIVILIAN APPLICATIONS ARE ALSO BECOMING POPULAR. THE AESTHETIC DESIGN OF THE SPRINGBUCK CAN BE ENHANCED FOR INDIVIDUAL CUSTOMERS i.e. ROOFLINE / WINDOW STYLING / BINS ETC



THE VEHICLE

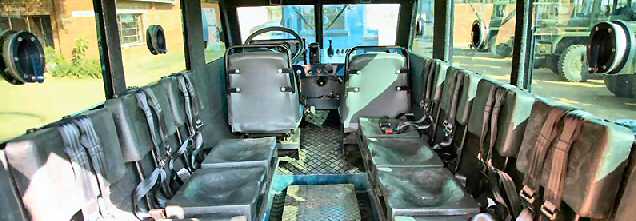

THE SEATING ARRANGEMENT DEPENDS ON THE CUSTOMERS REQUIREMENT BUT IS TYPICALLY,  DRIVER AND CO-DRIVER IN FRONT WITH A CREW OF 8 PEOPLE IN THE REAR.  THE PERSONNEL COMPARTMENT IS AT THE REAR AND ENTRY TO THIS IS VIA A REAR ENTRY DOOR OF ARMOURED STEEL. OBSTRUCTION-FREE ARMOURED GLASS WINDOWS ARE FITTED WITH GUN PORTS.  A CHOICE OF GUN TURRET OR HATCHES ON THE ROOF IS AVAILABLE IF REQUIRED.



THE SPRINGBUCK WAS DESIGNED FOR EASE OF COMPONENT SOURCING. TO REDUCE OVERALL LIVE-CYCLE COSTS, THE SPRINGBUCK USES WELL PROVEN COMMERCIAL RANGE STANDARD COMPONENTS WHEREVER POSSIBLE; THE ENGINE BEING PROVIDED BY MERCEDES BENZ WITH THE ROCKWELL AXLES.





SPRINGBUCK  MKI 4X4



The Springbuck is designed to operate in a mine-threatened environment, the V shaped bottom provides for excellent mine withstanding capability.  Armoured steel monoque hull with armoured glass windows all round offer ballistic protection.



Crew                                         Driver +10

Performance                              Top Speed 110km/h

Steering type                             hydraulically assisted recalculating ball

                                                Left Hand Drive

Grade Ability                           70% Low Range

Turning circle curb-to-curb           15m

Ground clearance                       343 mm

Ballistic Protection                  B6 7.62x51 mm NATO Ball

Mine Protection                       1 x TM 57 (7kg TNT) under hull

                                                2 x TM 57 (14kg TNT) under any wheel

Glass                                        54mm resistoglass multi-layered

Engine                                     Mercedes Benz OM 364 Turbo

            Type                            Diesel turbo-charged, 4 cylinders in line

            Displacement                3952 cm3

            Max Power                    90 kW @ 2800 rpm

            Max Torque                   393 Nm @ 1500 rpm

Electrical                                   24 or 12 Volt

Transmission                           Mercedes 5 Speed Manual

Mass                                        Tare                  6400kg

                                                GVM                 9200kg

                                                Payload            2800kg

Range                                       600km

Tyres    Rim Type                      Solid pressed 20 shallow disc split-type

            Tyres                            12,5x20 with run flat

Transfer Case                          Rockwell 4x4, High-low range

                                                Air operated

Axles                                       Rockwell           Differential locks front & rear Air operated

Brakes                                     Full Pneumatic  ABS Optional

Air-Conditioning                         8.5kW



Communication  System             Motorola CM140 VHF Mobile Radio Complete with palm mic,

                                                Zara 130 VHF Mobile antenna

                                                Zara450 UHF Mobile antenna

                                                24V or 12V

Dimensions                               Length 5883 mm

                                                Width    2636 mm

                                                Wheel base 3412 mm

Angle of approach                      48

Angle of departure                      43

Fording                                     1m

Tow bar                         Standard with electrical connection (air coupled)

Air Transportability                     C-130 or larger aircraft



Specifications subject to change without notification








SPRINGBUCK MKII  4X4



The Springbuck is designed to operate in a mine-threatened environment, the V shaped bottom provides for excellent mine withstanding capability.  Armoured steel monoque hull with armoured glass windows all round offer ballistic protection.



Crew                                         Driver +10

Performance                              Top Speed 120km/h

Steering type                             hydraulically assisted recalculating ball

                                                Left Hand Drive

Grade Ability                           70% Low Range

Turning circle curb-to-curb           15m

Ground clearance                       343 mm

Ballistic Protection                  B6 7.62x51 mm NATO Ball

Mine Protection                       1 x TM 57 (7kg TNT) under hull

                                                2 x TM 57 (14kg TNT) under any wheel

Glass                                        54mm resistoglass multi-layered

Engine                                     Mercedes Benz OM 366 Turbo

            Type                            Diesel turbo-charged,  6 cylinders in line

            Displacement                5958 cm3

            Max Power                    125 kW @ 2600 rpm

            Max Torque                   560 Nm @ 1400 rpm

Electrical                                   24 or 12 Volt

Transmission                           ALLISON  5 Speed  automatic

Mass                                        Tare                  6680kg

                                                GVM                 9200kg

                                                Payload            2520kg

Range                                       600km

Tyres    Rim Type                      Solid pressed 20 shallow disc split-type

            Tyres                            12,5x20 with run flat

Transfer Case                          Rockwell 4x4, High-low range

                                                IAir operated

Axles                                       Rockwell           Differential locks front & rear Air operated

Brakes                                     Full Pneumatic  ABS Optional

Air-Conditioning                         8.5kW





Communication  System             Motorola CM140 VHF Mobile Radio Complete with palm mic,

                                                Zara 130 VHF Mobile antenna

                                                Zara450 UHF Mobile antenna

                                                24V or 12V

Dimensions                               Length 5883 mm

                                                Width    2636 mm

                                                Wheel base 3412 mm

Angle of approach                      48

Angle of departure                      43

Fording                                     1m

Tow bar                         Standard with electrical connection (air coupled)

Air Transportability                     C-130 or larger aircraft



Specifications subject to change without notification






SPRINGBUCK MKIII  B7   4X4



The Springbuck is designed to operate in a mine-threatened environment, the V shaped bottom provides for excellent mine withstanding capability.  Armoured steel monoque hull with armoured glass windows all round offer ballistic protection.



Crew                                         Driver +10

Performance                              Top Speed 120km/h

Steering type                             hydraulically assisted recalculating ball

                                                Left Hand Drive

Grade Ability                           70% Low Range

Turning circle curb-to-curb           15m

Ground clearance                       343 mm

Hull                                           Side double-layered

Ballistic Protection                  B7  7.62 x 51 AP (Stanag 4569 Level 2)

Mine Protection                       1 x TM 57 (7kg TNT) under hull

                                                2 x TM 57 (14kg TNT) under any wheel

Glass                                        64mm resistoglass multi-layered

Engine                                     Mercedes Benz OM 366 Turbo

            Type                            Diesel turbo-charged,  6 cylinders in line

            Displacement                3958 cm3

            Max Power                    125 kW @ 2600 rpm

            Max Torque                   560 Nm @ 1400 rpm

Electrical                                   24 or 12 Volt

Transmission                           ALLISON  5 Speed  automatic

Mass                                        Tare                  7200kg

                                                GVM                 9200kg

                                                Payload            2000kg

Range                                       600km

Tyres    Rim Type                      Solid pressed 20 shallow disc split-type

            Tyres                            12,5x20 with run flat

Transfer Case                          Rockwell 4x4, High-low range

                                                Air operated

Axles                                       Rockwell           Differential locks front & rear Air operated

Brakes                                     Full Pneumatic  ABS Optional

Air-Conditioning                         8.5kW









Communication  System             Motorola CM140 VHF Mobile Radio Complete with palm mic,

                                                Zara 130 VHF Mobile antenna

                                                Zara450 UHF Mobile antenna

                                                24V or 12V

Dimensions                               Length 5883 mm

                                                Width    2636 mm

                                                Wheel base 3412 mm

Angle of approach                      48

Angle of departure                      43

Fording                                     1m

Tow bar                                    Standard with electrical connection (air coupled)

Air Transportability                     C-130 or larger aircraft

Specifications subject to change without notification


WARRANTY



Warranty is against defective material and workmanship.  The direct cost of rectifying defective material or workmanship shall be borne by the supplier.  However, the cost of transportation, accommodation and subsistence will need to be covered by the customer.  Work done on the vehicles by other than our approved service agents will negate the warranty.  Wear and tear and the carrying out of routine maintenance is the end users responsibility and is not part of the warranty.  Failure to carry out recommended routine maintenance will negate the warranty.



The Supplier does not accept liability for any consequential losses arising from any cause whatsoever.



The components below are covered under the normal warrantee against all defects excluding damages due to negligence or incorrect use / application.











SPRINGBUCK 4X4

WARRANTY DESCRIPTION

Engine:



Mercedes ADE 364 Turbo Diesel

4 Cylinder water cooled turbo charged

85Kw @ 2600 rpm

380 Nm @ 1400 rpm

12 Months or 100 000km


Standby engine is prepared and available

on hand for complete or partial emergency replacement.

Clutch

Sachs single dry disc

2 x full spare kits supplied with delivery of  five vehicles

12 Months or 100 000km

Gearbox

ZF 535 5-speed manual

12 Months or 100 000km

Standby unit is prepared and available on

hand for emergency replacement

Axles

Rockwell 3000 series

All main axles parts, ie shafts, hubs, bearings drums and

brake components are kept on hand for emergency

replacement

12 Months or 100 000km

Steering System

Left Hand Drive



Prop shafts



12 Months or 100 000km

Suspension

Leaf springs

Full spring set will be kept on standby at  all times during

warranty period.

12 Months or 100 000km

Electrical System

24Volt Bosch

All major electrical components are kept on hand for

immediate replacement if necessary


6 Months or 50 000km

Brake System

Hydraulic system



General Bodywork,

Hull & Chassis

Tested Mamba Type Hull

Paint to customers colour

Chassis colour not applicable

Warranty against major defects valid for 12 Months or

100 000km

Wheels & Tyres

1400 x 20

Normal wear & tear

Interior trimming

Standard

Aftermarket auxiliary units

Normal wear & tear

3 Months or 25 000km









SERVICE SCHEDULE

A-SERIVCE  - 5000KM; 15000KM;  25000KM

Lubricants for - components, engine, gearbox transfer box

Hydraulics Steering Filter

Oil Filter

Air Filter Primary and Safety

Water Separator

Fuel Filter Primary & Secondary



B-SERVICE - 10000KM

Lubricants for engine

Hydraulics Steering Filter

Oil Filter

Air Filter Primary and Safety

Water Separator

Fuel Filter Primary & Secondary

Thermostat

V- Belts Set

Brake Linings

Wiper Blades Set

Shock Absorbers



C SERVICE - 20000KM

Lubricants for - engine

Hydraulics Steering Filter

Oil Filter

Air Filter Primary and Safety

Water Separator

Fuel Filter Primary & Secondary

Fuel Pump Lift Pump

Hydraulic Steering Pump

Spring Shackle Pin Kits

Exhaust System



Mission Critical Spares / Landmine scenario

Axles Front

Axles Rear

Propshaft

Complete tyre with rim

Clutch kit

Steering box with pitman arm and drag link

Suspension package with shackles

Radiator Cap

Radiator

High Pressure Hydraulic Steering Pipes

Radiator Pipes Set

Set of electrical spares (globes etc)

Starter Motor

Transfer Case








Specification and photos are not contractual and are subject to verification upon inspection
