SPARTAN





TYPE:

Armored Vehicle

DESCRIPTION:

Spartan APC, Urban Assault Vehicle

PRICE:

Upon Request

PACKING:

Ex-Works





SPARTAN APC, URBAN ASSAULT VEHICLE

























The Urban Assault Vehicle the Spartan APC, which has been designed to serve as an armored response unit and safety transport for the users with a requirement to operate in tight urban streets, as well as be suited for use as a highway transport and convoy escort vehicle.



The dual-purpose nature of this vehicle makes it an excellent choice for those users whose missions may change from one day to another and ensures that their mission requirements can be fulfilled without the need to change vehicle platforms.  Therefore, the Spartan APC is not only the right choice from an operational standpoint, but is also a cost effective solution to changing needs in operational situations.


Unlike an armored commercial vehicle such as the LandCruiser or Suburban, the Spartan APC is designed for fully capable of returning fire in a combat situation.  This vehicle is built with combat procedures and military application vehicle styling in mind, and is extremely effective in protecting convoy vehicles which are transporting principles.  However, when needed strictly for patrol, or for use in tight urban areas where combat vehicles are normally not effective, the Spartan APC is designed to be as easily maneuverable as any armored conversion vehicle, and has the commercial vehicle handling and acceleration capabilities which are so lacking in a military-style convoy escort vehicle.

Armored to protect against B6 assault weapons, and designed to withstand underbody blast from light anti-personnel mines and grenades, the Spartan APC is the ideal vehicle for any client who has a need for versatility, operational adjustment and combat readiness, all in a single, cost-effective and  easy-to drive platform.

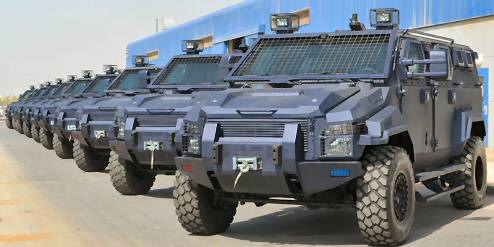

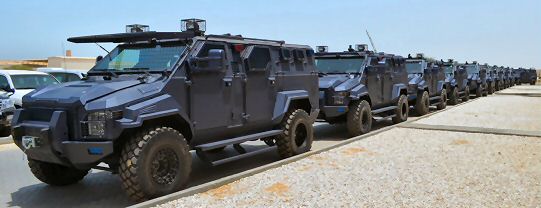

SPARTAN APC

Ford F550 Armored Personnel Carrier

General Vehicle Description:

Urban Assault Vehicle the Spartan APC. This vehicle has been designed to serve as an armored response unit and safety transport for those of our users with a requirement to operate in tight urban streets. This vehicle also performs well as a highway transport or convoy escort vehicle.

The dual-purpose nature of the Spartan APC makes it an excellent choice for those users whose missions may change from one day to another and ensures that their mission requirements can be fulfilled without the need to change vehicle platforms. Due to this, the Spartan APC is not only the right choice from an operational standpoint, but it is also a cost effective solution to changing
needs in operational situations.



Base specifications for the Urban Assault Vehicle

SPARTAN APC

Base Vehicle Specification

ENGINE

Engine: 6.0L turbo-diesel

Number of Cylinders: 8

Electronic Variable Response Turbocharger

Charge air-to-air intercooler

Net Horse power at engine governed speed: 325 BHP at 3300 rpm

Maximum net torque 570 foot-pounds at 2000 rpm

FUEL SYSTEM

The vehicle is capable of operating on high-sulphur diesel fuel (up to 1%). Injectors passed numerous laboratory

tests, and one 30,000 mile vehicle test, using Jet A fuel. The results indicate that injectors will have satisfactory

durability when run on Jet A, JP-8, or NATO F34 fuels. Maintenance intervals should follow severe service

schedule.

ENGINE COOLING SYSTEM

HD 28.5qt capacity Radiator with 857sq.in frontal area

Radiator core dimensions: 28.4 x 30.19 x 1.42 in

23.25in diameter, 9 blade fan

Radiator core dimensions: 28.4 x 30.19 x 1.42 in

Radiator, FPI: 17.8

Cooling Fan parasitic load: 2hp (est.)

TRANSMISSION

Transmission type: automatic, Ford Torqshift

Gear ratios: 3.11:1 , 2.22:1, 1.55:1, 1.00:1, 0.71:1 reverse 2.88: 1

Input torque capacity: 550lb-ft

Output torque capacity: 550lb-ft

Torque converter stall ratio: 1.86 converter torque ratio @ WOT stall

BRAKES

Hydralic Front & Rear Disc with dual piston calipers, dual system master cylinder

WHEELS AND TIRES

Dual rear wheels, 225/70R19.5

Interior mounted spare tire(s)

GROUND CLEARANCE DATA

Wheelbase: 141”

GVWR: 17,500 LBS

Approach angle: 28.4 degrees

Ramp break over angle: 26.3 degrees

Departure angle: 27 degrees


Armor Conversion Modifications / Alterations:

  • OEM body replaced with fully re-designed and custom chassis-mounted body

Manufacturing design and development.

  • Five sided armoring of passenger compartment to provide protection against 7.62 x 51mm, M80

NATO Ball ammunition and tested to meet NIJ-STD-0108.01 Level III.

  • Floor is fitted with blast protection to protect occupants against fragmentation from detonation of two DM-51 German ordnance hand grenades or equivalent light anti-personnel mines.

  • Vehicle body is fully encapsulated to provide armor protection to occupants at all points.

  • Armor consists of all welded ballistic grade steel construction.

  • Specific Streit Manufacturing materials and installation techniques are used which permit a significant reduction in cost to the client while maintaining structural integrity and ballistic resistance level, as well as optimizing center of gravity to provide extremely good maneuverability for a vehicle of this nature.

  • The interior frame, constructed of ballistic grade steel, provides overlap and backup protection for the large-surface principal impact areas such as the doors and windows. It also reinforces the structural integrity of the support pillars and other areas that are crucial to maintaining vehicle safety in any circumstance, including rollover and ramming situations.

  • Vehicle armoring has been constructed in such a way as to ensure that a projectile following a linear or angled path shall not enter the vehicle’s interior without contacting the armor material. In addition to this, the possibility of a projectile entering the vehicle’s interior due to a ricochet from the armor shall also be minimized.

Glass

  • A combination of glass, polycarbonate and Mylar are bonded together using the latest technology,

  • producing one of the finest transparent armors available while incorporating the following qualities:

  • Glass thickness 39 mm; tested to protect against multiple shots of 7.62 x 51mm ammunition

  • Anti-spall shield protecting occupants against shattering glass

  • Multiple impact protection.

  • Finest optical quality, Minimal distortion

  • Minimal delamination

  • Minimal discoloration from UV rays

  • All exterior glass is shielded from larger projectiles such as rocks, bottles, grenades, etc. by steel mesh covers which can be removed by user for cleaning and/or glass replacement.

Doors

  • Doors (2 front, 2 at sides and 2 at rear) are specifically designed to allow quick vehicle access while minimizing the amount of vehicle interior exposure when in use.

  • All doors have a dual lock system to ensure that should one fail, the doors of the vehicle will remain closed in a combat situation.

  • Vehicle doors have reusable hinged mounted gun ports located directly below the view glass in order to allow fire to be returned from any seating position.

  • Armor overlap at all doors to prevent penetration through door posts and pillars.

  • Door pillars and hinges have all been designed specifically for this vehicle, thereby ensuring maximum strength and usability.

  • All doors have weather stripping installed to prevent exterior climate from entering vehicle.



Electrical

  • All electrical standard to this vehicle shall be tested and modified as necessary to protect against the armoring process.

  • Any electrical devices not standard to the platform vehicle (interior lights, fans, sirens, etc.) have been installed at Streit’s own professional workshop and tested by quality control to ensure proper operation and installation.

  • Wiring schematics for all installed devices are available through your sales associate.

Interior

  • All original OEM interior panels and trim have been removed from this vehicle with the exception of the front dash and seats. These portions have been modified at factory to fit the new body style of the vehicle and have been left in place to assist with driver comfort and familiarity.

  • All other interior components have been fitted by the design staff in order to ensure maximum operational functionality is attained.

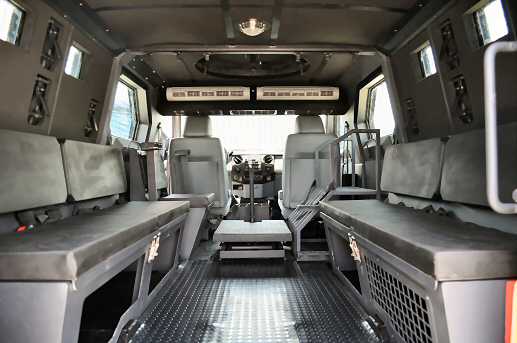

Seating

  • Rear section of vehicle is equipped with 6 strategically-placed jump seats (1 at either side door, 4 in center facing exterior side walls) which fold up when not in use to maximize interior working

space

  • Original vehicle seats have been retained in front compartment in order to maximize driver comfort and vehicle familiarity. This ensures ease of driving by multiple personnel is attained.

  • All seats have been equipped with 5 point racing harness to ensure maximum protection in the event of rollover or ramming, while still allowing ease of entry/egress.

  • Alternative seating configuration is available to suit the end-users requirements

Climate control

  • Front cab of vehicle utilizes original Ford climate control system with factory A/C.

  • Rear operational area of vehicle has independently controlled A/C and Heating unit which ensures the rear compartment remains comfortable, even in operational arenas with a high temperature variation to extreme levels of heat and cold.

  • Two exhaust fans, controlled from a switch located in the driver compartment, have been mounted in the rear of the vehicle in order to provide additional heat dissipation from the interior, as well as easily remove any smoke and/or other airborne chemicals which may be present inside the operational area of the vehicle.

Optional Features

  • Optional 360-degree traversing turret providing NIJ level 3 protection, incorporating ballistic glass for improved visibility

  • Gun mounts to accommodate up to .50-caliber weapons

Combat Readiness Features

  • Front bumper of the vehicle is designed to withstand the damage from ramming obstacles. Additionally, the entire front of the vehicle is constructed of ballistic steel, ensuring the vehicle will maintain structural integrity under moderate ramming conditions, as well as withstand SAF attacks.

  • Heavy-duty rear bumper attached directly to frame which enables vehicle to withstand ramming by other vehicles and/or to clear a path while in reverse if required for escape purposes.

  • Vehicle has full 360 degree visibility through view glasses and each glass has gun ports located directly below. This ensures that the occupants can return fire from all sides of the vehicle while never having to leave the protective shell of the body armor.

  • Vehicle sides are equipped with stand-on running boards and fenders, as well as full roof rails.

  • The vehicle is equipped with 8 run-flat tire devices (including 2 spare wheels mounted inside the vehicle) which ensures that the vehicle can continue to drive into or out of combat situations even when the tires have been deflated.

  • The front cabin is equipped with an electronic two-way communications system which allows communication between the occupants of the vehicle and those outside, eliminating the need to open doors to communicate with those outside at checkpoints and other areas, minimizing exposure of the interior of the vehicle to attack.

  • Multi-tonal siren with PA and intercom

Other Features

  • Vehicle tire jack has been upgraded and is now within easy access

  • Vehicle interior is equipped with large dome lights, individually controlled by switch. Lights are white; however, red lenses can be made available upon request.

  • Suspension and braking systems reinforced or modified as necessary to compensate for additional weight.

  • Stainless steel grille installed in tailpipe opening to prevent disabling of vehicle via insertion of foreign objects.

  • All manuals and written information provided by vehicle manufacturer shall be included.



Ballistic Protection Level Details:

The following charts represent the ballistic protection of the vehicle, opaque armor, passenger compartment roof and 4 sides, NIJ-STD-0108.01 Level III:

Floor of passenger compartment is protected to shield against fragmentation from 2(two) DM-51 German ordnance hand grenades or equivalent.

Ford F550, DRW chassis

B6 level of ballistic protection

B6/B7 optional protection of the key areas



Side air intake louvers

Step-on fender flares




Designed with a low center of gravity

Flat ballistic glass modules are same

size and interchangeable/replaceable

within minutes without specially trained personnel



Reinforced suspension with dual shock absorber system and heavy duty front and rear springs



Dual rear wheel chassis providing

exceptional vehicle stability

Steel – case fuel tank protection



Side steps with roof rails



Front end construction capable of clearing obstacles, such as stalled/disabled vehicles or barricades without damage to the vehicles major components

Enlarged wheel arcs



Adjustable front seating

Ergonomic front cab design

4-point racing harness



Wide rear entrance/extraction point

Heavy-duty rear bumper attached directly to the frame of the vehicle, designed to withstand the damage and clear obstacles while in reverse



Swing-down gunports designed for close SAF engagements

Three gunports on each side and two facing rear (total – 8 gunports)

Vault-style door locking mechanism



Interior air ventilation / smoke extraction system



Auxiliary rear AC system

Two spare tires mounted inside the vehicle’s secure area



Rear compartment crew seats are equipped with 4-point racing harness and automatically retract when not in use to allow for more floor space





Also available with non dual rear wheels




Certification Requirements

Armor materials provided by the following suppliers:

Transparent Armor:

  • NASG

  • GKN Aerospace

Opaque Armor:

  • Dynamic Armor Plate

Armor Tests:

  • Opaque and transparent armor materials have been tested at H.P. White Laboratories, USA. The material test reports will be provided upon request.







Specification and photos are not contractual and are subject to verification upon inspection
