SNIPER RIFLE 20MM





TYPE:

Rifle

DESCRIPTION:

Sniper Rifle 20mm

PRICE:

Upon Request

PACKING:

Upon Request

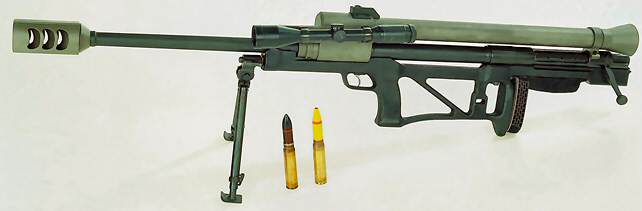

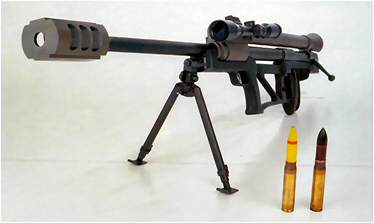

sniper rifle 20mm







Anti Material Sniper Rifle, cal.20x110mm












Design features:

Ø  Single shot bolt action weapon

Ø  Manually operated bolt handle on the left of the receiver

Ø  Recoil forces reduction achieved by a recoil compensation tube

Ø  Recoil forces reduction achieved by a high efficiency multi-baffler

Ø  Muzzle brake grate power at cartridge

Ø  One-man operating and transporting







Specification of Standard Equipment
  • Optical sight with case - Khales ZF6x42
  • Backpack
  • Cleaning and Oiling Kit
  • Wooden case for transport and storage
  • User Manual






Anti Material Sniper Rifle Type, cal.20x110mm

TECHNICAL DETAILS



Calibre:

20x110mm

Overall length:

1330mm

Barrel length:

920mm

Muzzle velocity:

850 m/s

Scope:

6x42

Operation:

manually operated bolt

Maximum operational range:

2000m

Mass of the Rifle without bipod and scope:

15,1 kg

Mass of bipod:

1,3 kg

Mass of scope:

0,6 kg

Mass of Rifle with bipod and scope:

17 kg

Mass of backpack:

3,2 kg







Anti material Rifle Type cal.20x110mm, is designed to be used against hostile vehicles, communication centres, command post shelters, logistic centres and similar targets. The rifle can be also used by explosive ordnance disposal teams.



Aiming with the Anti Material Rifle is stabilized by height adjustable bipod.



The bipod height can be adjusted from 215 to 295mm.



The recoil produced by 20mm cartridge while firing Anti Material Rifle is absorbed in two ways: a) by recoils compensation tube mounted above the barrel and b) by high efficiency muzzle brake.



The bolt has three sets of locking lugs opened by turning the bolt handle 60°. Once the bolt is moved forward and locked, the AM Rifle can be fired.

About half way down the barrel there is a block with an upwards facing gas port. As the projectile passes this point, some of the propellant gases are topped off and directed along the recoil compensation tube to be vented behind and above the bolt area.











Specification and photos are not contractual and are subject to verification upon inspection
