OFFER#

SENTRYII

TYPE:	Protection
DESCRIPTION:	Sentry II Protection Platform
PRICE:	Upon Request
PACKING:	As is, Where is

SENTRY II PROTECTION PLATFORM

Sentri II Platform

Sentri II is a platform that integrates sensory technology, cameras, and communication systems to efficiently detect and report specific stimuli:

The basic platform hears, sees, and thinks
Options can be added for smell and feel

Platform Operation

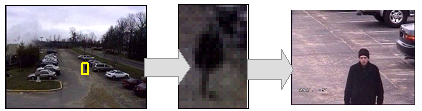

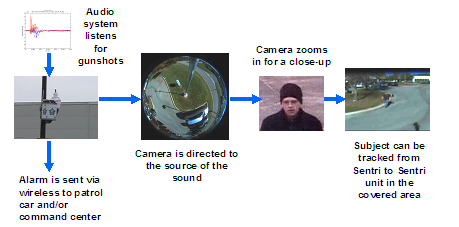

Sentri II detects and identifies a sound and then directs its camera to the source within a fraction of a second, giving a complete view of the situation.

The system senses specific neural stimuli including:

Weapons fire, chambering a round, voice or other sound signatures
Movement or changes in scenery or property
Chemical or biological weapon signatures
Seismic and pressure sensors

Stimuli Triggered Action

System sensors detect stimuli based on intelligent rules and react automatically to:

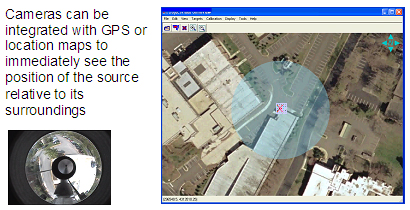

Pinpoint the location of the stimuli
Pan the camera to the location immediately
Send the alarm (audible & visual) to preset locations
Send real-time images and audio to preset locations
Activate the system strobe light or beacon

Key Features

Key features for the basic platform include:

Pan-zoom-tilt, full-spectrum addressable camera
Acoustic identification system that determines direction and range of preprogrammed stimuli
Wireless data and video transfer to a designated source
Weather-resistant casing and lens

Popular Options

Popular options to the Sentri II system include customization of the camera and biometrics:

Camera

Increased optical power
Optical sensitivity for low-light settings
Infrared heat sensor detection
Laser motion sensor detection

Biometric database and tracking

Link to external database for matching and identification (e.g. facial recognition)
Automatically follow suspects through crowd

Additional unit options include:

Internal recording unit
Bulletproof casing
Bulletproof lens cover
Strobe light
Heater or air conditioning
Alternative power backup
Custom receivers and transmitters

Acoustic Detection Rules

Acoustic sensors can be customized to recognize specific sound signatures, including:

Gunshots
Breaking glass
Engine noise
Chain link fence breaches
Other requested sounds

Sentri II Surveillance

Biometric Camera Control

Improved Situational Awareness

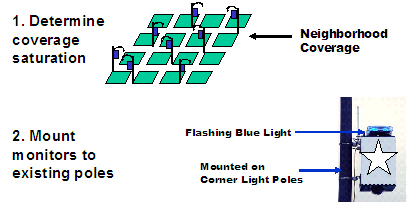

Maximize Installation Coverage

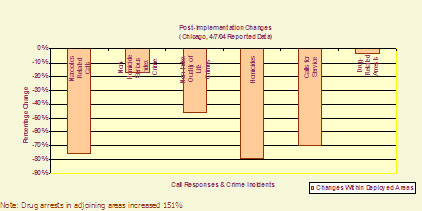

Positive Impact on Crime Index

Chemical Detection

Chemical detection is not commonly available:

Chemical threats are increasingly the focus of Homeland Security and other protection groups
Detection units in use may only detect the presence of a chemical, but not the level
Sentri II’s sensors can be customized for a wide variety of chemicals

Chemical Analysis

Chemical sensors can be customized to perform analytical measurements, including:

Volatile organic vapors and odors in near real-time with part-per-trillion sensitivity
Contraband
Illegal substances
Explosives
Bio-chemical threats over the range of C6 to C30

Airborne Detection

Chemical sensors can detect airborne chemical agents and substances, including picograms of nerve, blister, and pulmonary agents contained in:

Packages, parcels, and envelopes
Shipping containers
Gas tanks
Enclosed compartments of vehicles
Public venues, such as sports arenas and stadiums
Airports
Shipping docks

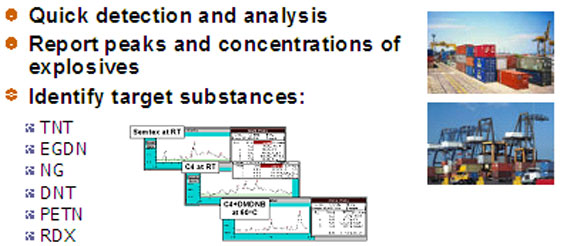

Explosive Detection

Identifying an explosive device before it can be detonated or transported is essential:

Biological Agent Detection

Biological sensors can detect a wide variety of active and degraded agents:

Atmospheric
Liquid
Viral threats

Seismic and Vibration Sensing

Movement can be detected in a variety of wet and dry environments, including:

Isolated storage and lights-out warehouses
Border crossing areas
Remote road, beach, and landing strips used for drug trafficking
Military installations
Building perimeters, such as sensitive or controversial research labs
Prisons, jails, and work farms

Direct Benefits

The Sentri II reduces risk and threat levels and the only proactive system that assesses capability in real-time mode:

Correlates to legislative and Homeland Security initiatives
Protects critical infrastructure
Effectively increases resource utilization
Decreases long-term (3 yr) costs by 44%

Indirect Benefits

Provides opportunity to redeploy or reallocate resources
Provides continuous monitoring, regardless of weather
Increases long-term technological advantage
Allows redistribution of units to respond to situational changes and major events
