External dimensions (mm):

4990x1855x2240

Medical cabin dimensions (mm):

2820x1650x1540

Engine model:

M161G23D

Emission Standard:

GB18352.3-2005 Ⅳ

Engine output volume (cc):

2295

Maximum speed(km/h):

＞150

Maximum power (ps):

132

Maximum torque (Nm/rpm):

190/2200-2800

Transmission:

Five shift MT

Fuel tank capacity (L)：

75

Fuel consumption (per kilometer) :

＜9.5

Wheelbase (mm):

2455

Minimum turning diameter (m):

11

Maximum gradeability(%):

＞33

Gross equipment weight (kg):

2240

Gross weight (kg):

2850

Body:

High strength anticollision, antitorque independent frame

Frame:

Ω type frame, omnibearing resistance to deformation

Suspension:

front independent suspension

ABS, EBD:

electronic ABS, EBD

Tyre：

195/75R16C/alloy rims

Front door electric window lifter:

√

Front door electric window lifter:

√

Air conditioning system：

√

Special automotive upholstery:

Interior adopt imported composite moulding process

Imported floor material:

Easy to clear and disinfect floor

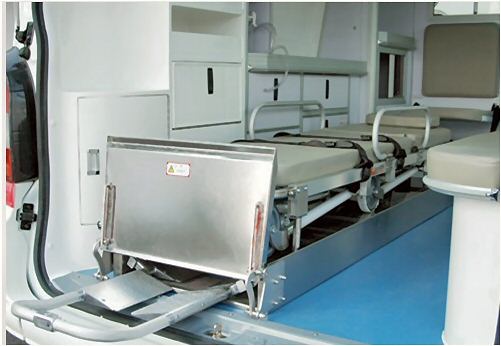

Stretcher system：

Automatic stretcher, scoop stretcher，stretcher platform, upstairs special soft stretcher, Skeleton type cold foam soft bag

Power supply system:

Originally 115A generator and consecutive power supply (12V, 220V ).

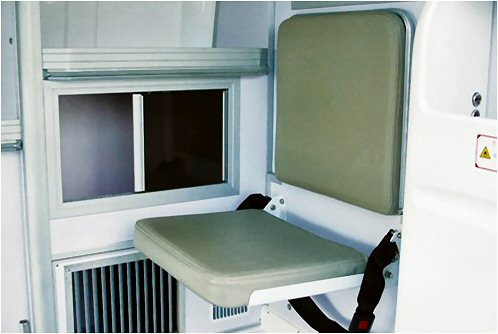

Medical special chair:

Suspension medical chair, bottom place the medicine-kit

Alert system:

2 long 100W speakers

Alarm lamp system:

Stroboscopic alarm lamp

Oxygen bottle cupboard:

Interior adopt imported composite moulding process

Aspirator system:

Individual aspirator

Ventilation system:

Elementary filter unit

Intercom system:

One-way control

Sterilization system:

Inserted ultraviolet sterilization lamp

Transfusion bracket:

Vertical infusion support

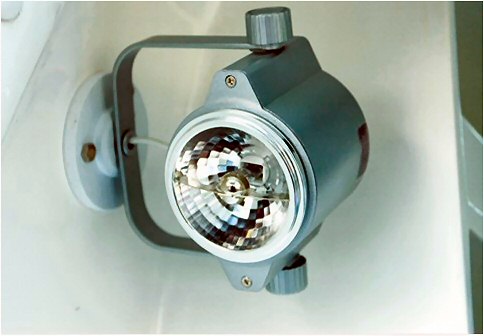

Lighting system:

Inner cabin special medical lamp

Safe handrail:

Safe guarantee design

Electrical equipment control cabinet：

Hidden control cabinet，integrated faceplate operation

Fire extinguisher:

Equip in front and rear cabin

Heart pressing pump

Vacuum splint

Defibrillator and pacemaker monitor

Breathing machine series

Instrument of Pulse oximetry

ECG machine

First aid case

GPS

Imported stretcher system

Original imported alert system
