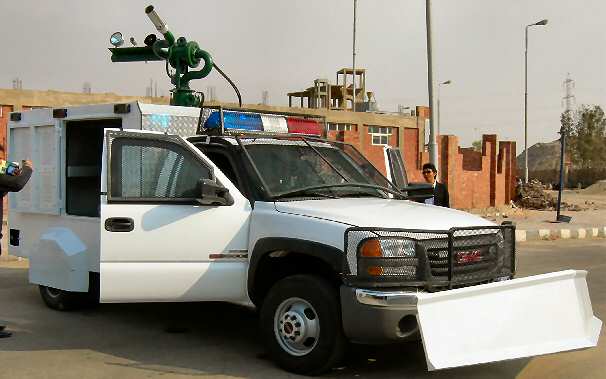

RIOT CONTROL VEHICLE ARCV 2500





TYPE:

Riot Control

DESCRIPTION:

Riot Control Vehicle ARCV 2500

PRICE:

Upon Request

PACKING:

Ex-works





RIOT CONTROL VEHICLE ARCV 2500

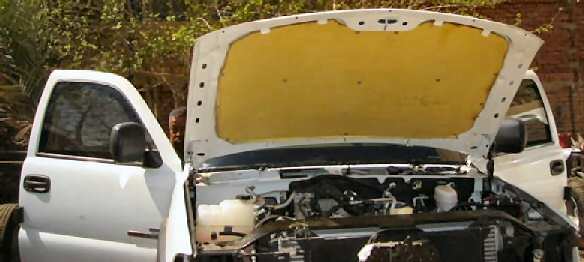

Chassis:

  • GMC sierra 3500

  • 365 HP at 3300 RPM

  • Torque 660 lb-ft 881 nm at 1600 rpm

  • 8 cylinders turbo charged Duramax Diesel 6600 V8 HO

  • 4X4 automatic transmission 6 speed Allison tap shift heavy duty

  • Wheel base: 133”

  • Length: 222.1”

  • Width: 96.1”

  • Height: 76.7”

  • 12 V electrical system with standard gauges and indicators

  • High capacity air conditioning with climate control

  • GVW 5170 Kg

  • Power Steering

  • ABS brake system

  • Fuel tank 185 liters

Water Tank:

  • 2500 liters

  • Galvanized steel

  • Integrated design

  • Rectangular shape, corrugated profile

  • Tank filling: 2X2.5” openings on both side, and from the top

  • Internal baffles to break the water inertia

  • Tank opening from the top to allow tank cleaning and inspection

  • Tank connection to pump equipped with a main valve

  • Tank is equipped with an electric level indicator inside the cab

  • The tank is mounted on a strong sub-frame made of galvanized steel

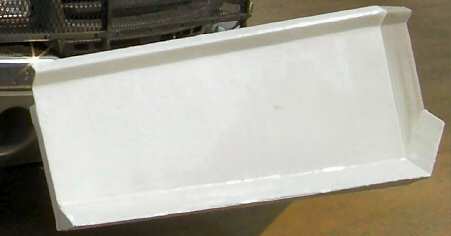

Front Dozer:

  • Operated hydraulically from inside the cabin

  • Obstacle removal up to 1.5 tons

  • Protects the front of the vehicle

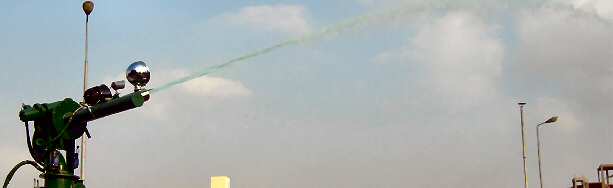

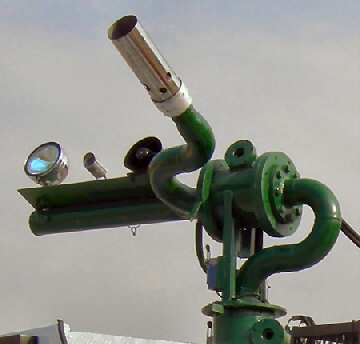

Water Cannon:

  • Mounted on top of the vehicle to provide wider visibility and no obstructions to the operator

  • Rotates 360° horizontally

  • Operates from -17° to 50° in the vertical plane

  • Completely remotely operated from inside the vehicle

  • Has 50 m range

Color Tank:

  • 300 liters

  • Manufactured out of galvanized steel

  • The color mixes with the water using a variable ratio mixer Wash-down Systems:

  • The truck is equipped with 2 independent wash-down systems; one on top of the vehicle and one at the bottom to extinguish any fires underneath the vehicle or any corrosive fluids thrown on the sides

  • These systems are operated from inside the vehicle

  • The pump supplies these systems with water

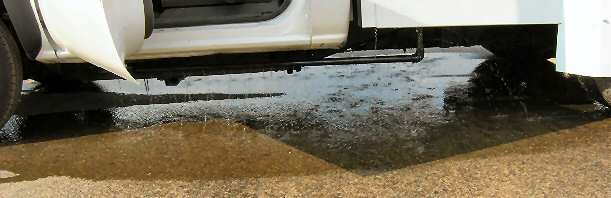

Wash-down Systems:

  • The truck is equipped with 2 independent wash-down systems; one on top of the vehicle and one at the bottom to extinguish any fires underneath the vehicle or any corrosive fluids thrown on the sides

  • These systems are operated from inside the vehicle

  • The pump supplies these systems with water

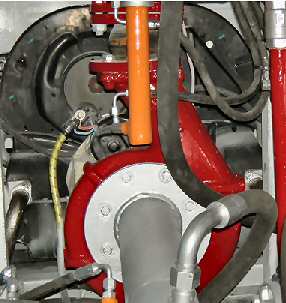

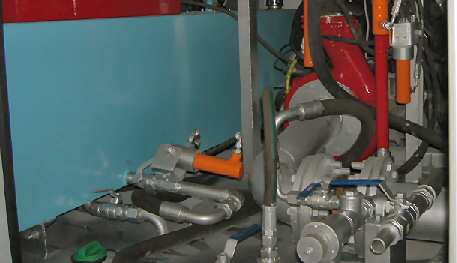

Pump Set:

  • Hale 40 FP attack pump

  • Discharge 1500 lit/min at 10 bar

  • Directly coupled to a VW air cooled gasoline engine

  • Total weight for the set 180 kg.

Protection:

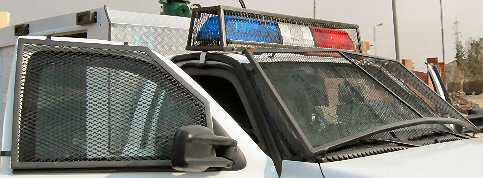

  • Removable wire mesh grills to protect the windshield, windows and front lights, rear lights and peripheral lights

  • Removable side protection on the rear wheels

  • Slanted walls and smooth surfaces to prevent rioters from climbing on top of the vehicle

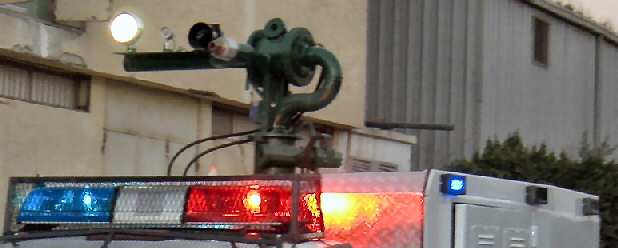

Surveillance:

  • The water cannon is equipped with a night vision camera and a light projector to enable the crew to survey the area around the vehicle and direct the water cannon

  • The cabin is equipped with an LCD connected to the camera

  • An additional infra red camera can be added to the system with an additional LCD (optional)

Lights and Siren:

  • The truck is equipped with a Whelen light bar and siren complete with public address

  • The truck is equipped with 10 Whelen LED’s on the sides, rear and the front of the vehicle

  • The truck is equipped with an additional loudspeaker on the water cannon

All the lights and the sirens and the loudspeaker are controlled from inside the cabin using a Woodway Optilink unit

Control:

  • Complete control from inside the vehicle

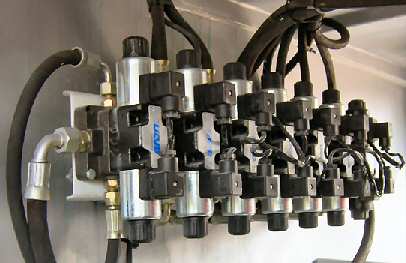

  • Hydraulically operated valves to control water and color mixing, water flow, wash down system, dozer operation and monitor movement

Armoring:

  • Armoring in compliance with threat level NIJ III A

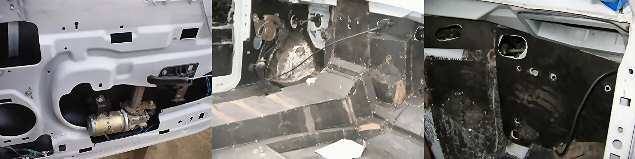

  • Roof, Floor, Front & Rear Panels, Side Panels & Doors protected with ARMOX Ballistic Steel 4.6 mm, plasma cut and welded to avoid rust and penetration

  • Hood & Rear Upper Panel protected with KEVLAR plates 12 mm

  • Overlap protection on windows upper perimeter and critical areas against Angle Shot

  • Windscreen and side windows in Transparent Ballistic certified Multilayer Polycarbonate Glass combination ensuring crew protection against splinters and fragmentation. The armored glass looks like original.

  • Electrically controlled side windows, reinforced heavy duty lifters to carry the multilayer glass weight

  • Door hinges reinforced, shock absorbers to buffer extra weight

  • Run Flat inserts on wheels to avoid the vehicle immobilization in case of tire burst. In cases of threat, the vehicle will be capable to drive for a distance of 40 km at a constant speed of 50 km/h











Specification and photos are not contractual and are subject to verification upon inspection
