ENGINE
DXi11
Power : 321
kW (436 hp) at 1900 rpm.
Torque : 2000
Nm from 1100 to 1400 rpm.
6-cylinder
in-line diesel engine, turbocharged with INTERCOOLER and
wastegate (for 410 / 450 hp).High-pressure electronic
fuel-injection (2000 bars) by unit injector pumps.
24-valve, overhead camshaft, monobloc cylinder head,
timing gear mounted in the rear.Bore 123 mm - stroke 152
mm - capacity 10.8 litres. Engine oil capacity: 36
litres. Steel oil sump. High-capacity throw-away oil
filter.Cooling system capacity: 33.5 litres (51 litres
with hydraulic retarder).Piloted starting.Electronically
piloted fan.Direction of rotation (seen from G/B end):
anti-clockwise.
EEC EURO 3
exhaust emissions level.
Coolant
anti-freeze protection: - 25°C.
Vehicle noise level 82 dB(A)
ENGINE
EQUIPMENT
Exhaust brake
Cast iron
housing clutch flywheel
Electronic
idling control.
CLUTCH
Clutch 430 GD
900 (430MFZ on Optidriver)
Single-plate.
Air-assisted hydraulic actuation.
Automatic
clearance adjustment.
GEARBOX
ZF 16S 2230
TO
16 forward
synchronised gears and 2 reverse gears (13.8 - 0.84).
Aluminium casing. Air splitter unit with pre-selection
valve on the lever. Super H gear selection grille. Gear
change assist by SERVOSHIFT. Cable controls. Economical
driving assistance (DMS - Driving Monitoring System).
RETARDER
Exhaust brake
retarder (135 Kw at 2100 rpm on DXi11, 193kW à 2300 rpm
on DXi13) with constant solenoid valve control (between
2 and 7.5 bars).
POWER
TAKE-OFF
Without
gearbox-mounted PTO.
REAR DRIVE
AXLE
PMR 3361
Tandem axle
32 tonnes
capacity, double reduction by bevel gearing and reducers
in the hubs (3.46)
Rear axle
ratio 20 x 27 (ratio 1.35).
STEERING
Hydraulic
power assistance.
Integral
hydraulic power assistance (1 independant circuit and 1
pump).
AXLE
Load
capacity: Front axle: 8 t..
WHEELS AND
TYRES
B. 13 R 22.5
M840/L355.
Disc wheels
22.5 x 9.00 - 10 - 162 M22.
Steel
roadwheels.
Spare wheel supplired loose, with jack..
BRAKING
SYSTEM
Main brake :
Electropneumatic braking system with two independent
circuits,
Drum brakes.
Braking
capacity > 70tonnes
Electronic
APM (Air Product Management):cartridge air dryer,
optimised by preventive maintenance.compressor disabled
during engine starts.
Compressor:
Twin-cylinder
636 cm3 piloted by APM.Declutching.Max. output: 660
litres/min at 2000 rpm (compressor).Ratio: 1.31
Drum:
|
Diameter: 410
mm.Front width: 175 mm.Rear width: 200 mm.Brake lever
170 mm.Total linings area: 14 805 mm2.
Parking brake
:
Air operated
springs brake actuators on drive axle.
Emergency
brake :
Provided by
the independance of the two separate circuits.
Brake
adjustment :
Automatic
adjustment.
CAB
EXTERIOR :
All steel
Cab, iron-zinc coated and cataphoretic paint treatment.
Day Cab
Front panel
with honeycomb radiator grille.
Anti-spray
deflectors.
Cab 2-point
mechanical rear suspension.
Hydraulic cab
tilt mechanism.
2 manually
adjustable rearview mirrors.
Tinted,
laminated windscreen and tinted windows.
Air intake
ducting on left side of roof.
Access to
driving position by 3 lit steps. Flexible 1st step made
from composite material.
Unskidable
windscreen access step.
Rear window.
INTERIOR :
Normal roof
equipped with storage ledge.
Storage box
50 L
Cab
soundproofing.
Grab handles.
Driver's seat air suspended with seat-mounted safety
belt and headset integrated
Fixed passenger's seat with seat belt.
Head
Restraint
Storage
compartments in both doors.
Soft Door
Trim
Boot socket
on gear lever console.
Pre-equipment
radio including wiring, antena and speakers
Onboard
Driving & Servicing handbook in Export English.
INSTRUMENT
PANEL :
Electronic
dashboard with :
- numeric
display for speed & rpm.
- external
temperature & time display.
- analogic
oil level, water temperature & air pressure display.
- warning
light.
- numeric
display for secondary driving information.
- anti
-reflection screen
Information
display lighting intensity and sound level
adjustment.Lights not switched on alert.
Drinking cup
location or removable ashtray.
LIGHT CABINE
ADJUSTMENT
Cigar-lighter
Instrument
panel bleed control.
DIAG socket.
Access hatch
to fuses and bodybuilder module box (BBM).
STEERING-MOUNTED EQUIPMENT:
Steering
lock.
Retarder or
engine brake control (if equipped).
Two speed
windscreen wipers with incorporated washers and
intermittent wipe.
Headlight
control.
Adjustable
steering column.
ELECTRICAL
EQUIPMENT
Battery
capacity: 170 Ah
Alternator
110 A.
24V voltage supplied by two batteries.Master switch and
fuse box in battery tray.
Note: No representation given. Specifications subject
to discontinuance, change and improvement. Dimensions,
characteristics and data are for guidance only. We
recommend that |
Lighting to
EEC standards.
Electrical
headlights beam adjuster.
Round tail
lights.
CHASSIS
Very bad road
condition usage - off road
XPERT Version
heavy duty conditions adapted, electronic box.
Reminder :
- Dashboard
"eco" without non vital failure
- Inter axle
differential blocking inter wheel in rear speed position
- Protection
for APM, mulit "T", clutch, inter wheel, inter axle
locking.
- Inter axle
reinforced transmission
- oil level
indicator on front side

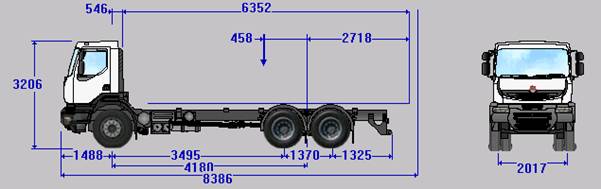

Chassis
width:Front: 1080Rear: 850Sidemembers module: 300 x 90 x
8.Sidemember lining: 5 mm.Necking of chassis under cab.
Normal rear
overhang, Pre drilled for Body Builder.
3-piece steel
shield integrating retractable windscreen access step,
front grille, radiator protection shoe and towing yoke.
Windscreen
additional Foot-Board
Detachable
front towing yoke (25 tonnes) with unlocking by 1/4 turn
lock.
Chassis rear
cross-member.
Without rear
run-under guard..
Tail lamps
mounted on dedicated bracket.
SUSPENSION
Front :
Maintenance-free front parabolic 2-leaf springs (8
tonnes).
Front
anti-roll bar.
Rear :
Semi-elliptic
leaf springs.
Rear
suspension capacity 32T for very bad road conditions
Rigid 8x4 :
11 elliptic leaves
Rigid and
tractor 6x4/6x6 : 9 elliptic leaves
Off road
usage : rear suspension capacity increased to 38T in 4
parabolic leaves suspensions
Rear
anti-roll bar.
Telescopic
shock absorbers on middle and rear drive axles.
FUEL TANK
Main steel tank: 315 litres capacity. (255 kg of diesel)
D- shaped 560.
Locking fuel
filler cap.
Without fuel
heater.
STANDARD
EQUIPMENT
Side exhaust.
Dusty surroundings air filtration.
Onboard kit.
. Hydraulic
jack - Tool kit.
Advance
warning triangle.
Headlamp
protective grille.

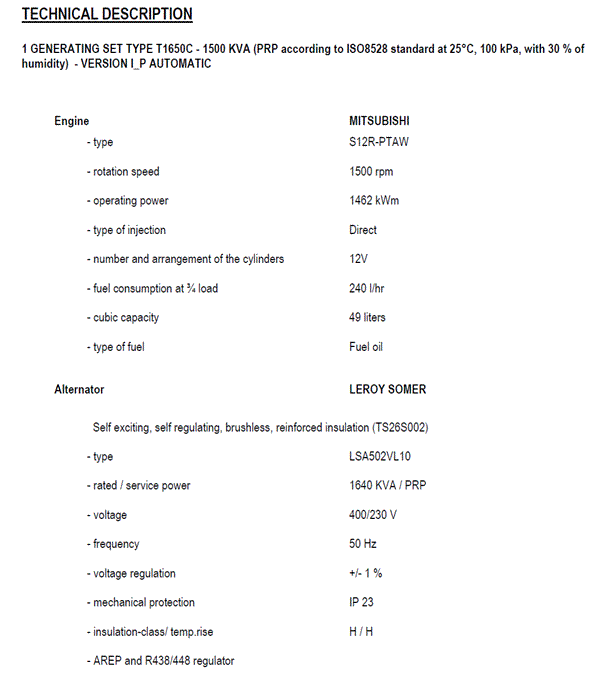

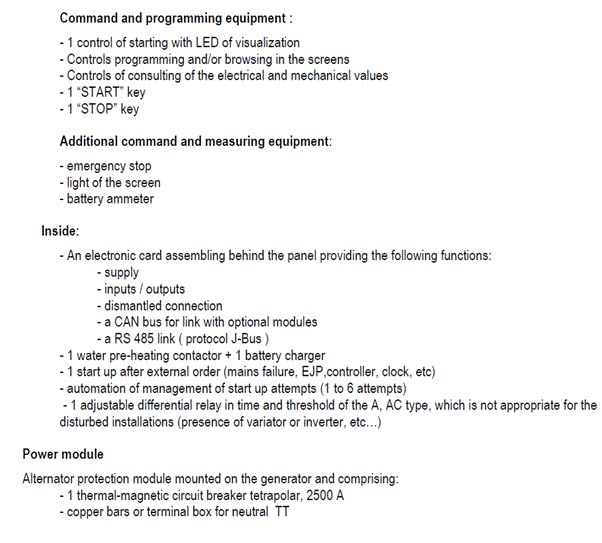

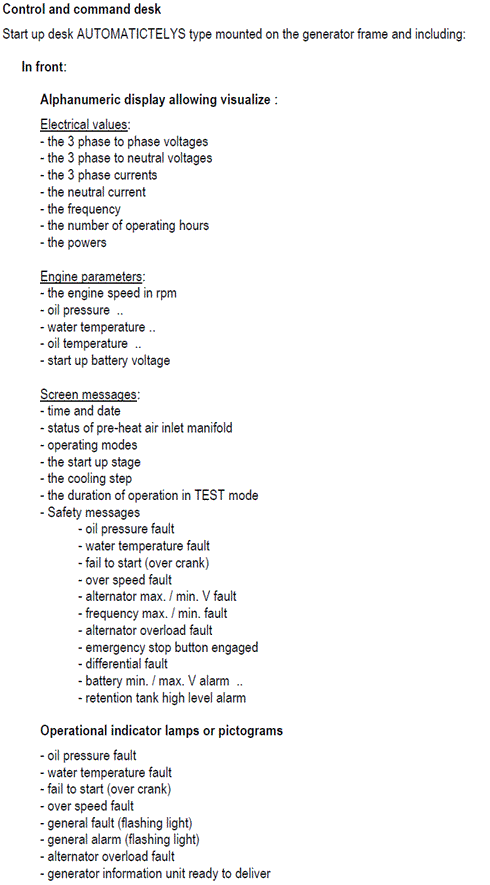

BODYWORK
Pre-arrangement for bodybuilder electronic box
interface.
Power supply
terminal plate 24V / 200A in battery tray.Round 7-pin
socket provision under battery tray:- After master
switch power supply 24V / 15A + earth (cab shared).-
After ignition power supply 24V / 15A + earth.-
Side/parking lights.- Alarm connection.
T multiple
for Bodybuilder
fixing crow
vehicles be measured and weighed before any
body-building work occurs.no contract or binding
undertaking is engaged by this document
|
