RENAULT DUMPER 6x4





TYPE:

Truck

DESCRIPTION:

Renault Kerax Dumper 6x4

PRICE:

Upon Request

PACKING:

Ex-Works

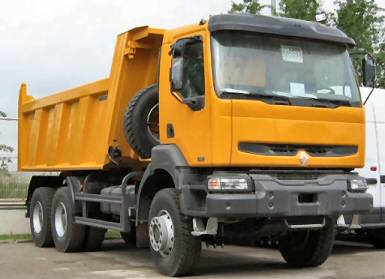

renault kerax dumper 6x4










PRODUCT DESCRIPTION

Vehicle.......................................................................................................................................... KERAX 380.35 6X4 XHD

Wheelbase................................................................................................................................................ WHEELBASE 3,85

Rear Axle ratio...................................................................................................................................... R.A. RATIO 20 X 27

GVW............................................................................................................................................................................. GVW 35

GCW/GTW.................................................................................................................................................. GCW / GTW 38,5

Colour............................................................................................................................................. GLACIER WHITE * (M)

Tyres............................................................................................................... B.1200 R 24 M840/L355 (+INNER TUBE)





CHASSIS AND OPTIONS

Description

Chassis/Cab

FUEL PREFILTER (ON CHASSIS) - R120

PTO S81 C (HOLLOW SPLINED SHAFT)

ATMOS.DIRT FILTER

FIRST AID KIT

GLOBAL CAB 2M (2 DOORS)

4 POINT CAB SUSPENSION

DRVR.SEAT AIR+S/B SHT.TRV.

2ND SEAT FIXED +SB SHT.TR.

AIR CON FOR DUSTY CONDITIONS

RADIO MONO CD

12 + 24 VOLT SOCKETS

P.T.O. SPEED LIMITER

SPARE WHEEL (LOOSE)+ JACK

WITH FIXINGS FOR BODYBUILDER



EQUIPMENT

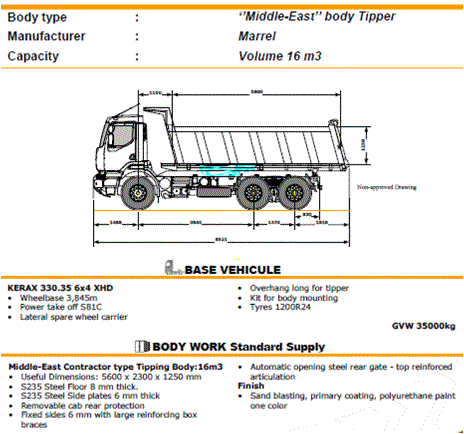

Tipper 16m3 according to specification sheet ref. 5020005016 attached







Personalised Specification Sheet

KERAX 380.35 6X4 XHD

GVW 35

GCW / GTW 38,5







Engine speed at 90 km/h : 1729 rpm

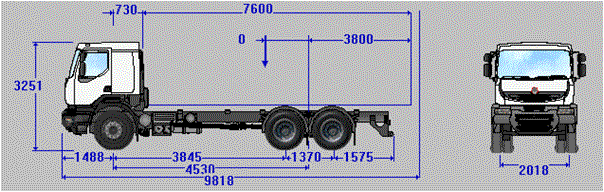

Weights and dimensions

GVW kg.............................................................................................................................................................................. 35000

Rear Axle 2 Max. Limit kg...............................................................................................................................................16000

Rear Axle 1 Max. Limit kg................................................................................................................................................16000

Max. Body Length (W) mm................................................................................................................................................7600

Min. Body Length (W) mm.................................................................................................................................................6392

Total Payload kg................................................................................................................................................................25453

Chassis Cab Weight kg......................................................................................................................................................9547

Front Load Distribution kg................................................................................................................................................4636

Rear Load Distribution kg................................................................................................................................................. 4911

Front Axle Max. Limit kg......................................................................................................................................................8000

Rear Axle Max. Limit kg.....................................................................................................................................................32000

Max. Rear Overhang (X) mm.............................................................................................................................................. 3800

Min. Rear Overhang (X) mm................................................................................................................................................2592

Min. Payload Centre of Gravity (Y) mm...................................................................................................................................0

Max. Payload Centre of Gravity (Y) mm.............................................................................................................................604

Max. Vehicle Length (Z) mm...............................................................................................................................................9818

Min. Vehicle Length (Z) mm................................................................................................................................................8610

Cab Start (B) mm.....................................................................................................................................................................730

Wheelbase (F) mm................................................................................................................................................................3845

Technical Wheelbase (F') mm............................................................................................................................................4530

Chassis Cab Rear Overhang (N) mm...............................................................................................................................1575

Chassis Cab Overall Length mm.......................................................................................................................................8278

Chassis Height unladen (H2) mm......................................................................................................................................1228

Chassis Height laden (H2) mm...........................................................................................................................................1159

Cab/Ground Height unladen (O) mm.................................................................................................................................3251

Front Overhang (H) mm........................................................................................................................................................1488

Rear Axle Spacing mm.........................................................................................................................................................1370

Cab Width across WIngs mm..............................................................................................................................................2500

Front Track (V1) mm............................................................................................................................................................. .2018

Rear Track mm.......................................................................................................................................................................  1874

Width across Rear Wheels mm............................................................................................................................................2525

Front Ground Clearance mm..................................................................................................................................................423

Rear Ground Clearance mm...................................................................................................................................................373

Frame Width at Front mm........................................................................................................................................................108

Frame Width at Rear mm......................................................................................................................................................... 850

Overall Turning Radius mm..................................................................................................................................................9940

 This table includes the weights of selected RENAULT TRUCKS options. The dimensions remain those of the base vehicle.




SPECIFICATION SHEET  KERAX 380.35 6X4 XHD




ENGINE    DXi11

Power : 279 kW (379 hp) from 1800 to 1900 rpm.

Torque : 1800 Nm from 1000 to 1400 rpm.

6-cylinder in-line diesel engine, turbocharged with INTERCOOLER and wastegate (for 410 / 450 hp).High-pressure electronic fuel-injection (2000 bars) by unit injector pumps. 24-valve, overhead camshaft, monobloc cylinder head, timing gear mounted in the rear.Bore 123 mm - stroke 152 mm - capacity 10.8 litres. Engine oil capacity: 36 litres. Steel oil sump. High-capacity throw-away oil filter.Cooling system capacity: 33.5 litres (51 litres with hydraulic retarder).Piloted starting.Electronically piloted fan.Direction of rotation (seen from G/B end): anti-clockwise.



EEC EURO 3 exhaust emissions level.



PTO speed limiter.



Coolant anti-freeze protection: - 25C.



ENGINE EQUIPMENT

Exhaust brake

Aluminium housing clutch flywheel

Electronic idling control.



CLUTCH

Clutch 430 GD 900 (430MFZ on Optidriver)

Single-plate. Air-assisted hydraulic actuation.

Automatic clearance adjustment.



GEARBOX

ZF 16S 1830 TO

16 forward synchronised gears and 2 reverse gears (13.8 - 0.84). Aluminium casing. Air splitter unit with pre-selection valve on the lever. Super H gear selection grille. Gear change assist by SERVOSHIFT. Cable controls. Economical driving assistance (DMS - Driving Monitoring System).



RETARDER

Exhaust brake retarder (135 Kw at 2100 rpm on DXi11, 193kW 2300 rpm on DXi13) with constant solenoid valve control (between 2 and 7.5 bars).



POWER TAKE-OFF

Gearbox mounted PTO: S81 C.

Splined output for flanged pump. Rotation: opposite to engine..

Torque: 1000 Nm on mechanical g,box, 800 Nm on Optidriverr.

Ratios:

0.9 / 1.09 (16S TO) ; 0.70 / 0.90 (Optidriver+ AT) ; 0.88 / 1.1 (Optidriver+ ATO)



REAR DRIVE AXLE

PMR 3361 Tandem axle

32 tonnes capacity, double reduction by bevel gearing and reducers in the hubs (3.46)

Rear axle ratio 20 x 27 (ratio 1.35).



STEERING

Hydraulic power assistance.

Integral hydraulic power assistance (1 independant circuit and 1 pump).



AXLE

Load capacity: Front axle: 8 t..



WHEELS AND TYRES

B.1200 R 24 M840/L355 (+CHAMBRE)

24" steel wheels.

Spare wheel supplired loose, with jack..



BRAKING SYSTEM

Main brake :

Electropneumatic braking system with two independent circuits,

Drum brakes.

Braking capacity > 70tonnes

Electronic APM (Air Product Management):cartridge air dryer, optimised by preventive maintenance.compressor disabled during engine starts.

Compressor:

Twin-cylinder 636 cm3 piloted by APM.Declutching.Max. output: 660 litres/min at 2000 rpm (compressor).Ratio: 1.31

Drum:

Diameter: 410 mm.Front width: 175 mm.Rear width: 200 mm.Brake lever 170 mm.Total linings area: 14 805 mm2.

Parking brake :

Air operated springs brake actuators on drive axle.

Emergency brake :

Provided by the independance of the two separate circuits.

Brake adjustment :

Automatic adjustment.



CAB

EXTERIOR :

All steel Cab, iron-zinc coated and cataphoretic paint treatment.

Global cab 2-door.

Front panel with honeycomb radiator grille.

Anti-spray deflectors.

Cab 4-point mechanical suspension.

Hydraulic cab tilt mechanism.

2 manually adjustable rearview mirrors.

Tinted, laminated windscreen and tinted windows.

Air intake ducting on left side of roof.

Access to driving position by 3 lit steps. Flexible 1st step made from composite material.

Unskidable windscreen access step.

Rear window.

INTERIOR :

Normal roof equipped with storage ledge.

Storage box 50 L

Cab soundproofing.

Grab handles.

Driver's seat air suspended with seat-mounted safety belt and headset integrated

Fixed passenger's seat with seat belt.

Head Restraint

Storage compartments in both doors.

Soft Door Trim

Boot socket on gear lever console.

First aid box.

Integratede air conditioner with manual regulation

Radio CD : Tuner FM / AM, CD player. 2 HP 130mm Woofer, 2 HP19mm Tweeter .

Remote controls at steering wheel.

Onboard Driving & Servicing handbook in Export English.



INSTRUMENT PANEL:

Digital display integrating: - speedometer, radio information display, clock, outside temperature display depending on version or option.- driving information display.- driver warning messages and various menus.Analogue display integrating:- central rev counter with economic operating band, fuel gauge, air pressure gauge, water temperature gauge.- twin indicator markers (tractor and trailer).- function and warning lamps.- anti-glare window.- display menu control by satellite radio.

Information display lighting intensity and sound level adjustment.Lights not switched on alert.

Drinking cup location or removable ashtray.

Electrical socket 12 V + 24 V for accessories.



LIGHT CABINE ADJUSTMENT

Cigar-lighter

Instrument panel bleed control.

DIAG socket.

Access hatch to fuses and bodybuilder module box (BBM).



STEERING-MOUNTED EQUIPMENT:

Steering lock.

Retarder or engine brake control (if equipped).

Two speed windscreen wipers with incorporated washers and intermittent wipe.

Headlight control.

Adjustable steering column.



ELECTRICAL EQUIPMENT

Battery capacity: 170 Ah

Alternator 110 A.

24V voltage supplied by two batteries.Master switch and fuse box in battery tray.

Lighting to EEC standards.

Electrical headlights beam adjuster.

Round tail lights.



CHASSIS

Very bad road condition usage - off road

Chassis width:Front: 1080Rear: 850Sidemembers module: 300 x 90 x 8.Sidemember lining: 5 mm.Necking of chassis under cab.

Normal rear overhang, Pre drilled for Body Builder.

3-piece steel shield integrating retractable windscreen access step, front grille, radiator protection shoe and towing yoke.

Windscreen additional Foot-Board

Detachable front towing yoke (25 tonnes) with unlocking by 1/4 turn lock.

Chassis rear cross-member.

Without rear run-under guard..

Tail lamps mounted on dedicated bracket.



SUSPENSION

Front :

Maintenance-free front parabolic 2-leaf springs (8 tonnes).

Front anti-roll bar.

Rear :

Semi-elliptic leaf springs.

Rear suspension capacity 32T for very bad road conditions

Rigid 8x4 : 11 elliptic leaves

Rigid and tractor 6x4/6x6 : 9 elliptic leaves

Off road usage : rear suspension capacity increased to 38T in 4 parabolic leaves suspensions

Rear anti-roll bar.

Telescopic shock absorbers on middle and rear drive axles.



FUEL TANK

Main steel tank: 255 litres capacity. (206 kg of diesel)

D- shaped 560.

Locking fuel filler cap.

Without fuel heater.



STANDARD EQUIPMENT

Side exhaust.

Dusty surroundings air filtration.

Onboard kit.

. Hydraulic jack - Tool kit.

Advance warning triangle.

Headlamp protective grille.



BODYWORK

Pre-arrangement for bodybuilder electronic box interface.

Power supply terminal plate 24V / 200A in battery tray.Round 7-pin socket provision under battery tray:- After master switch power supply 24V / 15A + earth (cab shared).- After ignition power supply















Specification and photos are not contractual and are subject to verification upon inspection
