Armored B6 Range Rover L322
As is, Where is
ARMORED B6 RANGE ROVER L322
Range Rover L322 armoured B6
B. Standard features of base
Ø Four channel all terrain ABS power braking with all round disc brakes, Electronic Brakeforce Distribution (EBD) & Emergency Brake Assist (EBA).
Ø Dynamic Stability Control (DSC) with trailer compensation.
Ø 5 speed automatic transmission with sport & driver modes, plus CommandShift™ manual
Ø Permanent four wheel drive, plus torque sensing centre differential and Hill Descent Control
Ø Four Wheel Electronic Traction Control (ETC)
Ø Fully independent electronic air suspension with variable ride height
Ø Linear power-assisted rack & pinion steering with positive feel hydraulic & mechanical lock stops
Ø Electrically adjustable steering column
Ø Multi-function steering wheel with speed regulator
Ø Intelligent terrain recognition software
Ø Central high mounted stop lamp
Ø Front seatbelt pre-tensioners with load limiters
Ø 7 inch touch screen with 4x4 information
Ø Leather steering wheel, gearknob & handbrake grip/gaiter
Ø Leather upholstery with electric adjustment for driver & front passenger
Ø Asymmetric split rear seat with centre arm rest & two cup holders
Ø Double hinged, removable loadspace cover (modified)
Ø Rear boot mounted accessory socket
Ø 2 front cup holders
Ø Programmable main interior lamp, right & left interior floodlamps, loadspace & glovebox illumination
Ø "Waterfall" front & rear interior illumination
Ø Message centre & trip computer with selectable speed limit warning
Ø Full climate control with individual settings for driver& front passenger
Ø One touch automatic control of air distribution & demisting
Included Armored options
Ø Tinted windows
Ø Intercom system
Ø Split charge system
Special Customer Requests/Special Options:
(Additional items will increase the proposal price.)
Ø Self-sealing ballistic fuel tank
Ø Underbonnet fire extinguisher system
Ø Anti-tamper exhaust
Ø Covert emergency lights and siren, strobe flashlights
Ø Fresh air (oxygen) system
Ø Front operable window (120mm max) per window
Ø Rear operable window (120mm max) per window
Ø Alternating flashing headlamps
D. Glass Tint and Operability:
A. Protection System Materials
Incidence 0° NATO: Quarter panels, doors, pillars between the doors, windscreen pillars, rear face
Incidence 60° NATO: Roof, front face, rear dash, front and rear rails
Incidence 0° NATO: Windscreen, rear window, door windows
Floor: Aramid Blanket and/or Steel
Roof: High Hardness Ballistic Steel
Body: High Hardness Ballistic Steel and armored panels
Glass: 39 mm Multi-Layer Glass
B. Vehicle enhancements
Computer/Fuse Box – Protected
Door Check Straps
Upgraded suspension with full Land Rover warranty
Up rated braking system with full Land Rover warrantyRun flat tyres, Goodyear EMT
I. Ballistics - Protection System

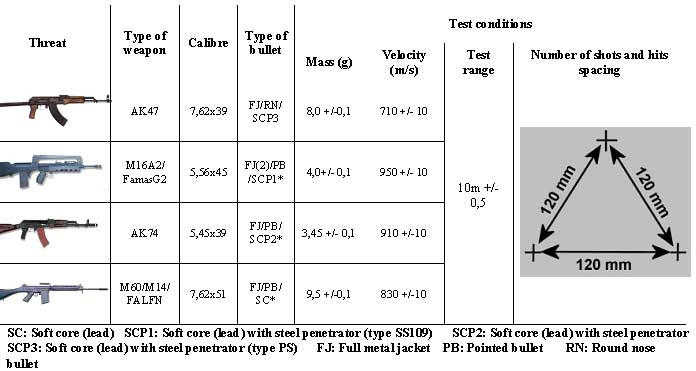

A- Ballistic Performance Data – Assault Rifle Ball / M80 – Equals to level B6 (FB6 and BR6 according to CEN 1522 and 1063).
B. Underbody Blast Protection
The underbody armoring, if provided on your vehicle, provides protection from the blast and fragmentation resulting from the detonation of two (2) simultaneously detonated DM51 hand grenades placed on the ground at any location under the vehicle. The characteristics of the DM51 hand grenade are as follows:
DM51 Fragmentation Grenade
Diameter: 57 mm
Weight: 425 gramsExplosive Weight: 60 grams
C. The armor of Range Rover has the Qinetiq approval (ballistic and blast).
Specification and photos are not contractual and are subject to verification upon inspection
