RANGERB7



TYPE:

Armored Vehicle

DESCRIPTION:

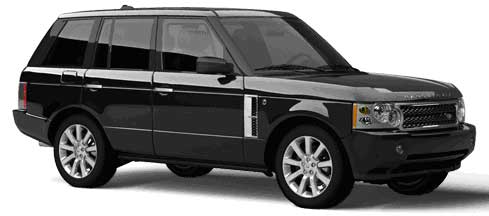

Armored B7 Range Rover

PRICE:

Upon Request

PACKING:

Ex-Works



armored b7 range rover







CHASSIS STANDARD FEATURES



         NEW Range Rover

         Engine 4.4L 305 HP V8

         Color to be specified by customer

         Air conditioning

         Transmission 6-Speed Automatic Overdrive

         Sunroof Std

         Air Conditioning Std

         Power Windows Std

         Power Door Locks Std

         Leather Seats Std

         Power Seats Std

         Max. Seating 5

         Number of Doors 4

         CD Player

         ABS Brakes Std

         Traction Control Std

         Stability Control



BASE ARMORED EQUIPMENT



  • Vehicle armored to B7 a combination of Hexoloy SA Silicon Carbide Tiles and ballistic steel



  • All four (4) doors armored armored to B7 a combination of Hexoloy SA Silicon Carbide Tiles and ballistic steel



  • Windshield is 54mm thick armored to B7



Transparent armor for doors is 56 mm armored to B7



  • Oblique, Front and Rear of vehicle armored to B7 a combination of Hexoloy SA Silicon Carbide Tiles and ballistic steel



  • Entire roof area will be armored to B7 a combination of Hexoloy SA Silicon Carbide Tiles and ballistic steel



  • Floor armored using 3 mm ballistics steel with 3 mm Mild Steel that acts as an absorbent for blast.



The hard steel is brittle therefore can shatter injuring the occupants inside the vehicle if a blast occurs therefore we recommend 3 mm Mild Steel on top as a second layer included.



  • All pillar posts, side panels, kick-panels, firewall, and headers, cargo area, rear wheel arches, rear cargo doors will all be armored to B7 a combination of Hexoloy SA Silicon Carbide Tiles and ballistic steel



  • Overlap System around each window will be used throughout the vehicle to ensure complete protection armored to B7 a combination of Hexoloy SA Silicon Carbide Tiles and ballistic steel



  • Battery and computer armored using 6.35 mm  ballistics steel that has been previously tested at the H.P. White Laboratory to defeat the following



B6 - 7.62 x 51mm (European Ballistic Standards EN1063)



  • Run-Flats installed in all tires



  • Rear door kept original with armored swing door directly behind original.  Swing door will have transparent armor for full viewing capacity.  The thickness of the transparent armor is 56 mm.  The door will be armored to B7



  • Rear cargo side panels to have 12 X 8 transparent armor inserts to be 56 mm



TERMS:                                      50% deposit with order and additional 50% upon completion of vehicles prior to shipment.



Terms of Payment:                  50% deposit and additional 50% payable when vehicle complete prior to shipment



Terms of Delivery:                   Extra



Completion Time:                    6 weeks













Specification and photos are not contractual and are subject to verification upon inspection
