MODULAR AJUSTABLE VEHICLE RAMP
Modular designed, vehicle-based adjustable ramp system for elevated entry
and capable of fitting a variety of vehicles.
Frame: Material 5053H32 aluminum sheet, extrusions 6061T6 aircraft
aluminum, Frame supports all components of system. Truss type frame spans
vehicle. Attaches to front and rear vehicle mounting components.
Construction: Modular - components bolted together using Stainless Steel
Finish: All aluminum components Anodized; all mild steel components powder
coated; Stainless Steel components require no finish
Deck Surface: All deck surfaces and rear stair tread are aluminum Grip
Strut® safety grating. Grip Strut® slip resistance exceeds US Federal spec
RRG-1602A slip resistance requirements.

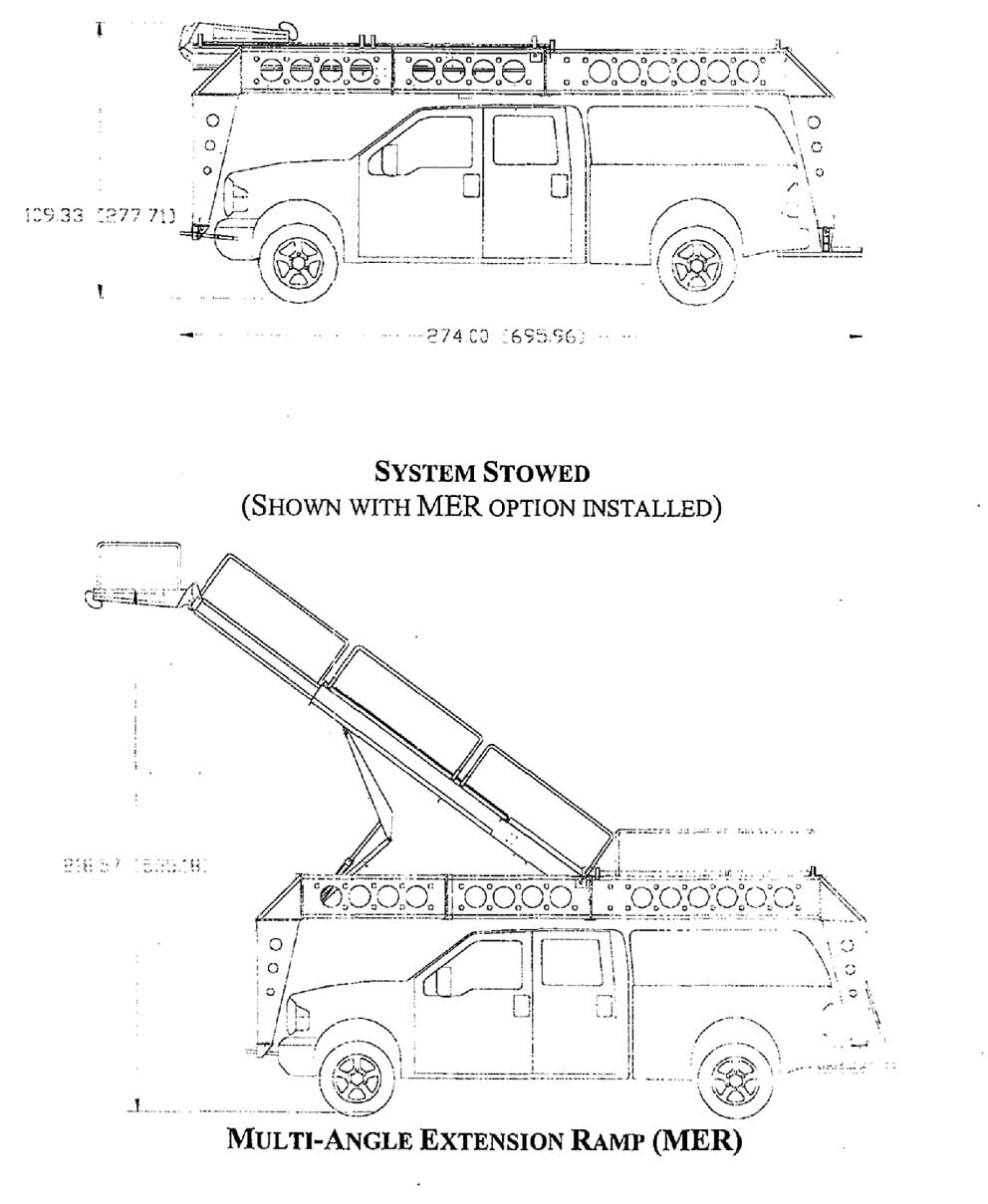

System Overall Dimensions
length: Varies with vehicle
Overall height: Varies with vehicle

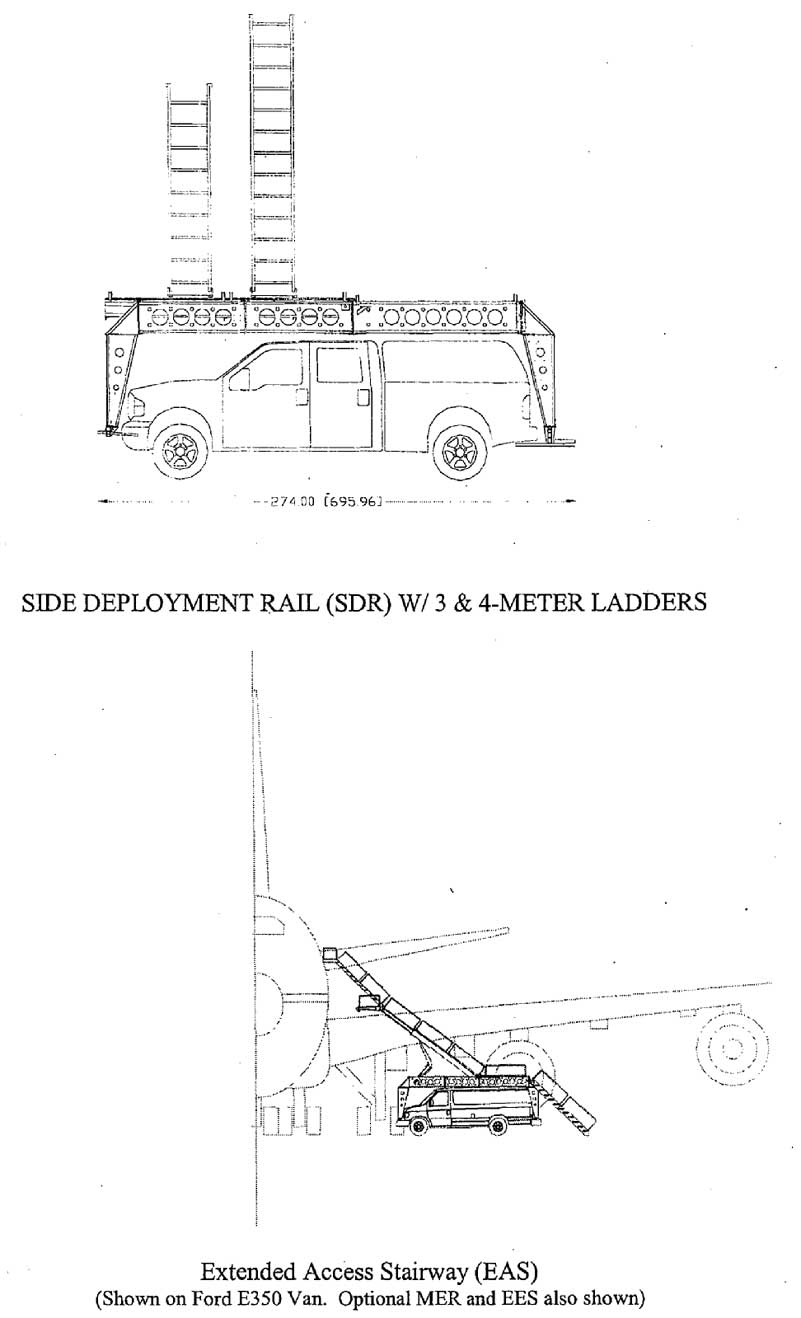

Overall width: 93 inches (236.22 cm) without SDR installed
Approximate Weight: 1900-2400 Lbs. Varies with vehicle
Maximum Ramp Height: 18 21 varies with vehicle
Maximum Ramp Angle: 37 degrees
Extension Ramp Stroke: 60 inches (1 52cm)
Bolts/Fasteners: Stainless Steel/Zinc Plated
Power Supply: Operates on vehicle supplied 12V or 24V power (Specify voltage
at time of order placement)
Maintenance and Use Manuals: Supplied in English
Bearings: Nickel plate steel w/ lubrication fittings
NOTE: Some components may not be available with all vehicles. Request an
exact system list suited to your specific vehicle.
Quantity 2, independently operated
Overall dimensions 39 x 244 (1 .0 x 6.2 meters)
Main Ramp Speed:Full extension < 10 seconds
Includes hydraulic service/ballistic panel
Quantity 2, independently operated
Stored within main ramps
Overall dimensions 36 x 96 (0.9 x 2.4 meters)
Extension Ramp Speed:Full extension <10 seconds
Hydraulic Cylinders and flow control components
Redundant safety valves
High speed regenerative fluid circuit for extension ramps
2 12v DC powered hydraulic pumps
Push button operation via 4-button pendant w/ retractile cord and weather-tite
plug Safety Railing
Safety railing is stainless steel; Primarily sand blasted for textured
finish to enhance grip qualities; folds down to reduce overall system height
for transport and operation; quick removal if necessary
Railing height 20 (59 cm) (may vary with vehicle)

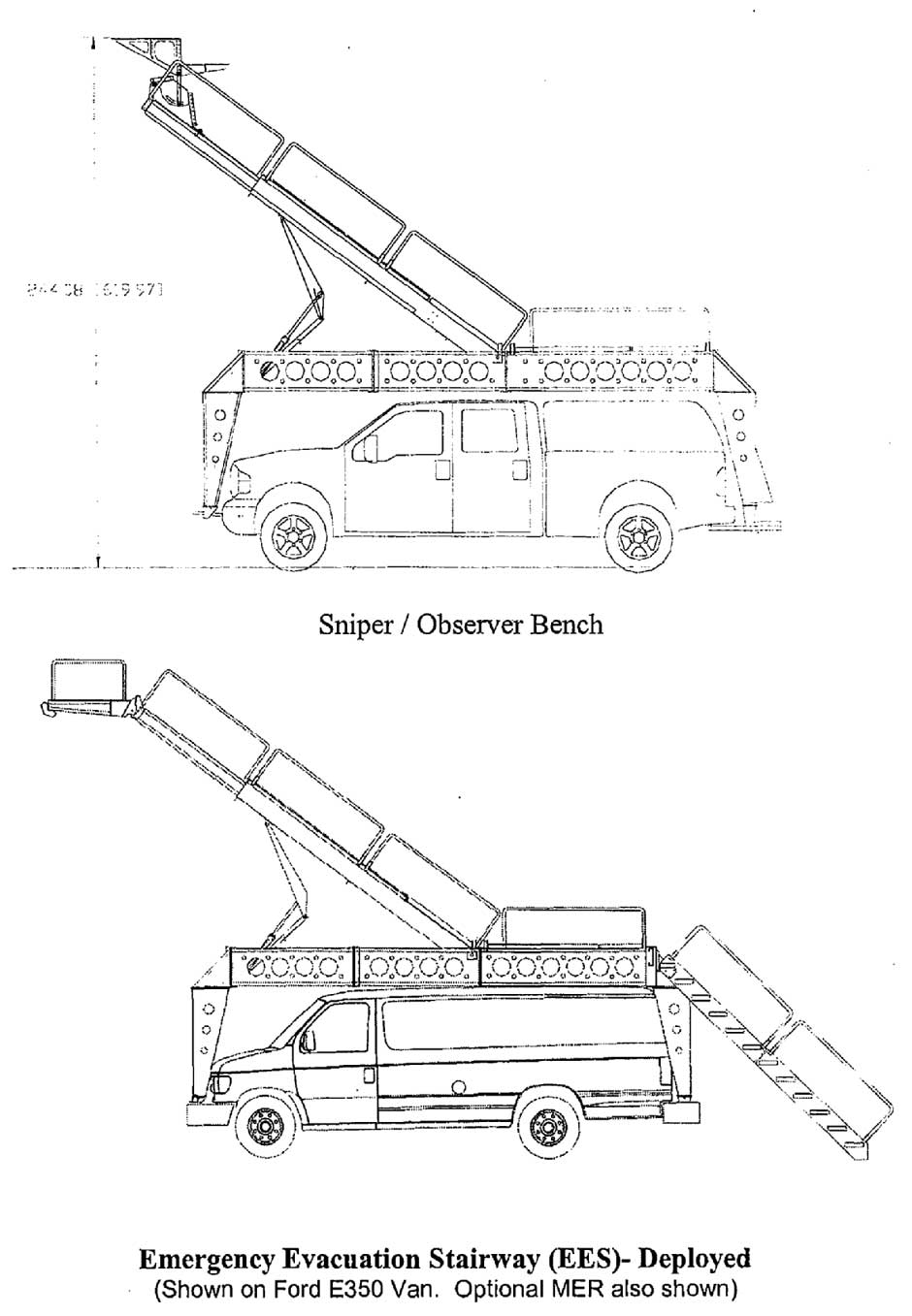

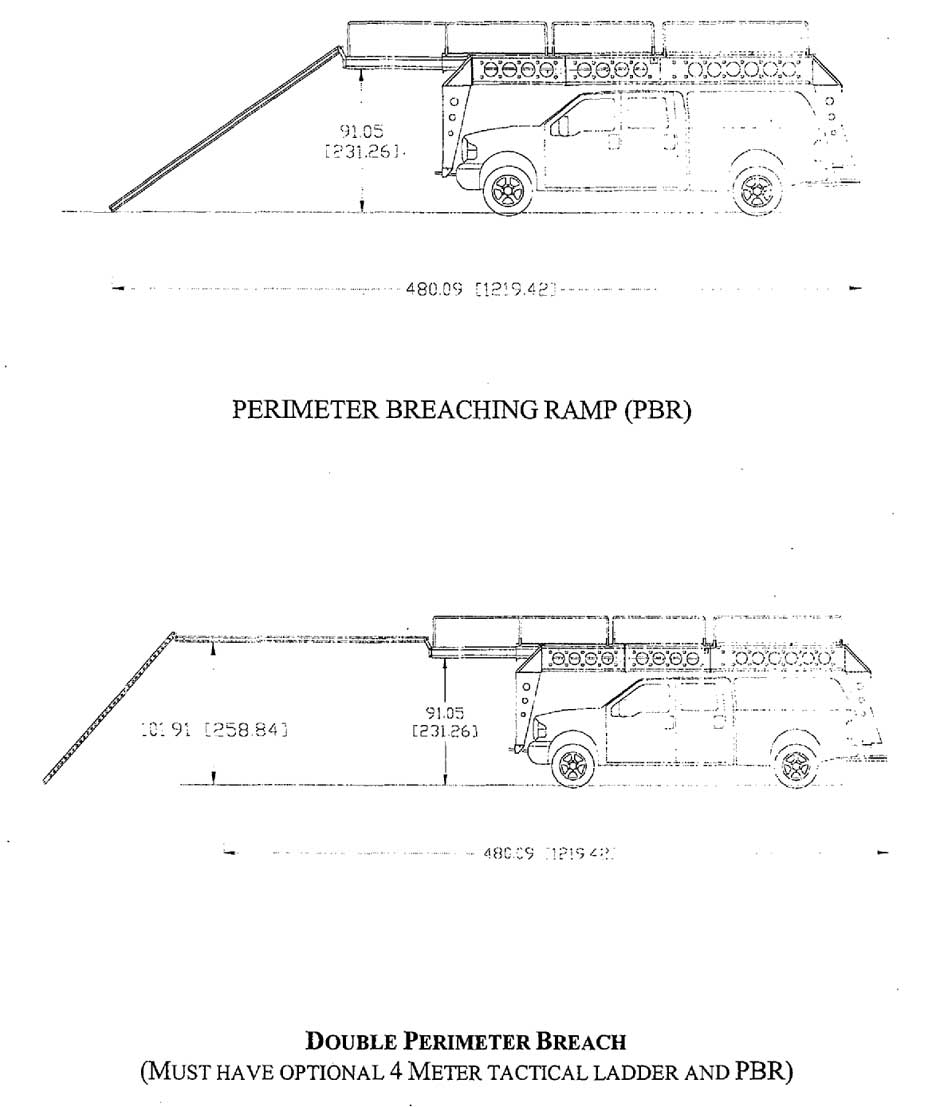

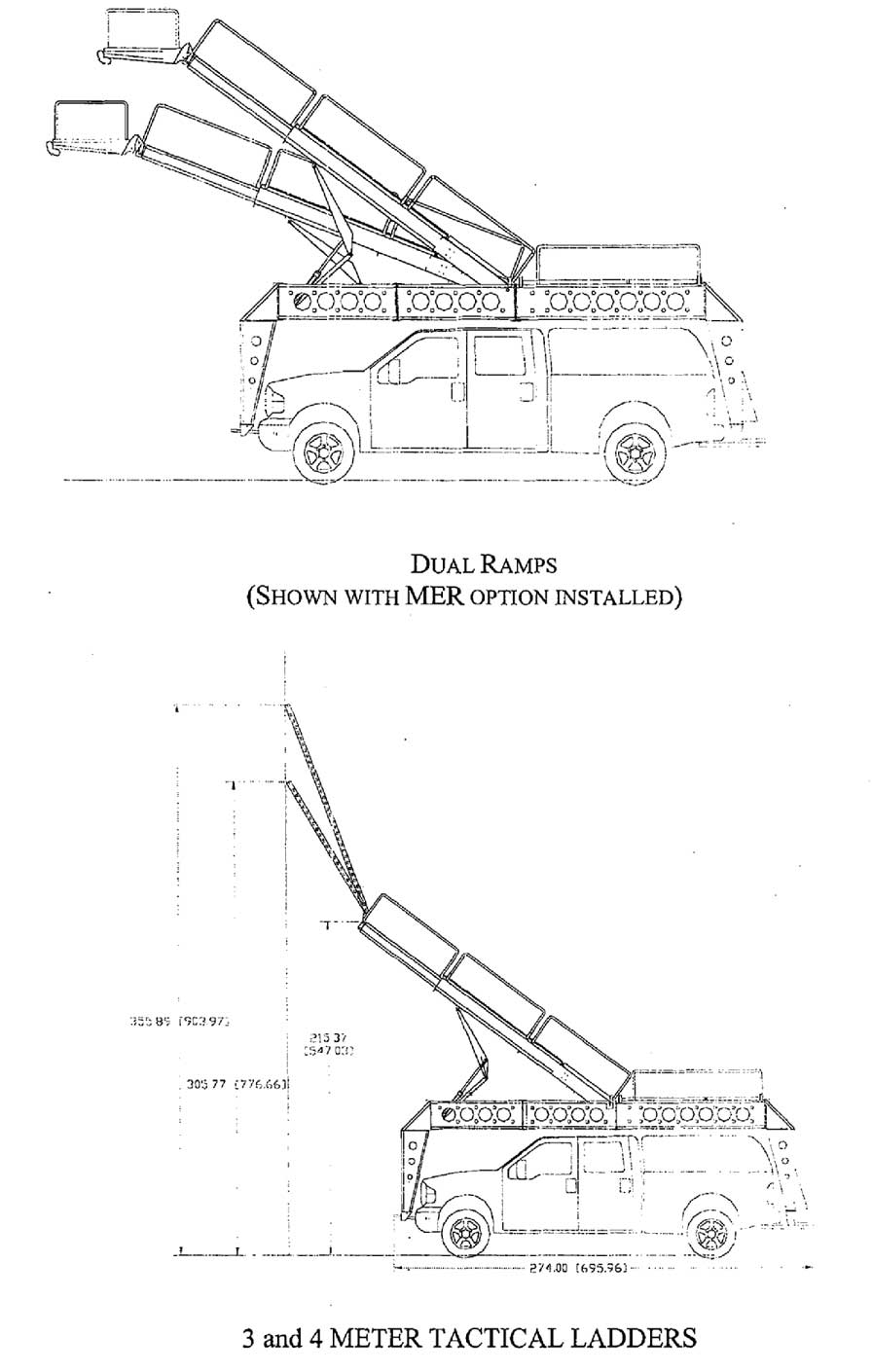

Attach to the end of the ramps to allow for Tactical Ladder and Breaching
Ramp use. Rear Access Ladders
Attach to the rear of the MARS staging area and allows for access to the
system from the ground. Ladders may be removed and installed in the
accessory yolks at the end of the ramps.
Standard Pin Replacement Pack
Kit contains all the quick-fastening pins used on the MARS handrails, legs,
vehicle components and running boards. It is recommended that due
environmental impact, all pins should be replaced every 12 months to ensure
smooth fit and unction.
One-year warranty on all parts and labor to be free of
manufacturing defects beginning the date of delivery to end-user.
Specification and photos are not contractual and
are subject to verification upon inspection
