GENERAL   EQUIPMENT   INC.

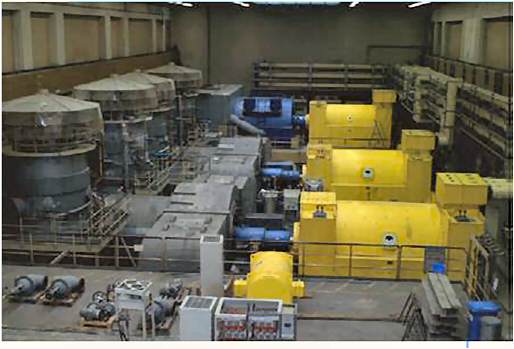

1 unit  SIEMENS combined heat & power Generation plant  250 MW

YOB:                                  1987-2011

Manufacturer:                 SIEMENS

condition:                  used; permanent up-grated – in excellent condition!

Turbine will be re-installed by authorized service company for separate quotation !

Technique:

2 identical units 125 MW electrical power / 145 MW heat transfer

New generator protection inside;

Preserved with dry air since shut down

Able to modify for coal firing

2 Steam boilers by BABCOCK BENSON

Oil or gas

Output: 365 to/h

Pressure 205 bar

Temperature 540 °C

Fuel: gas or fuel oil

Turbine by SIEMENS type condensing turbine

Output: 2x 128 MW

Steam flow: 365 to/h

Generator SIEMENS

Active power: 2x 128 MW

Voltage: 10.5 KV

Speed: 3,000 rpm

Condenser by cooling water outlet

Condensate pumps 2 + 2 pumps

Discharge quantity: 225 m³/h

Discharge pressure: < 20 bar

Feed water pump

Discharge quantity: 225 m³/h

Discharge pressure: < 20 bar

Circulation

Straight condensing mode

Auxiliary equipment:

All safety and control systems for full and safe operating!

Condition of equipment:

Material tested during last revision 2010 – no material aging or critical parts!

Originally the boiler has been designed for coal and can relative easy be converted to coal.

The waste incineration plant with a capacity of 40 to/h was transferred to a different location.

The main boiler was either used alone or in line with the incineration boiler which warmed the

feed water.

Delivery:                             ex location South Germany, disassembled, containerized;

Delivery time:                   instantaneously, visiting after reservation;

Warranty:                           1 year – according agreement

Reservation of title:       until receiving the entire payment. Extended reservation of title is valid.
