Complete
reconditioned / practically new for 2500 pieces/hour
Products: broilers with a
live weight of min. 1000 to max. 2,600 gr
For an optimal result the weight
variations within the flock may not exceed +/- 200
gr
Shackle pitch: 152
mm
Capacity: 2500
products/hour
Working hours: 8
hours/day 5 days/week
Scalding process: soft
scald, approximately 50 °C
Final product::
fresh
Electricity: 220/380V
3-phase 50 Hz
Water:
300-500 kPa, unless staded otherwise
Air:
700-800 kPa, unless staded otherwise
Steam:
700-800 kPa, unless staded otherwise
Killing and plucking line
SCOPE OF SUPPLY
Stork overhead conveyor , Heavy Duty
type
- switchbox for one 2,2 Kw
motor, complete with transformer and,
speed regulator, safety
device against overload and three,
emergency stop
connections. (new)
- 74 metres hot dip
galvanised track T - profile (new)
- 5 vertical bends
(up/down) (new)
- 73 metres of hardened
manganese steel chain in galvanised execution (new)
- 490 complete trolley sets
with double bearing - mounted,
plastic wheels and
aluminium made trolley halves (new)
- 8 metres of stainless
steel shackle guide (new)
- suspension material, hot
dip galvanised execution for attaching the,
overhead conveyor to the
existing roof or steel structure by means,
of welding ; for a
conveyor length of 74 metres and a maximum,
height of 4 metres (new)
- 1 frequency controlled
drive of 2,2 Kw complete with driven bend,
and reduction gear box
(new)
- 1 track tensioner with
180°
bend in a galvanised frame,
fitted with safety device
by means of a censor (reconditioned)

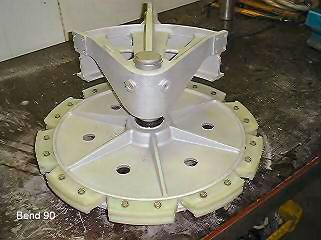

- 7 horizontal bends of 90°
(new/reconditioned)
- 4 horizontal bend of 180°
(reconditioned)
Track length
: approx . 74 meters
Trolley / shackle pitch : 152 mm ( 6
²
)
490 Reconditioned Stork killing
shackles , DH type
- made entirely of
stainless steel
- complete with suspension
rod and stainless steel
connection chain

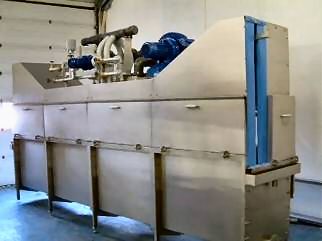

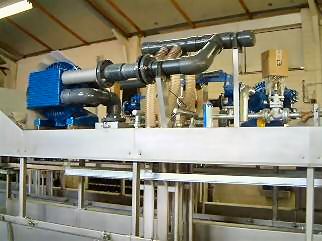

1 Reconditioned Stork
automatic scalder SA type
- compact section
construction and powerful
agitation by means of air
blower
- portals for mounting
overhead conveyor
low energy and water
consumption
- heating by hot water
elements
- temperature control by
means of servo - controlled
thermostat with digital
read out
- automatic water level
control
- condensation canopy with
hinged side panels
- stainless steel
construction
1 Reconditioned Stork
automatic plucker D16 type
- suitable for various
types of poultry
- per plucking box two rows
of 16 plucking finger disc each
- 10 fingers per plucking
finger disc
- shackle quide made of
synthetic material and feather
discharge curtains made
of stainless steel
- low noise level
- easy
cleaning
1 Reconditioned Stork
automatic plucker F 104 type
- suitable for various
types of poultry
- 4 plucking banks
- 8 fingers per plucking
finger disc
- shackle guide made of
synthetic material and feather
discharge curtains made
of stainless steel
- low noise level
- easy
cleaning
1 Reconditioned Stork
automatic unloading station , DL type
- for unloading legs or
whole products
- contains no driven parts
- made primarily of
stainless steel
Eviscerating line
SCOPE OF SUPPLY
Stork set of hand tools for the
processing line (new)
- 6 killing knives
- 6 neck skin slitters
- 6 opening scissors
- 6 eviscerating forks
- 6 bent gizzard trimmers
- 6 butcher’s irons
- 5-fingered stainless
steel
gloves
( to be ordered in quantities of six
each)
Time of delivery:
shortly after firm order.
