PNP-M





TYPE:

Night Vision

DESCRIPTION:

PNP-M Night Vision Monocular

PRICE:

Upon Request

PACKING:

As is, Where is




PNP-M WORLD'S SMALLEST, LIGHTEST NIGHT VISION MONOCULAR







PNP-M

The world’s smallest, lightest night vision monocular

Lightweight 275g (inc battery) - Ultra Small and Compact

(45mm wide x 72mm high x 108mm long)



1x Magnification 25cm to ∞ focus

Field of view 40 degrees

LED IR illuminator

  • IR on indicator (in eyepiece)

  • Low battery indicator (in eyepiece)

  • Head & Helmet mount feature

  • Power supply: 1 x AA 1.5V battery

  • Eye relief 25mm

  • Immersion proof (20m for>1hr)

  • Tripod thread 1/4” UNC

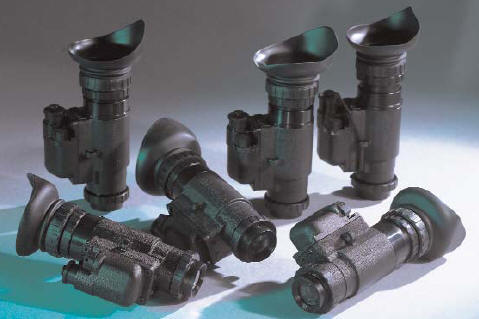

5 Models Available:

Model Tube

  • PNP-M Generation 2+

  • PNP-M HyperGen

  • PNP-M XD-4

  • PNP-M XR5

  • PNP-M XH72

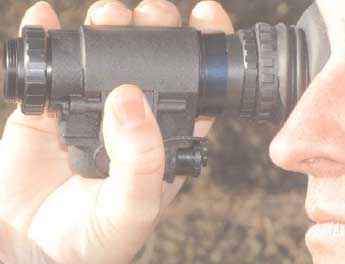

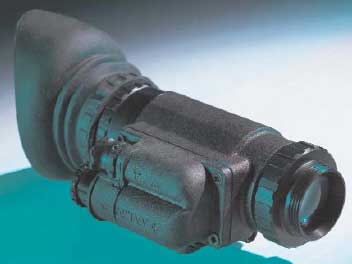

PNP-M Miniature Night Vision Monocular. This image intensifier monocular night scope incorporates the latest technology in a rugged, compact, lightweight body

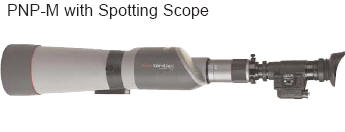

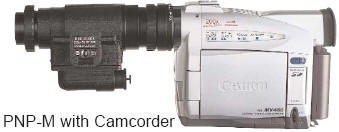

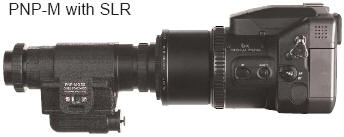

The cost effective unit can be used hand held or fitted to any camera or telescope for evidence gathering in low-light conditions






The PNP-M miniature night vision monocular system is fully waterproof

Available in Generation 2 plus, XD-4, HyperGen, XR5 and XH72 tube specifications

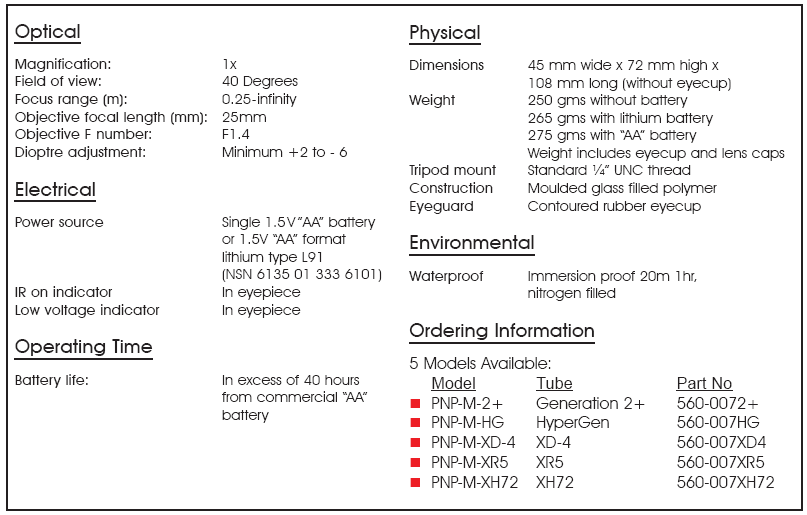

PNP-M Technical Specifications



Specification and photos are not contractual and are subject to verification upon inspection
