PANHARD EC90
|
TYPE: |
Parts |
|
DESCRIPTION: |
Panhard
EC90 |
|
PRICE: |
Upon Request |
|
PACKING: |
Ex-Works |
PANHARD EC90
PANHARD EC90 CMI
|
|
 |
|
DIMENSIONS
|
|
WEIGHT
|
|
|
|
|
|
|
|
Overall length
|
7,675 mm
|
|
Weight in combat
order
|
8.89 T
|
|
Length of the
chassis
|
5,275 mm
|
|
Tare weight |
8.1 T
|
|
Overall width
|
2,500 mm
|
|
|
|
|
Overall height
|
2,318 mm
|
|
|
|
|
Ground clearance
|
325 mm
|
|
|
|
Wheelbase :
-
front/middle
- middle/rear
|
1,630 mm
1,220 mm
|
|
|
|
|
Crew |
3
|
|
|
|
|
| |
|
|
|
ARMAMENT
|
|
The ERC is equipped
with a two men crew
CMI CSE-90 turret.
Equipped with a 90
mm gun and the last
generation control
system, the ERC CSE-90
is the best
compromise between
weight and fire
power.
|
|
|
|
|
|
MOTORIZATION
|
|
This vehicle is
equipped with on
Diesel MTU engine of
170 Hp and equipped
with an automatic
Renk gearbox.
The maximum power is
of 125 Kw at 2,300
Rpm.
|
|
|
|
|
|
PERFORMANCES
|
Max. speed
Range
Gradient
Side slope
Vertical
obstacle
Trench
Fording
|
|
95 km/h
800 km
50 %
30 %
0.5 m
1.1 m
1 m |
|
|
|
|
| |
| |
|
|
|
|
|
 |

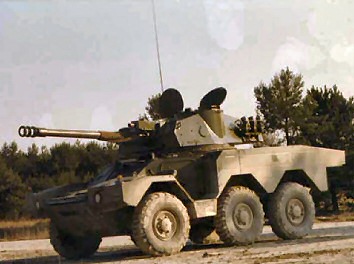

PANHARD ERC
90 SAGAIE
|
This light vehicle is in
service in many armies
in the world, with among
them the French land
forces operate 193 ERC
90.
|
 |
|
DIMENSIONS
|
|
WEIGHT
|
|
|
|
|
|
|
|
Overall length
|
7,675 mm
|
|
Weight in combat
order
|
8.89 T
|
|
Length of the
chassis
|
5,275 mm
|
|
Tare weight |
8.1 T
|
|
Overall width
|
2,500 mm
|
|
|
|
|
Overall height
|
2,318 mm
|
|
|
|
|
Ground clearance |
325 mm
|
|
|
|
Wheelbase :
-
front/middle
- middle/rear
|
1,630 mm
1,220 mm
|
|
|
|
|
Crew |
3
|
|
|
|
|
| |
|
|
|
ARMAMENT
|
|
The ERC is equipped
in this version of
the two crew TS-90
turret. Equipped
with a 90 mm F4
canon, capable of
firing APFSDS
ammunitions and a
coaxial machine gun,
the ERC 90 disposes
of 20 ammunitions
for its main
artillery.
|
|
|
|
|
|
MOTORIZATION
|
|
This vehicle is
equipped with on
Diesel MTU engine of
170 Hp and equipped
with an automatic
Renk gearbox.
The maximum power is
of 125 Kw at 2,300
Rpm.
|
|
|
|
|
|
PERFORMANCES
|
Max. speed
Range
Gradient
Side slope
Vertical
obstacle
Trench
Fording
|
|
95 km/h
800 km
50 %
30 %
0.5 m
1.1 m
1 m |
|
|
|
|
| |
| |
|
|
|
|
|
PANHARD ERC90
LYNX
|

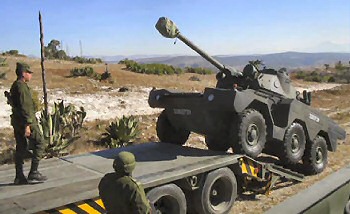

This light vehicle is in
service in many armies in
the world, among them the
Mexican army with 120 units
in service.
|
 |
|
DIMENSIONS
|
|
WEIGHT
|
|
|
|
|
|
|
|
Overall length
|
7,675 mm
|
|
Weight in combat order
|
8.89 T
|
|
Length of the
chassis |
5,275 mm
|
|
Tare weight |
8.1 T
|
|
Overall width
|
2,500 mm
|
|
|
|
|
Overall height
|
2,318 mm
|
|
|
|
|
Ground clearance |
325 mm
|
|
|
|
Wheelbase :
- front/middle
- middle/rear
|
1,630 mm
1,220 mm
|
|
|
|
|
Crew |
3
|
|
|
|
|
| |
|
|
|
ARMAMENT
|
|
This vehicle is
equipped with a two men
crew HS-90 turret.
Equipped with a 90 mm F1
canon, capable of firing
antitank or
antipersonnel
ammunitions and of a
coaxial machine gun, the
ERC 90 Lynx disposes of
21 ammunitions for its
main artillery.
|
|
|
|
|
|
MOTORIZATION
|
|
This vehicle is
equipped with on Diesel
MTU engine of 170 Hp and
equipped with an
automatic Renk gearbox.
The maximum power is of
125 Kw at 2,300 Rpm.
|
|
|
|
|
|
PERFORMANCES
|
Max. speed
Range
Gradient
Side slope
Vertical obstacle
Trench
Fording
|
|
95 km/h
800 km
50 %
30 %
0.5 m
1.1 m
1 m |
|
|
|
|
|
|
Specification and photos are not contractual and
are subject to verification upon inspection
