OTZ 5000 Counter Surveillance
otz 5000 counter surveillance
From new manufacture

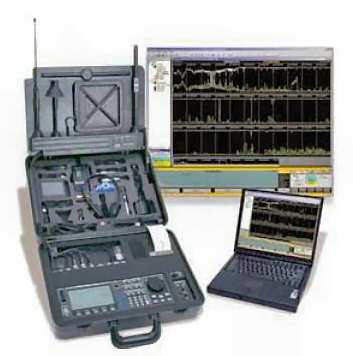

OTZ 5000 - Omni-Spectral Correlator
Portable & Programmable Counter Surveillance Unit Detects All Bugs
• Detects Audio/Video Carrier Current & Infrared RF Devices
• Automatically Stores Encountered Signals In Memory
• Sonic Ranging & Triangulation To Pinpoint Bug Locations
• Built-In Spectrum Analyzer
All-In-One Professional Eavesdropping Detection Station
The OTZ Omni Spectral Correlator is the only package you need to debug and locate all audio and video RF bugs.
When protecting sensitive information is critical to your success, the OTZ provides the most automatic, reliable and cost effective capability on the market. OTZ is a complete eavesdropping detection package that is portable and programmable.
OTZ is a microprocessor controlled counter-surveillance system with a custom designed built-in spectrum analyzer that can operate automatically storing all encountered signals in memory for later review.
Designed to detect all major types of audio and video RF transmitters, including carrier current and infrared. OTZ is the only product that protects your environment 24 hours a day.
Automatic Threat Correlation. The patented OTZ correlator provides signal classification by correlating the demodulated audio of a received signal to the ambient noises of an environment.
Automatic Signal Scanning and Logging. Only the OTZ provides an automatic solution to rapidly logging and classifying all the signals of your environment. A quick reference guide provides a single chart that completely defines the programming process.
Sonic ranging and triangulation to pinpoint bug locations. Using the Patented Threat Locating System, a bugging device can be readily found with no destructive searches. The Triangulate and Locate option uses sonic ranging to locate a threatening microphone.
The OTZ provides detailed signal analysis capabilities with a complete built-in suite of audio demodulators and IF bandwidth selections. The audio demodulators include FM wideband, FM narrowband, AM wideband, AM narrowband, Sub-carrier, Single Sideband, and IF bandwidths 250 kHz, 15 kHz, and 6 kHz.
Built-in video monitors display images received on transmitted signals for protection against covert video
transmitters. Supported video formats include NTSC, PAL, and SECAM. This feature is not included in the basic unit.
Built-in automatically switched antenna array. Foldout antenna panel automatically selects the proper antenna with no connections required. Pre-amp provides maximum sensitivity for the proper input. No unreliable cable connections or mismatched antenna inputs.
Built-in printer for hard-copy printouts. The OTZ built-in thermal printer provides a user with the ability to generate printouts of important sweep data.
Removable Program chip for ease of upgrading software. When a new OTZ upgrade comes out, simply contact REI to request a new program key.
PC Interface and Remote Control of the OTZ. The OTZ PC interface software provides the capability to create permanent database profiles of sweep environments, generate professional reports and graphs.
Modem option that provides for control of the OTZ from a remote location using standard telephone lines.
OTL-7000 OTZ Triangulate and Locate: This option utilizes a patented ranging process to triangulate on the location of an eavesdropping device. Does not require return to REI for installation.
OVM-7000 OTZ Video Option (Multiple formats): Allows the OTZ to provide viewing of video signals.
Used for detection of covert surveillance cameras. Supports NTSC, PAL and SECAM. Includes a video demodulator circuit board that must be installed in the OTZ main unit and two video monitors that fit inside the OTZ storage Compartment. Includes OVP-7000.
OVP-7000 OTZ Video Patch Cord: Patch cord that allows received video signals to be fed directly into an alternate video monitor or a video recorder. Video output is provided in a standard RCA plug.
OAR-7000 OTZ Audio Recorder and Cables: Audio micro-cassette recorder that connects directly into the connector tray to use the OTZ audio recorder functions.
OEM-7000 OTZ Extra Memory (512K): Increases the OTZ signal storage capability from 7,168 signals to 28,672.
LPE-7000 Locator Probe Extension Cable: BNC cable that is identical to the locator probe cable. Comes with barrel connector and provides extension for the Locator Probe.
MIC-7000 Miniature Microphone: Used with the standard OTZ cables to provide a remote microphone input.
MPC-7000 OTZ Multiple Purpose Cable: 12’ Cable with 3.5mm male and 3.5mm female connectors.
Used to extend Loop Antenna range, OTZ Telephone Coupler and options MIC-7000.
MPA-7000 Modular Phone Adapter: Provides easy access to telephone conductors for testing. Universal connector works for 2,4,6 & 8 conductor telephone systems.
CLA-7000 Cigarette Lighter Adapter: Provides DC input to power the OTZ from an automobile cigarette lighter.
