MK84 AIRCRAFT BOMB





TYPE:

Bomb

DESCRIPTION:

MK84 Aircrat Bomb

PRICE:

Upon Request

PACKING:

Upon Request





MK84 aircraft bomb





From new manufacture

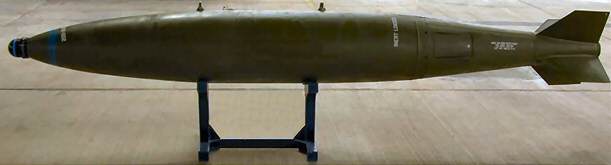

    Mk84 2000 Lbs Aircraft Bomb

    MK-84 is used against soft and intermediately protected targets. Principal lethality effect is blast. Typical targets for this weapon are buildings, rail yards, and communication lines. Packing : 2 ea warheads / steel crate, 2 ea CFA / steel crate.


    Principal Data Mk84


    Length (assembled) 3840 mm
    Diameter 457 mm
    Mass Total (nominal) 894 Kg
    Mass Explosive (nominal) 443 Kg
    Mass Warhead (nominal) 451 Kg
    Centre of Gravity (from nose) 1369 mm
    Suspension Lugs 30 inch (762 mm) Std NATO

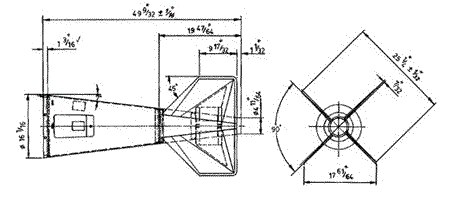

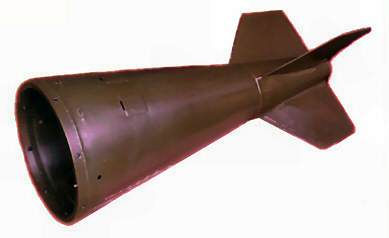

    Conical Fin Assembly CFA84
    CFA Span 640 mm
    CFA Cord 269 mm
    CFA Mass 11 Kg


    Ballistic Performance & Launch Parameters Mk84


    Air Speed 150 KTAS to 600 KTAS
    Altitude 12000 ft
    G Load 1.2g to 5g
    Angle Dive 45 deg
    Angle Toss 60 deg
    Roll 165 deg/s
    Range Slant (max) 5350 m


    Lethality Effects Mk84 (depend on HE charge type)


    FRAGMENTATION   CRATERING
    Grains 4 to 3000 Diameter 7.6 m to 18.3 m
    Velocity 610 m/s to 2745 m/s Depth 1.22 m to 8.84 m
    BLAST   PENETRATION
    Pressure at 50 ft (16 m) 35 psi Steel Armor Plate 51 mm
    Pressure at 100 ft (31 m) 11.5 psi Concrete 3000 psi (beton) 884 mm








Specification and photos are not contractual and are subject to verification upon inspection
