MI-8





TYPE:

Helicopter

DESCRIPTION:

Helicopters Mi-8T for Sale

PRICE:

Upon Request

PACKING:

Ex-Works

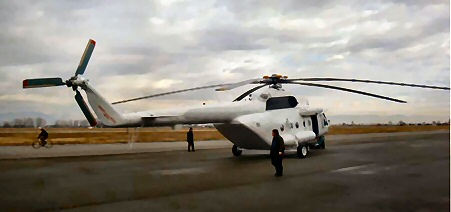

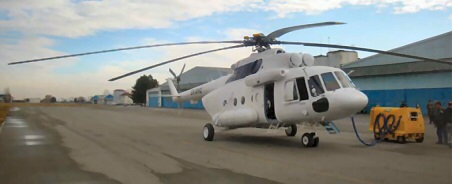

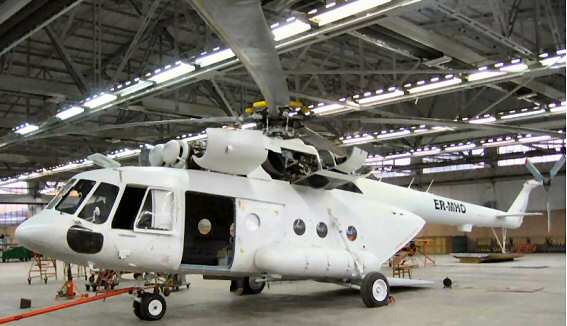

helicopter mi-8T for sale




Fully Reconditioned; subject unsold:

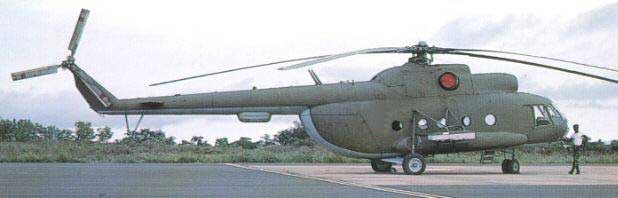

MI-8T TRANSPORT HELICOPTER

The Mi-8T military-transport helicopter is configured with a conventional pod and boom, with a tail rotor and non-retractable tricycle nosewheel landing gear.

The fivebladed rotor is made from aluminium alloy.

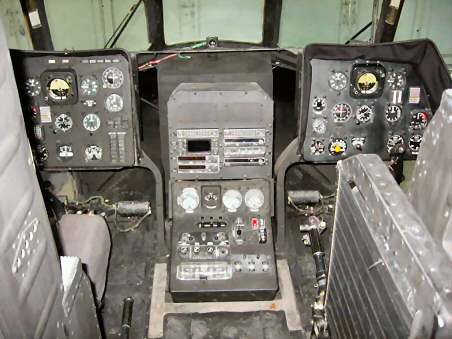

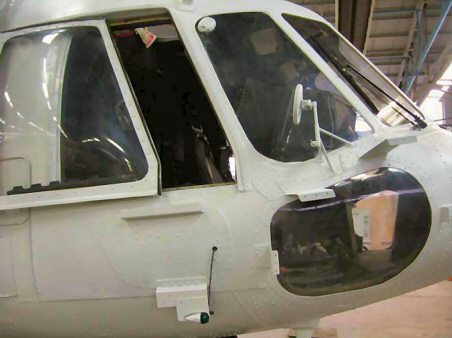

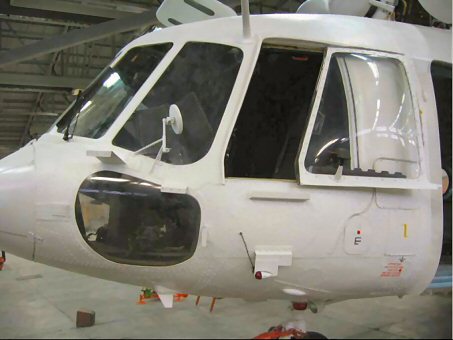

The cockpit accommodates three crew: commander, navigator and flight mechanic.

The cockpit and the main cabin are heated and air conditioning is optional.

An oxygen system is provided for the crew and for casualties in the ambulance and rescue variants of the helicopter.

"The Mi-8's external cargo sling is rated to carry 3,000kg."

The survivability features of the Mi-8 include crew cabin armour plating, explosiveresistant foam filling in the fuel tanks, a fire-fighting system and duplicated and standby hydraulic and power systems and main control circuits.

De-icing systems are installed.

The Mi-8T helicopter is powered by two Klimov TV2-117 turboshafts engines.

Deflectors are installed on the engine air intakes to prevent ingestion of dust when taking off from unprepared pads.

The helicopters also have an Auxiliary Power Unit (APU) for self-contained operations.

The helicopter carries 1,870l of fuel in two flexible internal tanks and two external tanks.

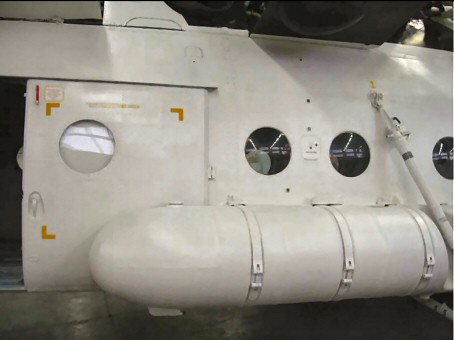

The total fuel capacity can be increased to 3,700l by installing up to two ferry tanks in the cabin.



Specifications - Mi-8 / Mi-17 Hip Multi-Mission Helicopter, Russia Key Data

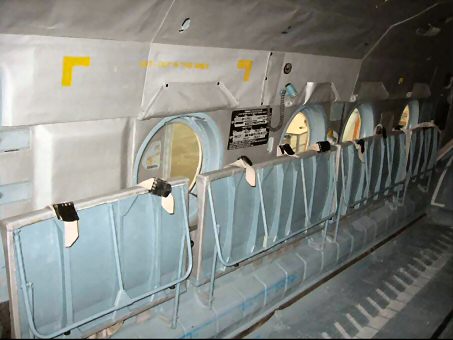

Combat Equipped Troops: 24

Stretcher Patients: 12


Dimensions

Dimensions Without Rotors: 18.22m x 4.75m x 4.5m

Main Rotor Diameter: 21.29m

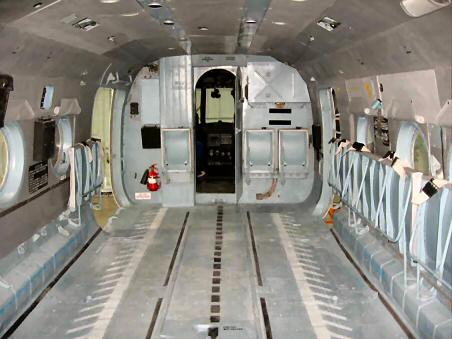

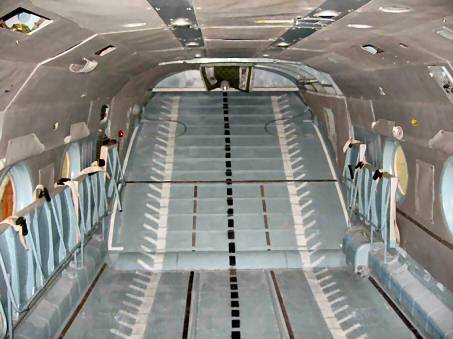

Cargo Cabin Length: 5.34m

Cargo Cabin Width: 2.34m

Cargo Cabin Height: 1.8m


Weights

Normal Take-Off Weight: 11,100kg

Maximum Take-Off Weight: 12,000kg

Normal Payload Weight: 2,355kg

Maximum Payload Weight: 4,000kg

Maximum Slung Payload: 3,000kg

Empty Weight: 6,965kg


Performance

Normal Flight Speed: 250km/h

Cruising Flight Speed: 225km/h

Hover Ceiling: 800m

Service Ceiling: 4,500m

Flight Range With Normal Payload: 465km

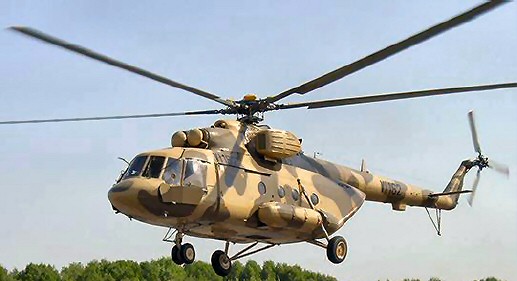

MI- ON MI-8AMT / B5   HELICOPTERS



We herby present you with our opprotunity to sell your clients Two (2) new

Mi-8MTV or B5 helicopters (2009 production year),With 350-400 Hours



The Helicopters are in Transport version r with installed on it major vendor's  items and set of equipment (1:1), As well as optional additional Items.









1. According to the recommendation of General Designer the Buyer has the  right to change the mentioned quality of vendor items and aggregates are installed on the helicopters,  The changes happen without change of the cost of the helicopter



A.   LIST OF MAIN AGGREGATES INSTALLED ON MI-8AMT HELICOPTER



№

Designation

Description

Unit.

Q-ty



1. Power plant and transmission



1.1

246-1517-000

Tail gear box

pc

1

1.2

8-1930-000 сер.02

Main rotor hub

pc

1

1.3

8-1950-000

Swash plate

pc

1

1.4

8A-1515-000

Intermediate gear box

pc

1

1.5

8A-1516-000

Tail rotor drive shaft

pc

1

1.6

8A-6311-00 (4 серии)

Fan

pc

1

1.7

8A-6314-00

Fan drive cardan shaft

pc

1

1.8

АИ-9В

Engine

pc

1

1.9

ВР-14

Main gear box

pc

1

1.10

РТ-12-6-2сер.

Temperature control

pc

2

1.11

TВ3-117ВM сер.02

Engine

pc

2

1.12.

8АМТ-1250-00

Vibration damper




2. Fuel and oil equipment




2.1

11ТФ30СМ-0

Fuel filter

pc

1

2.2

463Б

 Electr. centrifugal pump

pc

1

2.3

5349T

Cooler block

pc

2

2.4

610200А

Solenoid valve

pc

1

2.5

766300A-1-T

Float valve

pc

1

2.6

768600МА

Fuel shut-off valve

pc

3

2.7

ЭЦН-91С

 Electric centrifugal pump

pc

2


3. Control and hydraulic system



3.1

246-3904-000 сер. 01

Tail rotor

pc

1

3.1.1

246-3925-00

tail rotor blade (3 pc), set

pc

1

3.2

8AT-2710-00

Main rotor blades (5 pc), set

pc

1

3.3

8Д2.966.017-2

Hydraulic filter

pc

2

3.4

ЭMT-2M

Solenoid brake

pc

3

3.5

ФГ11БН

Filter

pc

2

3.6

ГA-172-00-2/T

Lock-out valve

pc

1

3.7

ГА-192T

Solenoid valve

pc

6

3.8

ГА-59/1

Emergency power supply valve

pc

1

3.9

ГА-74M/5

Solenoid operated two-position valve

pc

2

3.10

ГА-77В

Pump relief valve, automatic

pc

2

3.11

КАУ-115АМ

Hydraulic booster

pc

4

3.12

МП-100М-2сер.

Electric actuator

pc

2

3.13

МСТ-25A

Pressure switch

pc

1

3.14

МСТ-30A

Pressure switch

pc

1

3.15

НШ39M

Gear pump

pc

2

3.16

ОК-10А

Check valve

pc

4

3.17

ПР-15,875-2300-1-67

Chain, 67 links

pc

1

3.18

РУ-2

Stick

pc

2

3.19

СПУУ-52

Tail rotor pitch limit system:

pc

1

3.19.1

БУ-32

control unit

pc

1

3.19.2

ДОС

feedback  transducer

pc

1

3.19.3

ИКД27Да-400-830

pressure indicator set

pc

1

3.19.4

П-1 (П-1Тр)

temperature bulb

pc

1



4. Airframe, landing gear and  pneumatic equipment




4.1

595х185 Модель 14

Tire of nose LG

pc

2

4.2

865х280 Модель 1А

Tire of main LG

pc

2

4.3

8A-4101-00Б-1

Main L.G. shock strut

pc

1

4.4

8A-4101-00Б-2

Main L.G. shock strut

pc

1

4.5

8A-4201-00A

Nose L.G.  shock strut

pc

1

4.6

АК-50T1 сер.3

Compressor

pc

1

4.7

В8БП-000

Heated windshield

pc

2

4.8

K2 116

Wheel 595x185

pc

2

4.9

KТ 97-310

Wheel 865х280

pc

2

4.10

KT97-220-1,-2

Brake of wheel

pc

2

4.11

УП25/2

Pressure reducing valve

pc

1

4.12

УПO3/2M

Pneumatic control unit

pc

1

4.13

В24-4301-100-7

Tail bumper shock strut

pc

1




5. Fire extinguishing, anti-icing, heating and air conditioning equipment



5.1

1-4-4

Fire extinguisher:

pc

2

5.1.1

1-2-4-210

bottle

pc

2

5.1.2

ПГКц

valve fire extinguisher squib control head

pc

8

5.1.3

MA-250M

pressure gauge

pc

2

5.2

1919T

Control shutter

pc

2

5.2.1

ЭПВ-50БТ сер.2

electric actuator

pc

2

5.3

8АТ-7420

Tail rotor slip ring

pc

1


8АТ-7411



5.4

ДВ-302T

Electric fan

pc

3

5.5

ЭВ-0,7-1640

Electric fan

pc

4

5.6

ОР1-2,0-20-30

Fire extinguisher

pc

2

5.7

СО-121ВМ вар."A"

Ice detector

pc

1

5.8

ССП-ФK сер.2

Fire detection and warning system

pc

2

5.9

ТСВ36М313

Rotor slip ring

pc

1


6. Electrical  and commutation equipment



6.1

20НКБН-25-ТД-У3

Storage battery

pc

2

6.2

АПД-78А

Auto unit for engine start

pc

1

6.3

АПД-9В

Start control panel

pc

1

6.4

АПШ-3М

Bus selector switch

pc

2

6.5

АЗП-А2

Circuit breaker

pc

1

6.6

Б3УНП355Г

Protection unit

pc

2

6.7

БЧФ-208

Phase-sequence unit

pc

1

6.8

БРН120Т5А-3С

Unit-regulator

pc

2

6.9

БСГО400А

Unit

pc

1

6.10

БТТ40БТ

Unit transformer

pc

2

6.11

ВУ-6Б

Rectifier

pc

2

6.12

ДМР-200Д

Deferential relay

pc

1

6.13

ДМР-200ВУ

Integrated device

pc

2

6.14

ЭПK-2T-60

Windshield wiper

pc

2

6.15

ГТ40ПЧ8В

Generator

pc

2

6.16

ПМК-21ТВ сер.3

Timer box

pc

1

6.17

ПТС-800БМ

3-phase static inverter

pc

1

6.18

РМ-355Г

Gimbal

pc

2

6.19

РН-120У

Voltage regulator

pc

1

6.20

С-1

Warning horn

pc

1

6.21

СНП-1

Power fail relay

pc

1

6.22

СПО-9

Static converter

pc

1

6.23

ТЭР-1М

Auto temperature control

pc

6

6.24

TН-115-7,5

Transformer

pc

1

6.25

TP-100/2

Transformer

pc

2

6.26

TP-115/36

Step down, transformer

pc

2

6.27

TС310С04Б

Transformer

pc

2

6.28

ТФ1-150

Transformer

pc

2

6.29

Ф-70

Filter



6.30

Ф-100

Filter






7. Lights equipment





7.1

ФПП-7М

Search / landing light

pc

2

7.1.1

ЛФЛ27-450-5

light

pc

2

7.2

МСЛ-3 2с

Beacon alarm lamp

pc

2

7.3

ПБС-1

Dome light

pc

6

7.4

СБК

Cabin light

pc

1

7.5

СМ-1Б

Light

pc

1

7.6

ОПС-57

Formation light

pc

3

7.7

ХС-62

Tail light

pc

1

7.8

БАНО-64

Forward navigation light

pc

2

7.9

ФР-100

Light

pc

1

7.10

П-39

Dome light

pc

8



8. Engines and gear box monitoring equipment





8.1

2ИА-6

Exhaust gas temperature indicating system, consists of:

pc

1

8.2

Д-1М У2

Transmitter

pc

2

8.3

Д-2М У2

Transmitter

pc

2

8.4

ИВ-500Е сер.2

Vibration indicating system, consists of:

pc

1

8.4.1

УсС-6 сер.2

matching device

pc

2

8.4.2

МВ-03-1

piezoelectric transducer

pc

2

8.4.3

БЭ-9Е сер.2

electronic unit

pc

1

8.5

ИТЭ-1

Tachometer

pc

2

8.6

ИТЭ-2

Tachometer

pc

2

8.7

ИД-3

Inductive sensor

pc

1

8.8

ИМД-8

Induction pressure transmitter

pc

2

8.9

ИД-8

Induction pressure trans-mitter

pc

1

8.10

МСТВ-2,5С

Pressure switch heat resistant and shakeproof

pc

1

8.11

П-77 вар.2

Temperature sensor

pc

1

8.12

САС-4-9

Warning and caution system, consists of:

pc

1

8.12.1

БАП-1

warning signal unit

pc

2

8.12.2

БУ-1

caution signal unit

pc

1

8.12.3

БК-7

switching unit

pc

1

8.13

ТСТ-282С

Thermometer

pc

1

8.14

ТУЭ-48

Elect. resistance thermometer in assy:

pc

1

8.14.1

П-1

temperature bulb

pc

1

8.15

УП-21-15

Position indicator in assy:

pc

1

8.15.1

ДС-11

syncro control transmitter

pc

1

8.15.2

ИП-21-15

condition  indicator of airplane rotor elements

pc

1

8.16

УИ1-3К

Pressure indicator single-needle

pc

1

8.17

УИ3-3К

3-point indicator

pc

2

8.18

УИ3-6К

3-point indicator

pc

1


9. Fuel, hydraulic, pneumatic and electric systems monitoring equipment

9.1

A-2

Ammeter

pc

3

9.2

В-1

Voltmeter

pc

1

9.3

ВФ-0,4-150

Voltmeter

pc

1

9.4

ИД-100

Inductive pressure gauge

pc

2

9.5

МА-60

Pressure gauge

pc

1

9.6

MВУ-100K

Pressure gauge

pc

1

9.7

СД-29А

Pressure switch

pc

3

9.8

СКЭС-2027Б

Aviation electrical kerosene meter

pc

1

9.9

УИ1-100К

Pressure indicator (from  DIM-100 set)

pc

2

9.10

АФ-1



9.11

ТФ1-150



pc

2




10. Flight and navigation equipment





10.1

АЧС-1М

Airborne clock

pc

1

10.2

АГБ-96Д

Gyro horizon

pc

2

10.3

AГБ-96Р

Gyro horizon

pc

1

10.4

АП-34Б  сер.2

Autopilot, consists of:

pc

1

10.4.1

6C2.390.007-3 сер.1

control panel

pc

1

10.4.2

6С2.399.000

control unit

pc

1

10.4.3

6С2.553-002

pitch, roll, yaw speed force-balance transducers

pc

2

10.4.4

БУНПП-В сер.1

flight-navigatuion instrument amplifiers block

pc

1

10.4.5

ДУС (1209 Г,Е,К)

rate gyro

pc

3

10.4.6

ИН-4

trim indicator

pc

1

10.4.7

КВ-11

altitude controller

pc

1

10.5

БФ-34

Filter block

pc

1

10.6

БКК-18

Attitude monitor

pc

1

10.7

БМП сер.2

Mechanical transition unit

pc

1

10.8

БС-34-1

Coupling unit

pc

1

10.9

БСГ

Operational status signal unit

pc

1

10.10

ВК-53Э-РВ сер. 5

Erecting cut-out switch

pc

1

10.11

ГМК-1ГЭ

Compass system, consists of:

pc

1

10.11.1

АС-1

synchronizer

pc

1

10.11.2

БС-1

coupling unit

pc

1

10.11.3

ГА-6

gyro unit

pc

2

10.11.4

ИД-3

sensor inductive

pc

1

10.11.5

КМ-8

compensator

pc

1

10.11.6

ПУ-27Э

control panel

pc

1

10.11.7

УГР-4-УК сер.3

indicator

pc

2

10.12

ИКД27Да-220-780

Pressure indicator set

pc

2

10.13

КИ-13КА

Liquid magnetic compass

pc

1

10.14

КЗСП

IAS controller

pc

1

10.15

ПВД-6M

Pitot-static tube

pc

2

10.16

УС-450К сер.2

Speed indicator

pc

2

10.17

ВАР-30МК  сер.4

Rate-of-climb indicator

pc

2

10.18

ВД-10К (ВK) сер.2

Altimeter

pc

2


11. Вспомогательное оборудование



11.1

АДИС-2-2

Accelerometer

pc

1

11.2

АДИС-2-3

Accelerometer

pc

1

11.3

АЛМАЗ-УПМ

Voice information reporting system

pc

1

11.4

БУР-1-2 сер.2

Flight data recorder

pc

1

11.4.1

ПУ-25-1

control panel

pc

1

11.4.2

ЗБН-1-3 сер. 3

protected recorder unit

pc

1

11.4.3

БСПИ-4-2 сер.2

flight data recorder

pc

1

11.4.4

РА-37К

gimbal

pc

1

11.5

ДПСМ-1

Transmitter

pc

1

11.6

ДВ-15МВ сер.2

Altitude transmitter

pc

1

11.7

ИР-117М

EPR indicator:

pc

1

11.7.1

ДВК

altitude transmitter

pc

1

11.8

М11А

Modulus

pc

2

11.9

МУ-615А сер.1

Angular displacement transmitter

pc

8

11.10

П-503Б

Voice recorder

pc

1

11.11

ТВ-19

Thermometer, consists of:

pc

1

11.11.1

ТВ-1

electric thermometer indicator

pc

1

11.11.2

П-9(Т)

temperature bulb

pc

3

11.12

ТВ-45К

Thermometer

pc

1

11.13

ЭКСР-46

Flare pistol, consists of:

pc

2

11.13.1

7-К-991

cassette

pc

1

11.13.2

7-П-662

control panel

pc

1


12. Radio navigation equipment



12.1

А-037 исп.04

Radio altimeter

pc

1

12.2

АРК-15М вар.14

Automatic direction finder

pc

1


13. Radio communication equipment



13.1

ОРЛАН-85СТ

Radio station

pc

1

13.2

СПУ-7 лит.119

Interphone system

pc

1

13.3

Прима-КВ

Radio station

pc

1


14. Lyfe-support system



14.1

БКП-2-2-210

Portable oxygen cylinder

pc

3

14.2

ДКМ-1М

Smoke protection mask

pc

3





A.   LIST OF OPTIONAL EQUIPMENT INSTALLED ON MI-8AMT HELICOPTER


№

  Designation





Кол. /Q-ty

1

171М.0700.0000.000

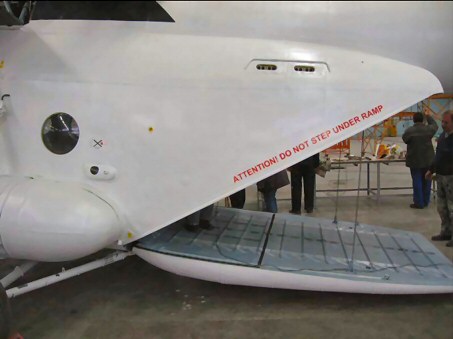

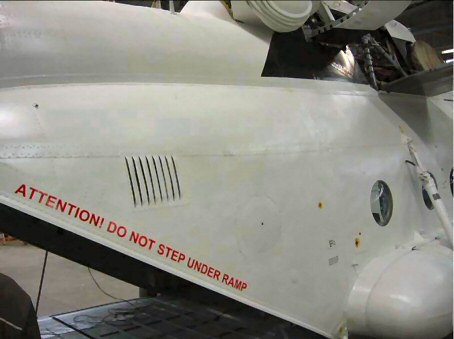

Electro hydraulic ramp with hatch

pc

1

2

8АТ.0338.1000

Right enlarged door

pc

1

3

ЛПГ-150М

Cargo hoist of LPG-150M

pc

1

4

8АМТ-9б11-000-903

External load sling system with hydraulic weight indicator, guards, fixtures, and 3rd headlight

set

1

5

ТУ-80АМТ-2з

Troop seats (20 pc.)

set

1

б

8А-813Ц сер.4

Weather radar

set

1

7

KN-53

Navigation-landing equipment

set

1

8

КI204

Indicator

pc

1

9

КI207

Indicator

set

1

10

8АТ-6116-100

Auxiliary fuel tank LH

pc

1

11

АРМ-406П

Emergency locator transmitter

set

1

12

АРМ-40бАС1

Emergency locator transmitter

pc

1

13

БМС

GPS

set

1

14

2437(К0-50)

Kerosene heater (overhead)

pc

1

15

5035Р2-Р42Р.143Н

Encoding feetmeter

pc

1

16

КТ 76C

ATC transponder

pc

1

17

KN 63

Distance measuring equipment with indicator

pc

1

18

ОРЛАН-85СГ

Radio Station (standby)

set

1

19

8АМТ-6102-550

Starboard external fuel tank of enhanced capacity (unstead of standart)

pc

1

20

8АМТ-0325-000

Short cable for rappeling through the portside sliding door

pc

1

21

8АМТ-0327-000

Long cable for rappeling through the starboard sliding door

pc

1

22



Attachment fitting for device 6201

set

1





B.   LIST OF OPERATION AND MAINTENANCE PUBLICATIONS



DELIVERED WITH MI-8AMT HELICOPTER




№

Description

Unit/Ед. изм.

Q-ty/Кол


1. Maintenance Manuals



1.1

Helicopter Mi-8AMT.  Maintenance Manual.  Book 1. General information.

шт.

1

1.2

Helicopter Mi-8AMT.  Maintenance Manual.  Book 2.  Part 1. Airframe.

шт.

1

1.3

Helicopter Mi-8AMT.  Maintenance Manual.  Book 2. Part 2. Airframe.

шт.

1

1.4

Helicopter Mi-8AMT.  Maintenance Manual.  Book 3. Part 1. Helicopter systems.

шт.

1

1.5

Helicopter Mi-8AMT.  Maintenance Manual.  Book 3.  Part 2. Helicopter systems.

шт.

1

1.6

Helicopter Mi-8AMT.  Maintenance Manual.  Book 4. Power plant.

шт.

1

1.7

Helicopter Mi-8AMT.  Maintenance Manual.  Book 5. Electronics.

шт.

1

1.8

Helicopter Mi-8AMT.  Maintenance Manual.  Book 6. Air delivery means.

шт.

1

1.9

Helicopter Mi-8AMT.  Maintenance Manual.  Book 7. Air borne equipment.

шт.

1



2. Maintenance Schedule




2.1

Helicopter Mi-8AMT.  Maintenance Schedule.  Part 1. Airframe, helicopter systems, power plant, transportation equipment.

шт.

1

2.2

Helicopter Mi-8AMT.  Maintenance Schedule.  Part 2. Airborne equipment.

шт.

1

2.3

Helicopter Mi-8AMT.  Maintenance Schedule.  Part 3. Electronic equipment.

шт.

1


3. Flight Manual.



3.1

Helicopter Mi-8AMT.  Flight Manual.  Book 1. Flight operation.

шт.

1

3.2

Helicopter Mi-8AMT. Flight Manual. Book 2. Operation of helicopter systems.

шт.

1

3.3

Helicopter Mi-8AMT.  Spares and material requirements for 100-hour operation.

шт.

1



4. Wiring diagram manual



4.1

Item Mi-8AMT. Wiring diagram manual. Part 1. Electrical equipment

к-т

1

4.2

Item Mi-8AMT.  Wiring diagram manual. Part 2. Electronic equipment.

к-т

1



5.   Mi-8AMT helicopter log books





5.1

Log book.  Helicopter. Part 1.  (Airframe and related systems)

шт.

1

5.2

Log book.  Helicopter.  Part 2A. (Electrical equipment )

шт.

1

5.3

Log book.  Helicopter.  Part 2B. (Instruments)

шт.

1

5.4

Log book.  Helicopter.  Part 3. (Electronic equipment)

шт.

1

5.5

Log book Appendix. Helicopter.  Section 4. (Complement)

шт.

1

5.6

Service log engine model TV3-117VM series 02.

шт.

2

5.7

Service log gearbox VR-14.

шт.

1

5.8

Service log engine AI-9V.

шт.

1

5.9

Helicopter Mi-8AMT.  Rigging diagrams.

к-т

1

5.10

Table of Mi-8AMT helicopter control.

к-т

1

5.11

Table of measurement of misalignments of tail rotor drive shaft

к-т

1

5.12

ADF and compass calibration card.

к-т

1

5.13

Graduation graphs of system BUR-1-2 ser.2

к-т

1



6. Certificates of units and vendor items





6.1

S1 folder (certificates of airframe and helicopter systems)

к-т

1

6.2

S2 folder (certificates of airframe and helicopter systems)

к-т

1

6.3

S3 folder (certificates of airframe and helicopter systems)

к-т

1

6.4

S4 folder (certificates of airframe and helicopter systems)

к-т

1

6.5

S5 folder (certificates of airframe and helicopter systems)

к-т

1

6.6

A1 folder (certificates of helicopter aircraft equipment)

к-т

1

6.7

A2 folder (certificates of helicopter aircraft equipment)

к-т

1

6.8

A3 folder (certificates of helicopter aircraft equipment)

к-т

1

6.9

A4 folder (certificates of helicopter aircraft equipment)

к-т

1

6.10

E1 folder (certificates of helicopter electric equipment)

к-т

1

6.11

E1 folder (certificates of helicopter electric equipment)

к-т

1

6.12

"P" folder (certificates of helicopter radioelectronics)

к-т

1



7. Maintenance Manuals for every  helicopter (1:1)




7.1

8AT-7420 Current collector.

к-т

1

7.2

A-037 Radio altimeter.

к-т

1

7.3

AGB-96R (AГБ-96P), AGB-96D (АГБ-96Д) Gyro horizon.

к-т

1

7.4

ADIS-2 (АДИС-2) Single-axis balancing accelerometer.

к-т

1

7.5

AI-9V (АИ-9В) Gas-turbine engine.

к-т

1

7.6

AK-50T, AK-50T1 (АК-50Т, АК-50Т1)  seria 3 и АК-50Т1 seria 3 Compressor.

к-т

1

7.7

ALMAZ-UPM (АЛМАЗ-УП) Article.

к-т

1

7.8

AP-34B (АП-34Б) Electrohydraulic autopilot.

к-т

1

7.9

APS-6600-2300 (АПС-6600-2300). Fire extinguishers for aircraft extinguishers systems.

к-т

1

7.10

ARK-15M (АРК-15М) Automatic direction finder.

к-т

1

7.11

BUR-1-2 (БУР-1-2) Flight data recorder.

к-т

1

7.12

BF-34 (БФ-34) Filter unit.

к-т

1

7.13

VR-14 (ВР-14) Main gearbox.

к-т

1

7.14

GMK-1GE (ГМК-1ГЭ) Compass system.

к-т

1

7.15

GT40PCH8B and GT40PCH8V Generators.

к-т

1

7.16

IV-500E (ИВ-500Е) Vibration indicating system. Series 2.

к-т

1

7.17

IN (ИН) Zero indicator.

к-т

1

7.18

KAU-115A (КАУ-115А), KAU-115AM (КАУ-115АМ) Combination hydraulic actuator.

к-т

1

7.19

MP-U, VP-U, MVP-U (МП-У, ВП-У; МВП-У) Gage pressure manometers, vacuum gauges and monovacuum gauges.

к-т

1

7.20

ORLAN-85ST (ОРЛАН-85СТ) Radio set.

к-т

1

7.21

P-503 (П-503) Airborne magnetic recorder.

к-т

1

7.22

SKES-2027B (СКЭС-2027Б) Airborne electrically-operated lever-float type kerosene indicator.

к-т

1

7.23

SO-121M/SO-121VM (СО-121М/СО-121ВМ) Ice detector.

к-т

1

7.24

SPU-7 Aircraft interphone system.

к-т

1

7.25

SPUU-52, SPUU-52E, SPUU-52-1, SPUU-52-3, SPUU-52-4, SPUU-52-5 (СПУУ-52, СПУУ-52Э, СПУУ-52-1, СПУУ-52-3, СПУУ-52-4, СПУУ-52-5) Systems.

к-т

1

7.26

SSP-FK (ССП-ФК) Fire detection system type ССП-ФК series 2.

к-т

1

7.27

TV3-117 (ТВ3-117) Turboshaft engine.

к-т

1

7.28

TST-282S (ТСТ-282С) Thermoelectric thermometer.

к-т

1

7.29

TER-1M (ТЭР-1М) Temperature regulator.

к-т

1

7.30

US-450 (УС-450) Speed indicator

к-т

1

7.31

Iadro-1 (Ядро-1) Radio Station.

к-т

1

7.32

8A813. “CONTOUR-10С” Airborne weather radar.

к-т

1

7.33

DG-65.8500-0 (ДГ-65.8500-0) Swiveled shackle.

к-т

1

7.34

2437 Combustion heater.

к-т

1

7.35

LPG-150M (ЛПГ-150М) Load-lifting electric hoist.

к-т

1



8. Maintenance Manuals for bath Helicopters (1:3)




8.1

463B (463Б) Electrical centrifugal pump.

к-т

1

8.2

5349Т Cooler block.

к-т

1

8.3

AChS-1, AChS-1M (АЧС-1, АЧС-1М) clocks.

к-т

1

8.4

AF-1 (АФ-1) Electrodynamic ammeter.

к-т

1

8.5

AZP-A (АЗП-А) Overvoltage protection unit.

к-т

1

8.6

BKK-18 (БКК-18 ) Altitude monitor.

к-т

1

8.7

BRN120T5A series 3 (БРН120Т5А 3с) Unit.

к-т

1

8.8

BS-34, BS-34-1 (БС-34, БС-34-1) Coupling unit.

к-т

1

8.9

BS-34E, BS-34-1E (БС-34Э, БС-34-1Э) Coupler unit.

к-т

1

8.10

BSGO400, BSGO400A, BSGO400B (БСГО400, БСГО400А, БСГО400Б) Unit.

к-т

1

8.11

DPSM-1 (ДПСМ-1) Indicated airspeed sensor.

к-т

1

8.12

FPP-7 (ФПП-7), FPP-7M (ФПП-7М) landing and searching lights.

к-т

1

8.13

KI-13 (КИ-13) Magnetic compass.

к-т

1

8.14

M11 Module.

к-т

1

8.15

MA Airborne pressure gauge.

к-т

1

8.16

MSL-3-2s (MСЛ-3-2с) Flashing Light Beacon.

к-т

1

8.17

MTP, MVTP (МТП, МВТП). Indicating pressure gauge and pressure and vacuum gauge.

к-т

1

8.18

MU-615A (МУ-615А) series 1 Heat-stable potentiometry angle-moves transmitter.

к-т

1

8.19

NSh-39M (НШ39М) Gear pump.

к-т

1

8.20

P-77, P-77 var.2 (П-77, П-77 вар.2) Temperature sensor.

к-т

1

8.21

PSU-5P (ОСУ-5П) Fire extinguisher.

к-т

1

8.22

PVD-6M (ПВД-6М) Pitot/Static tube.

к-т

1

8.23

RM355G (РМ355Г) Shockmount.

к-т

1

8.24

RN-120U (РН-120У) Voltage regulator.

к-т

1

8.25

SNP-1 (СНП-1) Power fail relay.

к-т

1

8.26

TF1, TF2 (ТФ1, ТФ2) Current transformers.

к-т

1

8.27

TUE-48 (ТУЭ-48) General –purpose resistance thermometer.

к-т

1

8.28

TV-19 (ТВ -19) Electrical air thermometer.

к-т

1

8.29

V1 (В1) Voltmeter

к-т

1

8.30

VAR-30MK (ВАР-30М) Rate-of-climb indicator.

к-т

1

8.31

VD-10 (ВД-10) two-pointer altimeter.

к-т

1

8.32

VF-0,4 (ВФ 0,4) Electrodynamic voltmeters.

к-т

1

8.33

VK-53E (ВК-53Э) Erecting cut-out switch.

к-т

1

8.34

VU-6B, VU-6B-1, VU-6B-2 (ВУ-6Б, ВУ-6Б-1, ВУ-6Б-2) Devices.

к-т

1

8.35

ВМ-15MV (ДВ-15МВ) Altitude transmitte.

к-т

1

8.36

5035 Series model. Dual scale encoding altimeter.

к-т

1

8.37

KI 202/203/204/206/207 Navigation indicators.

к-т

1

8.38

KMD 550/850 Multi-Function Display System.

к-т

1

8.39

KN 53 Navigation receiver.

к-т

1

8.40

KN 63 Distance measuring equipment.

к-т

1

8.41

KT 76C Transponder.

к-т

1

8.42

KM-32AG (КМ-32АГ) Oxygen mask.

к-т

1



C.   LIST OF INDIVIDUAL SET OF EQUIPMENT (1:1) FOR MI-8AMT HELICOPTER


№

Обозначение

Description

Unit/Ед. изм.

Q-ty/Кол.


1. SPARE  PARTS




1.1. Tail boom, tail rotor pylon and cowls  attachment parts




1.1.1

8АТ-0101-21

Bolt

pc

2

1.1.2

8АТ-0101-211

Bolt

pc

2

1.1.3

8АТ-0101-224

Bolt

pc

2

1.1.4

8АТ-0101-228

Washer

pc

10

1.1.5

8АТ-0101-229

Washer

pc

10

1.1.6

8АТ-0101-231-1

Bolt

pc

4

1.1.7

8АТ-0101-232

Bolt

pc

4

1.1.8

8АТ-0101-235

Bolt

pc

2

1.1.9

10-Кд-ОСТ1 33109-86

Nut

pc

16

1.1.10

12-Кд-ОСТ1 33109-86

Nut

pc

20

1.1.11

1,5-10-16-Кд-ОСТ1 34505-80

Washer

pc

16

1.1.12

2,5х20.0.029 ГОСТ397-79

Cotter pin

pc

35



1.2.Main rotor collective pitch control parts




1.2.1.

2186А-17

Rubber ring

pc

2



1.3. Fuel systems parts




1.3.1

8-6101-102

Gasket

pc

2

1.3.2

8-6101-103

Gasket

pc

2

1.3.3

2262А-11

Sealing ring

pc

2

1.3.4

2262А-25

Sealing ring

pc

2

1.3.5

2262А-154

Sealing ring

pc

2

1.3.6

2262А-298

Sealing ring

pc

2

1.3.7

8АТ-6116-23-1

Bolt

pc

4




 1.4. Engine oil system parts




1.4.1

140-6200-301-03

Washer

pc

2

1.4.2

140-6200-301-05

Washer

pc

1

1.4.3

2-6201-220

Gasket

pc

4

1.4.4

2262А-165

Sealing ring

pc

4

1.4.5

2262А-169

Sealing ring

pc

2



1.5. Gear box oil system parts




1.5.1

8АТ-6200-206-5

Washer

pc

2

1.5.2

2262А-23

Sealing ring

pc

2

1.5.3

2262А-27

Sealing ring

pc

8

1.5.4

2262А-151

Sealing ring

pc

2



1.6. Engines and main gear box attachments parts




1.6.1

140-0800-33

Washer

pc

16

1.6.2

140-6810-20

Cord

pc

2

1.6.3

1-35-240-ОСТ1 11303-73

Strip

pc

4

1.6.4

15-0,5-1-ОСТ1 10292-71

Sealing ring

pc

2

1.6.5

15-1-1-ОСТ1 10292-71

Sealing ring

pc

2

1.6.6

6,3х80.0.026 ГОСТ 397-79

Cotter pin

pc

32



1.7. Pneumatic system parts




1.7.1

12-3-2-ОСТ1 11408-74

Ring

pc

2

1.7.2

14-3-2-ОСТ1 11408-74

Ring

pc

3


1.8. Details for AI-9B engine attachment parts



1.8.1

140-6805-03

Gasket

pc

1


1.9. Hydraulic system parts



1.9.1

8-5302-36

Gasket

pc

1

1.9.2

8-5302-40

Filter

pc

1

1.9.3

8А-5302-56-1

Glass

pc

1

1.9.4

8А-5302-56-2

Glass

pc

1

1.9.5

15-5303-10-6

Hydraulic accumulator diaphragm

pc

1

1.9.6

РП5920-11

Sealing ring

pc

2

1.9.7

2608с52-12-18-2-Ж

Ring

pc

7

1.9.8

2608с52-18-28-1,5-Ж

Ring

pc

4

1.9.9

2186А-7

Sealing ring

pc

2

1.9.10

2186А-9

Sealing ring

pc

4

1.9.11

2186А-13

Sealing ring

pc

2

1.9.12

2186А-22

Sealing ring

pc

2

1.9.13

2186А-254

Sealing ring

pc

2

1.9.14

2197А-11

Safety washer

pc

4



1.10. Electrical equipment




1.10.1

ИП-10

Fuse

pc

1

1.10.2

ИП-20

Fuse

pc

1

1.10.3

ИП-50

Fuse

pc

2

1.10.4

ИП-75М

Fuse

pc

1

1.10.5

ИП-100

Fuse

pc

1

1.10.6

ИП-150

Fuse

pc

1

1.10.7

ИП-200

Fuse

pc

1

1.10.8

ПМ-2

Fuse

pc

20

1.10.9

ПМ-5

Fuse

pc

6

1.10.10

ПМ-10

Fuse

pc

2

1.10.11

ПМ-15

Fuse

pc

2

1.10.12

ПМ-20

Fuse

pc

1

1.10.13

ПМ-25

Fuse

pc

1

1.10.14

ПМ-50

Fuse

pc

1

1.10.15

ТП-200

Fuse

pc

1

1.10.16

СМ-26-70 (СМ28-80)

Lamp

pc

1

1.10.17

СМ28-1,4

Lamp

pc

25

1.10.18

СМ28-2

Lamp

pc

2

1.10.19

СМ28-4,8

Lamp

pc

5

1.10.20

СМ28-5

Lamp

pc

5

1.10.21

СМ28-10

Lamp

pc

5

1.10.22

СМЗ 28-24

Lamp

pc

2

1.10.23

СМЗ 28-28

Lamp

pc

1

1.10.24

СМ6,3-1,4

Lamp

pc

50



1.11. Expendable materials




1.11.1

ГОСТ19034-82

Vinyl chloride pipe d=30

m

2

1.11.2

1,6х20.0.026 ГОСТ 397-79

Cotter pin

pc

100

1.11.3

1-7-100- ОСТ1 11303-73

Bonding strip

pc

2

1.11.4

1-7-120-ОСТ1 11303-73

Bonding strip

pc

2

1.11.5

1-7-160-ОСТ1 11303-73

Bonding strip

pc

2

1.11.6

1х12.0.026 ГОСТ 397-79

Cotter pin

pc

50

1.11.7

2,5х20.0.026 ГОСТ 397-79

Cotter pin

pc

50

1.11.8

2,5х32.0.026 ГОСТ 397-79

Cotter pin

pc

50

1.11.9

2х25.0.026 ГОСТ 397-79 или 2х32.0.026 ГОСТ 397-79

Cotter pin

pc

100

1.11.10

3,2х40.0.026 ГОСТ 397-79

Cotter pin

pc

30

1.11.11

4х40.0.026 ГОСТ 397-79

Cotter pin

pc

28

1.11.12

C25/90S

Solvent

kg

0.3

1.11.13

HFA-132

Enamel (3 cans)

kg

0.5

1.11.14

S66/22R

Hardener

kg

0.7

1.11.15

КС-0,5 ГОСТ 792-67 или 0,5-ТС-12Х18Н10Т ГОСТ 18143-72

Cadmium plated wire

kg

0.5

1.11.16

КС-0,8 ГОСТ 792-67 или 0,8-ТС-12Х18Н10Т ГОСТ 18143-72

Cadmium plated wire

kg

0.5

1.11.17

КС-1,0 ГОСТ 792-67 или 1,0-ТС-12Х18Н10Т ГОСТ 18143-72

Cadmium plated wire

kg

0.3

1.11.18

КС-1,2 ГОСТ 792-67 или 1,2-ТС-12Х18Н10Т ГОСТ 18143-72

Cadmium plated wire

kg

0.3

1.11.19

ТУ38-105396-85

Band width 20 mm.

m

5


1.12. Landing gear parts



1.12.1

8А-4201-150

Cover

pc

2

1.12.2

34М51-22-16,2-1,5

Ring

pc

2


1.13. Universal joint shaft unit parts



1.13.1

МИ-4-1607-40

Valve

pc

1

1.13.2

МИ-4-1607-50

Lubrication fitting

pc

1



2. SPARE PARTS,TOOLS AND EGUIPMENT FOR VENDOR ITEMS


2.1

11ТФ30СМ-0

Set of spare parts for Filter

set

1

2.2

8-1950-000

Set of spare parts and equipment for Swash plate assembly

set

1

2.3

865x280 мод.1А

Set of spare parts for  tires

set

2

2.4

8А-1515-000

Set of spare parts and equipment for Intermediate gear box

set

1

2.5

1-4-4

Set of spare parts for Fire extinguisher

set

2

2.6

20НКБН-25-ТД-У3

Spares for Storage battery:

set

2


set



2.7

246-1517-000

Set of Spare parts and equipment for tail gear box

set

1

2.8

246-3904-000

Set of spare parts and equipment for tail rotor 246-3914-000

set

1

2.9

2ИА-6

Set of spare parts for Equipment

set

1

2.10

595x185 мод.14

Set of spare parts for  tires

set

2

2.11

8-1930-000 сер.2

Set of spare parts and equipment for Main rotor hub

set

1

2.12

8А-1516-000

Set of spare parts and equipment for Tail rotor drive shaft

set

1

2.13

8А-4101-00Б

"1E" maintenance individual set of spare parts and equipment forMain L.G. shock strut

set

2

2.14

8А-4201-00А

"1E" maintenance individual set of spare parts and equipment for Nose L.G.  shock strut

set

1

2.15

8А-6311-00

Set of spare parts for Fan

set

1

2.16

8АТ-7420

Set of spare parts for Slip ring

set

1

2.17

8Д2.966.017-2

Set jf spare parts for Filter

set

2

2.18

А-037

Set of spare parts for Radio altimeter

set

1

2.19

АИ-9В

Set of spare parts and equipment for Engine

set

1

2.20

АК-50Т1 сер.3

Set of spare parts for Air compressor

set

1

2.21

АП-34Б

Set of spare parts for Autopilot

set

1

2.22

APK-15M

Set of spare parts for ADF

set

1

2.23

БКК-18

Set of spare parts for Mount

set

1

2.24

БУ-32 из комплекта СПУУ-52

Set of spare parts for Unit

set

1

2.25

БУР-1-2 сер.2

Set of spare parts for Equipment

set

1

2.25.1

ЗБН-1-3 сер3

Set of spare parts for block:

set

1

a.

ЗБН-ЭВМ

ZBN-EVM

pc

1

b.

USB-RS-422

USB-RS-422

pc

1

2.26

ДПСМ-1

Set of spare parts for IAS sensor

set

1

2.27

ДВ-302Т

Set of spare parts for Fan

set

3

2.28

ЭПК-2Т-60

Set of spare parts for (EPK-2T) Electric actuator

set

2

2.29

ЭЦН-91С

Set of spare parts for Pump

set

2

2.30

ФГ11БН

Set of spare parts for Filter

set

2

2.31

ФПП-7М

Set of spare parts for Light

set

2

2.32

ГМК-1ГЭ

Set of spare parts for Compass system

set

1

2.33

ГТ40ПЧ8В

Set of spare parts for Generator

set

2

2.34

ИП-21-15

Set of spare parts for Indicator

set

1

2.35

ИТЭ-1

Set of spare parts for Indicator

set

2

2.36

ИТЭ-2

Set of spare parts for Indicator

set

2

2.37

КАУ-115AM

Set of spare parts for Hydraulic boosters

set

4

2.38

КИ-13К

Tools of Magnetic compass: screwdriver

pc

1

2.39

КЗСП

Set of spare parts for IAS controller

set

1

2.40

МСЛ-3 2 сер.

Set of spare parts for Beacon

set

2

2.40.1



Tools of Beacon

pc

1

2.41

НШ 39М

Set of spare parts for Pump

set

2

2.42

ОР1-2-20-30

Set of spare parts for Fire extinguisher

set

2

2.43

Орлан-85 CТ

Set of spare parts for Radio station

set

1

2.44

П-503Б

Set of spare parts for Voice recorder

set

1

2.45

ПБС-1

Set of spare parts for Dome light

set

6

2.46

ПГКц

Set of spare parts for squib control head

set

8

2.47

РМ-355Г

Spares for mount: arm RSS

pc

2

2.48

РУ-2

Set of spare parts for Stick

set

2

2.49

САС-4-9

System device: RSS lever "removal-attachment"

pc

1

2.50

СО-121ВМ вар. "а"

Set of spare parts for Ice detector

set

1

2.51

ССП-ФК сер. 2

Set of spare parts for Fire detection and warning system

set

2

2.52

ТСВ 36М 313

Set of spare parts for Slip ring

set

1

2.53

ТВ3-117ВМ сер.2

Individual Set Spares for Engine 78BM

set

2

Tool of Engine ТВ3-117ВМ

set

1

2.54

В24-4301-100-7

"1E" maintenance individual set for shock strut of tail support

set

1

2.55

ВР-14

Set of spare parts for Main gear box

set

1

2.56

7-пп-683 (ПП-3)

Item

pc

16

2.57

8АТ-2710-00

Set of spare parts for MRB

set

1

2.58

ТСТ-282С

Set of spare parts for termometer



1

2.59

ОПС-57

Set of spare parts



3


Optional equipment



2.60

2437 (КО-50)

Set of spare parts for Kerosene heater

set

1

2.61

748Б

Set of spare parts for Pump

set

1

2.62

ЛПГ-150М

Set of spare parts for Cargo hoist

set

1

2.63

8А-813Ц сер.4

Spare parts of Weather radar

set

1

2.64

ССП-ФК сер. 2

Set of spare parts for Fire detection and warning system

set

1



3. Cover




3.1

140-9113-100

Cover for Blade and hub of tail rotor

pc

1

3.2

140-9113-60

Cover for Rotor hub

pc

1

3.3

140-9113-90

Cover for Tail rotor blade

pc

2

3.4

8МТ-9113-20

Cover for Cowl

pc

1

3.5

8AМT-9113-110

Cover for APU AI-9V inlet

pc

1

3.6

8МТ-9113-110СБ

Cover for AI-9V inlet

pc

1

3.7

8АТ-2799-00

Cover for Main rotor blade

pc

5

3.8

8АТ.7705.020

Cap with 8AT.7705.025SB flag

pc

2

3.9

8АТ-9113-730

Cover for RA and KAU hydraulic actuators

pc

1

3.10

8АТ-9970-44

Bag for covers

pc

2

3.11

8МТ-9113-10

Cover for Fuselage nose section

pc

1

3.12

НO-9113-200

Cover for SX-16 search light

pc

1

3.13

8АMT-9113-30

Cover for Fuselage center section

pc

1

3.14

8МТ-9113-60

Cover for Dust protection device

pc

2

3.15

8МТ-9113-70

Cover for terminal heating beams

pc

1

3.16

НО-9113-15

Bag for wiring diagram manuals

pc

1

3.17

8АТ-9113-20

Bag for publication, Service log and certificates

pc

9

3.18

НО-9109-00

Blank for engine exhaust pipe

pc

2

3.19

НО-9113-220

Sun-protective blind

pc

1




4.1. 8AT-9100-00 airborne tools




4.1.1

7810-0916 3В1x9  ГОСТ17199-88

Screwdriver  L=205, B=4

pc

1

4.1.2

7811-0004ПC1x9 ГОСТ 2839-80

Wrench S=10x12

pc

1

4.1.3

7811-0023C1х9  ГОСТ 2839-80

Wrench S=17x19

pc

1

4.1.4

7814-0266 x9 ГОСТ 5547-93

Combination pliers, L=200

pc

1

4.1.5

8АТ-9100-30

Screwdriver for cowl locks

pc

1

4.1.6

8АТ-9100-500-5

Case with panels: 8AT-9100-10; 8AT-9100-20

pc

1

4.1.7

8АТ-9100-71

Wrench for screwing  V-9220-70 lock valve

pc

1

4.1.8

8АТ-9101-04

Wrench  S=7x9

pc

1

4.1.9

8АТ-9101-05

Wrench  S=9x11

pc

1

4.1.10

8АТ-9101-07

Wrench  S=11x14

pc

1

4.1.11

8АТ-9101-39

Wrench S=55x60 in cover 8AT-9101-225

set

1

4.1.12

8АТ-9105-26

Wrench for plugs of feathering and flapping hinges  of main rotor hub

pc

1

4.1.13

8АТ-9106-50

Key for plug connectors

pc

1

4.1.14

Нож дачник-2

Multi-tool knife

pc

1

4.1.15

ПЛ-64-Р2 или НО-9101-8600

Portable light

pc

1


4.2. Tools for main rotor blades



4.2.1

6420/0120

Hammer

pc

1

4.2.2

6420/0130

Duralumin hammer

pc

1

4.2.3

8АТ-9101-45

Pressure gauge with adapter

pc

1

4.2.4

8АТ-9101-48

Hose with RN-1 handpump

pc

1

4.2.5

ЛПП-1-7кр  ТУ 3-3.227-77 или ЛПП-1-4кр ТУ 3-3.227-77

Magnifying glass

pc

1


4.3. Special tools E-80-0235



4.3.1

8АТ-1250-98

Oil level indicator

pc

1

4.3.2

140-9100-17

Socket S=10, A=7 for tightening of clamps

pc

1

4.3.3

8АТ-9101-10

Wrench

pc

1

4.3.4

24-9102-80

Wrench

pc

1

4.3.5

8АТ-9101-11 или 7811-0024С1х9 ГОСТ 2839-80

Wrench S=19x22

pc

1

4.3.6

8АТ-9101-12 или  7811-0025С1х9 ГОСТ 2839-80

Wrench S=22x24

pc

1

4.3.7

8АТ-9101-15 или 7811-0043С1х9 ГОСТ 2839-80

Wrench S=32x36

pc

1

4.3.8

8АТ-9101-16

Wrench S=41x46

pc

1

4.3.9

8АТ-9101-18

Socked head S=9, d=7

pc

1

4.3.10

8АТ-9101-19

Socket head S=10, d=7

pc

1

4.3.11

8АТ-9101-22

Socket head S=12, d=7

pc

1

4.3.12

8AT-9101-23

Socket head S=14, d=7

pc

1

4.3.13

8AT-9101-24

Socket head S=17, d=14

pc

1

4.3.14

8AT-9101-25

Socket head S=19, d=14

pc

1

4.3.15

8AT-9101-28

Socket head S=27; d=14 for wrench  8AT-9102-80

pc

1

4.3.16

8АТ-9102-01

Socket S=17 for attaching tail boom pylon  to tailboom

pc

1

4.3.17

8АТ-9102-03

Socket S=19 for attaching tail rotor to tail gear box

pc

1

4.3.18

8АТ-9102-08

Socket S=14 for transmission attaching  nut

pc

1

4.3.19

8АТ-9102-12

Holder for flushing filter's elements

pc

1

4.3.20

8АТ-9102-13

Socket S=17 for attaching nut

pc

1

4.3.21

8АТ-9102-15

Adapter S=14; d=10 for NO-9102-25 wrench

pc

1

4.3.22

НО.9102.20

Torque wrench 67 kg. сm

pc

1

4.3.23

8АТ-9102-21

Socket S=9 for attaching  bands of extra fuel  tanks tapes

pc

1

4.3.24

8АТ-9102-22

Socket for attaching universal joint  shaft to drive flange on gearbox

pc

1

4.3.25

8АТ-9102-24

Socket S=10 for attaching  bearing of swash plate assembly

pc

1

4.3.26

НО.9102.25

Torque wrench up to 150 kg. Cm

pc

1

4.3.27

8АТ-9102-80

Torque wrench up to 2000 kg. cm.

pc

1

4.3.28

24-9102-550

Socket head for Torque Wrench 8АТ-9102-80

pc

1

4.3.29

8АТ-9102-130

Torque wrench up to 7 kg. m

pc

1

4.3.30

8АТ-9102-550

Torque wrench 8AT-9102-80 head

pc

1

4.3.31

8АТ-9106-22



pc

1

4.3.32

8АТ-9114-210

Torque wrench up to 300 kgc. сm

pc

1

4.3.33

Э80-0235

Bag for Tools

pc

1


5.  GROUND EQUIPMENT AND FIXTURES



5.1

140-9109-00

Blank

pc

2

5.2

140.9111.00

Blank for Engine inlet

pc

2

5.3

140-9115-00

Blank for gas generator collector

pc

2

5.4

140-9923-100

Oil accumulator device

pc

1

5.5

140-9924-000

Pan

pc

1

5.6

140-9928-05

Oil outlet hose from engine oil system

pc

1

5.7

140-9948-00

Blank for AI-9V air intake

set

1

5.8

2-1-ОСТ1 10892-73

Funnel with filter for hydraulic fluid

pc

1

5.9

2-2-ОСТ1 10892-73

Funnel for fuel filling

pc

1

5.10

245-9969-00

Hose for drain from susction oil line through suction valves

pc

1

5.11

348с/069 или Д9958-00

Injector for assembly. flushing

pc

2

5.12

440.9114.000

Blank for signal flare launcher

pc

2

5.13

8-0029-680

Fixture for putting covers on blades of MR

pc

1

5.14

8-9126-00

Wheel chocks

pc

4

5.15

8-9905-00

Ladder for entrance into tail boom

pc

1

5.16

8А-9901-00/A

Hose for fuel drain

pc

1

5.17

8А-9910-00

Hoses for charging and checking of pressure in  wheels, airborne system, shock struts and hydraulic accumulators

set

1

5.18

8А-9917-00

Maintenance steps

pc

1

5.19

8АМТ-9137-00

Blank for AI-9V APU

pc

1

5.20

8АMТ-9931-00

Storage container of operational aviagoods with box 8AT-9931-140

pc

1

5.21

8АТ-0001-510

Screw

set

2

5.22

8АТ-9129-00

Lubricator for oil filling into intermediate and tail gear boxes and feathering hinge cavities

pc

1

5.23

8АТ-9900-00

Mooring of main rotor blades

set

1

5.24

8АТ-9912-510

Collective-pitch control lever lock

pc

1

5.25

8АТ-9917-500

Lever-plunger stuffer

pc

1

5.26

8АТ-9918-00

Hose for oil drain from main gear box

pc

1

5.27

8АТ-9919-200

Step-ladder for trim fuel

pc

1

5.28

8АТ-9927-00

Driving element for blades and for helicopter turn

pc

1

5.29

8АТ-9928-500

Hose for oil draining from engine oil system

pc

1

5.30

8АТ-9929-00

Rug for cargo floor

pc

2

5.31

8АТ-9929-500

Rug for pilot cabin

pc

1

5.32

8АТ-9930-50

Mat for removable part of dust portable. device

pc

1

5.33

8АТ-9991-10

Lanyard for ground service

pc

1

5.34

8МТ-9110-00

Blank for fan inlet

pc

1

5.35

8МТ-9136-00

Blank for blow by pipeline

pc

1

5.36

ОСТ1 10885-73

Pail with oil flow regulator for 10 liters

pc

1

5.37

ОСТ1 10885-73

Pail for operating fluid

pc

1

5.38

Ш-1

Lever-plunger stuffer

pc

1


6. REMOVABLE EQUIPMENT




6.1. Dust protection unit parts



ТУ-80АМТ-2И1

6.1.1

246-6820-368

Ring

pc

4

6.1.2

246-6820-369

Ring

pc

8

6.1.3

8АМТ-6820-05

Blank

pc

2

6.1.4

246-6820-06

Gasket

pc

4

6.1.5

246-6820-07

Gasket

pc

4

6.1.6

246-6820-39

Washer

pc

2

6.1.7

246-6820-44

Washer

pc

10

6.1.8

246-6820-49

Nut

pc

2

6.1.9

246-6820-51

Ring

pc

10

6.1.10

246-6820-53

Pin

pc

2

6.1.11

246-6820-54

Washer

pc

10

6.1.12

5-16-Кд-OСT1 31502-80

Screw

pc

10

6.1.13

5-Кд-OСT1 34526-80

Washer

pc

74

6.1.14

24-2-ОСТ 1 10477-72

Blank

pc

2

6.1.15

8АМТ-6820-500-01/02



set

2

6.1.16

8АМТ-6820-05

Blank

pc

2

6.1.17

246-6820-53

Pin

pc

2

6.1.18

246-6820-54

Washer

pc

2

6.1.19

8AMT-6820-170



pc

2

6.1.20



set

2



6.2. Miscelaneous parts




6.2.1

В 7213-140

Light filter for FR-100 light

pc

1

#6.2.2

2-7531-20

Pilot seat cushion

pc

2

#6.2.3

8АТ-0386-00

Airstairs

pc

1

#6.2.4

8АТ-0386-20

Shock absorber

pc

1

#6.2.5

8АТ-7501-05

Seat-back of the pilot

рс

2

#6.2.6

8АТ-7501-30

Flight engineer seat cushion

pc

1

#6.2.7

8АТ-7502-100

Flight engineer seat belt

pc

1

6.2.8

ГСШ-A-18

Headset

pc

3





RE-EQUIPMENT VIP









See details at:

Mi-8AMT_1pc_2019.pdf
Mi-8AMT_2pcs_2019 (2).pdf
 Mi-8AMT_2pcs_2019-20Cabin (1).pdf
 Mi-8MTV-1_1pc_2017 (1).pdf



Find some offers, subject unsold



Mi-8 (MTV-1)







In the attachment I am sending you basic information about the helicopter with technical data and price.

We can manage technical inspection of this helicopter without its take-off.

 All partners interested to procure this helicopter should send the official LoI to Compel Industries.

The final working schema will be established after receiving the LoI.

 Delivery terms: on stock in Europe, ready to send to the customer;

End User restrictions: non-Europe countries and US;

Note: in case of serious interest, we are also able to provide delivery and installation of weapon systems.

See details at:

Offer of Mi-8 MTV-1.pdf


Specification and photos are not contractual and are subject to verification upon inspection



NB: Aircraft offered for sale subject to contract, prior sale, withdrawal from the market and information regarding any aircraft or helicopter and provided verbally or in written documentation and/or contained within this e.mail or associated paper-work should be taken as a guide only in determining the suitability, including that aircraft or helicopters specification and/or performance.  We highly recommend that any buyer or lessee perform their own inspections and due diligence to verify any and all technical, performance and specification information contained therein including OEM claims.



PLEASE NOTE: AIRCRAFT SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION. WE DO NOT ACCEPT ANY LIABILITY FOR AIRCRAFT DEFECTS, HISTORY OR TECHNICAL RECORD ERRORS. IT IS THE BUYERS RESPONSIBILITY TO INDEPENDENTLY VERIFY THE AIRCRAFT AND COMPONENT HISTORY.







TAKE NOTICE!



PLEASE BE ADVISED THAT INFORMATION INCLUDED IS CONFIDENTIAL IN NATURE AND IS BASED ON PRE-EXISTING BUSINESS RELATIONSHIP WITH THE LEGAL OWNER OF PROPERTY DESCRIBED HEREIN (IF APPLICABLE). AS SUCH, UPON RECEIPT OF SAID INFORMATION THE RECEIVER ACKNOWLEDGES THAT ANY UNAUTHORIZED CONTACT WITH SAID LEGAL SELLER WILL BE CHARACTERIZED AS A BREACH OF CONFIDENTIALITY AND SAID AGREEMENT MAY BE ENFORCED UNDER EXISTING LAW OR IN EQUITY.



This paper was prepared by General Equipment Corp.
The paper represents an offer of a partner of General Equipment Corp.
All rights are reserved by and for General Equipment Corp..
All content and ideas of this paper are the property of General Equipment Corp.









Defense items are subject to final destination approval and granting of an

export license issued by exporting country's authorities
