MBT TRANSFORMATION





TYPE:

MBT

DESCRIPTION:

MBT Transformation

PRICE:

Upon Request

PACKING:

Ex-Works





mbt transformation



From New Manufacture

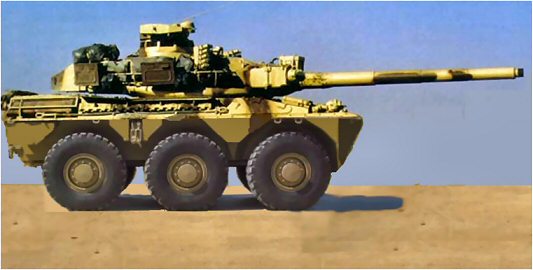

Transformation of tracked MBT on Wheeled ones



Drive travell about

Concept on base armored vehicles Rooikat was turned into a conventional vehicle electric drive technology demonstrator (CVED) and displayed at AAD2006 in Cape Town in September of that year.  vehicle was fitted with a power supply control system feeding eight wheel-hub mounted M67/0 electric units and a two-phase pneumatic gearbox.

Drive line

Electrical

Alternator (power)

258kW

Wheel drive units (power)

80kW

Max toque

21,000Nm

Special features

Internal / External power supply



220V AC 50Hz / 380V AC 50Hz

Skid steer Function

Pivot neutral steer function

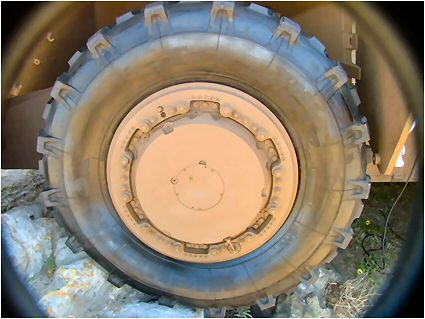

Why in wheel? Because an electric motor that has to provide enough torque to drive a vehicle without gears has a large diameter. Building it inside the vehicle will take allot of space and is negative for your building flexibility.



Shocks en water ingress? We are already driving for 10 years with our truck, bus, military vehicles with the electronics fitted inside of the wheel. Shocks and water have till thus far never been a problem.



WHEELED TANK HURON

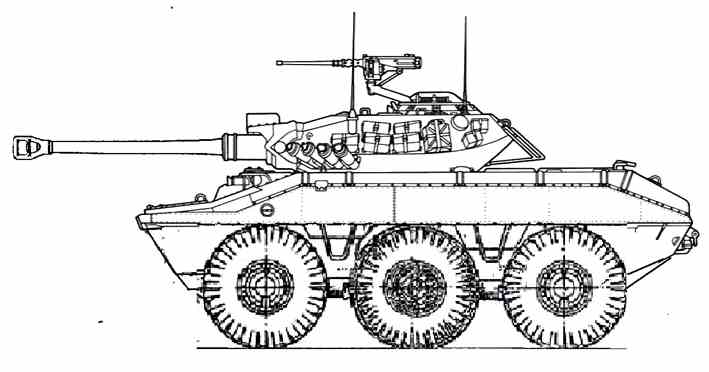

On base tank M551

Huron on base M551



Specifications



Weight

14 tons

Crew

4

Length of Body – Gun Fwd

6.3m

Width

2.8m

Height

3.1m

Wheel Base

1.6m / 1.6m

Rut

2.64m

Clearance

0.45m

Maximum Speed

105km/h

Fuel Capacity

260 litre

Operational Range

800km

Obstacle



Ascent

30⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine

Model Yamz-534

Cylinders

L4

Fuel

Diesel

Horsepower

190hp (140kW)

Suspension

Torsion Bar

Wheels

6x6

Tyres

13,00-18 or  14,00-20 or  1100×400-533



Armaments



Main Gun

152mm cannon M81                                 30 projectiles

or

105mm howitzer M56 Hawkeye               38 projectiles

or

105mm howitzer M101 Hawkeye             38 projectiles

or

105mm howitzer M102 Hawkeye             38 projectiles

or

105mm howitzer M119/L119 Hawkeye    38 projectiles

Coaxial MG

7,62x54R SGMT / PKT / M86          2000rds

or 7.62x51mm M86                        2000rds

Anti Aircraft MG



or

Anti Aircraft MG

or

Anti Aircraft cannon

or

Anti Aircraft cannon

12.7x108mm DshKM/NSVT/M87          200rds

or 12.7x99mm M87                             200rds



14.5x114mm KPVT                        200rds



 20x110mm M55                            200 projectiles



23x115mm HR-23/GSh-23              200 projectiles

Fire control system

M119 or  M127, M44



Armouring



Hull Front

13mm

Side Hull

13mm

Rear Hull

13mm

Front Turret

13mm

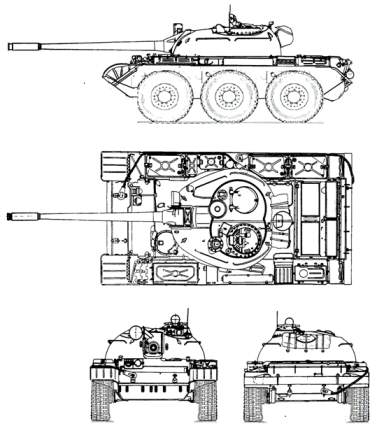

WHEELED TANK KHAZAR

On base tank T-54, T-55, Type 59, Type 69, Type 79, Type 62


Khazar on base T-55



Specifications



Weight

25 tons

Crew

4

Length of Body – Gun Fwd

6m - 9m

Width

3.27m

Height

2.65m

Base

3.84m

Wheel Base

1.6m / 1.6m

Rut

2.64m

Clearance

0.45m

Maximum Speed

105km/h

Fuel Capacity

680 litre

Operational Range

1000km

Obstacle



Ascent

31⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine

Model Yamz-65010 or Yamz536-1

Cylinders

L6

Fuel

Diesel

Horsepower

412hp (303kW)

Suspension

Torsion Bar

Wheels

6x6

Tyres

16,00-20 or  1300×530-533



Armouring



Hull Front top

100mm/60 ⁰

Hull Front bottom

100mm/55⁰

Side Hull top

60mm/60⁰

Side Hull bottom

80mm/0⁰

Rear Hull top

30mm/60⁰

Rear Hull Middle

45mm/17⁰

Bottom Hull

20mm

Roof Hull

15-30mm

Front Turret

200mm/0⁰



70mm/62⁰

Side Turret

160mm/0⁰



115mm/45⁰

Rear Turret

60mm/0⁰



45mm/45⁰

Roof Turret

30mm

Armaments



Main Gun

100mm D10T2SMU                         43 projectiles

Coaxial MG

7,62x54R SGMT / PKT / M86          3500rds

or 7.62x51mm M86                        3500rds

Anti Aircraft MG



or

Anti Aircraft MG

or

Anti Aircraft cannon

or

Anti Aircraft cannon

12.7x108mm DshKM/NSVT/M87          200-300rds

or 12.7x99mm M87                                  200-300rds



14.5x114mm KPVT                                         200rds



 20x110mm M55                                200 projectiles



23x115mm HR-23/GSh-23              200 projectiles

Fire control system

DNNS

Stabilisation system



Fire extinguishing system





Khazar on base Type 59


Specifications



Weight

25 tons

Crew

4

Length of Body – Gun Fwd

6m - 9m

Width

3.27m

Height

2.65m

Base

3.84m

Wheel Base

1.6m / 1.6m

Rut

2.64m

Clearance

0.45m

Maximum Speed

105km/h

Fuel Capacity

545 litre

Operational Range

789km

Obstacle



Ascent

31⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine

Model Yamz-65010 or Yamz536-1

Cylinders

L6

Fuel

Diesel

Horsepower

412hp (303kW)

Suspension

Torsion Bar

Wheels

6x6

Tyres

16,00-20 or  1300×530-533



Armouring



Hull Front top

97mm/60 ⁰

Hull Front bottom

97mm/55⁰

Side Hull top

60mm/60⁰

Side Hull bottom

80mm/0⁰

Rear Hull top

30mm/60⁰

Rear Hull Middle

45mm/17⁰

Bottom Hull

20mm

Roof Hull

15-30mm

Front Turret

203mm/0⁰

70mm/62⁰

Side Turret

150mm/0⁰

115mm/45⁰

Rear Turret

60mm/0⁰

45mm/45⁰

Roof Turret

20mm

Armaments



Main Gun

100mm Type 59                                        34 projectiles

105mm Type 81                                        44 projectiles

Coaxial MG

7,62x54R Type 59T/ SGMT / PKT / M86          3500rds

or 7.62x51mm M86                                         3500rds

Anti Aircraft MG



or

Anti Aircraft MG

or

Anti Aircraft cannon

or

Anti Aircraft cannon

12.7x108mm Type 54/ DshKM/NSVT/M87     200-300rds

or 12.7x99mm M87                                               200-300rds



14.5x114mm KPVT                                                      200rds



 20x110mm M55                                              200 projectiles



23x115mm HR-23/GSh-23                            200 projectiles

Fire control system

DNNS

Stabilisation system



Fire extinguishing system





Khazar on base Type 69



Specifications



Weight

25 tons

Crew

4

Length of Body – Gun Fwd

6m - 9m

Width

3.27m

Height

2.65m

Base

3.84m

Wheel Base

1.6m / 1.6m

Rut

2.64m

Clearance

0.45m

Maximum Speed

105km/h

Fuel Capacity

545 litre

Operational Range

789km

Obstacle



Ascent

31⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine

Model Yamz-65010 or Yamz536-1

Cylinders

L6

Fuel

Diesel

Horsepower

412hp (303kW)

Suspension

Torsion Bar

Wheels

6x6

Tyres

16,00-20 or  1300×530-533




Armouring



Hull Front top

97mm/60 ⁰

Hull Front bottom

97mm/55⁰

Side Hull top

60mm/60⁰

Side Hull bottom

80mm/0⁰

Rear Hull top

30mm/60⁰

Rear Hull Middle

45mm/17⁰

Bottom Hull

20mm

Roof Hull

15-30mm

Front Turret

203mm/0⁰

70mm/62⁰

Side Turret

150mm/0⁰

115mm/45⁰

Rear Turret

60mm/0⁰

45mm/45⁰

Roof Turret

20mm

Armaments



Main Gun

100mm Type 69-II                               44 projectiles

Coaxial MG

7,62x54R Type 59T/ SGMT / PKT / M86          3500rds

or 7.62x51mm M86                                         3500rds

Anti Aircraft MG



or

Anti Aircraft MG

or

Anti Aircraft cannon

or

Anti Aircraft cannon

12.7x108mm Type 54/ DshKM/NSVT/M87     200-300rds

or 12.7x99mm M87                                       200-300rds



14.5x114mm KPVT                        200rds



 20x110mm M55                            200 projectiles



23x115mm HR-23/GSh-23              200 projectiles

Fire control system

DNNS

Stabilisation system



Fire extinguishing system






Khazar on base Type 79


Specifications



Weight

25 tons

Crew

4

Length of Body – Gun Fwd

6m - 9m

Width

3.27m

Height

2.65m

Base

3.84m

Wheel Base

1.6m / 1.6m

Rut

2.64m

Clearance

0.45m

Maximum Speed

105km/h

Fuel Capacity

545 litre

Operational Range

789km

Obstacle



Ascent

31⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine

Model Yamz-65010 or Yamz536-1

Cylinders

L6

Fuel

Diesel

Horsepower

412hp (303kW)

Suspension

Torsion Bar

Wheels

6x6

Tyres

16,00-20 or  1300×530-533



Armouring



Hull Front top

97mm/60 ⁰

Hull Front bottom

97mm/55⁰

Side Hull top

60mm/60⁰

Side Hull bottom

80mm/0⁰

Rear Hull top

30mm/60⁰

Rear Hull Middle

45mm/17⁰

Bottom Hull

20mm

Roof Hull

15-30mm

Front Turret

203mm/0⁰



70mm/62⁰

Side Turret

150mm/0⁰



115mm/45⁰

Rear Turret

60mm/0⁰



45mm/45⁰

Roof Turret

20mm

Armaments



Main Gun

105mm Type 83-1                               44 projectiles

Coaxial MG

7,62x54R Type 59T/ SGMT / PKT / M86          3500rds

or 7.62x51mm M86                                         3500rds

Anti Aircraft MG



or

Anti Aircraft MG

or

Anti Aircraft cannon

or

Anti Aircraft cannon

12.7x108mm Type 54/ DshKM/NSVT/M87     200-300rds

or 12.7x99mm M87                                              200-300rds



14.5x114mm KPVT                                                    200rds



 20x110mm M55                                                200 projectiles



23x115mm HR-23/GSh-23                             200 projectiles

Fire control system

DNNS

Stabilisation system



Fire extinguishing system





Khazar on base Type 62


Specifications



Weight

19 tons

Crew

4

Length of Body – Gun Fwd

5.5m – 7.9m

Width

2.86m

Height

2.5m

Base

3.53m

Wheel Base

1.6m / 1.6m

Rut

2.5m

Clearance

0.45m

Maximum Speed

105km/h

Fuel Capacity

430 litre

Operational Range

880km

Obstacle



Ascent

31⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine

Model Yamz-650210 or Yamz-536

Cylinders

L6

Fuel

Diesel

Horsepower

311hp (230kW)

Suspension

Torsion Bar

Wheels

6x6

Tyres

14,00-20 or  1100×400-533



Armouring



Hull Front top

25mm/60 ⁰

Hull Front bottom

25mm/48⁰

Side Hull bottom

25mm/0⁰

Rear Hull top

16mm/0⁰

Rear Hull Middle

16mm/0⁰

Bottom Hull

12.5mm

Roof Hull

16-20mm

Front Turret

50mm/0⁰



40mm/86⁰

Side Turret

40mm/0⁰



32mm/50⁰

Rear Turret

40mm/0⁰



32mm/50⁰

Roof Turret

20mm/79⁰

Armaments



Main Gun

85mm Type 62-85TS                               47 projectiles

Coaxial MG

7,62x54R Type 59T/ SGMT / PKT / M86          3500rds

or 7.62x51mm M86                                         3500rds

Anti Aircraft MG



or

Anti Aircraft MG

or

Anti Aircraft cannon

or

Anti Aircraft cannon

12.7x108mm Type 54/ DshKM/NSVT/M87     200-300rds

or 12.7x99mm M87                                              200-300rds



14.5x114mm KPVT                                                   200rds



 20x110mm M55                                         200 projectiles



23x115mm HR-23/GSh-23                       200 projectiles

Fire control system

DNNS

Stabilisation system



Fire extinguishing system








WHEELED TANK CORSAIR

On base tank AMX-30



Corsair on base AMX-30

Specifications



Weight

25 tons

Crew

4

Length of Body – Gun Fwd

6.2m 9.48m

Width

3.1m

Height

2.7m

Base

3.84m

Wheel Base

1.6m / 1.6m

Rut

2.64m

Clearance

0.45m

Maximum Speed

105km/h

Fuel Capacity

580 litre

Operational Range

800km

Obstacle



Ascent

31⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine

Model Yamz-65010 or Yamz536-1

Cylinders

L6

Fuel

Diesel

Horsepower

412hp (303kW)

Suspension

Torsion Bar

Wheels

6x6

Tyres

16,00-20 or  1300×530-533



Armouring



Hull Front top

80mm/68 ⁰

Hull Front middle

80mm/45⁰

Hull Front bottom

30mm/75⁰

Side Hull top

30mm/75⁰

Side Hull bottom

35mm/35⁰

Rear Hull top

30mm/10⁰

Rear Hull middle

30mm/0⁰

Rear Hull botton

25mm/75⁰

Bottom Hull

15mm

Roof Hull

15mm

Mask cannon

150mm

Front Turret

80mm/73⁰

Side Turret

35mm/40⁰

Rear Turret

30mm/45⁰

Roof Turret

20mm

Armaments



Main Gun

105mm CN-105-F1                         47 projectiles

Coaxial cannon



Coaxial MG

20mm M693                                   480 projectiles

or

7,62x54R SGMT / PKT / M86          3500rds

or 7.62x51mm M86                        3500rds

Anti Aircraft MG



or

Anti Aircraft MG



or

Anti Aircraft MG

or

Anti Aircraft cannon

or

Anti Aircraft cannon

7,62x54R SGMT / PKT / M86          2000rds

or 7.62x51mm M86                           3500rds



12.7x108mm DshKM/NSVT/M87          200-300rds

or 12.7x99mm M87                                   200-300rds



14.5x114mm KPVT                                         200rds



 20x110mm M55                                  200 projectiles



23x115mm HR-23/GSh-23                200 projectiles

Fire control system

M270, M271, M207

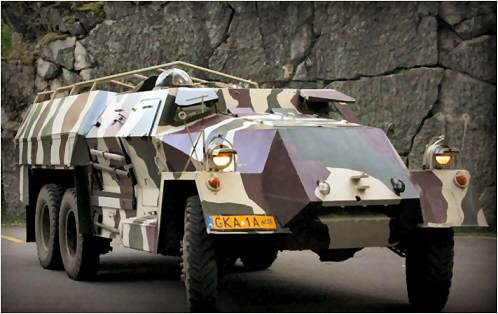

APC Chetnik

On base M53/59 Praha V3S







Specifications



Weight

10 tons

Crew

2 (10)

Length of Body

6.97m

Width

2.35m

Height

2.6m

Maximum Speed

60km/h

Operational Range

500km

Obstacle



Engine

Tatra T 912-2

Cylinders

R6

Fuel

Diesel

Horsepower

110hp (82kW)

Wheels

6x6

Obstacle



Ascent

60%

Wall

0.46m

Trench

0.69m








WHEELED APC LEGIONARY

On base IFV AMX-10P, IFV M80

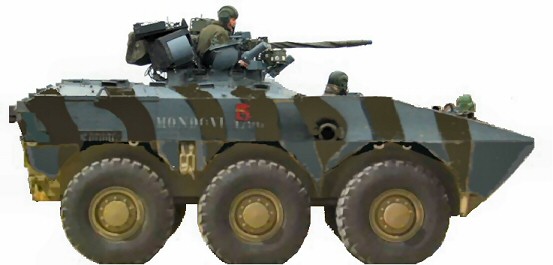

Legionary on base AMX-10P



Specifications



Weight

12.5 tons

Crew

3 (8)

Length

5.9m

Width

2.8m

Height

2.83m

Base

3.84m

Wheel Base

1.6m / 1.6m

Rut

2.64m

Clearance

0.4m

Maximum Speed

105km/h

Fuel Capacity

528 litre

Operational Range

1300km

Obstacle



Ascent

30⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine

Yamz-534

Cylinders

L4

Fuel

Diesel

Horsepower

190hp (140kW)

Suspension

Torsion Bar

Wheels

6x6

Tyres

13,00-18 or  14,00-20 or  1100×400-533




Armaments



Main Gun

20mm M693                               325+425 projectiles

Coaxial MG

7,62x54R SGMT/ PKT / M86          2000rds

Missiles

2xMilan                                           10 missiles

Fire control system

M371, OB40 or М406/ОВ37

Stabilisation system



Fire extinguishing system

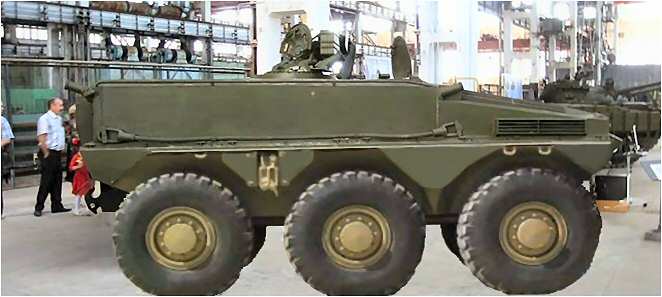

Legionary on base M80





Specifications



Weight

12 tons

Crew

3 (7)

Length

6.42m

Width

3m

Height

2.5m

Base

3.84m

Wheel Base

1.6m / 1.6m

Rut

2.64m

Clearance

0.4m

Maximum Speed

105km/h

Fuel Capacity

528 litre

Operational Range

1300km

Obstacle



Ascent

30⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine



Engine

Yamz-534

Cylinders

L4

Fuel

Diesel

Horsepower

190hp (140kW)

Suspension

Torsion Bar

Tyres

13,00-18 or  14,00-20 or  1100×400-533



Armouring



Hull Front top

30mm

Side Hull bottom

20mm

Armaments



Main Gun

20mm M55                               400 projectiles

Coaxial MG

7,62x54R SGMT/ PKT / M86          2250rds

Missiles

2x9M14M Malytka                           4 missiles

Fire control system

M371, OB40 or М406/ОВ37

Stabilisation system



Fire extinguishing system








WHEELED MULTI-ROLE ARMORED VEHICLES COSSACK

On base tank T-54, T-55, Type 59, Type 69, Type 79, On base armored vehicles BTS-2, BTS-4, BREM-3, MTU, MTU-20, MTU-55, T-54T, IMR-1, VIU-55, IWT, VT-55A, T-55BZ, Type 652, Type 84, Type 64, Type 653

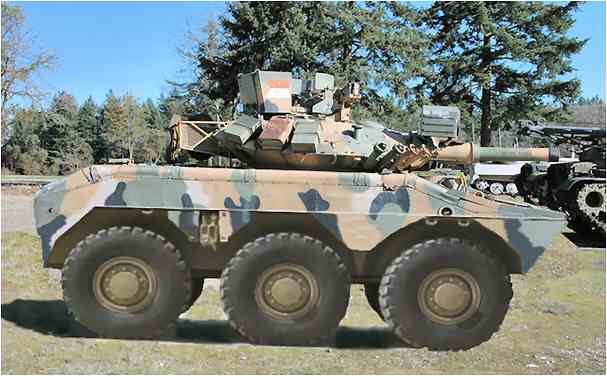

MRAV Cossack on base T-55



Specifications



Weight

17.7 tons

Crew

3 (8)

Length of Body – Gun Fwd

6m

Width

3.27m

Height

2m

height the fighting compartment

1.35m

Base

3.84m

Wheel Base

1.6m / 1.6m

Rut

2.64m

Clearance

0.45m

Maximum Speed

105km/h

Fuel Capacity

680 litre

Operational Range

1000km

Obstacle



Ascent

31⁰

Wall

0.8m

Trench

1.5m

Ford

1.6m

Engine

Model Yamz-65010 or Yamz536-1

Cylinders

L6

Fuel

Diesel

Horsepower

412hp (303kW)

Suspension

Torsion Bar

Wheels

6x6

Tyres

16,00-20 or  1300×530-533




Armouring



 Front top

100+80+40+30mm

Hull top

80mm

Rear Hull Middle

40mm

Bottom Hull

20mm

Roof Hull

30mm

Armaments



Main Gun

30x210B Zastava M89                      430 projectiles

or

30x155mm NR-30                             430 projectilies

or

23x152mm 2A14 or 2A4                   500 projectilies

or

23x115mm HR-23/GSh-23                500 projectiles

or

20x110mm Zastava M55                  500 projectiles

or

12.7x108mm DshKM/NSVT/M87         600 rds

or

14.5x114mm KPVT                                500 rds

Coaxial MG

7,62x54R SGMT / PKT / M86          3500rds

Fire control system

DNNS

Stabilisation system



Fire extinguishing system







Specification and photos are not contractual and are subject to verification upon inspection













TAKE NOTICE!



PLEASE BE ADVISED THAT INFORMATION INCLUDED IS CONFIDENTIAL IN NATURE AND IS BASED ON PRE-EXISTING BUSINESS RELATIONSHIP WITH THE LEGAL OWNER OF PROPERTY DESCRIBED HEREIN (IF APPLICABLE). AS SUCH, UPON RECEIPT OF SAID INFORMATION THE RECEIVER ACKNOWLEDGES THAT ANY UNAUTHORIZED CONTACT WITH SAID LEGAL SELLER WILL BE CHARACTERIZED AS A BREACH OF CONFIDENTIALITY AND SAID AGREEMENT MAY BE ENFORCED UNDER EXISTING LAW OR IN EQUITY.



This paper was prepared by General Equipment Inc.
The paper represents an offer of a partner of General Equipment Inc.
All rights are reserved by and for General Equipment Inc.
All content and ideas of this paper are the property of General Equipment Inc.








***************IMPORTANT NOTE***************
This e-mail and any attachments may include technical data subject to the U.S. Arms Export Control Act (22 U.S.C.Sections 2751 and following) or the U.S. Export Administration Act of 1979 as amended (50 U.S.C. App. 2401 and following).  Technical data covered by these laws may not be exported or disclosed to non-U.S. persons without first obtaining an export license.  Violations may result in criminal, civil or administrative penalties.


Defense items are subject to final destination approval and granting of an export license issued by exporting country's authorities
