Rocket launcher	Rocket container

Rocket projectile

---

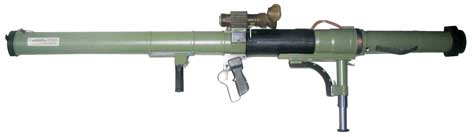

The RBR-90 mm M79 "OSA" is a light, effective anti-tank weapon made of fiber-reinforced plastics.

It can be successfully used against armored vehicles, fortifications, as well as live force.

It is intended for multiple usage.

It consists of rocket launcher and rocket container.



Technical Data:

Unit mass	11.2 kg
Launcher mass	6.2 kg
Container mass	1.5 kg
Rocket mass	3.5 kg
Length in combat position	1910 mm
Container length	735 mm
Rocket length	672 mm
Caliber	90 mm
Muzzle velocity	250 m/s
Range, max	1960 m
Penetration	400 mm
Firing speed	5 rockets/min



Dangerous class 1.1 F

 UN no. 0180





- The hand-held rocket launcher is used against all types of armour vehicles at distance of 350 m. as well as against infantry  and fortifications at distance of 600 m.



- This hand-held rocket launcher is very similar in its construction and operation with the French LRAC F1. The system  M-79 is consist of the hand-held rocket launcher, container with rocket, spare tool and accessories.



- The container with rocket is putting on the back of the launcher (as an extension of the launcher) before the launching.



- The aiming is by 4x optical or mechanical sight.



- The firing of the rocket is performed by the firing mechanism which functions as generator for the electrical energy necessary to fire the rocket engine.



- The rocket projectile is with hollow charge and detonating fuse which is safety activated at impact angle of 20⁰ and higher.



- The fuse is with built-in self-liquidator which is self-activated after 5-7 sec. and results in self-liquidation of the rocket.



- Temperature usage range from -30 ⁰C to +50 ⁰C.



- At clash with certain target, the rocket has piezogenerator which generates an electrical impulse necessary for activating of the fuse located at the lower part of the combat head.



- The impulse rocket engine is into operation mode while the rocket is into the launcher and the acceleration is up to 250 m/sec.



- Packing:

          - Hand-held rocket launcher: 4 pcs in wooden box



          - Rocket container with rocket:

1 Rocket in 1 container,

3 containers  in wooden case.

W / C dimension 800mm x 460mm x 220mm.

Case gross mass: 25,3kg.

Case volume: 0.07976m³
