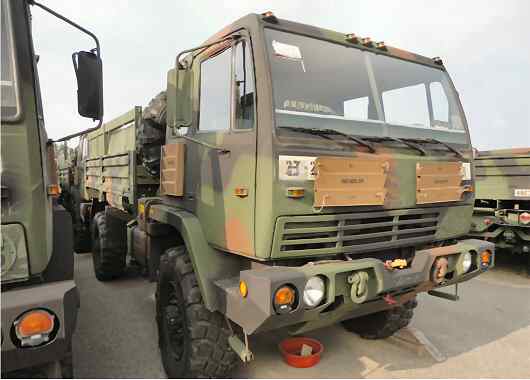

M1078 TRUCK





TYPE:

Truck

DESCRIPTION:

M1078 Truck

PRICE:

Upon Request

PACKING:

Ex Depot






m1078 truck



Subject unsold or market withdrawal





No other tactical truck in its class can match its standard features:

  • Full-time all-wheel drive
  • Soldier-smart CTIS (Central Tire Inflation System)
  • Fully automatic transmission
  • Integral transfer case
  • Anti-sway bar
  • High horsepower-to-weight ratio
  • Fully MANPRINT compliant
  • Nonwooden troop seats
  • HAEMP hardened

Basic Vehicle Information

Vehicle Model M1078
NSN 2320-01-354-3385
Drive 4 x 4 (full-time) with locking interaxle differential
Engine Diesel, EPA compliant, 225 hp
Transmission Fully automatic
Axles Single reduction with outboard planetaries
Cab 3-Man, cab-over-engine

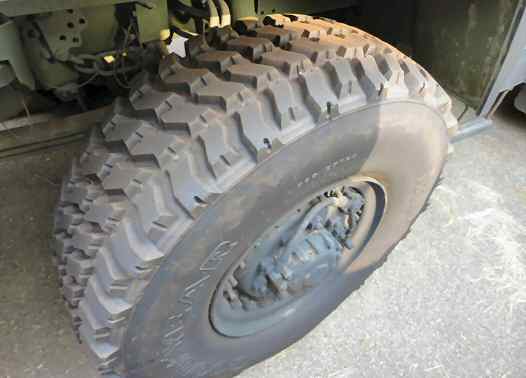

Tires Super singles with CTIS

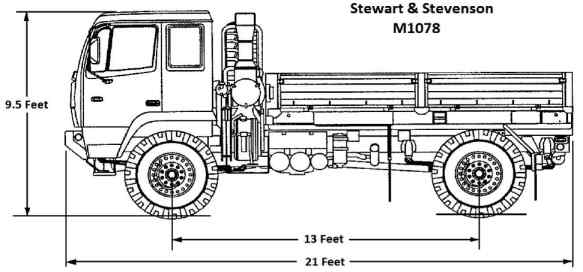

Dimensions

Length   253" (6,429 mm)
Height Operational
For Air Transport
112" (2,845 mm)
105.5" (2,680 mm)
Width   96" (2,438 mm)
Wheelbase   153.5" (3,900 mm)
Vehicle Curb Weight No Kits, Crew, Fuel 16,499 lb (7,484 kg)
Ground Clearance Loaded 22" (559 mm)
x

Performance Characteristics

Maximum Speed Governed, at Gross Weight 58 mph (94 km/h)
Range Minimum, at Gross Weight 400+ mi (645+ km)
Maximum Grade   60%
Approach Angle   40o
Departure Angle Standard 40o
Side Slope   30%
Fording Without KIT
With KIT
36" (914 mm)
60" (1,524 mm)
Payload   5,000 lb (2,268 kg)
Towed Load   10,362 lb (4,700 kg)
x

Equipment Specifications

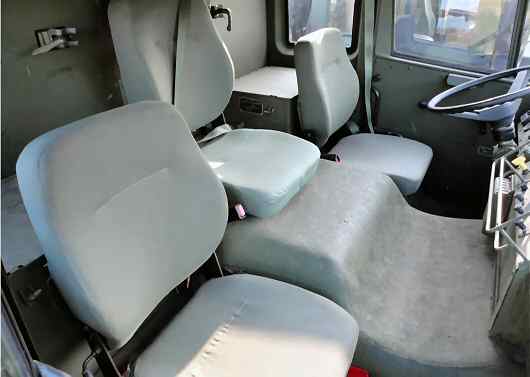

Cab Crew Seating 3-Man
Seat Design Fore/Aft adjustable
Steering Wheel Adjustable, tilt and telescopic
Steering Type Power assist
Storage (behind seats) 4 cu-ft each
Cab Suspension Air spring with integral dampers
Engine Caterpillar, Diesel, 6-Cylinder 6.6 L, turbocharged and aftercooled
Rating 225 hp (168 kW) @ 2600 rpm, EPA-certified
Governor Mechanical
Fuel Diesel, DF-2, JP-4, JP-8, V V-F-800
Oil 18 qt (17 L) (MIL-L-2104D, MIL-L-46167)
Cooling Water, radiator
Fan Engine-driven, clutch-type
Transmission Allison Fully automatic, electronically controlled
Speeds 7 speeds, automatic/select
Full-time All-wheel Drive Integral transfer case with locking interaxle differential
Normal Operation 30% torque front wheels, 70% torque rear wheels
Off-Road (locked diff.) Equal speed front-to-rear
Oil 31.8 qt (30 L) (MIL-L-2104D, MIL-L-46167)
Axles Rockwell Front, Rear
Carrier Single reduction, amboid gearing
Wheel Ends Bevel gear wheel end reduction
Wheel End Ratio 2:1
Overall Axle Gear Ratio 7.8:1
Front Axel Steering Angle 35o
Brakes Air-activated, internal expansion (wedge)
Alternator Engine-driven EMI/RFI suppressed, waterproof
Rating Standard 100 amp
Option 200 amp
Voltage 12/24 V
Tire Inflation System Eaton Electronic (cab-mounted) controls
- Highway   - Cross-country   - Sand/Mud/Snow
- Emergency

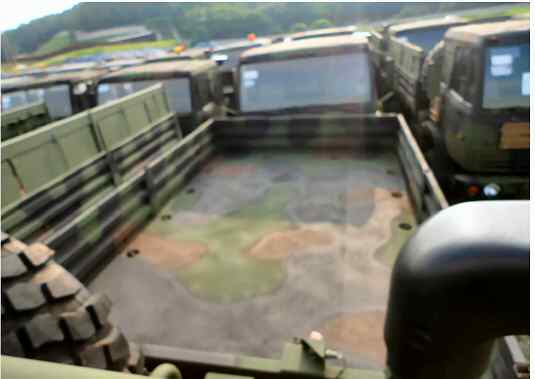

Cargo Bed Dimensions 144 x 95"          (3,658 x 2,413 mm)
Ladder Stowed, metallic
Construction All steel, E-coat rustproofing, dropside with side rail storage
Standard Options Troops seats, stowable nonwooden; bows and tarp kit
Material Handling
Equipment (optional)
Loading/Unloading Crane Loads/unloads cargo bed, electric operation, 1,500 lb (680 kg) lift at 4 ft (1.2 m)
Self-Recovery Winch Standard Option Fore/aft recovery positions; hydraulic operation;
308 ft (93.9 m) line capacity; 11,000 lb (4,990 kg) bare drum line pull; 110% overload



Specification and photos are not contractual and are subject to verification upon inspection
