LSTNS723





TYPE:

Landing Ship

DESCRIPTION:

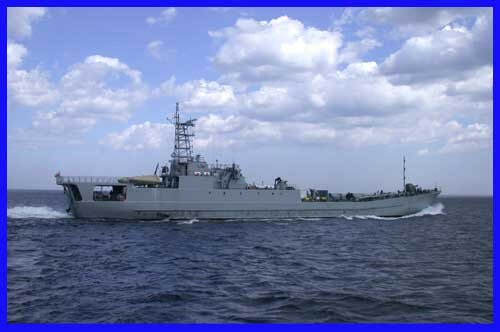

Landing Ship Tank NS-723

PRICE:

Upon Request

PACKING:

Ex-Shipyard




landing ship tank ns-723









SHIP CLASS

Landing Ship Tank (Medium) - LST(M).


SHIP TYPE

Twin screw single deck ship with covered Main Battle Tank space, bow doors, ramp for handling combat vehicles, equipped with stern ground tackle for pulling her off the beach and the arrangements for combat equipment handling and transporting/stowing, securing, loading and unloading

Helicopter landing platform is conveniently located aft of the superstructure to secure the operation and service of medium size helicopter


SHIP ROLE

Amphibious operations at sea
To support build-up of men and material after main landing
Cadet/midshipman training and disaster relief

SHIP FUNCTION

To beach/transport combat equipment and personnel to the amphibious area
To neutralise enemy forces on the beach head prior to the assault
To effect self defence against attacking aircraft and missiles as a part of composite force
To provide protection to the personnel against chemical attacks
To enable expeditious launch of the assault
To enable aerial evacuation of the casualties with the help of a medium size helicopter


MAIN CHARACTERISTICS

Length o.a:

88.70m

Length b.p:

79.00 m

Moulded breadth:

10.00 m

Moulded depth:

5.35m

Draught ( at full load ):

2.40 m

Displacement, full load:

abt. 1410 T

Maximum speed:

17.0 knots

Cruising speed:

12.0 knots

Propulsion:

2x 2100 kW

Diesel alternators:

4x 270 kW

Range at cruising speed:

abt. 4000 Nm

Crew:

49 men

Endurance:

up to 30 days


MILITARY LIFT

The ship is designed for transport in the covered tank space of various kinds of combat equipment such as: Main Battle Tanks (MBT), Amphibious Tanks, Armoured Personnel Carriers (APC), Armoured Landing Vehicles (AVL), self-propelled guns, guns and howitzers with tractors and trucks
For periods of 30 days the ship can carry 111 troops
The maximum lifting capacity is five MBT


ARMAMENT

The following armament is fitted as required by the ship mission

Active armament:

Two 2-barrelled 23mm automatic gun mountings installed on the forward superstructure deck
Two 20- barrelled 122 mm rocket launchers WM-122/20 type
Two 12.7 mm machine guns with protective shields will be mounted at the aft part of the superstructure

Fire control equipment:

sight control.


 HELICOPTER

One medium size 4.5 tons helicopter may operate from the helo platform aft













Specification and photos are not contractual and are subject to verification upon inspection
