LMA 1500 POWER UNIT





TYPE:

Power Unit

DESCRIPTION:

LMA 1500 Power Unit Turbine 10 MW

PRICE:

Upon Request

PACKING:

Ex-Works

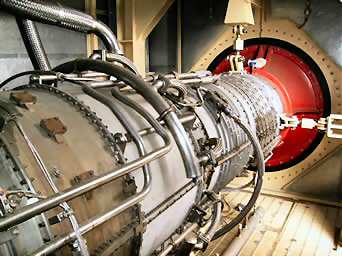

LMA 1500 Power unit turbine 10 mw












10 MW  LMA1500  60 Hz Type GE's J79-15





Cycle: Simple
Fuel: Natural Gas or Diesel #2
Power Output: 10 MW
Efficiency (LHV): 28%
Starting System: Hydraulic Start
Shaft Horsepower, max: 15000
Stages-Gas Generator: 17 Stage Compressor - 3 Stage Turbine
Stages-Power: Turbine  Single Stage
Fuel Flow, Max-Natural Gas: 7304 PPH
Fuel Flow, Max-Diesel #2: 7430 PPH
Heat Input: 120 MMBTU/HR
Heat Rate: 12000 BTU/KW-HR
Fuel Pressure, Natural Gas: 275+/-5 PSIG
Fuel Pressure, Diesel #2: 625+/-25 PSIG
Lube Oil System: Separate integrated Lube Sys.

System Performance at ISO Conditions
Power Turbine Speed: 5500 RPM
Exhaust Flow: 160 PPH
Exhaust Temperature: 750F
Generator Output: 10MW

Generator
Type: "SAB" Horizontal Brushless  Air Cooled
Manufacturer: Ideal or Equivalent
Rated: 12500 KVA, 10000 KW, 0.8 PF, 1800 RPM
Electrical Features: 13.8 KV, 60Hz, 3 Ph, 6 Lead, Wye Connection
Efficiency at 0.8 PF: 97,0%
Excitation: Field Suitable Brushless Exciter-Regulator
Lube Oil System: Separate Integrated Lube Sys.









LMA 1500 PERFORMANCE DATA SHEET





SYSTEM PERFORMANCE AT ISO CONDITIONS
Exhaust Flow, lbs/sec: 130
Power Turbine Exhaust Temperature, oF: 795
Generator Output, MWe: 9.5
Heat Rate, BTU (LHV) kW.hr: 13,000

FUEL REQUIREMENTS
Natural Gas: 275 psi pressure, ISO flow 3.25 MMSCFD
#2 Diesel: 650 psi pressure, ISO flow 17 GPM

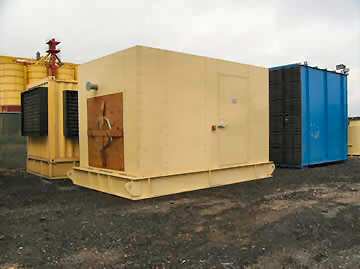

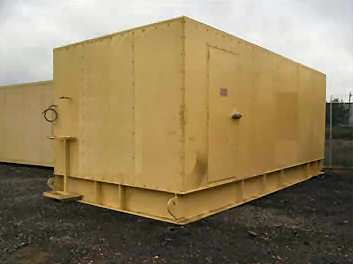

TURBINE & GEARBOX / GENERATOR SKIDS
Turbine Skid: Pre-assembled & per-wired, incl. gas & fire detection / suppression
Generator/gearbox skid: Pre-assembled & per-wired, incl. fire detection / suppression

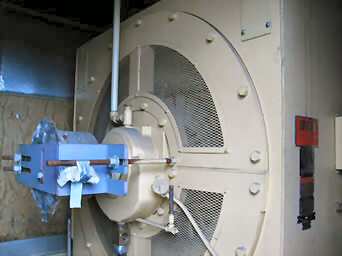

GENERATOR
Manufacturer: Ideal Electric or equiv
Type: Horizontal, air cooled
Rated: 12500 kVa, 60 Hz, 1800 Rpm, 12470V-13800V
Efficiency: 0.8 PF, 97.3%
Output Power: 10 MW (Peaks to 11.5 MW minus losses)
Excitation: Brushless Exciter-Regulator
Lube Oil System: Separate Integrated Lube System

COUPLING
Manufacturer: Kop-Flex or equiv
Type: Dry Flexible Load Coupling

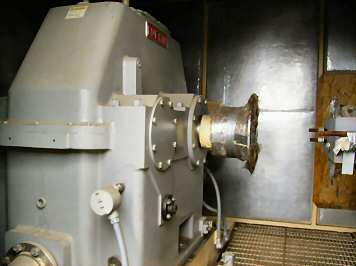

GEAR BOX
Manufacturer: Lufkin Gears or equiv
Type: Reducing Double Helical
Input Speed: 550 Rpm (Power Turbine Speed)
Output Speed: 1800 Rpm
Lube Oil System: Separate Integrated Lube System

CONTROLS
Type: Micronet (GE Global / Woodward)
Integrater: GE Global or equiv

INLET SYSTEM
Manufacturer: Universal or equiv
Filter Type: Passive
Inlet Filter: Provided
Silencer: Provided
Inlet Plenum: Provided

EXHAUST SYSTEM
Manufacturer: Universal Silencer or equiv
Silencer: Provided
Exhaust: Provided

LUBE OIL & ENGINE STARTER SKID
Manufacturer: Instrumentation Specialties Inc
Synthetic Turbine Oil System: L.O. Pumps, Filtration & Cooling System Provided
Gearbox & Generator System: L.O. Pumps, Filtration & Cooling System Provided
Engine Hydraulic Oil Starter: Hydraulic Oil Pump and Starter Control System Provided

INLET FOGGER
Manufacturer: AMCO or equiv
Inlet Fogger: Optional
Max Water Consumption: 9.5 GPM

EMISSIONS Nat Gas @ ISO Cond. (Corrected to 15% O2)
With low NOx Combustor Cans
NOx dppmv: 26
CO dppmv: 4

EMISSION CONTROLS
NOx -SCR: Optional
CO Oxidation Catalyst: Optional

EXHAUST HEAT RECOVERY
HRSG: Optional*
*Exhaust transition piece provided as standard if HRSG is required.







Specification and photos are not contractual and are subject to verification upon inspection
