KERAX380





TYPE:

Tractor + Trailer

DESCRIPTION:

Renault Kerax 380.35T 6x4 HD + Low Bed Trailer

PRICE:

Upon Request

PACKING:

Upon Request

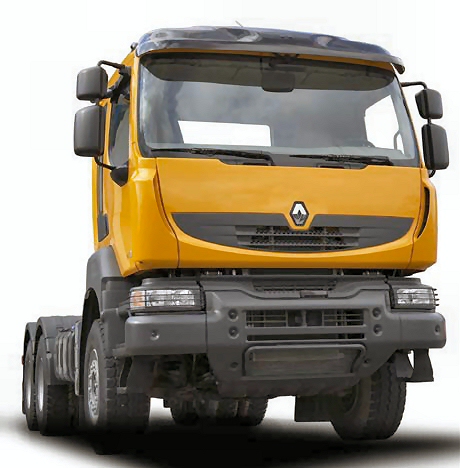

renault kerax 380.35T 6x4 HD & low bed trailer















PRODUCT DESCRIPTION

Vehicle............................................................................................................................................. KERAX 380.35 T 6X4 HD

Wheelbase.................................................................................................................................................... WHEELBASE 3,7

Rear Axle ratio......................................................................................................................................... R.A. RATIO 17 X 35

GVW............................................................................................................................................................................... GVW 34

GCW/GTW....................................................................................................................................................... GCW / GTW 85

Colour................................................................................................................................................ GLACIER WHITE * (M)

Tyres................................................................................................................................................... B.13 R 22,5 M 840/L 355





CHASSIS AND OPTIONS

Description

Chassis/Cab

PRE FILTER GO (ON CHASSIS) R120

XPERT VERSION

F/TANK 380L STEEL (D560)

5TH WHEEL FIXED 3.5"JOST, H=190

S/WHEEL CARRIER IN WBASE WITH JACK

ATMOS.DIRT FILTER

ADJUSTABLE STEERING COLUMN RVI

AIR CON FOR DUSTY CONDITIONS

SUN VISOR

2 REVOLVING LIGHTS (ORANGE)





EQUIPMENT

REINFORCED LOW BED SEMI TRAILER, as per attached specification and drawing ref M10577A00A

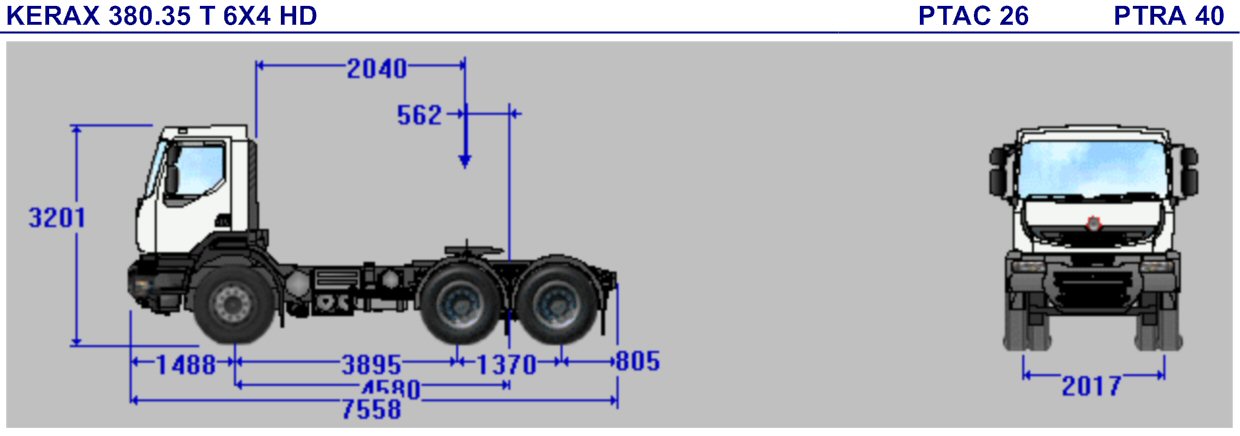

Personalised Specification Sheet

KERAX 380.35 T 6X4 HD

GVW 34

GCW / GTW 85







Engine speed at 90 km/h : -999 rpm

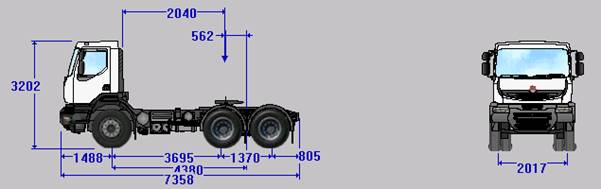

Weights and dimensions

GVW kg.....................................................................................................................................................................34000

Total Payload

kg................................................................................................................................................................................24160

Recommended Fifth Wheel Position (Y) mm................................................................................................................................................................................. 562

Max. Fifth Wheel Position (Y) mm................................................................................................................................................................................. 562

Min. Fifth Wheel Position (Y) mm................................................................................................................................................................................. 112

Chassis Cab Weight kg................................................................................................................................................................................. 9840

Front Load Distribution kg..................................................................................................................................................................................4830

Rear Load Distribution kg..................................................................................................................................................................................5010

Front Axle Max. Limit kg................................................................................................................................................................................. 8000

Rear Axle Max. Limit kg................................................................................................................................................................................26800

Wheelbase (F) mm....................................................................................................................................................3695

Technical Wheelbase (F') mm............................................................................................................................................................................... 4380

Wall-to-Wall Turning Radius (D) mm............................................................................................................................................................................... 2040

Chassis Cab Rear Overhang (N) mm................................................................................................................................................................................. 805

Chassis Cab Overall Length mm............................................................................................................................................................................... 7358

Chassis Height unladen (H2)mm................................................................................................................................................................................1174

Chassis Height laden (H2) mm............................................................................................................................................................................... 1120

Cab/Ground Height unladen (O) mm............................................................................................................................................................................... 3202

Front Overhang (Hmm............................................................................................................................................................................1488

Rear Axle Spacing mm................................................................................................................................................................................1370

Cab Width across WIngs mm............................................................................................................................................................................... 2500

Front Track (V1) mm.................................................................................................................................................2017

Rear Track mm.......................................................................................................................................................... 1872

Width across Rear Wheels mm.................................................................................................................................................................................2530

Front Ground Clearance mm...................................................................................................................................................................................384

Rear Ground Clearance mm...................................................................................................................................................................................340

Frame Width at Front mm..................................................................................................................................................................................108

Frame Width at Rear mm..................................................................................................................................................................................850

Overall Turning Radius mm................................................................................................................................................................................9720







This table includes the weights of selected RENAULT TRUCKS options



The dimensions remain those of the base vehicle





SPECIFICATION SHEET  KERAX 380.35 T 6X4 HD





ENGINE    DXi11

Power : 279 kW (379 hp) from 1800 to 1900 rpm.

Torque : 1800 Nm from 1000 to 1400 rpm.

6-cylinder in-line diesel engine, turbocharged with INTERCOOLER and wastegate (for 410 / 450 hp).

High-pressure electronic fuel-injection (2000 bars) by unit injector pumps. 24-valve, overhead camshaft, monobloc cylinder head, timing gear mounted in the rear.

Bore 123 mm - stroke 152 mm - capacity 10.8 litres.

Engine oil capacity: 36 litres.

Steel oil sump.

High-capacity throw-away oil filter.

Cooling system capacity: 33.5 litres (51 litres with hydraulic retarder).

Piloted starting.

Electronically piloted fan.

Direction of rotation (seen from G/B end): anti-clockwise.

EEC EURO 3 exhaust emissions level.

Coolant anti-freeze protection: - 25°C.



ENGINE EQUIPMENT

Exhaust brake



CLUTCH

Clutch 430 GD 900 (430MFZ on Optidriver)

Single-plate. Air-assisted hydraulic actuation.

Automatic clearance adjustment.



GEARBOX

ZF 16 S 1820 TO

16 synchronised forward gears and 2 reverse gears (13.80-0.84).

Aluminium casing.

Pneumatic range splitter with preselection switch on the lever.

Super H grid control.

SERVOSHIFT assisted gear changing.

Cable-operated control.

Economic driving assistance with DMS (Driving Monitoring System).

Gearbox cooler (By oil).



RETARDER

Exhaust brake retarder (135 Kw at 2100 rpm) with constant solenoid valve control (between 2 and 7.5 bars).



POWER TAKE-OFF

Without gearbox-mounted PTO.



REAR DRIVE AXLE

Bogie PMR 3395 - Double reduction, ratio (2,26)

Bevel gear final drive 17 x 35

Differential blocking system manage by EBS.



STEERING

Hydraulic power assistance.

Integral hydraulic power assistance (1 independant circuit and 1 pump).



AXLE

Load capacity: Front axle: 8 t..



WHEELS AND TYRES

B. 13 R 22.5 M840/L355.

Disc wheels 22.5 x 9.00 - 10 - 162 M22.

Steel roadwheels.

Spare wheel, tyre and carrier in wheelbase.



BRAKING SYSTEM

Main brake :

Electropneumatic braking system with two independent circuits,

Drum brakes.

Braking capacity > 70tonnes

Electronic APM (Air Product Management):cartridge air dryer, optimised by preventive maintenance.compressor disabled during engine starts.

Semi-trailer Brake

Electrical / air flexible pipes (ISO coupling heads).

Connector 15-pin, 2x7 pins.

Compressor:

Twin-cylinder 636 cm3 piloted by APM.Declutching.Max. output: 660 litres/min at 2000 rpm (compressor).Ratio: 1.31

Drum:

Diameter: 410 mm.Front width: 175 mm.Rear width: 200 mm.Brake lever 170 mm.Total linings area: 14 805 mm2.

Parking brake :

Air operated springs brake actuators on drive axle.

Emergency brake :

Provided by the independance of the two separate circuits.

Brake adjustment :

Automatic adjustment.



CAB

EXTERIOR :

All steel Cab, iron-zinc coated and cataphoretic paint treatment.

Day Cab

Front panel with honeycomb radiator grille.

Anti-spray deflectors.

Cab 4-point mechanical suspension.

Hydraulic cab tilt mechanism.

2 manually adjustable rearview mirrors.

Tinted, laminated windscreen and tinted windows.

Air intake ducting on left side of roof.

Access to driving position by 3 lit steps. Flexible 1st step made from composite material.

Unskidable windscreen access step.

Rear window.

Sun-shade.

Two orange-coloured warning lights.

INTERIOR :

Normal roof equipped with storage ledge.

Storage box 50 L

Cab soundproofing.

Grab handles.

Adjustable driver's seat with seat belt and head rest

Adjustable passenger 's seat with seat belt.

Head Restraint

Storage compartments in both doors.

Soft Door Trim

Cab lighting timer function.

Boot socket on gear lever console.

Integratede air conditioner with manual regulation

Pre-equipment radio including wiring, antena and speakers

Onboard Driving & Servicing handbook in Export English.



INSTRUMENT PANEL :

Electronic dashboard with :

- numeric display for speed & rpm.

- external temperature & time display.

- analogic oil level, water temperature & air pressure display.

- warning light.

- numeric display for secondary driving information.

- anti -reflection screen

Information display lighting intensity and sound level adjustment.Lights not switched on alert.

Steering wheel with central writing pad, pneumatic height and rake adjustment control.

Drinking cup location or removable ashtray.

Cigar-lighter

Instrument panel bleed control.

DIAG socket.

Access hatch to fuses and bodybuilder module box (BBM).



STEERING-MOUNTED EQUIPMENT:

Steering lock.

Retarder or engine brake control (if equipped).

Two speed windscreen wipers with incorporated washers and intermittent wipe.

Headlight control.

Adjustable steering column.



ELECTRICAL EQUIPMENT

Battery capacity: 170 Ah

Alternator 110 A.

24V voltage supplied by two batteries.Master switch and fuse box in battery tray.

Lighting to EEC standards.

Electrical headlights beam adjuster.

Round tail lights.

Working spotlamp (70 W).



CHASSIS

Very bad road condition usage - off road

XPERT Version heavy duty conditions adapted, electronic box.

Reminder :

- Dashboard "eco" without non vital failure

- Inter axle differential blocking inter wheel in rear speed position

- Protection for APM, mulit "T", clutch, inter wheel, inter axle locking.

- Inter axle reinforced transmission

- oil level indicator on front side

Chassis width:Front: 1080Rear: 850Sidemembers module: 300 x 90 x 8.Sidemember lining: 5 mm.Necking of chassis under cab.

Normal rear overhang, Pre drilled for Body Builder.

3-piece steel shield integrating retractable windscreen access step, front grille, radiator protection shoe and towing yoke.

Windscreen additional Foot-Board

Detachable front towing yoke (25 tonnes) with unlocking by 1/4 turn lock.

Chassis rear cross-member.

5th wheel H = 90 mm specific for tandem

Fifth wheel JOST JSK 36 C1 2" H = 190 mm.

5th wheel   Y = 312mm

Rear platrform.



SUSPENSION

Front :

Maintenance-free front parabolic 2-leaf springs (8 tonnes).

Front anti-roll bar.

Rear :

Semi-elliptic leaf springs.

Rear suspension capacity 32T for very bad road conditions

Rigid 8x4 : 11 elliptic leaves

Rigid and tractor 6x4/6x6 : 9 elliptic leaves

Off road usage : rear suspension capacity increased to 38T in 4 parabolic leaves suspensions

Rear anti-roll bar.

Telescopic shock absorbers on middle and rear drive axles.



FUEL TANK

Main steel tank: 380 litres capacity. (307 kg of diesel)

D- shaped 560.

Locking fuel filler cap.

Without fuel heater.



STANDARD EQUIPMENT

Side exhaust.

Dusty surroundings air filtration.

Onboard kit.

. Hydraulic jack - Tool kit.

Air valve on chassis.

Advance warning triangle.

Headlamp protective grille.



BODYWORK

Pre-arrangement for bodybuilder interface.

T multiple for Bodybuilder



Note:  No representation given.

Specifications subject to discontinuance, change and improvement.

Dimensions, characteristics and data are for guidance only.

We recommend that vehicles be measured and weighed before any body-building work occurs.

No contract or binding undertaking is engaged by this document.

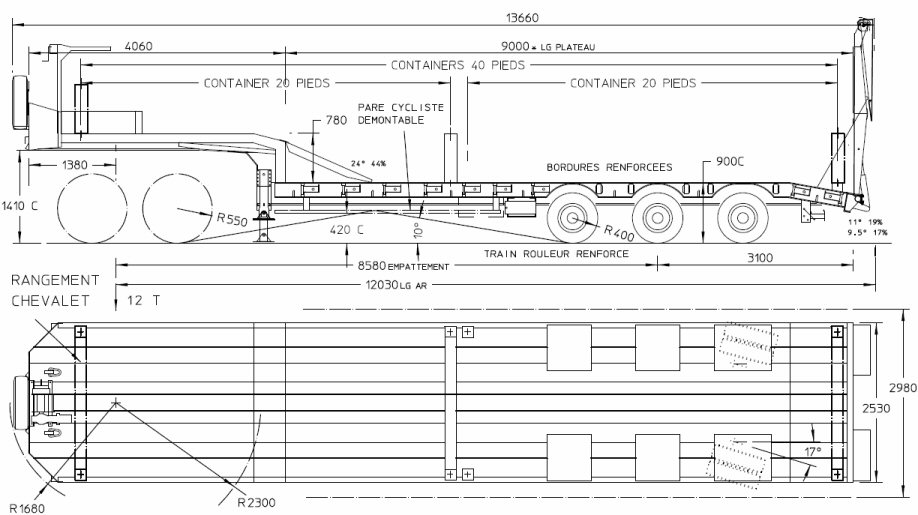

LOW BED TRAILER SPECIFICATIONS

















The values given are in tonnes for information



TYPE/MODEL  OFF ROAD



PTC CODE / CU CODE                                                             34.0 T  /   21,8  T

PTC EXCLUDING CODE / CU EXCLUDING CODE           39.0 T  /   28,8  T



REINFORCED FLAT BED

LOW-SLUNG LENGTH 9009 WIDTH 2530

REINFORCED SIDE RAILS

HARDWOOD DECK EP 80 mm

REINFORCED SIDE PANELS



FOREDECK

SWAN NECK LG 49W

FITTED OUT WITH TAIL GATES 2 SECURING RINGS. SIDE BOARDS 1150 mm

2 GOOSE NECKS ACCESS RAMPS AND ACCESS RAMP HOUSING



EQUIPMENT

LANDING GEAR. AND SEMI-AUTOMATIC REAR STABILISERS

6 kg FIRE EXTINGUISHER ON STAND

SIDE TIE DOWN QUARTER

FOLDING STRETCHERS INCREASING THE WIDTH TO  3M

MUD FLAPS BEHIND THE REAR WHEELS

4 SIGNS ON FRONT AND REAR WIDTH

"ABNORMAL LOAD" SIGN IN FABRIC

12 T HYDRAULIC WINCH WITH CABLE 020 LG 25M

MOTOR DRIVE PUMP FOR HYDRAULIC WINCH

TRUCK KIT INCLUDING 1 TOOL KIT‑1 JACK‑1

WHEEL BRACE‑2 WHEEL CHOCKS

PVC TOOL BOX L72OXH2MP450

SUPPORT Or BATTENS

HARD WOOD BATTENS DIM 2450X0215X60

TWIST‑LOCK NB 8 FOR CONTAINER 20 ON SWAN NECK AND ON FLAT BED

FIXED, TWIST-LOCK SUPPORT BENCH

2 MOBILE SUPPORTS FOR REAR TWIST LOCK

SPARE WHEEL BEAM



LOADING

BY HYDRAULIC RAMPS MANUAL PUMP,

FOLDED SHEET METAL 4200 X 800, SYNCHRONISED MECHANICAL OPERATION COVERED IN HARD WOOD

NUT AND BOLT SLIDERS +/‑ 30Ô mm



SUSPENSION

PNEUMATIC WITH RAISING AND LOWERING SYSTEM CENTRE TO CENTRE DISTANCE 1350 TYPE REINFORCED 16 INCHES 13 T



3 AXLES

HEAVY DUTY 12 7 SOLID MAINTENANCE FREE BEARINGS

WITH THE LAST SELF-STEERING AXLE TURNING CIRCLE OF 17'

APPROXIMATELY AND INDEPENDENT CONTROL BUTTON IN TRACTOR CAB



ASBESTOS FREE BRAKING

WITH 2 LINE IN ACCORDANCE WITH THE EUROPEAN STANDARD

PARKING BRAKE WITH MANUAL SPRING BRAKE ACTUATOR

SELF-ADJUSTING LEVERS



WHEELS AND TYRES

TYRES 235/75R17.5 XTE2 DISK WHEELS 10 HOLES, SPARE WHEEL ON WHEEL CARRIER UNDER FLAT BED



ELECTRICAL EQUIPMENT

IN ACCORDANCE WITH THE HIGHWAY CODE. REVERSING LAMP, FOG LAMP,  SOCKETS 248,24N. 7638

REVERSING ALARM. 2 SOCKETS FOR DOME LIGHTS

PROTECTED LIGHTS

WORKING LIGHT NB 2 WITH FAST-ON CONNECTION

MAGNETIC DOME LIGHT



COUPLING

PIVOT 3.5

PAINTING AND FINISH

SAND BLASTING

PRIMER AND FINISH GAM SYSTEM REINFORCED TYPE

PAINTING 2 COLOURS

EXTERNAL COMPONENTS COLOUR_ WHITE

CHASSIS COLOUR BLACK

REGULATION AND INFORMATION PLATES



NOTE

DEAD WEIGHT ARTICULATED TRAILER WITH ALL FITTINGS  12.2 T

DEAD WEIGHT BASIC ARTICULATED TRAILER  WITHOUT SPECIFIED FITTINGS 7,7 T















Specification and photos are not contractual and are subject to verification upon inspection











TAKE NOTICE!



PLEASE BE ADVISED THAT INFORMATION INCLUDED IS CONFIDENTIAL IN NATURE AND IS BASED ON PRE-EXISTING BUSINESS RELATIONSHIP WITH THE LEGAL OWNER OF PROPERTY DESCRIBED HEREIN (IF APPLICABLE). AS SUCH, UPON RECEIPT OF SAID INFORMATION THE RECEIVER ACKNOWLEDGES THAT ANY UNAUTHORIZED CONTACT WITH SAID LEGAL SELLER WILL BE CHARACTERIZED AS A BREACH OF CONFIDENTIALITY AND SAID AGREEMENT MAY BE ENFORCED UNDER EXISTING LAW OR IN EQUITY.



This paper was prepared by General Equipment Corp.
The paper represents an offer of a partner of General Equipment Corp.
All rights are reserved by and for General Equipment Corp..
All content and ideas of this paper are the property of General Equipment Corp.
