JOYLONG AMBULANCE





TYPE:

Ambulance

DESCRIPTION:

Joylong Ambulance

PRICE:

Upon Request

PACKING:

Ex-Works

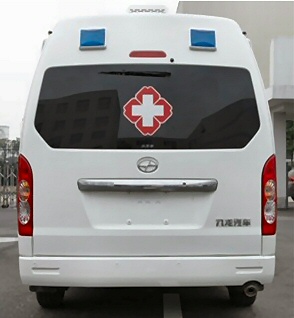

joylong ambulance



From new manufacture

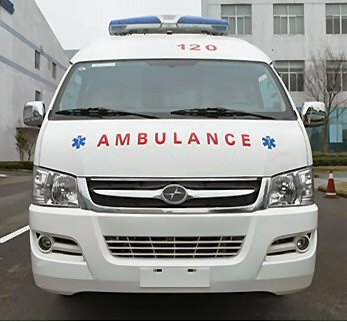

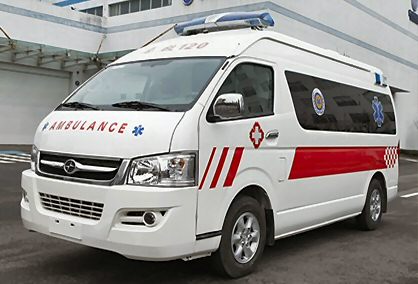

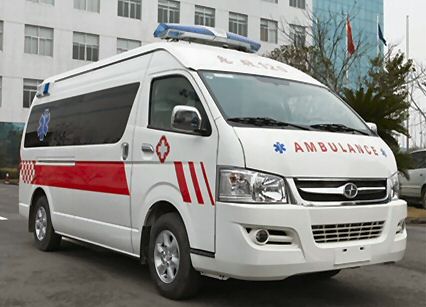

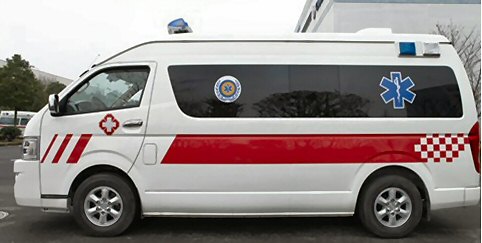

Joylong ambulance Vehicle specification



External dimensions (mm):

538018802440

Internal dimensions (mm):

346517281610

Wheelbase (mm):

3110

Minimum turning radius (m):

≤6.25

Fuel

gasoline

Emission Standard:

GB18352.3-2005 IV

Engine model:

4RB2, 4G69S4N

Engine output volume (cc):

24382378

Maximum Speed (km/h):

125

Maximum power (kw/rpm):

98/5000-6000

Maximum torque (Nm/rpm):

190/2200-2800

Fuel tank capacity (L)

70

Fuel consumption (per kilometer) :

≤11.3L

Front track (mm):

1655

Rear track (mm):

1650

Vehicle net weight (kg):

2500

Gross weight (kg):

3300

Clutch:

Single-plate, hydraulic pressure

Transmission:

Five shift MT

Tire

195R15C

Steering system:

power-assisted system

Brake (front/rear):

disc/drum (ABS+EBD), vacuum booster

Air conditioning system

Front and back independent air condition





Standard configuration

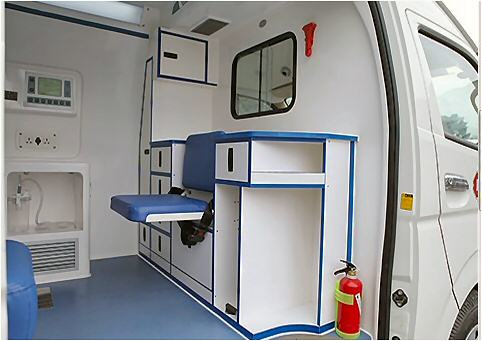

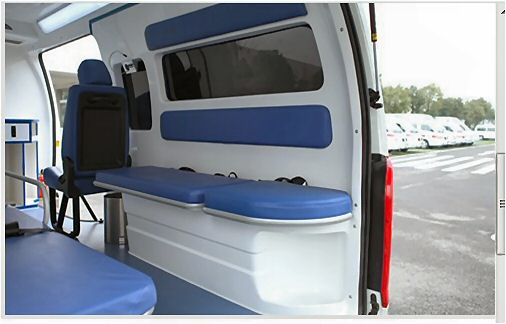

Guardianship rescue cabin:

Patient-oriented comprehensive structural design, Interior adopt imported composite molding process

Imported floor material:

Environmental Corrosion resistance and easy to clear and disinfect floor

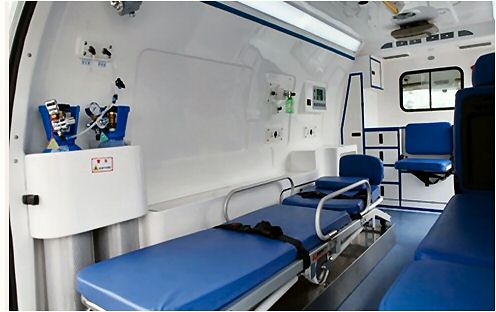

Stretcher system

Automatic stretcher, scoop stretcherstretcher platform (Buffer safety device), upstairs special soft stretcher.

Power supply system:

Consecutive power supply (12V, 220V )

Control model:

Integrated control circuit, membrane switches control, LCD

Alert system:

New type long light (100W alarm), LED square lights around

Ventilation system:

Upward ventilator

Aspirator system:

Hidden individual aspirator, microprocessor control voltage

Sterilization system:

Inserted ultraviolet sterilization lamp

Intercom system:

Front and rear intercom, one-way control

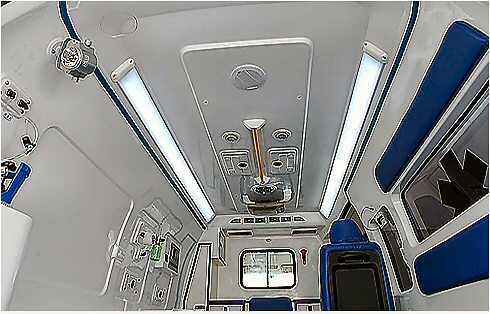

Lighting system:

Inner cabin special medical lamp, seamless design, exterior left and right lighting, rear LED spotlight.

Oxygen system:

2 bottles of oxygen 10L, hidden piping line

Water system:

15L water purification, integrated disinfection discharge of wastewater.

Transfusion bracket:

Hidden Transfusion structure

Fire extinguisher:

Equip in front and rear cabin

Operation lamp:

Medical cold light source, high-brightness lamp

Safe handrail:

Safe guarantee design

Others:

Anion air cleaner equipped





Optional parts



Water system

Defibrillator and pacemaker monitor

Resuscitation bag

Fracture fixture

Breathing machine series

Instrument of Pulse oximetry

First aid case

Heart pressing pump

GPS

Transfusion pump

Original imported alert system

Imported stretcher system

Imported aspirator







Specification and photos are not contractual and are subject to verification upon inspection
