IVECO AMBULANCE





TYPE:

Ambulance

DESCRIPTION:

Iveco Ambulance

PRICE:

Upon Request

PACKING:

Ex Works

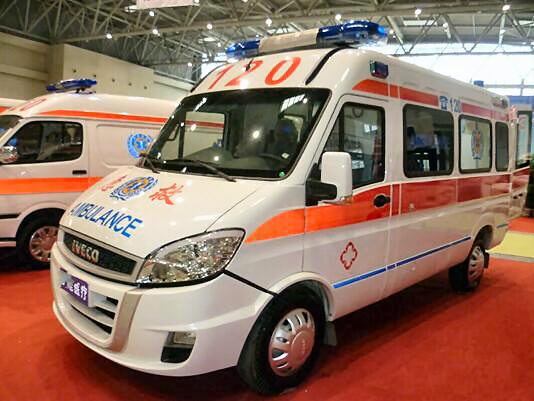

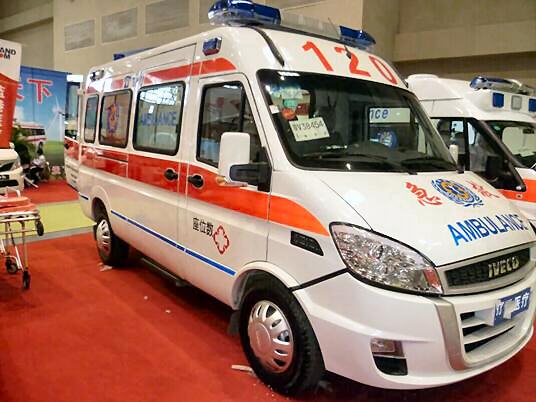

iveco ambulance



From New Manufacture





TECHNICAL SPECIFICATION



Loading port: Shanghai or Tianjin port of China



 (Diesel engine, Middle roof, ABS, Airbag for driver, GPS, Parking sensors, Cruise control system, Auto headlight, Auto A/C, Multifunction Steering Wheel )



A

Technical parameters





wheelbase (mm)3310





Overall dimensions (mm)5580×2000×2540 (not including alarm lamp height)





Complete vehicle curb mass:(kg)2690





GVW (kg)3850





EngineF1CE0481F*9





Fuel type: diesel





Fuel consumption12.4L





Working manner: in-line, 4 cylinders, water-cooled, direct Injection turbocharged inter-cooled diesel engine





Displacement (L)2.998





Emission standardGB17691-2005 CHINA ,GB3847-2005





Maximum power (kw)107





Clutch: single plate, dry type, diaphragm spring, pull type clutch, mechanical inhaul cable





Transmission: mechanical type, forward gear with synchronizer





Front overhang/ Rear overhang: 1000/1270(mm)





Front wheel tread/ Rear wheel tread: 1721/1692





Brake system: 4 wheels disc brake





Max. speed (Km/h)140





Steering system power-assisted steering





Tire215/75R16LT



B

Standard configuration of vehicle



1

Electric side mirror



2

Power window



3

radio (with CD)



4

Hand-free Intercom system between driver's cab and Patient's compartment



5

3 seats in driver's cab



6

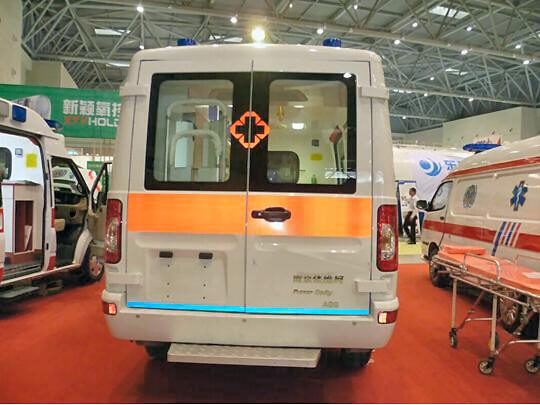

Double open rear door



7

Foot pedal in rear door



C

Air conditioner and lighting system



1

Vehicle-mounted air conditioner in driver's cab

1

2

Vehicle-mounted air conditioner in Patient's compartment

1

3

Ventilation fan mounted on the roof of Patient's compartment

1

4

1 illumination light s left and right side of vehicle outside

2

7

Illumination lights in Patient's compartment

4

8

Spotlight lights in the roof of Patient's compartment

1

9

Ultraviolet radiation disinfector light

1

D

Central power supply distribution system



1

Automatic charging system

1

2

10m mobile cable

1

3

12V outlets in Patient's compartment

3

4

220V outlets in Patient's compartment

3

5

230V/16A waterproof outside outlet with protection cover

1

6

12V DC power-supply system

1

7

Intelligent inverted power supply system12V -220V

1

8

Central control system

1

E

Emergency alarm system



1

Control plate of siren and alarm lamp mounted in driver's cab

1

2

Control plate of siren and alarm lamp mounted in driver's cab

1

3

100W loud speaker

1

4

Blue Flashing alarm light bar mounted on the front roof of vehicle

1

5

2 Blue Flashing alarm lights mounted on left and right side of vehicle

4

6

Round cylinder alarm lights on the rear roof of vehicle

2

F

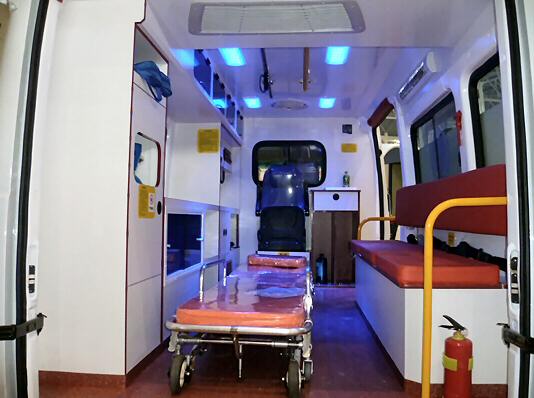

Patient's compartment



1

Compartment wall mounted between driver's cab and Patient's compartment , a glass window in wall to make observation



2

One foldable doctor’s seat mounted to floor near to compartment wall

1

3

Long bench one piece, mounted in right side of patient's compartment

1

4

Oxygen bottle (10L×2) ,mounted in left side of vehicle



5

Oxygen reducing valve

1

6

Instruments and medicine cabinet mounted to the the left side of patient's compartment



7

Wall, door, and vehicle roof adopts aluminum-plastic Composite materials



8

Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.



9

Raised edge of patient's compartment, dust-proof, anti-skidding, washable



10

Ventilation fan mounted in the interior roof of Patient's compartment

1

11

Illuminating lights mounted to the interior roof of patient's compartment

4

12

Foldable doctor work station mounted to rear side of partition wall.

1

13

Red color reflective strip in waist of body



14

Mobile Self-lifting stretcher mounted to patient's compartment

1

15

Adjustable shovel Stretcher mounted to the interior left side of rear door.



16

220V outside power supply

1



Standard configuration of IVECO Ambulance


1)     IVECO NJ6564DC1 Chassis: 1unit

2)     Anti-skidding floor in Patient's compartment: 1set

3)     Integrated interior decoration: 1set

4)     Partition wall: 1 set

5)     Illuminating Light in Patient's compartment: 1set

6)     Transfusion bracket 1set

7)     Medicine and instrument cabinet in Patient's compartment: 1set

1)     Long bench:1set

2)     Supply system of oxygen: 1set

3)     Inverted power supply: 1set

4)     External power supply: 1set

5)     Ultraviolet radiation disinfector light:1pc

6)     Outside identifying light: 1set

7)     Flash alarm light bar: 1set

8)     Ventilation system: 1set

9)     Doctor chair: 1set

10)   Self-lifting stretcher (Primary Stretcher): 1set

11)   Adjustable scoop stretcher (Secondary Stretcher): 1set

12)   Multifunctional operation panel: 1set

13)   Fire Extinguisher: 2pcs

14)   Crashworthy head restraint: 1set

15)   Garbage bin: 1pc

16)   Non-contact Interphone system: 1set

17)   Special cabinet for stupefacient: 1set







Specification and photos are not contractual and are subject to verification upon inspection
