IVECO Daily Van Type 35S 12VH, H2roof“

Description

1.)        IVECO, Daily VAN Type 35S 12VH, H2roof, diesel engine, 120HP Euro III Version, wheel drive 4x2, wheelbase 3.000mm, H2 roof, LHD-version

colour: white

Tyres: 4 x 225 / 65 R16

Gross vehicle weight (GVW): 3500 kg

 - Original front A/C

- Radio and loud speaker

- Windows in side and rear doors

- Window on driver side in rear compartment, opposite sliding window

- Wing doors at rear 180°

2.)        Conversion

The conversion meets the highest requirements of hygiene, safety and ergonomics.

 The design is characterized by:

- Complete smooth and antibacterial panelling with thermal insulation.

- Construction of impact resistant elements and furniture with rounded surfaces and edges prevent dirt forming.

- Non slip floor, optimum illumination, tested seats and lockable cupboards.

The conversion is easy to clean everywhere, needs low maintenance and is build for long term use.

Conversion

Driver's cabin

- Partition wall between driver's cabin and patient compartment with sliding window

- Preparation for radio equipment incl. spring base mounted on the roof cable for wireless radio, antenna and power supply

Electrical equipment

- 12 V central terminal box, behind driver’s seat

- 12 V sockets, 4 pcs.

- Interior LED lights integrated in the ceiling, 3 pcs. each side, total 6 pcs.

- Interior emergency lights integrated in 3 ceiling lights working over door contact

Battery charger

Second battery

Switch between batteries

Visible signaling equipment 1 pcs

- Scene light (working light) 2x at rear

- Indicator lights at rear corners

- Reflective red strips, and design as per customers indication (exact lettering to be advised)

Patient compartment - ceiling 1 pcs

- Insulation, cpl.

- Ceiling plastic panels (ABS)

Patient compartment – partition wall 1 pcs

- Insulation, cpl.

- Storage compartment with flap over driver’s cabin

- Handle grip

Patient compartment - sidewall left 1 pcs

- Insulation, cpl.

- Interior plastic panels (ABS)

Patient compartment - sidewall right 1 pcs

- Insulation, cpl.

- Interior plastic panels (ABS)

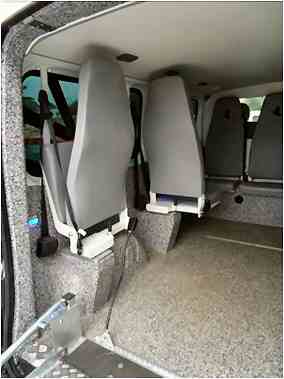

- Seat bench for 3 persons with adjustable backrest, mounted on perforated rail with quick release fastener

- Handle grip

Special equipment 1 pcs

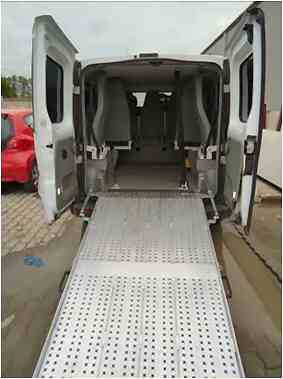

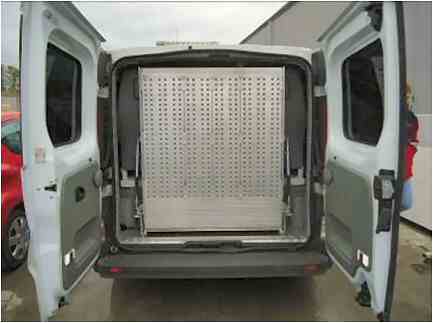

- Heavy duty loading ramp for loading the wheelchairs, positioned at rear to be folded up with 2 gas springs during transport length: 2400 mm, width: 1000 mm

- Perforated rails embedded in the floor, 3 pcs. over whole length, to fasten the wheelchairs

Air conditioning unit for rear compartment, connected to the one in driver’s cabin of approx. 6kW capacity

- 3000 Watt air heating, installed at partition wall

Patient compartment - floor 1 pcs

- Sound proof on the rear fenders

- Plywood floor covered by plastic carpet, all junctions waterproof

Patient compartment - doors 1 pcs

- Doors plastic panels (ABS)

Windows 1 pcs

- 2/3 foil frosted (sliding door and rear doors)

3.)        Optional equipment - EXTRA

Acoustic signalling equipment 1 set

- Blue light bar at vehicle front with siren and 100 W loudspeaker

- One blue light on the roof, at rear

Delivery:              abt. 3 month after firm order, if possible earlier.

Origin:                  European Community.

Warranty:            12 months.
