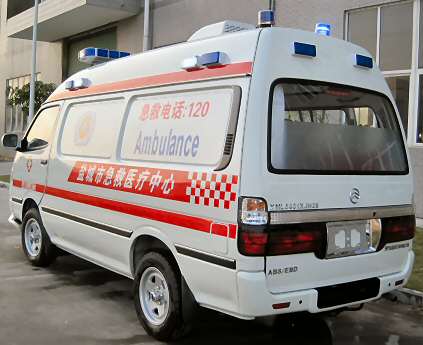

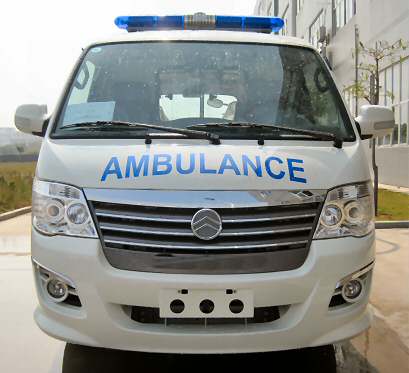

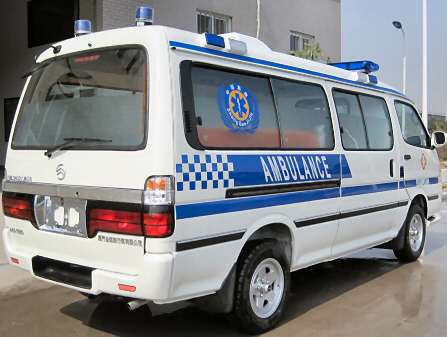

HAICE AMBULANCE




TYPE:

Ambulance

DESCRIPTION:

Haice Ambulance

PRICE:

Upon Request

PACKING:

Ex-Works

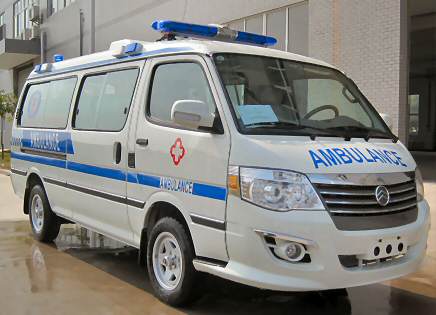

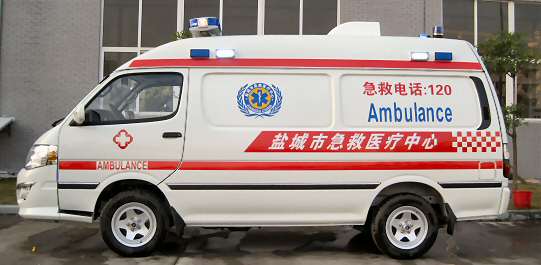

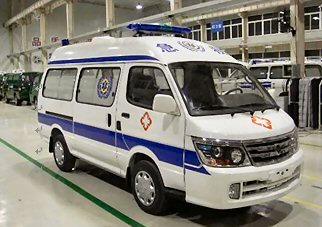

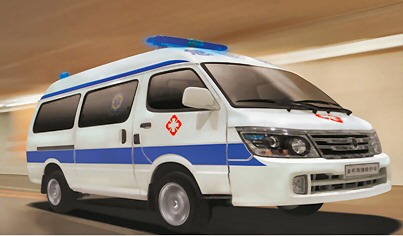

haice ambulance





From new manufacture






General



According to the actual conditions about first aid, our ambulance is designed by means of the advanced technologies at home and abroad. Its various configurations and arrangements can meet the different requirements of conveyance and wardship. The main functions and features are as follows:









1.

The area in the vehicle is divided in accordance with the functions. The cab is separate from the medical treatment room. A large glass and interphone system ensure intercommunication.

2.

The treatment room is equipped with an exhaust system. The cab and medical treatment vent well.

3.

The inner decoration plate of the treatment room is germproof, flame retardant, easy to clean and the floor of the treatment room is slip proofing, wear proof, corrosion proof and integrated.

4.

The central oxygen supply system is provided. The oxygen device and respirator can be used simultaneously.

5.

The equipment cabinet, medical cupboard, apparatus cupboard and the first-aid kit are equipped for storage of materials and apparatus.

6.

The automatic stretcher is equipped so as to fulfill the first aid task at any time.

7.

The supply sockets with DC12V, AC220V are equipped for defibrillation, cardiogram monitor, respirator, electric aspirator, infusion pump and so on.

8.

Besides guarantee of power supply of the first aid equipment, the intelligent inverting circuit and outer electrical source systems have sufficient power to start the vehicle.

9.

The composite warning system, including warning light & siren, strobe warning light, floodlight and so on, can meet the requirements of warning and night.





Basic Specification





Chassis Model

:

Kinglong HAICE, XML6502E33 RHD



Body

:

High roof, tailor-made



Overall Dimensions

:

5280×1700×2225 mm(L×W×H)



Tread (front/rear)

:

1460/1440 mm



Wheelbase

:

2237 mm



Min. Ground Clearance

:

165 mm



Min. Turning Diameter

:

11.5 m



GVW

:

2930 kg



Engine Model & Type

:

JM491Q-ME



Displacement

:

2660 ml



Max. Power

:

76KW(103PS)/4600rpm



Max. Torque

:

192N·m/2800rpm




Vehicle Modification







Item

Description

Floor of medical cabin

15mm waterproof bamboo plank, made in France

Floor surface of medical cabin

Imported Anti-Slip and waterproof PVC mat, made in France

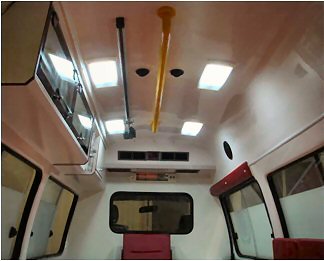

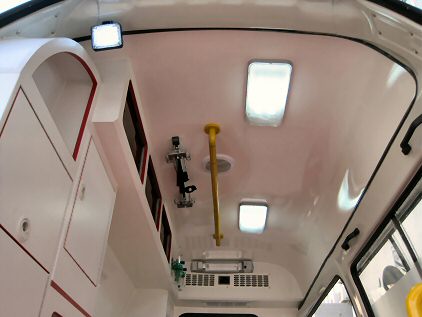

Ceiling

Casting resin molding

Ceiling light

3 units, Strip LED lamp, 140mm*410mm(W*L)

Side panel and back door inner panel

ABS

Partition wall

Separate driving cabin and medical cabin, fiber glass or PVC, easy cleaning

Side utility panel

ABS/FG material Examination LED light Oxygen outlets (O2) ,sockets (12 Volts) and Fuse box

AED and suction unit cabinet



Made of ABS /FG material with rounded edges, top to accommodate AED having special lock system and bottom to accommodate suction unit to be installed on the right side of the vehicle.

D/C electro circuit



65AH maintenance battery, double supply separator, cable and accessories

Current source inverting circuit



Bottom of stretcher

Stainless steel

Bench

Seat cover of best quality artificial leather and seat belts. ABS material, 4 people bench

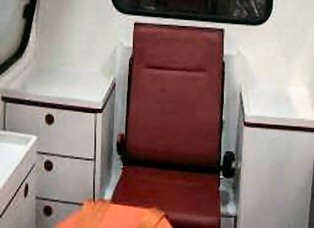

Doctor seat

Rotational with safety belt

Oxygen section

The door having plexiglass window, an internal light with a door switch to be provided Floor of cabinet vinyl flooring

Disposable rack

3-4 pieces

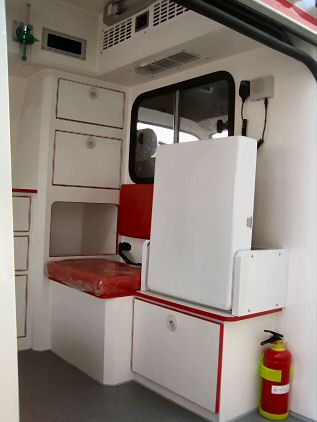

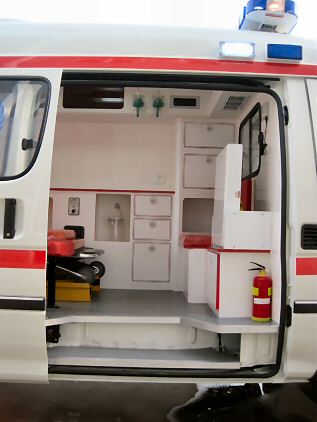

Medical cabinet



Made of high quality non staining scratch resistant, rust proof, water proof, fiber glass and ABS material. All front doors & Drawers having double side finished handles. All doors having self closable imported surface hinges. Cabinet having four sections.

Wash basin section



This section having special molded wash basin with tap, having a water reservoir of 18 to 20 Liters capacity, water is dispensable through an feet pump operated through a foot switch at the cabinet door. Top of the cabinet having marble slab dully polished and having rounded edges and corners one soap dispenser and one case for put paper in it



Fire extinguisher

2Kg DCP in Driver compartment

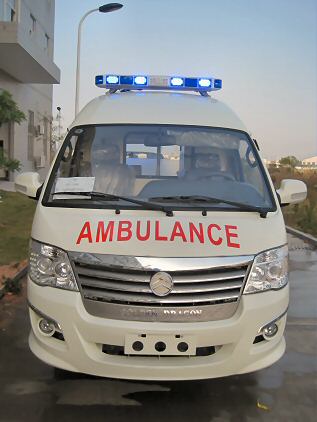

External, internal light and warning devices



Standard flasher type (imported) horizontal red and blue emergency light / LED Flash Light size 1200mm with siren/ hooter system at least 150 watt output. All room and back search lights (LED) sufficient for working and patient handling will be



Transfusion pothook

2 units

Searchlight

Emergency search light

Trash box

Stainless steel with 10 liters capacity Attached to the floor and with plastic removable and washable inner lining

Communication system



Communication system between driving cabin and medical cabin







Medical Equipment







Item

Description

Suction apparatus



positive pressure: ≥0.08MPa(600mmHg)

0.08MPa
suction speed:≥20L/min
liquid
bottle: 1000ml
Power supply: AC 220V±10%
50HzDC 12V
Input power:110VA


Battery working time:≥1 hour

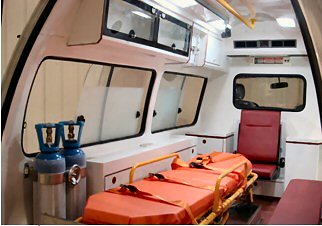

Oxygen supply system

2*10 L oxygen tanker with warning at positive pressure

Folding stretcher (four fold)



Bedding area made of very strong water poof PVC coated washable orange parachute cloth and special carrying bag made of Parachute and structure made of 11/4” round light-weight aluminum alloy.

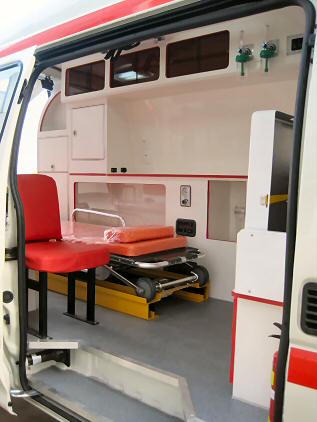

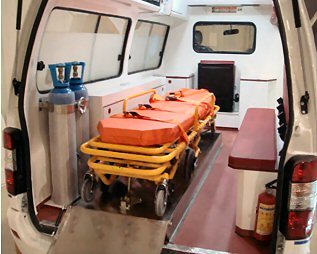

Ambulance used stretcher



Aluminum alloy, automatic with wheels



Ambo Bag



Ambo bag adult and pediatric size



Portable aluminum oxygen supply

One Portable Aluminum Oxygen Cylinder with flow meter in carrying Bag

First aid kit box

including min. 10 Items

Other



Reflective triangle

Caution sign tape roll.

Standard flasher type (imported) horizontal red and blue emergency light / LED Flash Light size 1200mm with siren/ hooter system at least 150 watt output. All room and back search lights (LED) sufficient for working and patient handling will be




Specification and photos are not contractual and are subject to verification upon inspection
