GMC SAVANNA B6





TYPE:

Vehicle

DESCRIPTION:

GMC Savanna Van Armored B6

PRICE:

Upon Request

PACKING:

Ex-Works

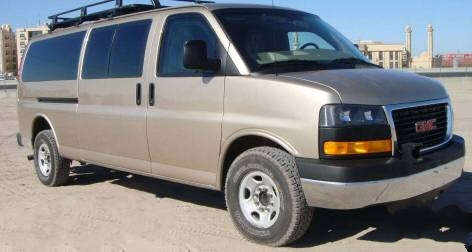

GMC Savanna van armored b6





From new manufacture



GMC Savanna Passenger Bus 10 or 13 SeaterArmoured to Level








European Level B6 – NIJ Level III



Standard Vehicle Specifications

Engine

• Petrol Engine Vortec 6000cc

• V8 SFI

• Max Horse Power 402hp @ 5,600rpm

• Max Torque 417 lb-ft (565Nm) @ 4,400rpm

• Fuel tank capacity 117L

Transmission

• 6 Speed – heavy duty electronically controlled with overdrive

• 5 forward, 1 reverse

Brake System

• Brakes 4-wheel anti-lock with front & rear disc

Dimensions

• Wheel base 3,937mm

• Overall width 2,017mm

• Overall length 6,200mm

• Overall height 2,083mm

Features

• Air Conditioning front manual & rear with 8 point digital compass

• Power assisted steering

• Steel wheel rims 16"

• Passenger capacity 15

• Seat configuration front to rear 2/3/3/3/4

• Upholstery cloth

Specifications of Armor & Vehicle Alterations

• Six sided armoring of passenger cabin to give maximum protection against 7.62x51mm Nato ball and 5.56x45 (SS109)

• A, B, C & D pillars are protected with armor, as are front fenders, (wings) rear wheel arches & firewall. This adds structural rigidity to the overall vehicle. Roof will protect against 45 degree angle shots.

• All passenger doors are fitted with overlap system and antispall guard which provides maximum strength retention to prevent penetration through door posts & pillars.

• Vehicles armor plates are stitch-welded using high-intensity MIG welders. This process ensures the structural integrity is uncompromised by thermal and chemical variations of the material.

• The glass is installed using ballistic grade steel frame for added protection which gives extra support to help prevent cracks & fractures. This also provides added protection for these potentially weak areas, which are commonly missed by other manufacturers.

• The hinges are bolted directly onto the armor through the pillars & the doors to prevent stress on the hinges and the internal panels which otherwise will lead to cracking under the extra weight.

• Floor is fitted with blast protection to protect occupants against fragmentation from simultaneous detonation of 2 DM-51 German ordnance hand grenades or equivalent

Transparent Armor

• Flat & Cruved glass, PVB/polycarbonate laminate 6.2kgs./sq.ft(13.7lbs/sq.ft) – Thickness is 40mm (Replaces all OEM glass, side glasses will be flat with OEM replaced over the top)

• Glass is manufactured under strictly controlled conditions, using only the highest grade materials.

• Anti-Spall shield protects against glass splinters, chemical attacks. Autoclave temperature allows the polycarbonate to lose its memory to prevent delaminating & internal stress. The glass also provides multi hit protection.

• The ballistic performance of bullet resistance glass can be diminished when the glass is exposed to high temperatures; Solar Plus ensures total ballistic resistance performance for a longer period of time.

• Glass is tested in accordance with EN 1522 & EN 1063 European Level B6 – NIJ Level III & BRV1999

Standard Security Features

• Runflat devices fitted in all wheels including the spare., OEM tries up-rated to heavy duty on-road/off road (puncture prevention system installed in all wheels Air-Seal UK).

• Spare wheel modified into quick release system.

• Brake up-grade to cross drilled/ grooved with ceramic /composite pads (DBA) ABS to have de-activation option.

• Fuel tank encased with ballistic steel to protect against explosive projectiles & additional explosion protection material will be installed inside the fuel tanks (Explosafe)

• Drive & passenger doors fitted with heavy duty webbed door straps.

• 2 x Batteries are protected within an armored box in the engine. compartment with dual charging system regulated via isolator.

• Exhaust protection to prevent foreign objects being inserted.

• Suspension is modified as necessary to compensate for the additional weight.

• Side windows will be flats pieces with OEM installed over the top.

• Rear and side passenger doors & rear barn doors and side windows are tinted, front driver & passenger door glass will be clear.

• Automatic Fire Suppression system installed within the engine compartment, controls mounted internally as well.

• Rear bulkhead installed behind last row of seats to provide cargo space, escape hatch installed in bulkhead & in roof for emergency.

• Heavy duty roof rack system 2.2 meters in length (ARB)

• 2 x 2kg Fire extinguishers installed within the cabin

• Heavy duty ram bars installed behind OEM front & rear bumpers

• Cargo net with D-rings fitted to the floor in the cargo area

• Additional heavy duty jack minimum 4.5tone to cope with additional weight to be supplied

• Second rear-view mirror installed

Electrical

• All electrical equipment standard to this vehicle is tested and shielded as necessary to protect against the armoring process.

Note: All gunports are concealed and not outwardly visible.

The overall appearance of the vehicle is maintained as close to the original look as possible.

Confidentiality

Both parties to this contract agree to keep any and all details of this agreement strictly confidential, and not to disclose any of the information contained herein to any unauthorized person(s) or entities which may be construed as current or potential clients of, or competitors of Bahrah Trading Company W.L.L. This clause is included for the benefit of both parties to this contract.

Warranty

Bahrah Trading Company warranties any armor related items installed

against manufacturer's defects for a period of 12 months or 50,000KM which ever comes first. Any suspected warranty related work must first be

confirmed as being necessary by means of technical consultation with a

representative of Bahrah Trading Company W.L.L. Technical consultation

regarding any repairs or malfunctions is available by telephone, fax or email

during normal operating hours.

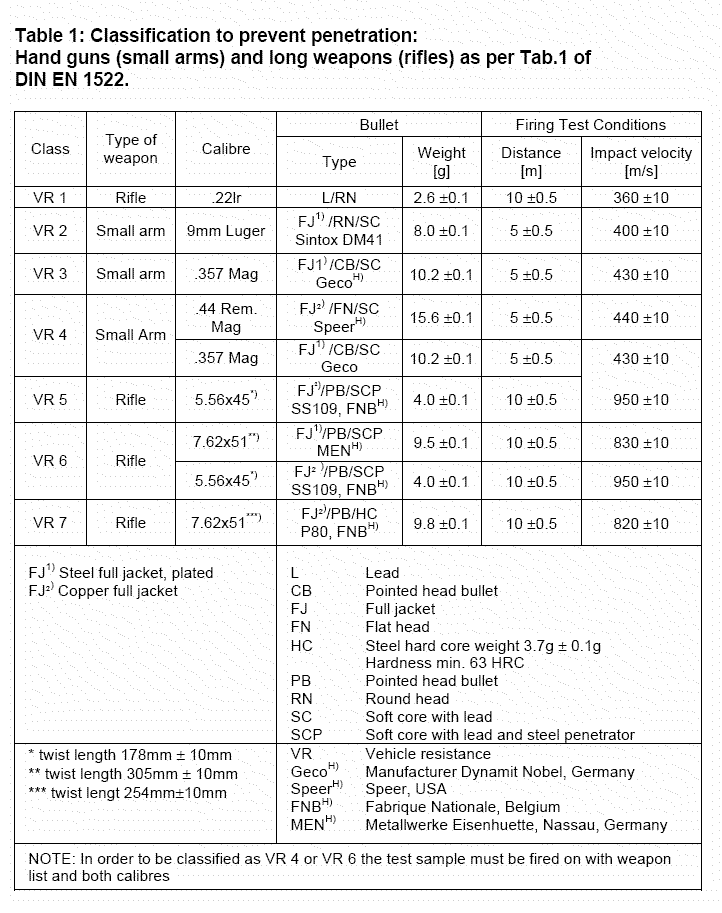

Ballistic Protection Level Details

(Please refer to VR6)




Appendix A: Sample Images

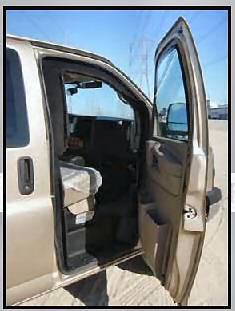

Heavy Duty door hinges

fitted to both front doors to

prevent excessive travel on

the doors.

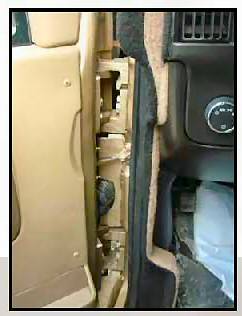

100% overlap system fitted

on all doors opening these

are all trimmed to match

the interior of the vehicle

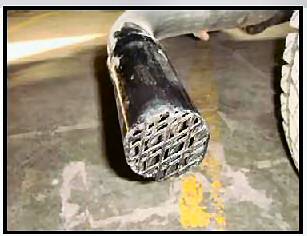

Exaust protection

prevent foreign objects

being inserted

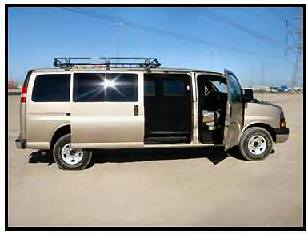

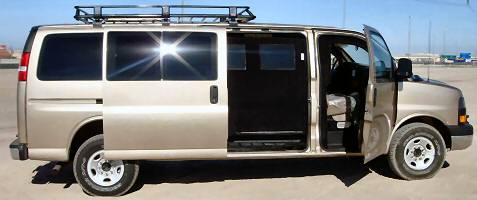

Integral armored sliding

door installed

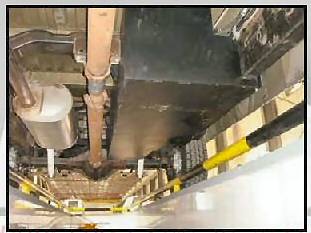

Fuel tank is protected

with ballistic steel

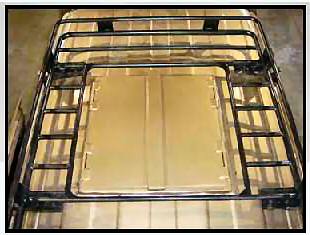

Roof rack installed with

roof escape hatch

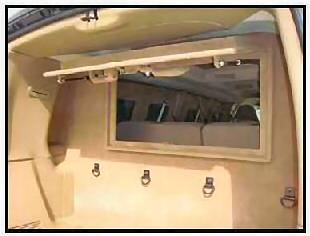

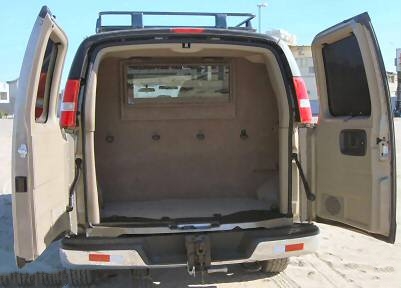

Escape hatch is installed in

the rearcargo bulkhead

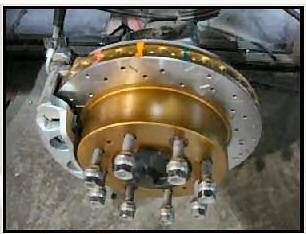

Heavy duty brakes up-grade

installed

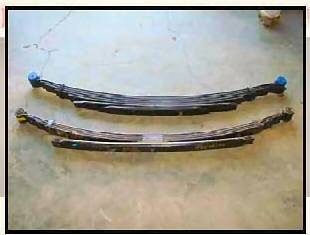

Heavy duty suspension

installed to compensate for

additional weight







Specification and photos are not contractual and are subject to verification upon inspection
