FUZE UTIU M02P1





TYPE:

Fuze

DESCRIPTION:

Fuze UTIU M02P1

PRICE:

Upon Request

PACKING:

Upon Request





fuze utiu m02p1



From New Manufacture

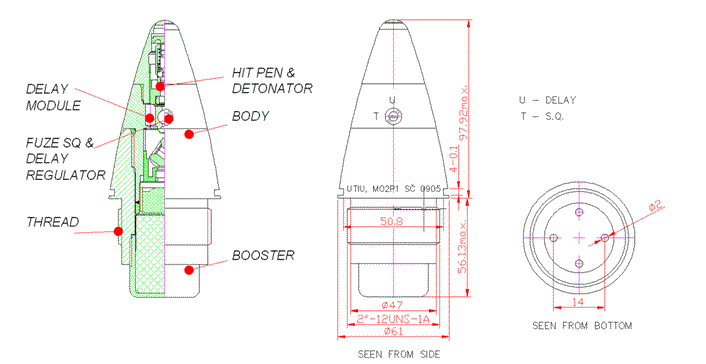

FUZE UTIU, M02P1 CHARACTERISTICS



1

Short description UTIU, M02P1 is point detonating, mechanical fuze, superquick and delay action.


2

Purpose

Intended for assembling of artillery HE projectile with an opening for (with an adapter)100mm, 105mm and 155mm, and with the thread change for 122mm, 130mm and 155mm

3

Safety

As per MIL - STD - 1316B.

4

Action type

Superquick;

Delay.

5

Minimum arming conditions

Acceleration 24000 m/s.

Rotation  3000 min.

6

Safety after drop test

3 m.

7

Muzzle safety

Min  10 m. depending on the ammunition charge

8

Temperature range of usage

-40  C to  + 50  C.

9

Airtightness

It's Airtight.

10

Weight

~950 g.

11

Transportation safety

Safe at all types of transportation.

12

Shelf life

15 years min.





Specification and photos are not contractual and are subject to verification upon inspection
