FUEL STATION





TYPE:

Station

DESCRIPTION:

Mobile Fuel Station

PRICE:

Upon Request

PACKING:

Ex Depot






mobile fuel sytation



From New Manufacture

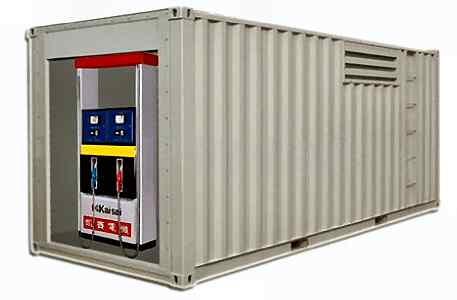

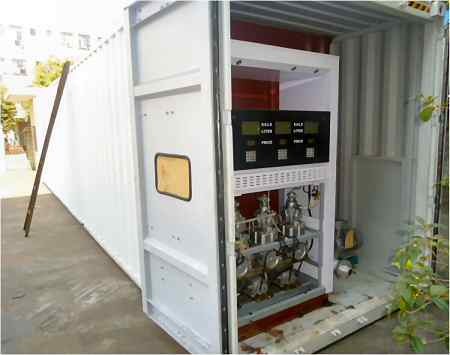

40ft Mobile Fuel Station

Model Number: ADIWF-S007


Container Size: 12192*2438*2591 mm (L*W*H)


Storage Tank: Single Wall


Fuel Dispenser: with famous brand
dispenser







20ft mobile gasoline Station


Model Number: ADIGDF-MF010


Container Size:  20ft x 8ft x9ft  (L*W*H)


Storage Tank: Single Wall


Fuel Dispenser: with China famous brand dispenser







Guarantee: 5 years for the oil tank, 1 year for refueling machine


Lead time: 25 to 30 days


Shipping time: 20 days around


  Other Details:


1. Built-in fuel tank (material Q235, thickness 5 mm); external 40 ft container (including  testing report)

2. Brand fuel dispenser

3. Loading system at the bottom: with cover aluminum alloy quick joint

    Overflow proof valve, drainage system

4. Exposion proof pneumatic diaphragm pump(with quick connector, for refueling built-in tank )

5. Oil inlet pipeline and oil outlet pipe, equipped with stainless steel ball valve,

6. Transparent hose gauge (can observe the inside liquid level height)

7. Two fire extinguishers, fire resistance ventilation hat

8. Tank support and anti-skid system

9. Emergency ventilation system (each compartment)

10. The vacuum pressure valve and piping

11. Emergency cut-off valve (explosion proof)

12. Fire preventing breathing valve

13.  Pressure adjustable pump

14.  Installed base for fuel dispenser

15. Tank manhole covers

16. The lifting rings (on client's request)



Finishing: After clean and polish tank ,paint anti-corrosive primer, then add Alkyd top-coating

Customized stainless steel lable is offered



Remarks:1. If you have any more requirements, please kindly let us know. Welcome your own OEM drawings.


The tank container can be equipped as a complete gas station | service station for cars, trucks and diesel locomotives or as tank container for yachts and boats.

*It can also be applied as airfield gas station (gas station/service station for helicopters).

*Own integrable current supply

*International transportation permission for ship, rail and road

*General construction supervision approval as storage tank

*Extremely robust and high static firmness

*Double-walled  or single-walled structure with vacuum leakage indicator

*Protective arrangement of the equipment inside the tank body

The mobile gas station with tanker can become mobile fuel station , it is not limited to the time and place. As long as the customer is willing, there can be a customer's premises. Suited to the economy is not prone areas and remote areas, war-torn areas, the population is not concentrated areas, poor tourist areas, communications and other areas of instability temporary use. The product has good reputation in the international guests. Because the production is limited, the products in short supply.

Standard equipment
- Dispensing unit
- Leakage indicator
- Control panel
- Thermal insulating materials
- Sight glass
- Thermometer
- Pump
- CIP universal cleaning device
- Static pressure transmitter
- liquid inlets and outlets
- Ventilation
- Liquid level meter

Brief introduction

40ft fuel station ,double-walled or single -walled made of steel, in ISO structure with heavy container frameworks and ISO corner fittings.

Internationl standard , Mobile fuel filling station in container , Easy migration & installation, Low costs,easy to operate.

We can provide a set of system matching vacuum pipes, transfer pumps, vaporizers, and pressure regulation appliances according to customer`s requirements.

Besides specific products, we can design and manufacture large sums with various volume for you.

Mobile petrol station/mobile fuel station/container fuel station/ container petrol station

Model Total volume

(Liter)

Container inner dimension(mm) Inside tank dimension(mm) Total weight(ton)
20feet mobile fuel station 10,000 5895x2350x2390 4500x1500x1500 4.23
15000 5895x2350x2390 4300x2200x2200 4.55
16000 5895x2350x2390 4500x2200x2200 4.74
20,000 5895x2350x2390 4500x2150x2150 4.93
40feet mobile fuel station 30,000 12029x2350x2390 6800x2250x2000 6.95
36,000 12029x2350x2390 8150x2250x2000 7.25
40,000 12029x2350x2390 8800x2280x2000 7.75
50,000 12029x2350x2697 10500x2250x2150 8.39
55000 12029x2350x2697 10500x2280x2300 9.35





Specification and photos are not contractual and are subject to verification upon inspection
