FRAME 6





TYPE:

Power Plant

DESCRIPTION:

Frame 6 Power Plant

PRICE:

Upon Request

PACKING:

As is, Where is





frame 6 power plant




Subject
Unsold or Market Withdrawal




50 HZ, Frame 6 ( 6551B ) based combined cycle plant :

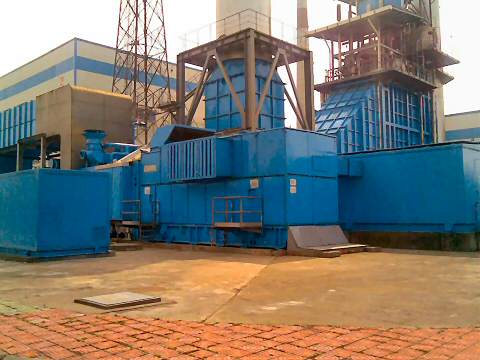

Gas Turbine European Gas Turbines,  6551B model ; manufactured in 1998;  8031 Fired Hours;  HFO fuel ;  37 MW ISO, diesel engine start; T60C model generator; 45.6 MVA;  10.5 kV; brushless excitation system ;  GE Speedtronic MK V control system.

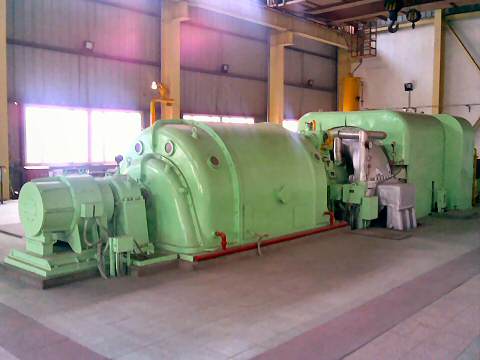

Steam Turbine -  Harbin Turbine Co. Ltd, model N-15;  15 MW ISO; 445 deg C. inlet temp;  3.6  Mpa;  66 ton/hr rated steam flow;  Nanjing Turbine & Electrical machinery ( NTC ) model QFW 15-1-10.5;  10.5 kV, brushless excitation system; Semi Half Condenser type, two conduits, surface style, 5 ton/hr; Harbin Turbine Automation Control model SG8000

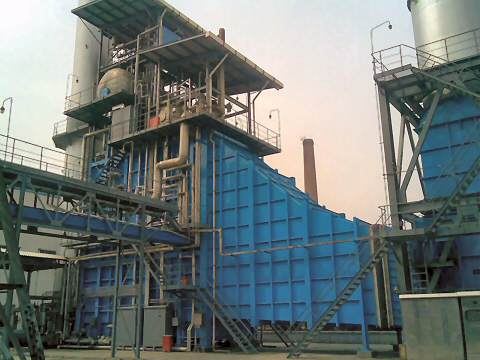

HRSG -  Model Q393-542-66-3.82/450; horizontal arrangement; Single Pressure, Self deoxygen; non duct burning; 3.82 +/- 5 deg. C.; 66 ton/hr


Main Transformer Model SF8-50000/110kV


Main Transformer Model SF9-20000/110kV


Plant transformer ( two ) Models SC -1600/10 1000/10


Chemical System


Ammonia Dosing System


Chemical Water Replenishing System


Miscellaneous BOP equipment including  Feed water pump


DCS System; ABB freelance 2000


DEH System; Woodward 505e


Fuel Treatment System;  Westfalia Model OSB35-02-066/40


The plant is currently installed and out of commission.



We are in capacity to support with disassembly, packaging, transportation, re-installation engineering, procurement of material /equipment , installation and commissioning upon your request.





Specification and photos are not contractual and are subject to verification upon inspection
