FORD3430





TYPE:

Truck

DESCRIPTION:

Ford 3430 Tipper Truck 16 m³

PRICE:

Upon Request

PACKING:

Ex-Works

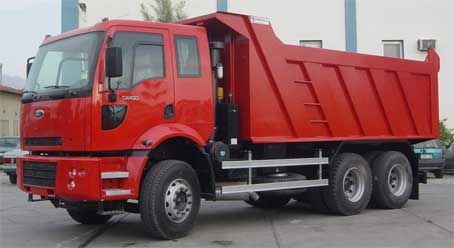

FORD 3430 TIPPER TRUCK 16 M³









TECHNICAL SPECIFICATION FOR TIPPER BODY KAT/TP16M³

VOLUME: 16CUBM

SHEET THICKNESSES:
SIDE GATES: 6mm ST-52
BASE PLATE: 8mm ST-52
BRIM:   6mm ST-37
REAR GATE:  6mm ST-52

GENERAL

BODY AND HYDRAULIC LIFTING MECHANISM WILL BE MASS MANUFACTURED AND IDENTICAL PARTS WILL BE REPLACEABLE.

OPERATION, MAINTANCE AND SPARE PARTS MANUALS IN ENGLISH WILL ACCOMPANY EACH UNIT.

SIDE GATES:
GATE TYPE: FIXED

REAR GATE: AUTOMATIC LOCKING AND UPPER HINGED

GATE TYPE:

LIFTING MECHANISM:

LIFTING SYSTEM

 TELESCOPIC LIFTING BY SINGLE ACTING CYINDER

LUBRICATING: CYLINDER WILL BE GREASE LUBRICATED

HYDRAULIC SYSTEM/ HYDRAULIC POWER WILL BE PROVIDED BY A pto DRIVEN HYDRAULIC GEAR PUMP
ALL ORESSURE PIPES USED IN THE SYSTEM WILL BE SEAMLESS
OIL TANK CAPACITY WILL BE 70 LT.
THERE WILL BE125 MICRON SUCTION FILTER

ACCESSORIES:

FRONT RIGHT OR LEFT SIDE WILL BE FITTED WITH A LADDER MUD GUARD ON BOTH SIDES, WILL COVER ALL WHEELS

PAINTING:

CLOSED SURFACE WILL BE PRIMER COATED PRIOR TO MOUNTING
ALL BODY WILL BE THROUGHLY SAND BLASTED .

ALL BODY WILL BE MULTI COATED CORROSION RESISTANT PRIMER COATING

FOLLOWING THIS, ALL BODY WILL BE MULTI COATED WITH FINAL PAINT OF PREFERRED COLOR

WARRANTY: TIPPER BODY WILL BE UNDER WARRANTY FOR DURATION OF 1 YEAR AGAINST MATERIAL AND LABOR DEFECTS.













Specification and photos are not contractual and are subject to verification upon inspection
