FORD TRANSIT AMBULANCE





TYPE:

Ambulance

DESCRIPTION:

Ford Transit Ambulance

PRICE:

Upon Request

PACKING:

Upon Request





ford transit ambulance





From new manufacture

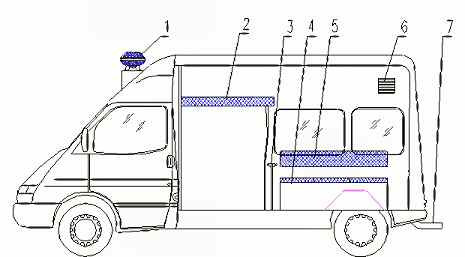

1. Siren             2. Bump Resistant Cushion           3. Handrail        4. Passenger Seating

5. Backrest       6. Ventilation Outlet                       7. Tread board

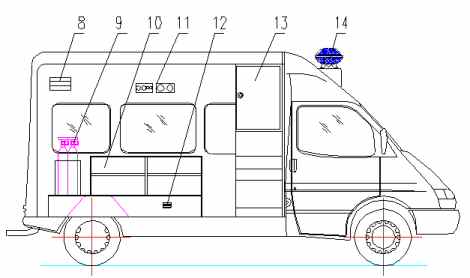

8.  Vent Outlet         9. Oxygen Cylinder                 10. Combination Medical Cupboard


11. Electric-Power Oxygen Terminal                       12. Converter Heat Outlet


13. Combination Medical Cupboard                        14. Siren

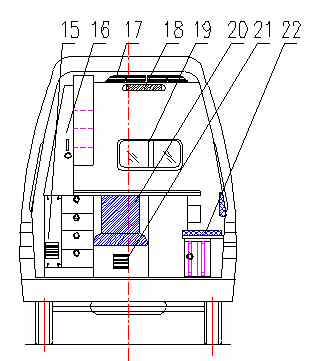

15. Air-Conditioner Evaporator Wind Returning Outlet                 16. Combination Medical Cupboard

17. Air-Conditioner Vent Outlet       18. Ultra-Violet Disinfection   19. Sliding Window in Isolation Wall

20. Nursing Seats                              21. Heater vent Outlet           22.  Passenger Seats

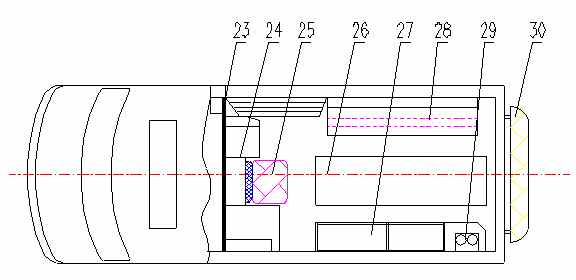

23. Isolation Wall                  24. Combination Medical Cupboard             25. Nursing Seats

26. Main Stretcher                27. Combination Medical Cupboard             28. Passenger Seats

29. Oxygen Cylinder             30. Tread board



Product Code

SL5031XJHE1

SL5040XJHE1

Base Vehicle Model

JX6477-M

JX6546DB-M

Dimensions L x W x H (mm)

466619742200

5618 x 1974 x 2400

Wheel Base (mm)

2835

3570

Full Loaded Weight (Kg)

2880

3510

Curb Weight (Kg)

1880

2600

Max Speed (Km)

140

120

Min. Steering Diameter (m)

11.3

13.8

Fuel Consumption (100 Km)

9

9

Engine Model

4G64S4N

JX493ZLQ3

Fuel Type

Gasoline

Diesel

Max. Power (Kw/RPM)

92/5250

85kw/3600rpm

Emission

Euro III

Euro III

Displacement (cc)

2351

2771

Steering

Power Steering

Power Steering

Wheel Tread (mm)

1692/1700

1692/1700

Seating Capacity

5

6
