FORD F-550 ARMORED 14 PAX
Ford F-550 Armored Personnel Transport
ford f-550 armored personnel transport

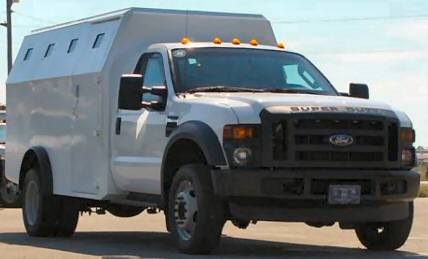

FORD F-550 4x4 ARMORED PERSONNEL TRANSPORT
13 PAX + 1 DRIVER
ARMORED TO CEN-B6
|Ford F550 XL 4x4|
|Body Style:||Left hand drive – cab & chassis|
|Engine, Fuel Type:||
6.4L Power Stroke V8
325hp @ 3,000rpm / 600 lb-ft. torque @ 2,000rpm
|Fuel Tank Capacity:||40 gallons|
|Transmission:||5 speed automatic transmission with manual transfer case|
|Wheels/Tires:||OEM Steel wheels / 225/70/19.5 tires|
|Brakes:||4 wheel disc brakes / ABS with hydro boost|
|Drive Configuration:||4 x 4 DRW|
|Seats:||cloth high back seats|
Armor Conversion Modifications / Alterations

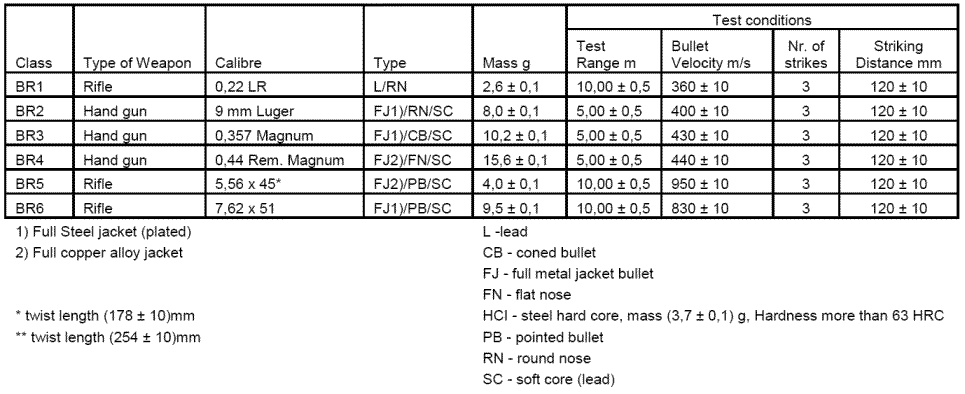

The perimeter armoring of passenger compartment (all vertical areas, roof, firewall armoring, and all glazing) to provide protection against 7.62x51mm, M80 NATO Ball ammunition (CEN Level B6/NIJ-STD-0108.01 Level III), at zero degree obliquity angles.
Floor is fitted with a blast protection to protect occupants against fragmentation from simultaneous detonation of 2 DM-51 German ordnance hand grenades or equivalent.
Armoring is included on kick panels, Front fenders, rear wheel wells, firewall, door pillars and posts
The unique engineering and construction of the armor plate design utilized in the vehicle allows the weight of the door to be transmitted directly onto the modified structure. The design distributes weight in such a way as to minimize the stress on the modified hinge
components without the risk of excess stresses due to the added door weight.
Vehicle’s armor plates are stitch-welded using high-intensity MIG welders. The above process ensures the structural integrity is uncompromised by thermal and chemical variations of the material.
Windshield: Curved glass, OEM style,
Driver and Front Passenger doors: Flat glass module, with gun ports
Flat glass modules in all remaining areas: 4 per side and 1 rear window in passenger area
Low-spall shield protecting against shattering glass in case of attack
Multiple impact protection
Finest optical quality, Minimal distortion
No de-lamination, No discoloration from UV rays
Armor overlap at all doors to prevent penetration through door posts and pillars
Door pillars and hinges reinforced for maximum strength retention
OEM door plastic trim to be resized and fitted back to maintain the closest to OEM appearance as possible
Side curbside door, armored to the same level as the rest of the vehicle
Rear doors feature HD steel door hinges and restraints
Rear and curbside doors feature “dog-leg” deadbolts for added security
Auxiliary Air Conditioner in rear seating area
ASSA high security locks on curb side and rear door
Electric solenoid locks with manual override installed at curbside door, push-button controls from driver’s position
High-efficiency large dome lights in front cabin (1)and in rear passenger area (2)
All exposed wiring to be fitted in HD looms and securely attached to ensure durability and serviceability.
Standard Security Features and Accessories
Hutchinson run flat devices fitted in all vehicles’ tires, including spare
Steel-case fuel tank protection
Tailpipe protection against the insertion of foreign objects
Vehicle battery and ECM armor protection, engine bay flank armoring
Quality primer and Zolatone paint applied to all interior painted surfaces
Reinforced door hinges, designed for extended longevity and easy maintenance
Reinforced door pillars and posts
Suspension components are reinforced as necessary to compensate for additional weight of the vehicle
All manuals and written information provided by vehicle manufacturer is included with the vehicle
